Picture of 1060 Soft Close Kit Picture of 1060 Soft Close Kit

1060 Soft Close Kit

1 Direction Soft Close Kit
  • Single Direction Soft Operation

  • 165lbs. [75kg] Max. Door Weight

  • 100, 134F, 138F, 2610F Series Track Compatibility

  • 1500, 1560, 1562, 2710 Series Pocket Door Frame Compatibility

    • Manufacturer part number: 1060
    Buy Now

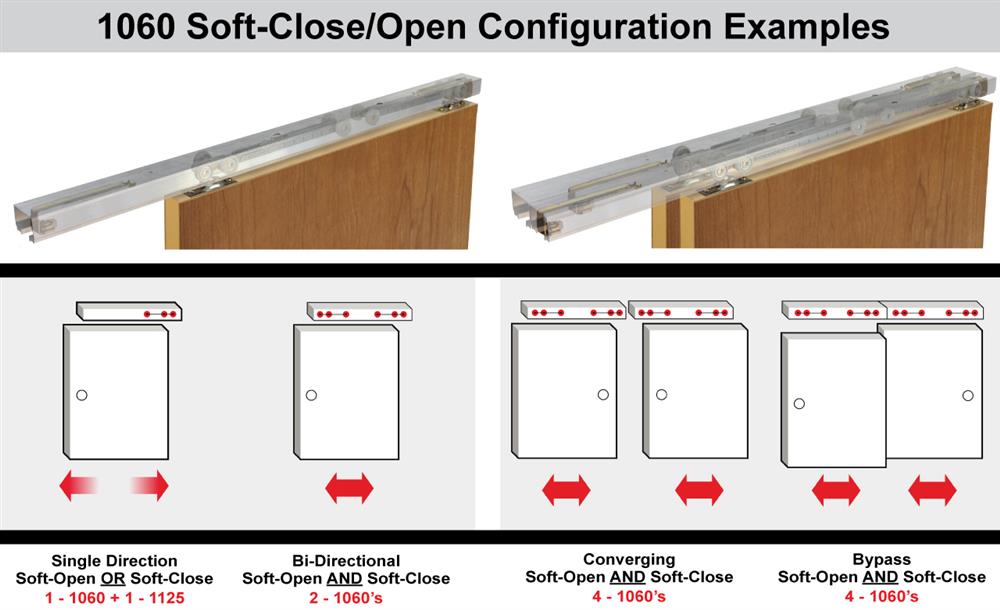

    The 1060 Soft-Close Kit contains a single soft-close actuator only. For single direction soft door operation, the 1060 must be used in combination with a 1125 Door Hanger. For bi-directional soft door operation 2 1060's are required. Soft-Close kits can be used to convert current 100 Series installations to soft-close operation or are available prepackaged with select 100 Series Hardware Sets for new installations.

    The 1060 Soft-Close Kit contains a single soft-close actuator only. For single direction soft door operation, the 1060 must be used in combination with a 1125 Door Hanger. For bi-directional soft door operation 2 1060's are required. Soft-Close kits can be used to convert current 100 Series installations to soft-close operation or are available prepackaged with select 100 Series Hardware Sets for new installations.
    Related Products
    Picture of 1031SC01 Soft-Close Pocket Door Part Set

    1031SC01 Soft-Close Pocket Door Part Set

    100PDSC Series Soft-Close Pocket Door Part Set.

    Use this part set in combination with 1060 Soft-Close Kits and 100 Series Track to create custom 100 Series hardware sets.

    Buy Now Buy Now
    Picture of 1031SC02 2-Door Soft-Close Part Set

    1031SC02 2-Door Soft-Close Part Set

  • 100/138F/134F Track Profile Compatibility
    • Buy Now Buy Now
    Picture of 1031SC03 3-Door Soft-Close Part Set

    1031SC03 3-Door Soft-Close Part Set

    Combine this part set with Track and Soft-Close Actuators to assemble complete hardware sets.
  • 100/138F/134F Track Compatibility
    • Buy Now Buy Now
    Picture of 1031SC04 4-Door Soft-Close Part Set

    1031SC04 4-Door Soft-Close Part Set

  • 100/138F/134F Track Profile Compatibility
    • Buy Now Buy Now
    Picture of 100PD Pocket Door Hardware

    100PD Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door*

  • 1" [25mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Soft-Close Compatible W/ Optional Soft-Close Kits
  • Commercial Grade Top Hung Pocket Door Hardware

    • *With Optional Ball Bearing Hangers

    100PD Installation Instructions

    Buy Now Buy Now
    Picture of 100BP Bypass Pocket Door Hardware

    100BP Bypass Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 7-1/4" [184mm] Min. Wall Structure Thickness

  • *189-1/2" (15' - 3/4") [4813mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Bypass Pocket Door Hardware

    • * 4-Door Configuration

    100BP Installation Instructions

    Buy Now Buy Now
    Picture of 100MP Tri-Pass Pocket Door Hardware

    100MP Tri-Pass Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 9-1/4" [235mm] (2 x 10) Min. Wall Structure Thickness

  • *283" (25' - 1/2") [7188mm] Max. Opening Width

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

    • * 6-Door Configuration

    100MP Installation Instructions

    Buy Now Buy Now
    Picture of 100MD Multi-Pass Sliding Door Hardware

    100MD Multi-Pass Sliding Door Hardware

  • Soft-Close/Open Door Operation w/optional 1060 Kit
  • 200lbs [91kg] Max Weight Per Door

  • 5-1/4" [133mm] Min Wall Structure Thickness*

  • 1" [25mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

    • *Wall Structure Thickness Varies With Door Thickness

    100MD Installation Instructions

    Buy Now Buy Now
    Picture of 1500HD Series Heavy-Duty Pocket Door Frame Kits

    1500HD Series Heavy-Duty Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] - 1-3/4 [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

    • 1500HD Installation Instructions
    Buy Now Buy Now
    Picture of 1500PF Series Pocket Door Frame Kits

    1500PF Series Pocket Door Frame Kits

  • 125lbs [57kg] Max. Weight Per Door

  • 36" [914mm] x 80" [2032mm] Max. Door Size

  • 1" [25mm] to 1-3/4" [35mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

    • 1500PF Installation Instructions
    Buy Now Buy Now
    Picture of 1560 Series Pocket Door Frame Kits

    1560 Series Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 1560 Installation Instructions
    Buy Now Buy Now
    Picture of 1562 Series Bypass Pocket Door Frame Kits

    1562 Series Bypass Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 18" [457mm], 24" [610mm], 30" [762mm], 36" [914mm] Door Widths

  • 96" [2438mm] Max Door Height

  • 1-3/8" [35mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

    • 1562 Installation Instructions
    Buy Now Buy Now
    Picture of 2610F Wall Mount Sliding Door Hardware

    2610F Wall Mount Sliding Door Hardware

  • 200lbs [91kg] Max Weight Per Door*

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Mill Grade Aluminum Track Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • *With Ball Bearing Hangers

    2610F Installation Instructions

    Buy Now Buy Now
    Picture of 2610SC Soft-Close Wall Mount Sliding Door Hardware

    2610SC Soft-Close Wall Mount Sliding Door Hardware

  • 165lbs [75kg] Max Weight Per Door

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Anodized Bronze or Mill Track Finish

  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

    • 2610SC Installation Instructions
    Buy Now Buy Now
    Picture of 100SD Sliding Bypass Door Hardware

    100SD Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1" [25mm] Min Door Thickness
  • Top Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

    • 100SD Installation Instructions
    Buy Now Buy Now
    Picture of 100SM Side Mount Sliding Bypass Door Hardware

    100SM Side Mount Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
  • Side Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

    • 100SM Installation Instructions
    Buy Now Buy Now
    Picture of 138F Sliding Bypass Door Hardware

    138F Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Twin Box Rail Fascia Track Type

  • Anodized Bronze or Mill Track Finish

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

    • 138F Installation Instructions
    Buy Now Buy Now
    Picture of 134F Sliding Bypass Door Hardware

    134F Sliding Bypass Door Hardware

  • 200lbs [91kg] Max Weight Per Door

  • 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Twin Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Soft-Close/Open Door Operation Available
  • *165lbs [75kg] Soft Operation Max Weight per Door

    • 134F Installation Instructions
    Buy Now Buy Now
    Picture of 100 Series Track

    100 Series Track

  • 192" (16'- 0") [4877mm] Max. Length

  • Commercial/Residential Application

  • Box Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade Aluminum Track Finish

    • Buy Now Buy Now
    Picture of 2610F Series Wall Mount Track

    2610F Series Wall Mount Track

  • 192" (16'- 0") [4877mm] Max. Length

  • Box Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade or Anodized Aluminum Track Finish

    • Buy Now Buy Now
    Picture of 138F Series Bypass / Fascia Track

    138F Series Bypass / Fascia Track

  • 192" (16'- 0") [4877mm] Max. Length

  • 1-3/8" (35mm) Door Thickness

  • Twin Box W/Fascia Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade or Anodized Aluminum Track Finish

    • Buy Now Buy Now
    Picture of 134F Series Bypass / Fascia Track

    134F Series Bypass / Fascia Track

  • 192" (16'- 0") [4877mm] Max. Length

  • 1-3/4" (44mm) Door Thickness

  • Twin Box W/Fascia Track Profile

  • 6063T6 Extruded Aluminum Track Material

  • Mill Grade or Anodized Aluminum Track Finish

    • Buy Now Buy Now
    Picture of 1125 Ball Bearing Door Hanger

    1125 Ball Bearing Door Hanger

  • 200lbs [91kg] Weight capacity

  • 1" [25mm] Wheel diameter

  • Nylon Encapsulated Ball Bearing Wheel

  • Top Mount Hanger Plate

  • Commercial Grade

  • Compatible with 100, 134F, 138F, 2610F Series Track

    • Buy Now Buy Now
    Picture of 1121 Door Hanger Plate

    1121 Door Hanger Plate

  • Compatible with 1120 or 1125 Hanger Only

    • Buy Now Buy Now
