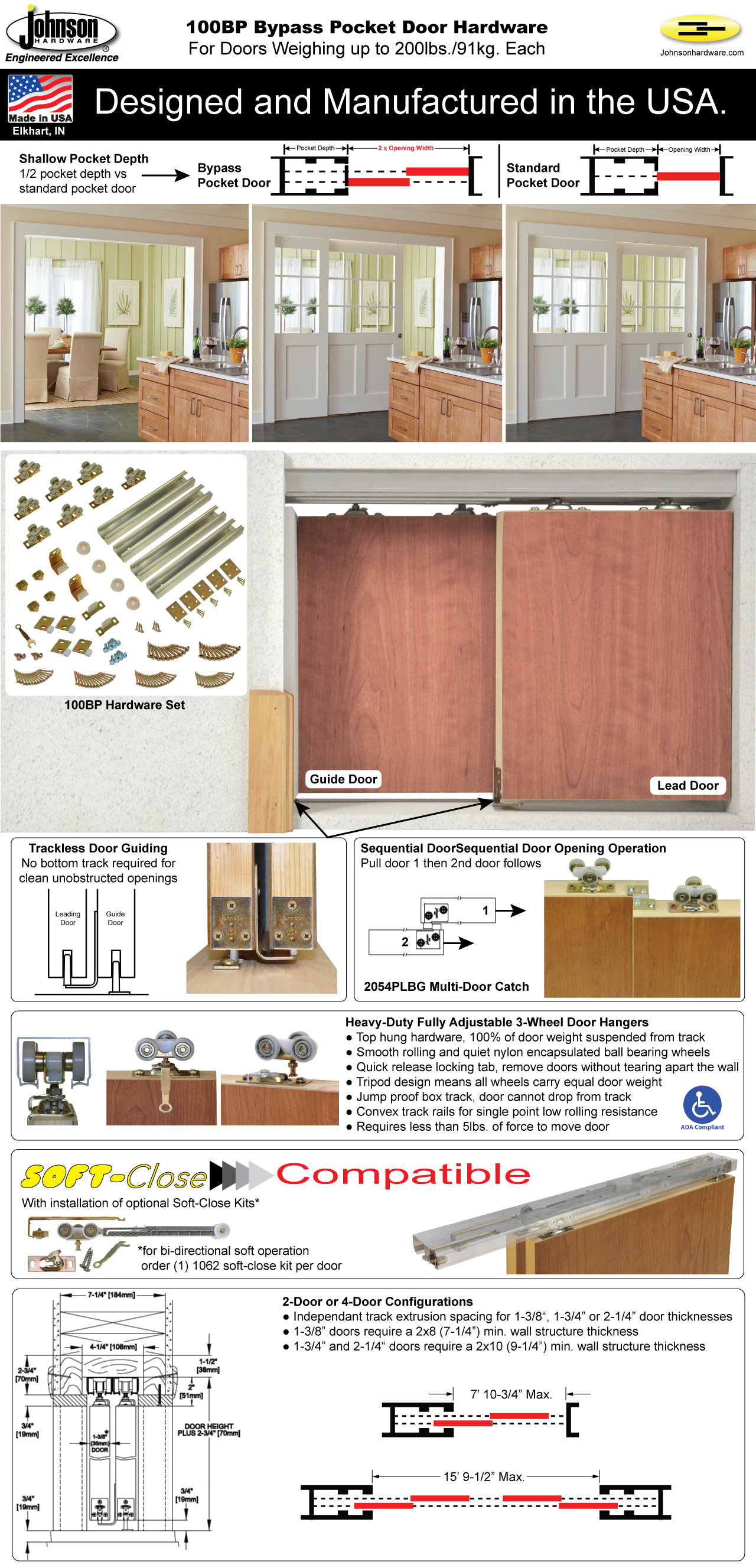

100BP Bypass Pocket Door Hardware

200lbs [91kg] Max. Weight Per Door
1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
48" [1219mm] Max. Width Per Door
7-1/4" [184mm] Min. Wall Structure Thickness
*189-1/2" (15' - 3/4") [4813mm] Max. Opening Width
Soft-Close Compatible W/ Optional Soft-Close Kits
Commercial Grade Top Hung Bypass Pocket Door Hardware

The 100BP is one of the finest heavy duty sliding bypass pocket door hardware systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The 100BP features trackless door guides that eliminate the need for bottom guide tracks. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification. Guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

100BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.

How to order 100BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Overview
Installation
Specifications

100BP Series Pocket Door Hardware

How to order 100BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

100BP Series Installation Instructions

100BP Series Quick Reference Drawings

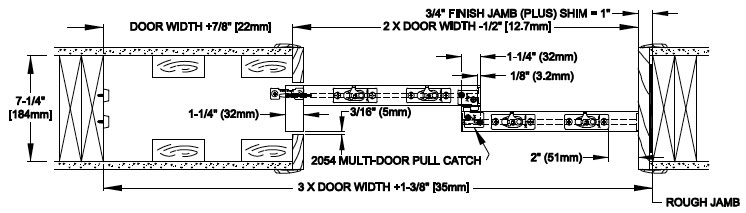

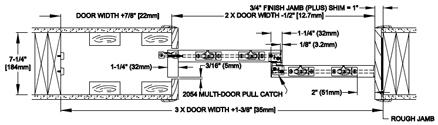

2-Door Opening Width Dimensions

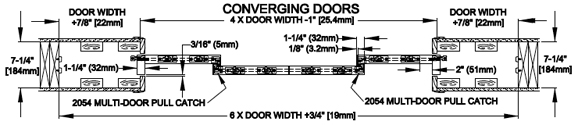

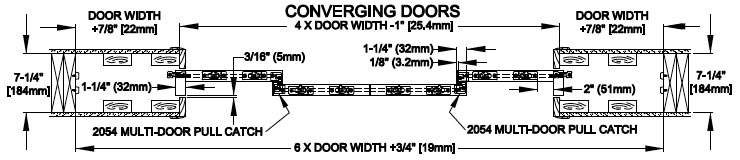

4-Door Opening Width Dimensions

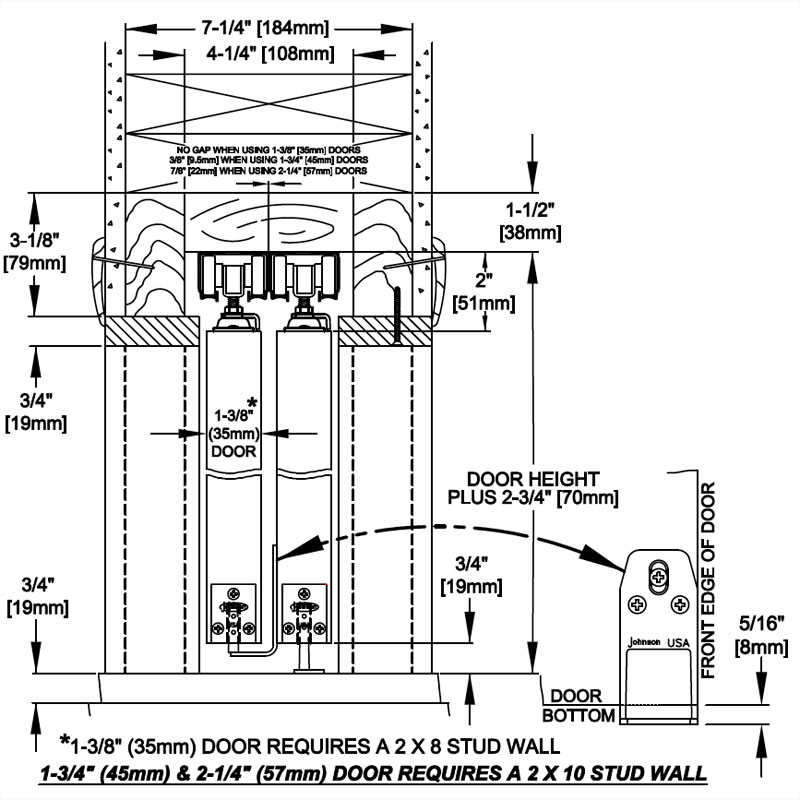

Opening Height Dimensions

Trackless Door Guiding Detail

Track Dimensions

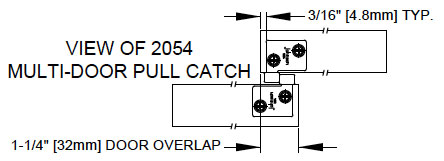

2054PLBG Multi-Door Catch

Track Spacing Detail

100BP Series Pocket Door Hardware

How to order 100BP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	100
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
10BP0721	View Contents	2-Door	72" x 2 (6' - 0" x 2) [1829mm x 2]	24" X 2 (2' - 0" X 2) [610mm X 2]	1-3/8" [35mm]	Buy Now
10BP0722	View Contents	2-Door	72" x 2 (6' - 0" x 2) [1829mm x 2]	24" X 2 (2' - 0" X 2) [610mm X 2]	1-3/4" [44mm]	Buy Now
10BP0723	View Contents	2-Door	72" x 2 (6' - 0" x 2) [1829mm x 2]	24" X 2 (2' - 0" X 2) [610mm X 2]	2-1/4" [57mm]	Buy Now
10BP0961	View Contents	2-Door	96” x 2 (8' - 0" x 2) [2438mm x 2]	32" X 2 (2' - 8" X 2) [813mm X 2]	1-3/8" [35mm]	Buy Now
10BP0962	View Contents	2-Door	96” x 2 (8' - 0" x 2) [2438mm x 2]	32" X 2 (2' - 8" X 2) [813mm X 2]	1-3/4" [44mm]	Buy Now
10BP0963	View Contents	2-Door	96” x 2 (8' - 0" x 2) [2438mm x 2]	32" X 2 (2' - 8" X 2) [813mm X 2]	2-1/4" [57mm]	Buy Now
10BP1061	View Contents	2-Door	106" x 2 (8' - 10" x 2) [2692mm x 2]	36" X 2 (3' - 0" X 2) [914mm X 2]	1-3/8" [35mm]	Buy Now
10BP1062	View Contents	2-Door	106" x 2 (8' - 10" x 2) [2692mm x 2]	36" X 2 (3' - 0" X 2) [914mm X 2]	1-3/4" [44mm]	Buy Now
10BP1063	View Contents	2-Door	106" x 2 (8' - 10" x 2) [2692mm x 2]	36" X 2 (3' - 0" X 2) [914mm X 2]	2-1/4" [57mm]	Buy Now
10BP1441	View Contents	2-Door	144" x 2 (12' - 0" x 2) [3658mm x 2]	48" X 2 (4' - 0" X 2) [1219mm X 2]	1-3/8" [35mm]	Buy Now
10BP1442	View Contents	2-Door	144" x 2 (12' - 0" x 2) [3658mm x 2]	48" X 2 (4' - 0" X 2) [1219mm X 2]	1-3/4" [44mm]	Buy Now
10BP1443	View Contents	2-Door	144" x 2 (12' - 0" x 2) [3658mm x 2]	48" X 2 (4' - 0" X 2) [1219mm X 2]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Converging Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
10BC0721	View Contents	4-Door Converging	72" x 4 (6' - 0" x 4) [1829mm x 4]	24" X 4 (2' - 0" X 4) [610mm X 4]	1-3/8" [35mm]	Buy Now
10BC0722	View Contents	4-Door Converging	72" x 4 (6' - 0" x 4) [1829mm x 4]	24" X 4 (2' - 0" X 4) [610mm X 4]	1-3/4" [44mm]	Buy Now
10BC0723	View Contents	4-Door Converging	72" x 4 (6' - 0" x 4) [1829mm x 4]	24" X 4 (2' - 0" X 4) [610mm X 4]	2-1/4" [57mm]	Buy Now
10BC0961	View Contents	4-Door Converging	96” x 4 (8' - 0" x 4) [2438mm x 4]	32" X 4 (2' - 8" X 4) [813mm X 4]	1-3/8" [35mm]	Buy Now
10BC0962	View Contents	4-Door Converging	96” x 4 (8' - 0" x 4) [2438mm x 4]	32" X 4 (2' - 8" X 4) [813mm X 4]	1-3/4" [44mm]	Buy Now
10BC0963	View Contents	4-Door Converging	96” x 4 (8' - 0" x 4) [2438mm x 4]	32" X 4 (2' - 8" X 4) [813mm X 4]	2-1/4" [57mm]	Buy Now
10BC1061	View Contents	4-Door Converging	106" x 4 (8' - 10" x 4) [2692mm x 4	36" X 4 (3' - 0" X 4) [914mm X 4]	1-3/8" [35mm]	Buy Now
10BC1062	View Contents	4-Door Converging	106" x 4 (8' - 10" x 4) [2692mm x 4	36" X 4 (3' - 0" X 4) [914mm X 4]	1-3/4" [44mm]	Buy Now
10BC1063	View Contents	4-Door Converging	106" x 4 (8' - 10" x 4) [2692mm x 4	36" X 4 (3' - 0" X 4) [914mm X 4]	2-1/4" [57mm]	Buy Now
10BC1441	View Contents	4-Door Converging	144" x 4 (12' - 0" x 4) [3658mm x 4]	48" X 4 (4' - 0" X 4) [1219mm X 4]	1-3/8" [35mm]	Buy Now
10BC1442	View Contents	4-Door Converging	144" x 4 (12' - 0" x 4) [3658mm x 4]	48" X 4 (4' - 0" X 4) [1219mm X 4]	1-3/4" [44mm]	Buy Now
10BC1443	View Contents	4-Door Converging	144" x 4 (12' - 0" x 4) [3658mm x 4]	48" X 4 (4' - 0" X 4) [1219mm X 4]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	100
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
