Auto-Latching Pocket Door Locks

1-3/8" [35mm] Door Thickness
2-3/8" [60mm] Standard Backset
2-1/8" [54mm] Lock Bore
15/16" [24mm] End Bore
Privacy Lock Function
Self-Latching Lock Operation
US3, US15, Black Available Finishes
Residential Product Grade

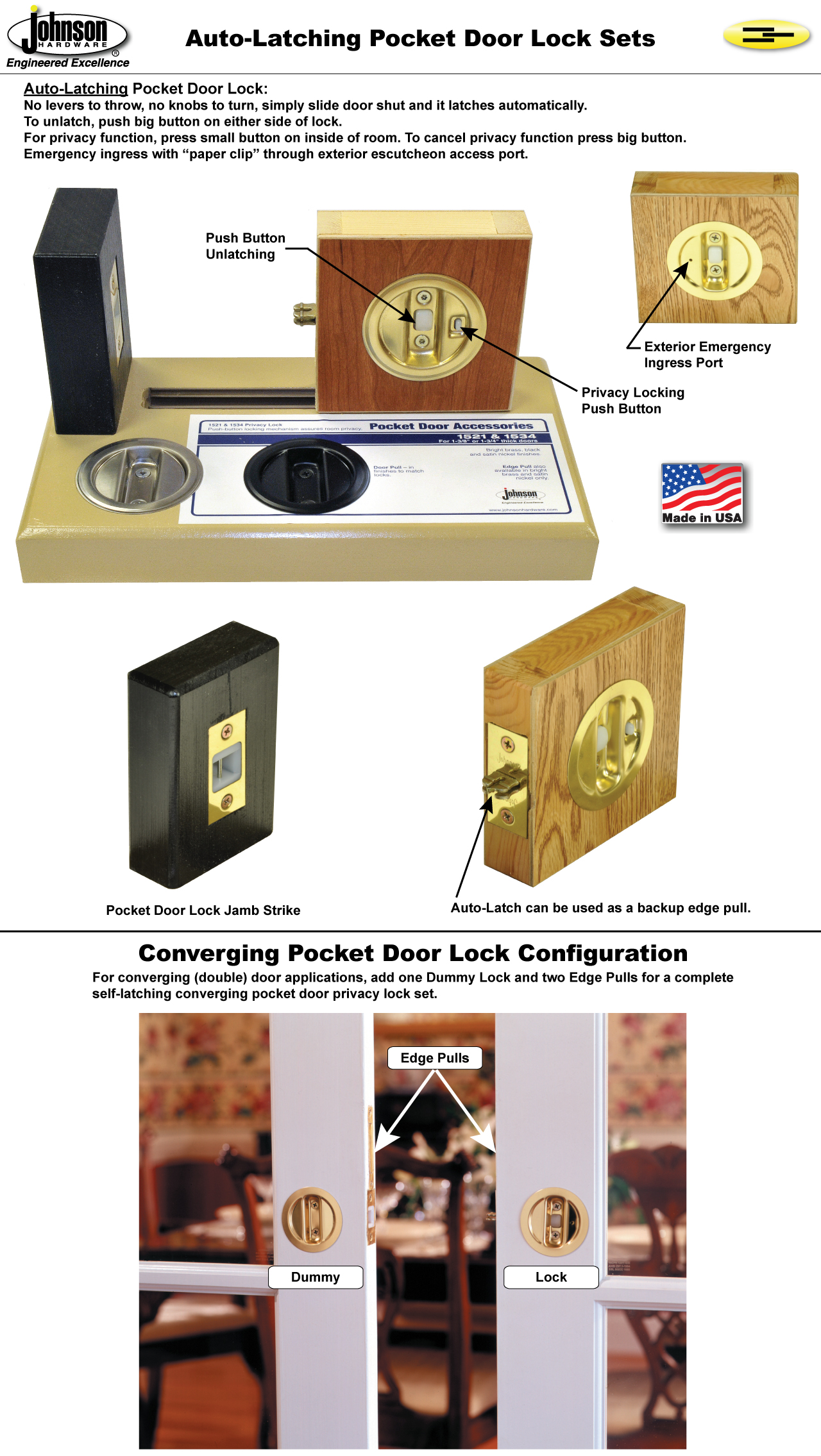

The perfect complement for any pocket door installation. Lock features automatic latching, just slide the door closed and it is latched. Push button latch disengagement for easy door opening. Simple touch-of-a-button privacy locking with emergency release. Universal handing, one lock functions in both right or left slide direction. Ideal for both single or converging pocket door applications.

Overview
Installation
Specifications

Pocket Door Lock Printed Installation Instructions

1521 1-3/8" [35mm] Pocket Door Lock Installation Instructions

Pocket Door Lock Quick Reference Drawings

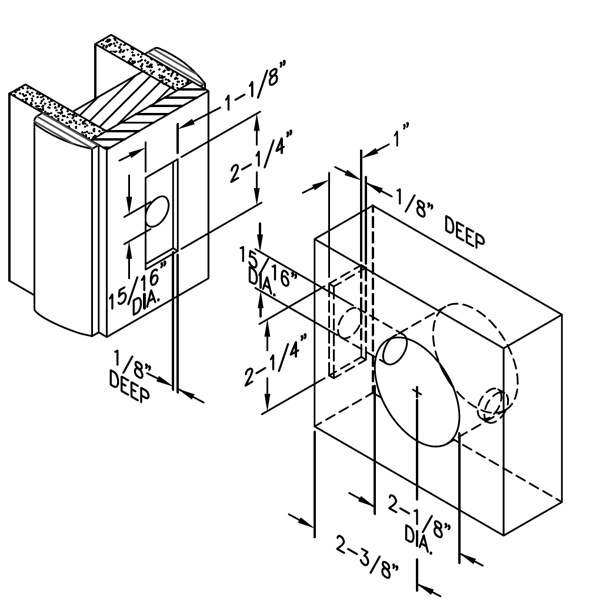

Lock Bore Dimensions

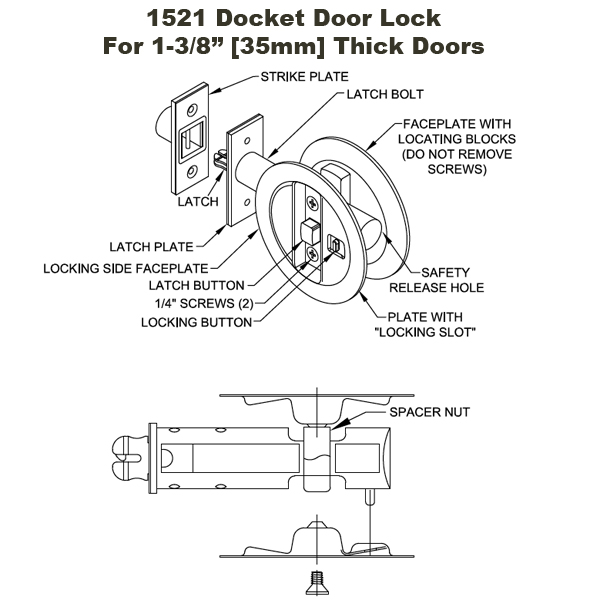

1-3/8" [35mm] Lock Detail

Products specifications

Door Thickness	1-3/8" [35mm]
Lock Back Set	2-3/8" [60mm]
Lock Bore	2-1/8" [54mm]
Cross Bore	15/16" [24mm]
Lock Type	Pocket Door Tube Latch
Lock Function	Privacy Pocket
Lock Operation	Self-Latching, Push Button Release
Product Grade	Residential
Country of Origin	U.S.A.

1-3/8" [35mm] Door Thickness

Part No.	Description /Contents	Door Thickness	Lock Function	Finish	Price \| Qty. \| Order
15213PK1	View Contents	1-3/8" [35mm]	Privacy Pocket	US3 Bright Brass	Buy Now
21-3PPK2	View Contents	1-3/8" [35mm]	Dummy Pocket	US3 Bright Brass	Buy Now
1521-BLK	View Contents	1-3/8" [35mm]	Privacy Pocket	Enamel Black	Buy Now
121BLK	View Contents	1-3/8" [35mm]	Dummy Pocket	Enamel Black	Buy Now
152115P1	View Contents	1-3/8" [35mm]	Privacy Pocket	US15 Satin Nickel	Buy Now
21-15PK2	View Contents	1-3/8" [35mm]	Dummy Pocket	US15 Satin Nickel	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

1-3/4" [44mm] Door Thickness

Part No.	Description /Contents	Door Thickness	Lock Function	Finish	Price \| Qty. \| Order
134US3	View Contents	1-3/4" [44mm]	Dummy Pocket	US3 Bright Brass	Buy Now
134BLK	View Contents	1-3/4" [44mm]	Dummy Pocket	Enamel Black	Buy Now
134US15	View Contents	1-3/4" [44mm]	Dummy Pocket	US15 Satin Nickel	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Door Thickness	1-3/8" [35mm]
Lock Back Set	2-3/8" [60mm]
Lock Bore	2-1/8" [54mm]
Cross Bore	15/16" [24mm]
Lock Type	Pocket Door Tube Latch
Lock Function	Privacy Pocket
Lock Operation	Self-Latching, Push Button Release
Product Grade	Residential
Country of Origin	U.S.A.

Auto-Latching Pocket Door Locks

150-3PK1 US3 Bright Brass Edge Pull

150US15 US15 Satin Nickel Edge Pull
