1560 Series Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • 1560 Installation Instructions

The 1560 Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. [91kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

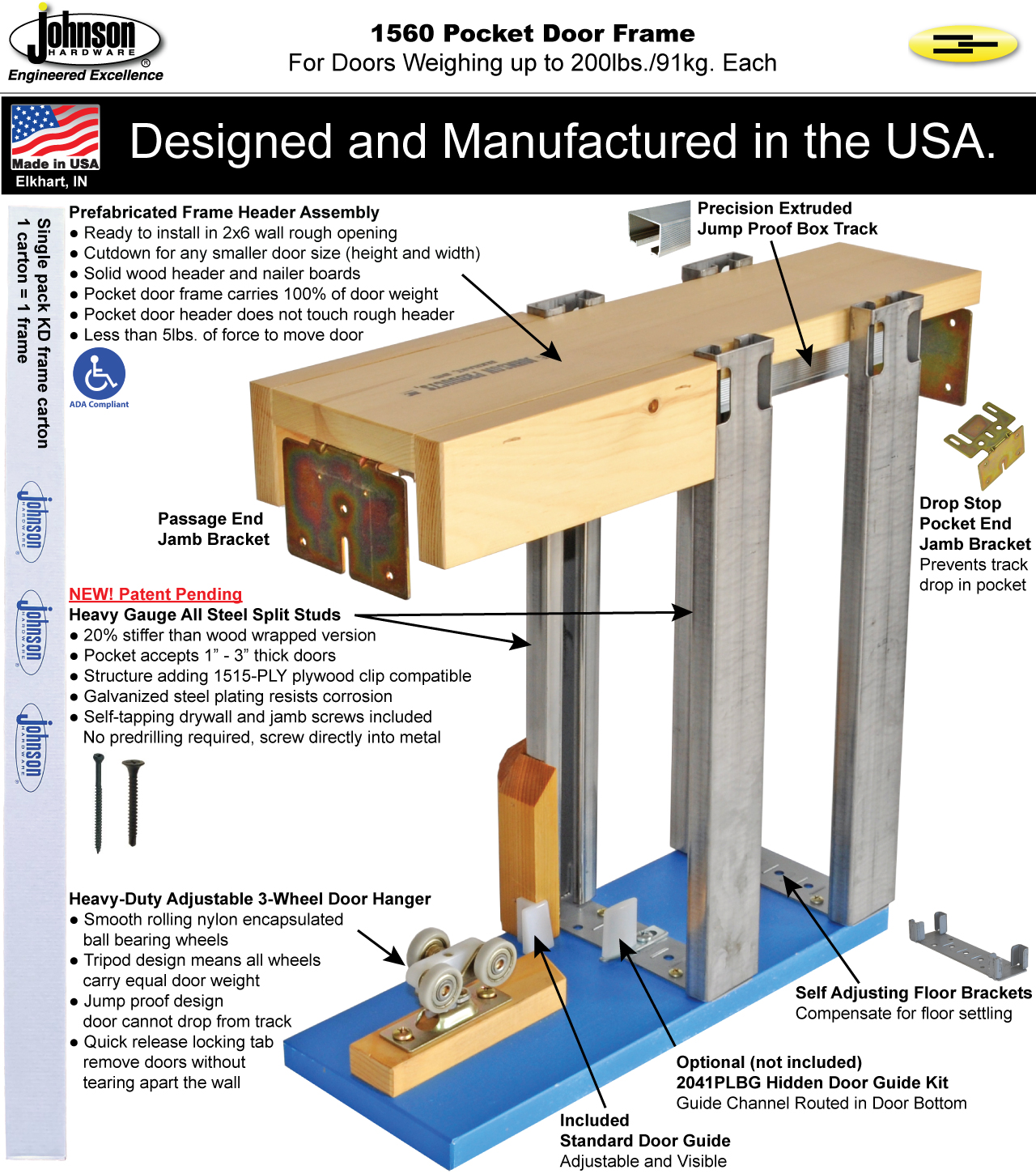

1560 Exceptional Features

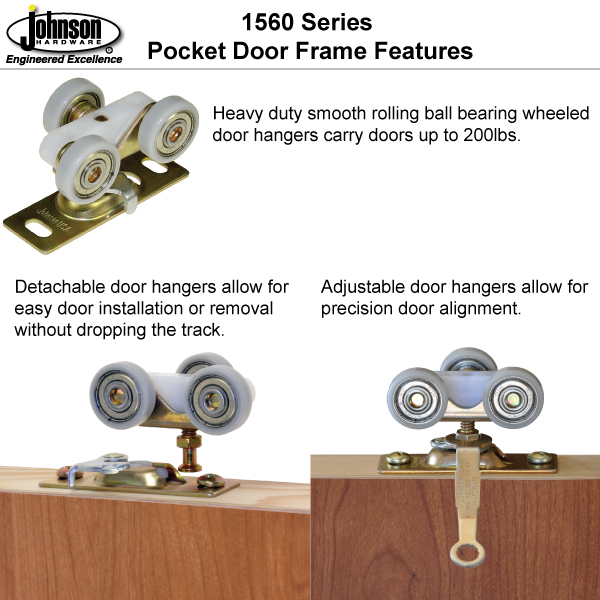

Heavy Duty Door Hangers

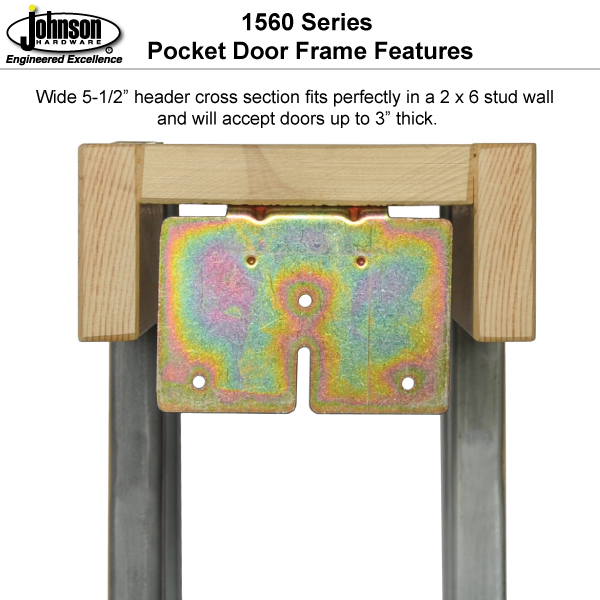

Extra Wide Header

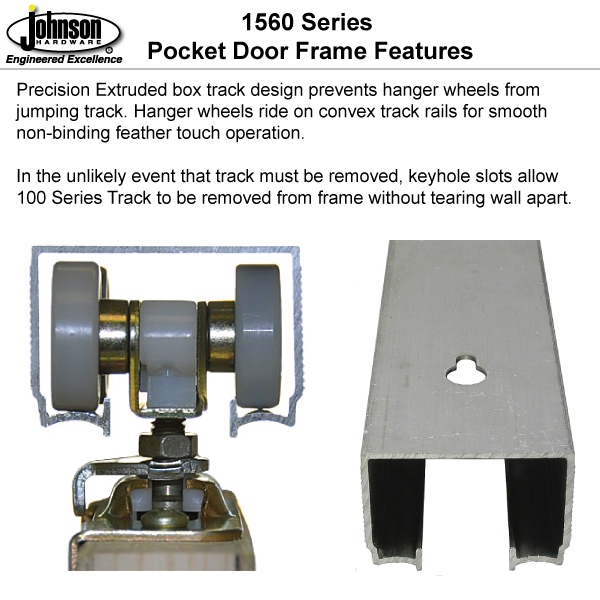

Jump Proof Box Track

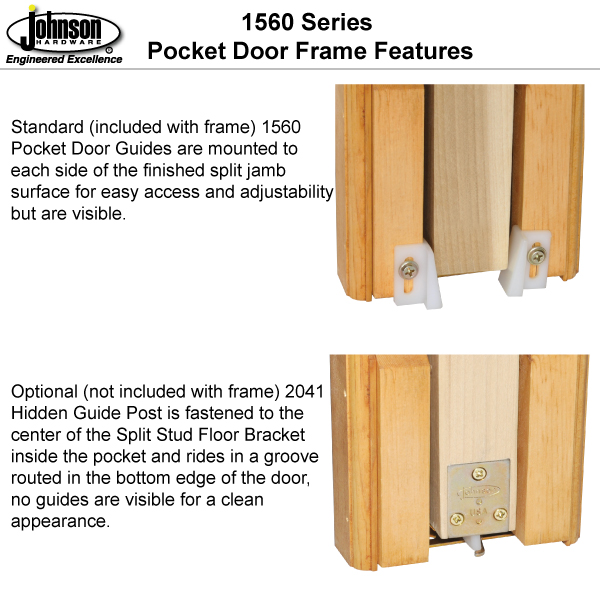

Pocket Door Guiding Options

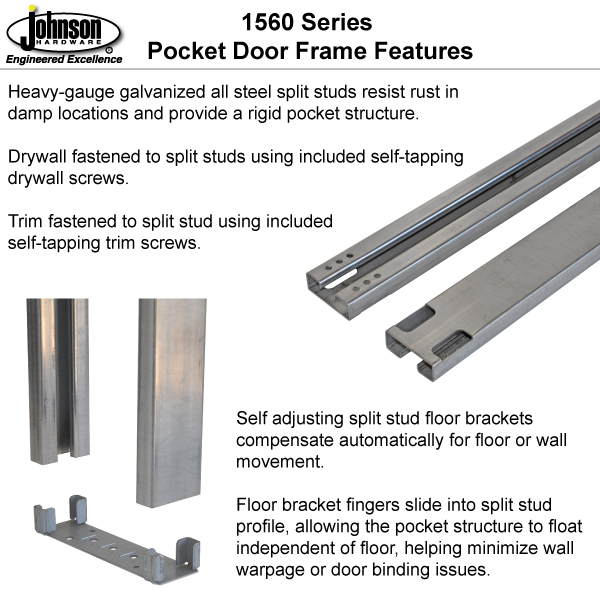

All Steel Split Studs

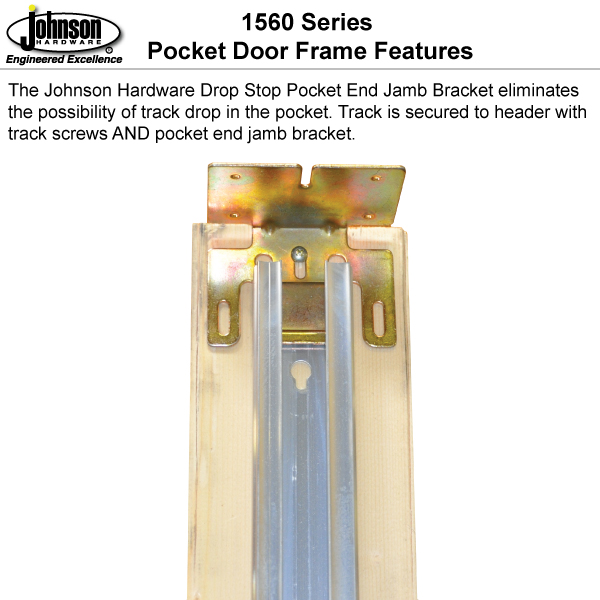

Drop Stop Jamb Bracket

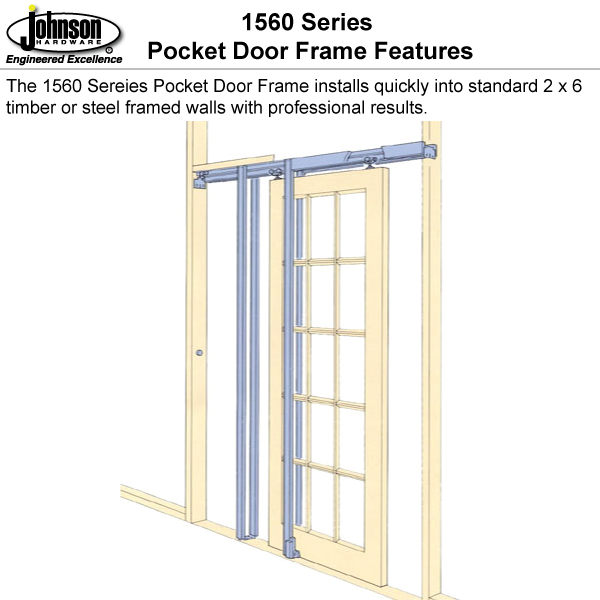

2 x 6 Stud Wall Installation

Product Guarantee

1560 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1560 Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 200lbs. [91kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

1560 Exceptional Features

Heavy Duty Door Hangers

Extra Wide Header

Jump Proof Box Track

Pocket Door Guiding Options

All Steel Split Studs

Drop Stop Jamb Bracket

2 x 6 Stud Wall Installation

Product Guarantee

1560 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1560 Series Installation Instructions

1560 Series Quick Reference Drawings

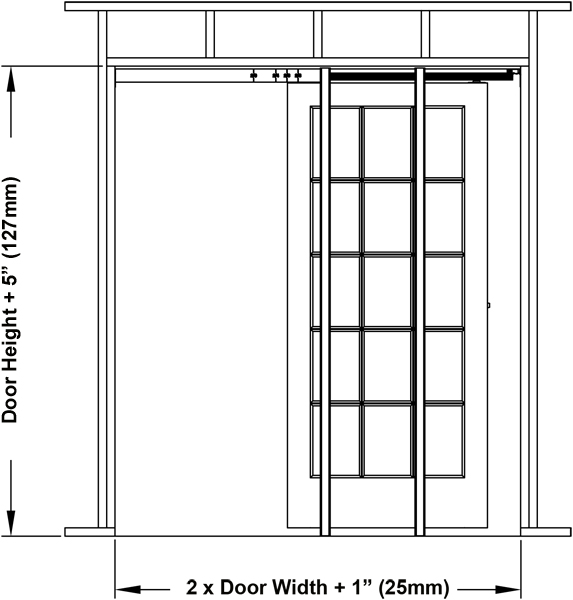

Single Door Rough-in

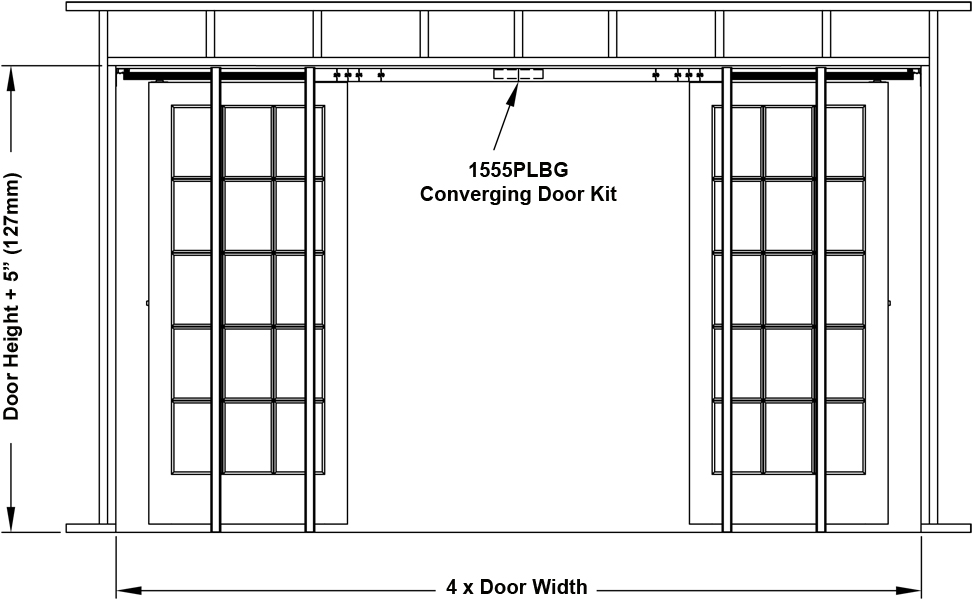

Converging Door Rough-in

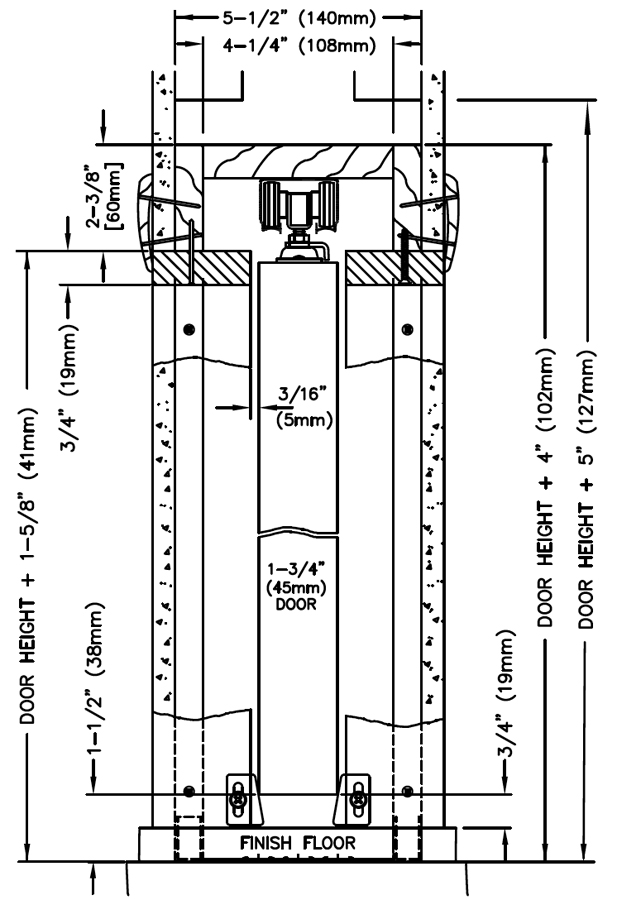

Opening Height Dimensions

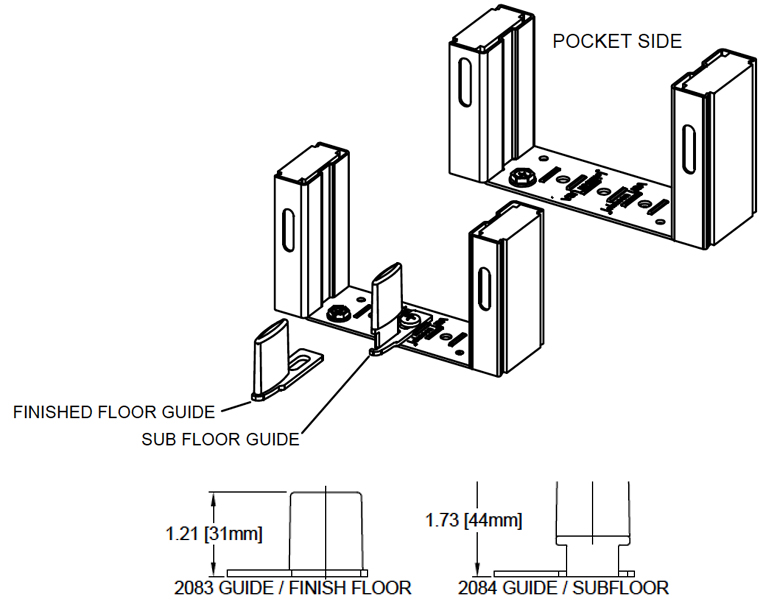

Hidden Pocket Door Guide Kit

1555PPK3 Converging Door Kit

1560 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Pocket Door Lock

Track Cutdown

1560 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Ball Bearing Wheel(200lbs Max.)
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Price | Qty. | Order
15602668 View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15603068 View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15604068 View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

Buy Now

Oversized item must be shipped freight. Freight orders over $700 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Price | Qty. | Order
15602670 View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15603070 View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15604070 View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

Buy Now

Oversized item must be shipped freight. Freight orders over $700 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Price | Qty. | Order
15602680 View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15603080 View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

Buy Now
15604080 View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

Buy Now

Oversized item must be shipped freight. Freight orders over $700 ship free!

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Ball Bearing Wheel(200lbs Max.)
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
