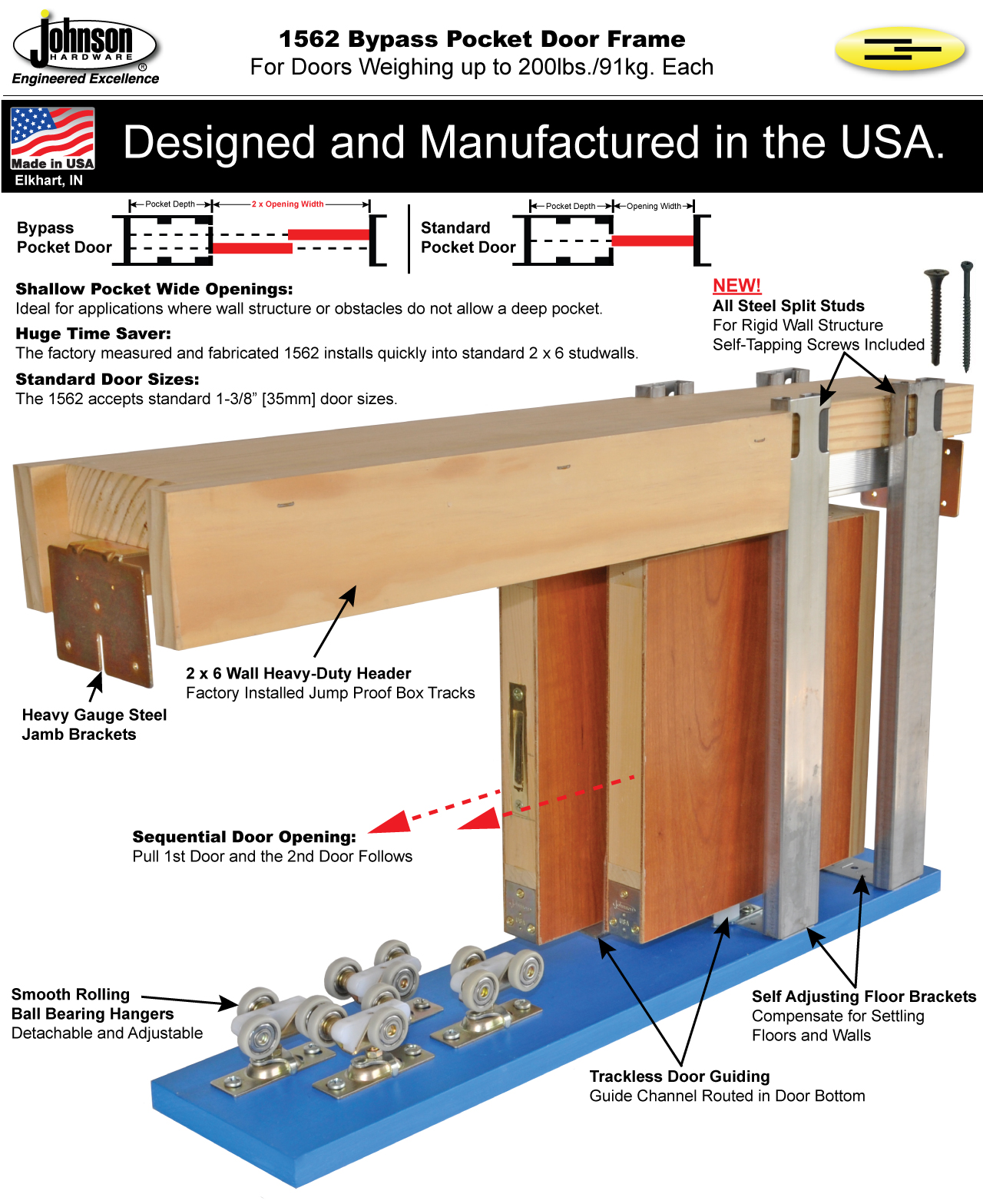

1562 Series Bypass Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • 18" [457mm], 24" [610mm], 30" [762mm], 36" [914mm] Door Widths

  • 96" [2438mm] Max Door Height

  • 1-3/8" [35mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • 1562 Installation Instructions

The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

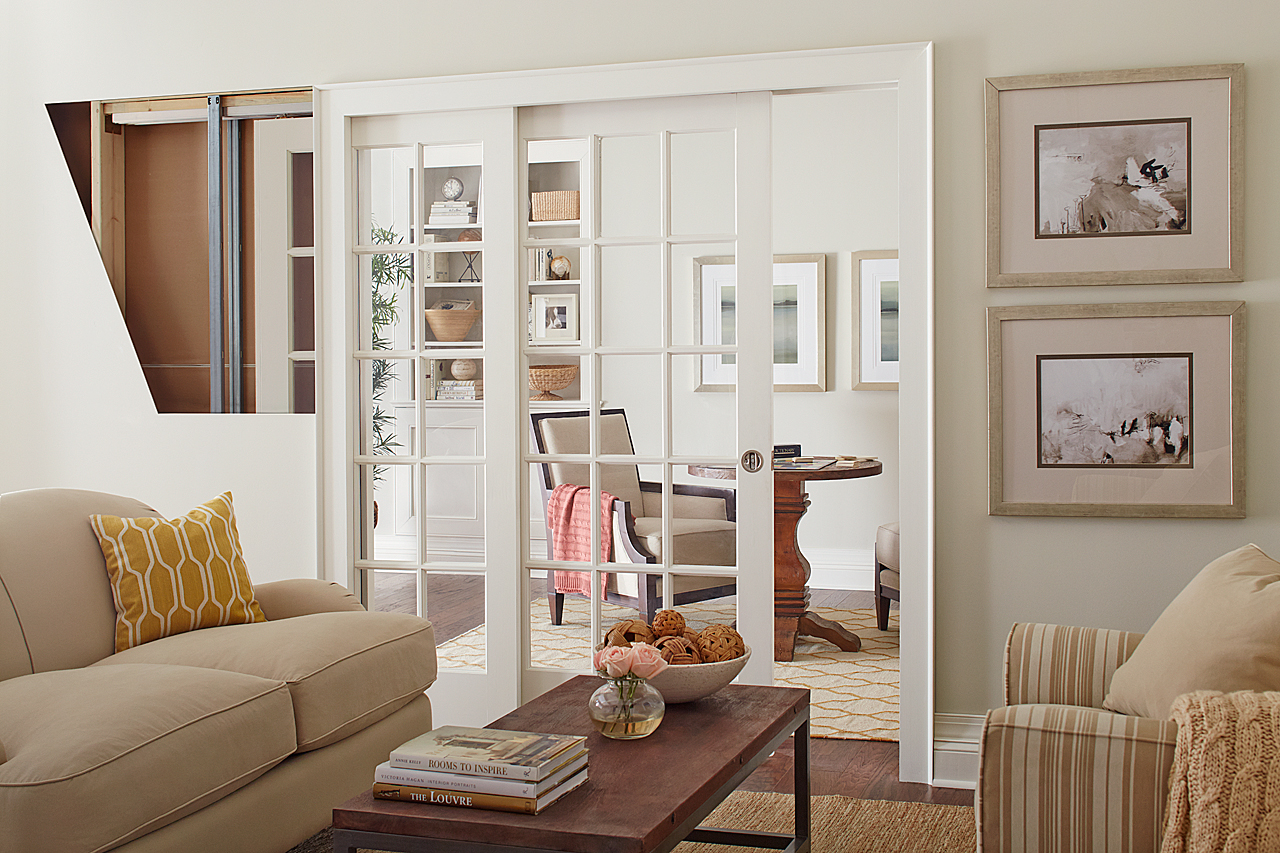

1562 Installation Example



1562 Series Pocket Door Frames

Frames are single packed, knocked down, ready for installation into 2 x 6 framed wall openings.
Frames contain hardware for one bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included).
Frames can be cut down to accommodate smaller doors.

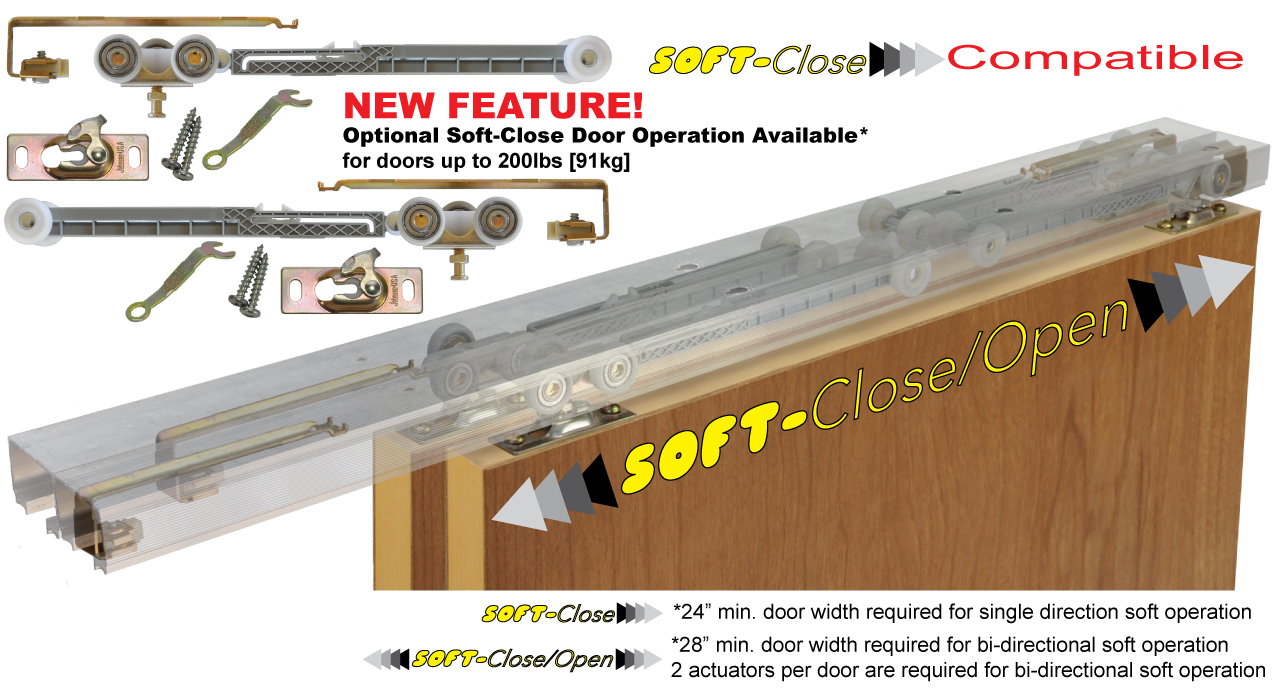

Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


1562 Series Pocket Door Frame Ordering Guide:

Bypass Pocket Doors:

Converging Bypass Pocket Doors:

The 1562 Series Bypass Pocket Door Frame is designed to carry two 1-3/8" heavy solid core bypassing doors in a standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1562 allows architects and designers to specify large room dividing openings with minimum wall obstruction for "clean and open" living spaces. The 1562 Frame Kit is factory configured to accept most standard door sizes and packaged for easy transport and fast installation in either bypass pocket door or converging bypass pocket door applications.

1562 Installation Example



1562 Series Pocket Door Frames

Frames are single packed, knocked down, ready for installation into 2 x 6 framed wall openings.
Frames contain hardware for one bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included).
Frames can be cut down to accommodate smaller doors.
Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


1562 Series Pocket Door Frame Ordering Guide:

Bypass Pocket Doors:

Converging Bypass Pocket Doors:

1562 Series Installation Instructions

1562 Series Quick Reference Drawings

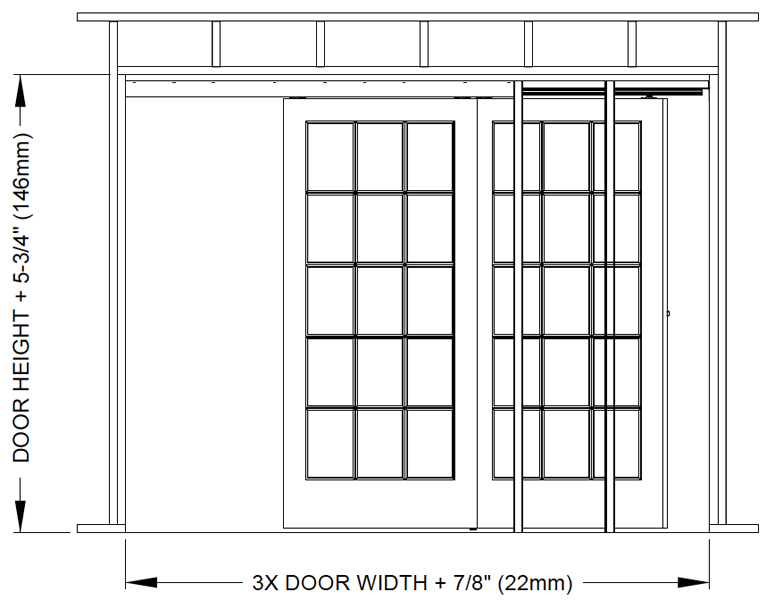

Single Door Rough-in

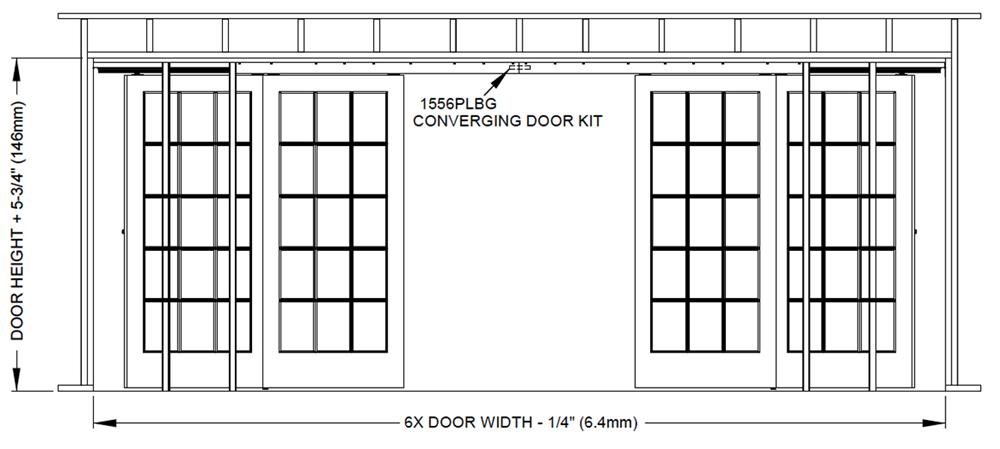

Converging Door Rough-in

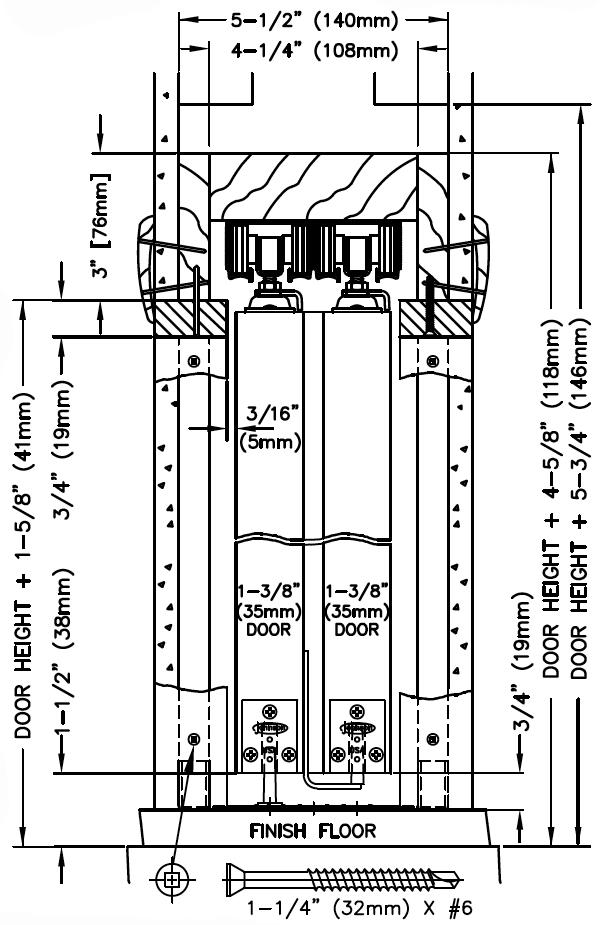

Opening Height Dimensions

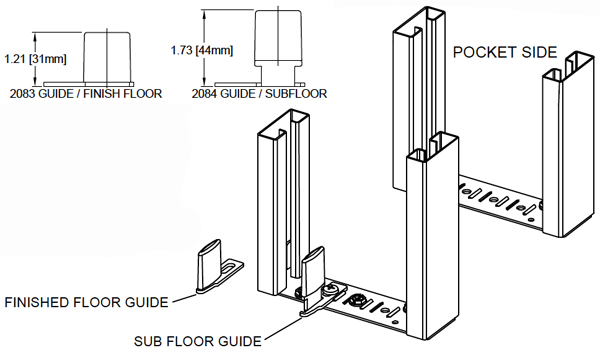

Hidden Pocket Door Guides

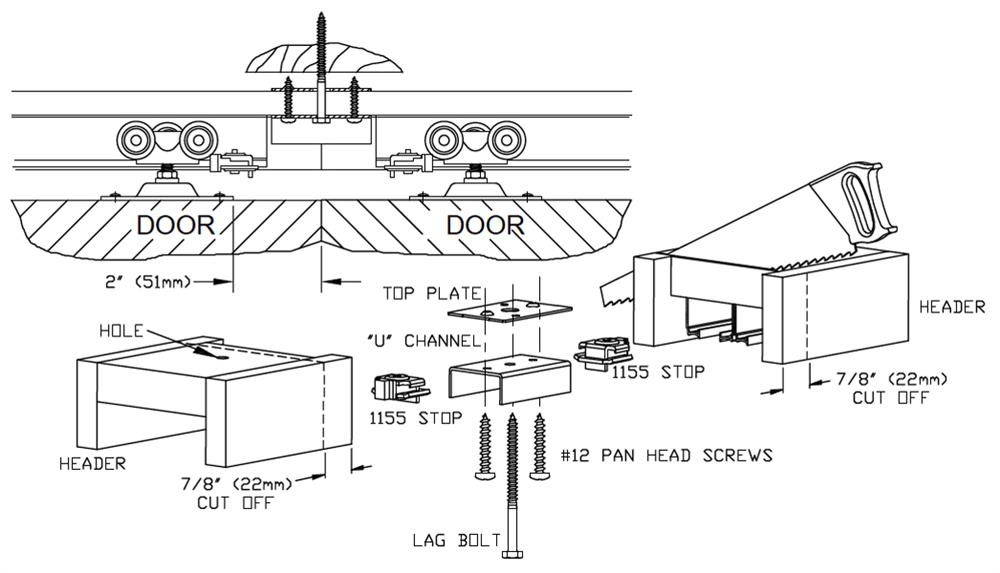

1556PLBG Converging Door Kit

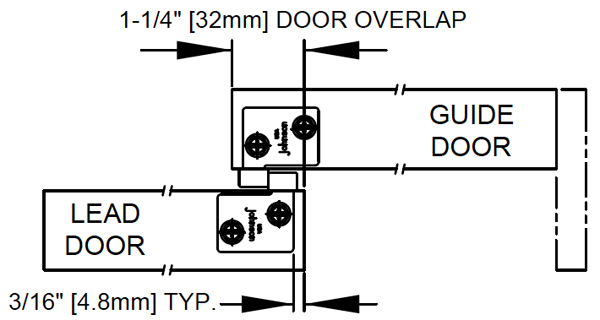

2054PLBG Multi-Door Catch

Soft-Close Min. Door Width

1562 Series Pocket Door Frames

Frames are single packed, knocked down, ready for installation into 2 x 6 framed wall openings.
Frames contain hardware for one bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included).
Frames can be cut down to accommodate smaller doors.
Soft-Close door operation requires the purchase of optional 1060 Soft-Close Kits.


1562 Series Pocket Door Frame Ordering Guide:

Bypass Pocket Doors:

  • Determine your door sizes (door width, door height and door thickness).
  • Select a frame part number that accommodates your door size.
  • Frames can be cut down to accommodate smaller doors.
  • For optional soft door operation, order (2) 1062 Soft-Close Kits.

Converging Bypass Pocket Doors:

  • Determine your door sizes (door width, door height and door thickness).
  • Select a frame part number that accommodates your door size.
  • Frames can be cut down to accommodate smaller doors.
  • Order (2) 1562 Frames, (1 frame for each pair of bypassing doors).
  • Order (1) 1556PLBG Converging Door Kit.
  • For optional soft door operation, order (4) 1062 Soft-Close Kits.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 36" X 2 (3' - 0" X 2) [914mm X 2]
Max. Door Height 96" (8'-0") [2438mm]
Door Thickness 1-3/8" [35mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Ball Bearing Wheel(200lbs Max.)
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
