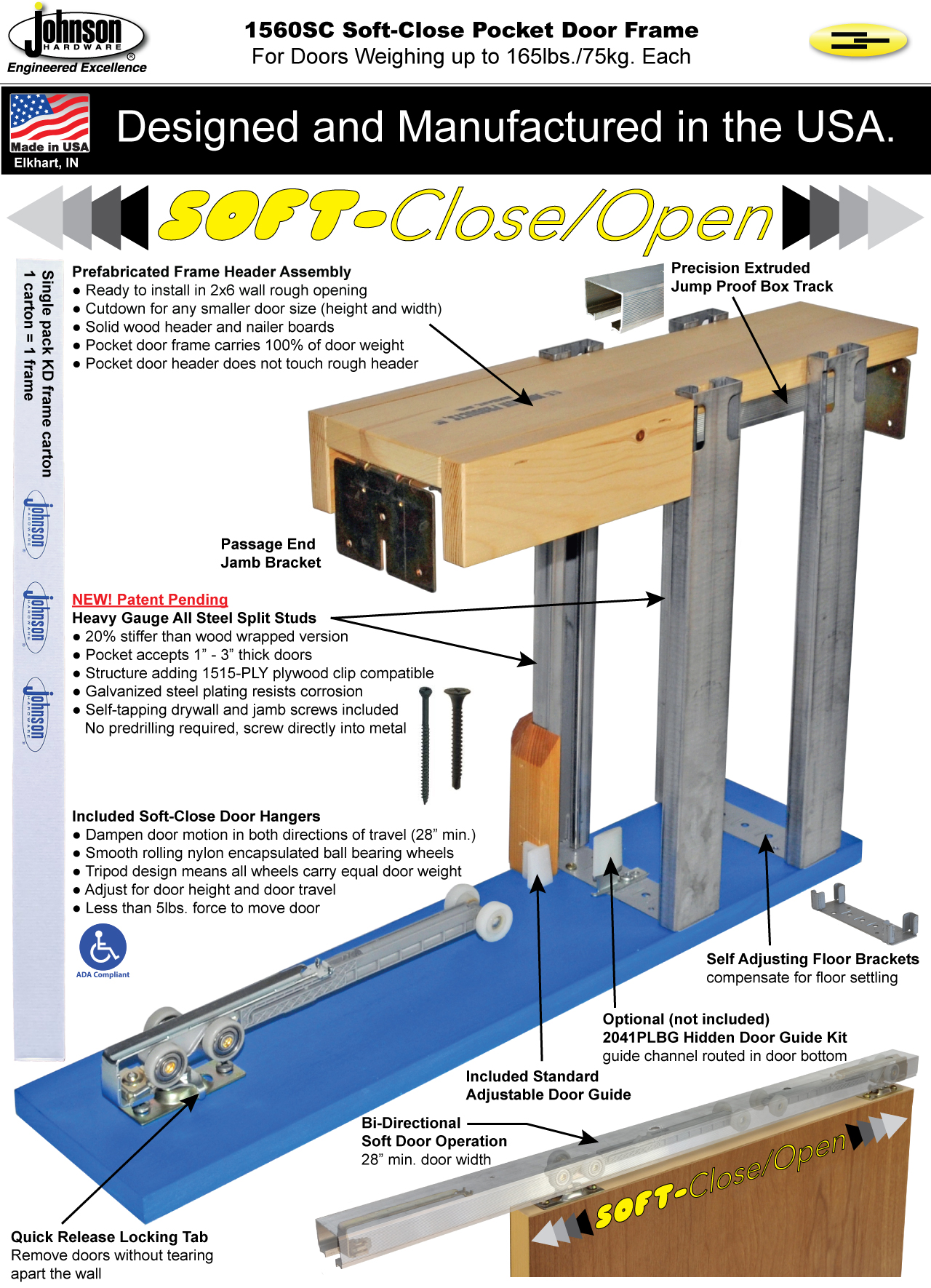

1560SC Series Soft-Close Pocket Door Frame Kits

  • 165lbs [75kg] Max. Weight Per Door

  • Soft-Close/Open Door Operation

  • 48" [1219mm] x 96" [2438mm] Max. Door Size

  • 28" min. Door Width for bi-directional soft-operation

  • 1" [25mm] - 3" [76mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • 1560SC Installation Instructions

The 1560SC Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 165lbs. [75kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Minimum door width for bidirectional soft-closing door operation is 28".

Minimum door width for single direction soft-closing door operation is 20".



1560SC Exceptional Features

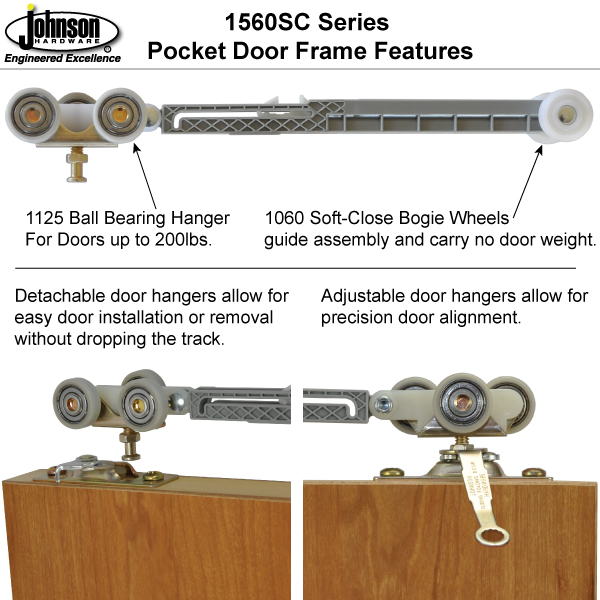

Heavy Duty Door Hangers

Extra Wide Header

Jump Proof Box Track

Pocket Door Guiding Options

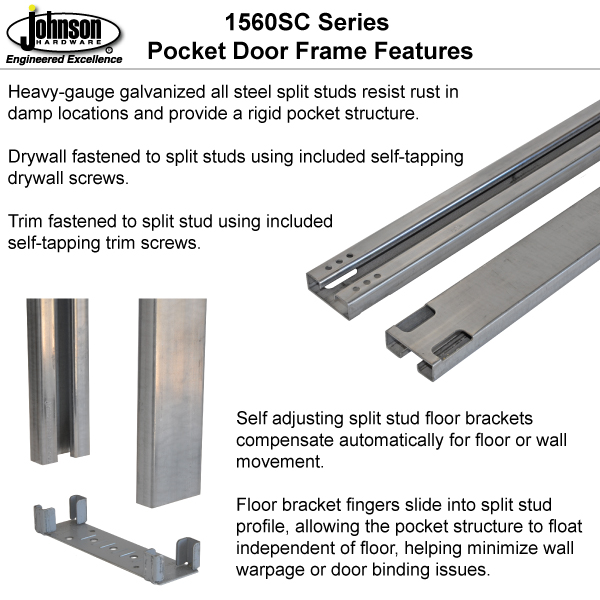

All Steel Split Studs

Drop Stop Jamb Bracket

2 x 6 Stud Wall Installation

Product Guarantee

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1560SC Series Pocket Door Frame is designed to carry heavy solid core doors weighing up to 165lbs. [75kg.] each and up to 3" [76mm] thick in standard 2 x 6 timber or 6" steel framed stud walls when using the 1576PLBG 6" Steel Stud Adapter Kit. The 1560 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1560 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Minimum door width for bidirectional soft-closing door operation is 28".

Minimum door width for single direction soft-closing door operation is 20".



1560SC Exceptional Features

Heavy Duty Door Hangers

Extra Wide Header

Jump Proof Box Track

Pocket Door Guiding Options

All Steel Split Studs

Drop Stop Jamb Bracket

2 x 6 Stud Wall Installation

Product Guarantee

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1560SC Series Installation Instructions

1560SC Series Quick Reference Drawings

Single Door Rough-in

Converging Door Rough-in

Opening Height Dimensions

Hidden Pocket Door Guide Kit

1555PPK3 Converging Door Kit

Soft-Close Tab Installation Position

Soft-Close Installation

Soft-Close Min. Door Width

1560SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1560SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.



Products specifications
Max. Weight Per Door 165lbs. [75kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562668S View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1563068S View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1564068S View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562670S View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1563070S View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1564070S View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
1562680S View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1563080S View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now
1564080S View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm]
(to)
3" [76mm]

165lbs. [75kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 165lbs. [75kg]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Series Track 100
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Frame Header Material Spruce, Pine or Fir (#3 or better)
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
