2800F Open Pocket Door Hardware

75lbs [34kg] Max. Weight Per Door*
1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
192" (16') [4877mm] Max. Track Length
Residential Grade Top Hung Open Pocket Door Hardware

Space saving, header mounted "Open Pocket" sliding door hardware system. Ideal for bedrooms, walk-in closets, or any number of applications where space is at a premium. Half-pocket wall can hold a full length mirror, accessible when door is closed - hidden when door is open. Aluminum double fascia track with single convex rail, twin wheel height adjustable ball bearing hangers and wall mount door guide.

Overview
Installation
Specifications

2800F Series Installation Instructions

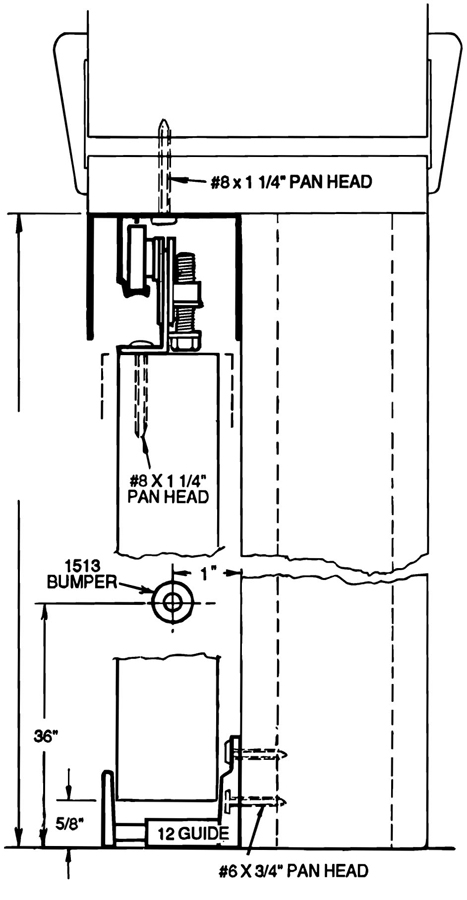

2800F Series Quick Reference Drawings

Opening Height Dimensions

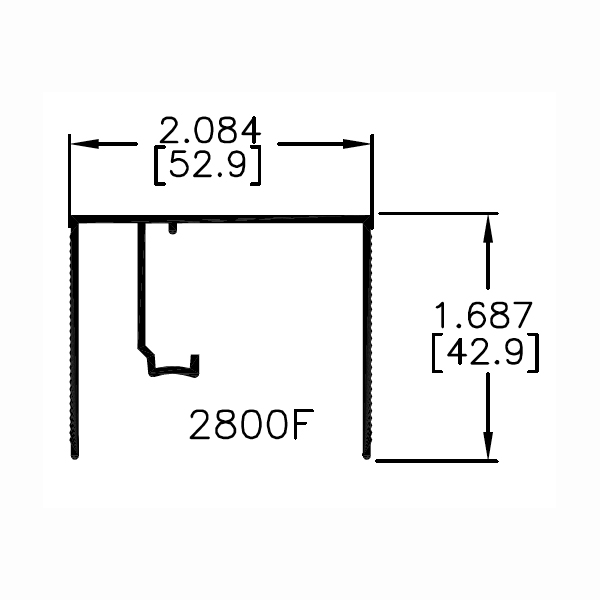

Track Dimensions

2800F Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.

How to order 2800F Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications

Max. Weight Per Door	75lbs. [34kg]
Application	Interior Residential
Door Thickness	1-3/8" [35mm] to 1-3/4" [44mm]
Series Track	2800F
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Double Fascia Single Leg J-Track
Hanger Type	Top Mount
Wheel Dia.	7/8"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Twin Ball Bearing Wheel Hardware Sets

Part No.	Description /Contents	Track Length	Max. Door Width	Max. Weight Per Door	Price \| Qty. \| Order
2800F481	View Contents	48" (4' - 0") [1219mm]	24" (2'- 0") [609mm]	75lbs. [34kg]	Buy Now
2800F601	View Contents	60" (5' - 0") [1524mm]	30" (2'- 6") [762mm]	75lbs. [34kg]	Buy Now
2800F721	View Contents	72" (6' - 0") [1829mm]	36" (3'- 0") [914mm]	75lbs. [34kg]	Buy Now
2800F961	View Contents	96” (8' - 0") [2438mm]	48" (4'- 0") [1219mm]	75lbs. [34kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!
