2511 Series Pocket Door Frame Kits

  • 80lbs [36kg] or 150lbs [68kg] Max. Weight Per Door*

  • 36" [914mm] x 80" [2023mm] Max. Door Size

  • 3/4" [19mm] - 1-3/8" [35mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • *150lbs Doors Require Optional Ball Bearing Hanger

    2511 Installation Instructions

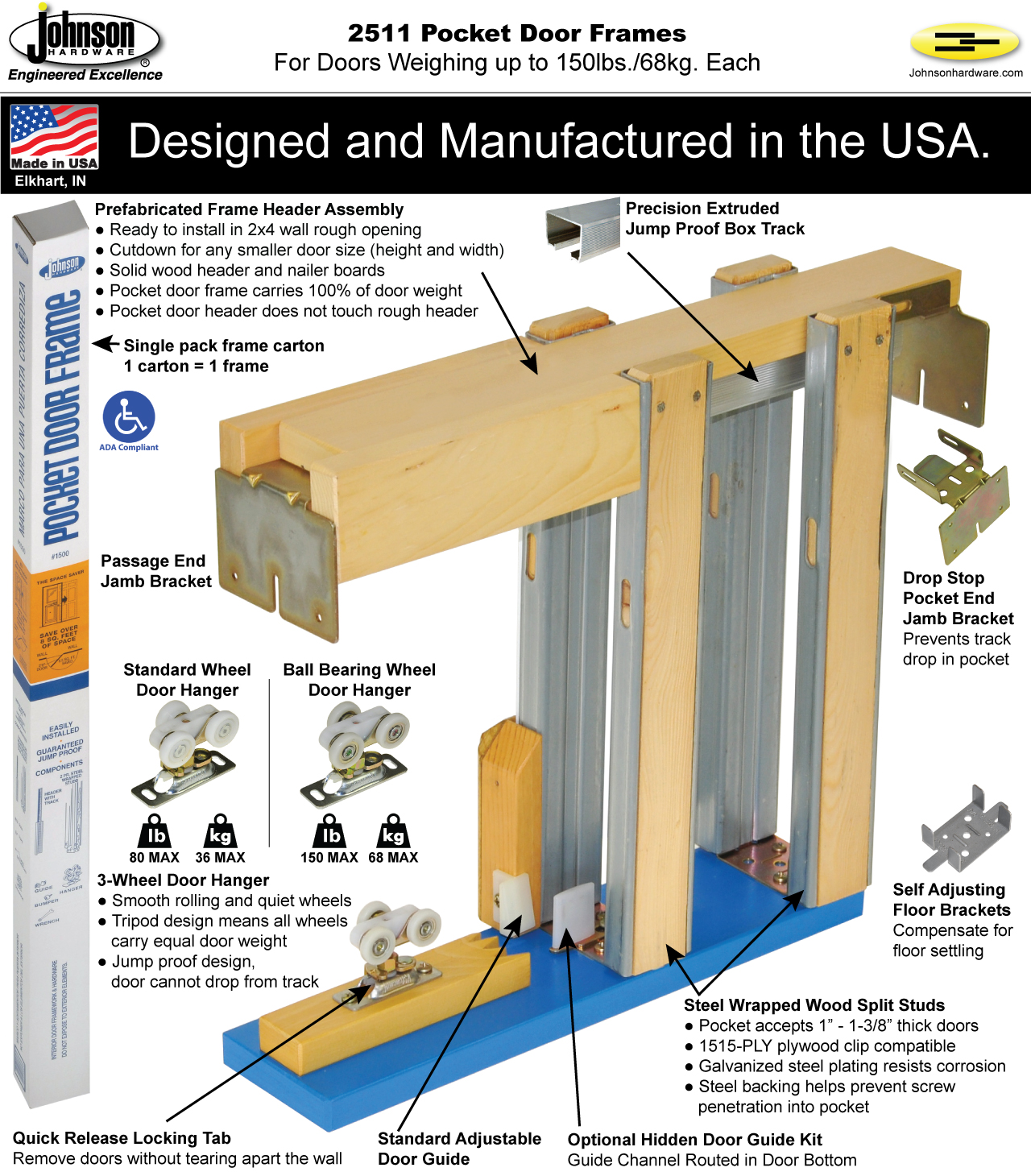

The 2511 Series Pocket Door Frame is identical in every way to our 1500 Series Pocket Door Frame except that the 2511 utilizes our 111 series track instead of the larger format 100 track installed in the 1500 Series. The 2511 is also only available for standard door sizes where the 1500 is available for a variety of door sizes. Easily assembled, structurally strong pocket door frame designed for fast installation in standard 2 x 4 timber framed stud walls typically sheeted with drywall. Versatile frame can be adapted for use in thicker walls or cut down to accept any smaller size door. Removable aluminum track with low friction convex track rails, guaranteed jump proof smooth rolling tricycle hangers, rust resistant zinc plated steel reinforced timber split studs and self adjusting floor anchors.

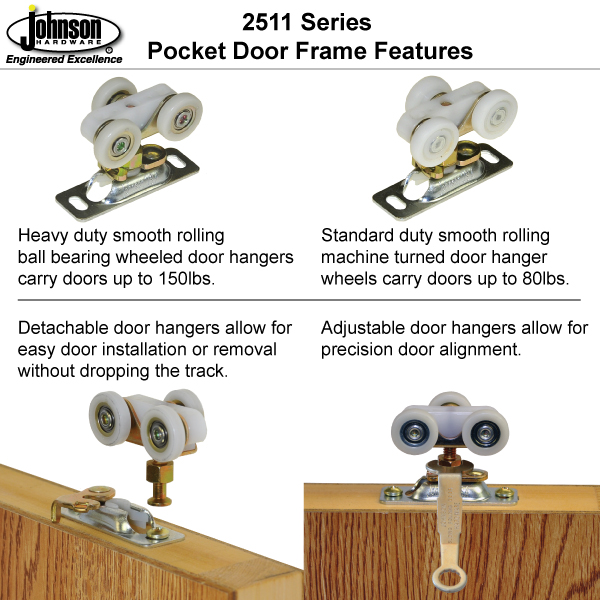

Smooth Rolling Door Hangers

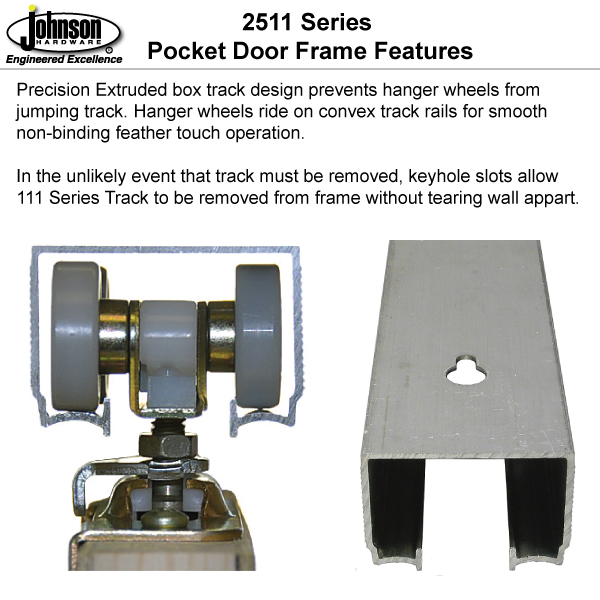

Jump Proof Box Track

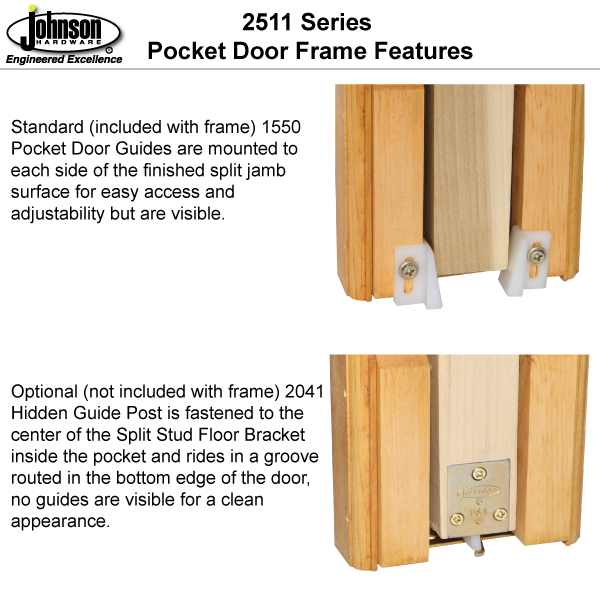

Door Guiding Options

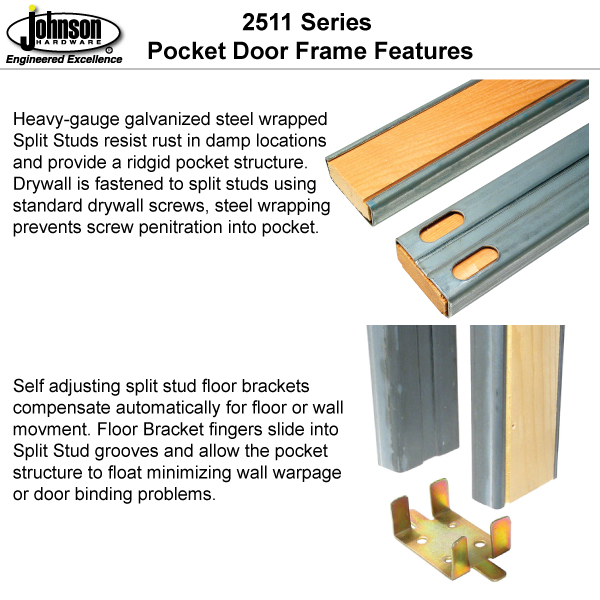

Steel Wrapped Split Studs

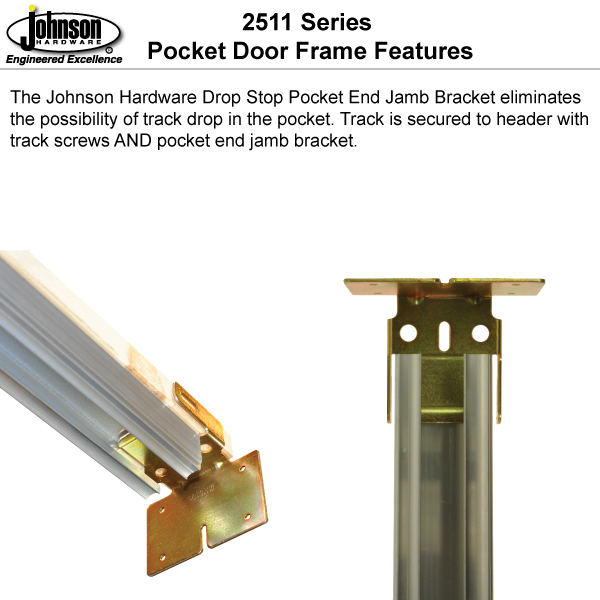

Drop Stop™ Jamb Bracket

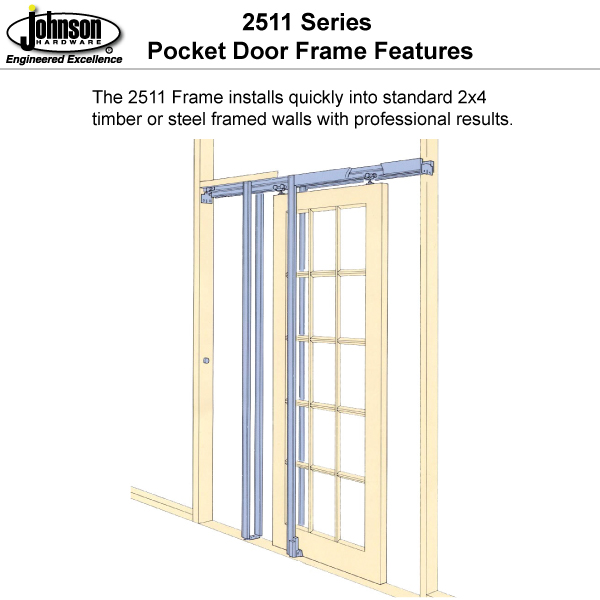

2 x 4 Stud Wall Installation

Product Guarantee

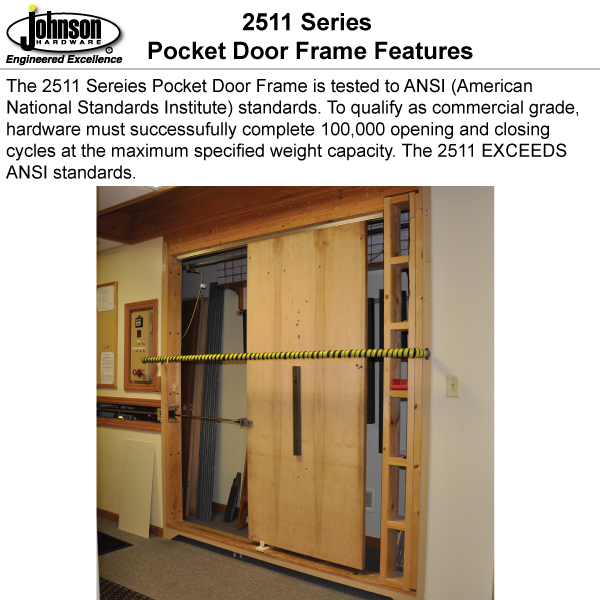

Tested Quality

2511 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2511 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 2511 Series Pocket Door Frame is identical in every way to our 1500 Series Pocket Door Frame except that the 2511 utilizes our 111 series track instead of the larger format 100 track installed in the 1500 Series. The 2511 is also only available for standard door sizes where the 1500 is available for a variety of door sizes. Easily assembled, structurally strong pocket door frame designed for fast installation in standard 2 x 4 timber framed stud walls typically sheeted with drywall. Versatile frame can be adapted for use in thicker walls or cut down to accept any smaller size door. Removable aluminum track with low friction convex track rails, guaranteed jump proof smooth rolling tricycle hangers, rust resistant zinc plated steel reinforced timber split studs and self adjusting floor anchors.

Smooth Rolling Door Hangers

Jump Proof Box Track

Door Guiding Options

Steel Wrapped Split Studs

Drop Stop™ Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Tested Quality

2511 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2511 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

2511 Series Installation Instructions

2511 Series Video

Frame Installation

Converging Door

2511 Series Quick Reference Drawings

Single Door Rough-in

Converging Door Rough-in

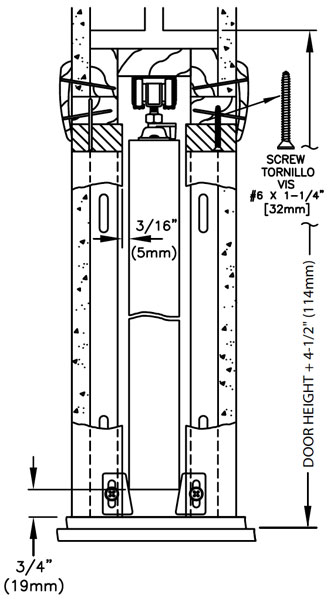

Opening Height Dimensions

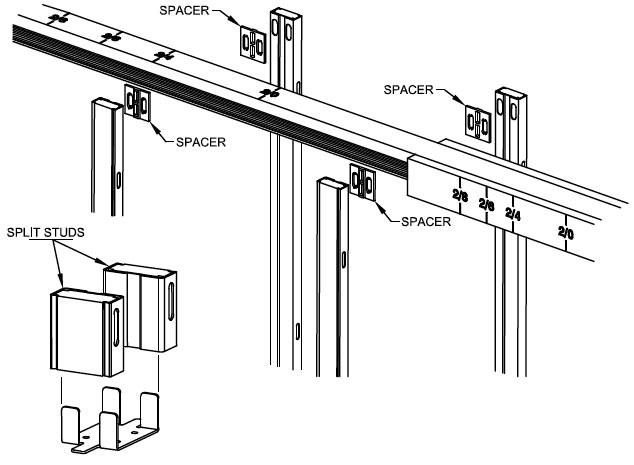

1-3/4" [44mm] Door Adaptor Kit

1555PPK3 Converging Door Kit

2511 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2511 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Frame Installation

Converging Door

Pocket Door Lock

Track Cutdown

2511 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2511 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Max. Door Width 36" (3'- 0") [914mm]
Max. Door Height 80" (6'- 8") [2032mm]
Door Thickness 3/4" [19mm] to 1-3/8" [35mm]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Frame Header Material Spruce, Pine or Fir (#3 or better)
Series Track 111
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 3/4"
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

Ball Bearing Hanger Pocket Door Frames

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
253068HD View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

3/4" [19mm] to 1-3/8" [35mm]

150lbs. [68kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Standard Wheel Hanger Pocket Door Frames

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
25112668 View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

3/4" [19mm] to 1-3/8" [35mm]

80lbs. [36kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Max. Door Width 36" (3'- 0") [914mm]
Max. Door Height 80" (6'- 8") [2032mm]
Door Thickness 3/4" [19mm] to 1-3/8" [35mm]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Frame Header Material Spruce, Pine or Fir (#3 or better)
Series Track 111
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 3/4"
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
