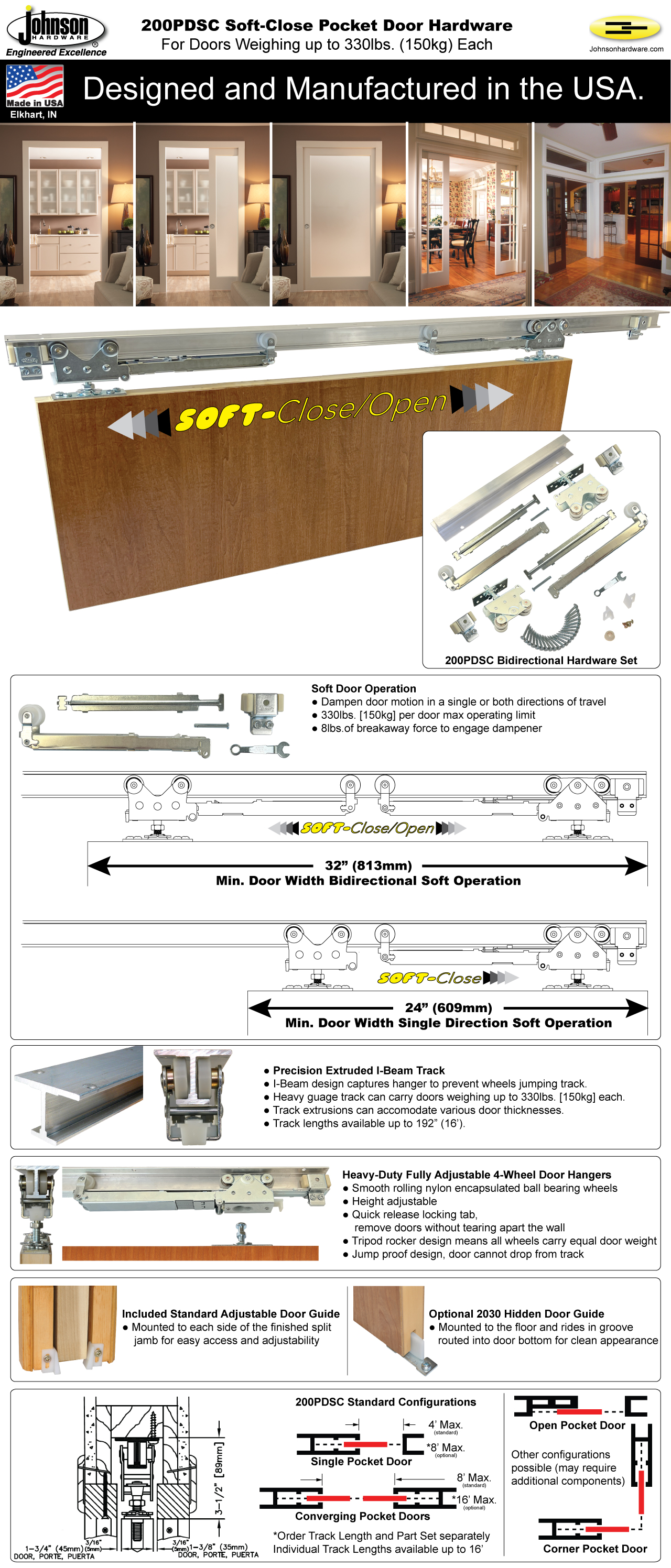

200PDSC Soft-Close Pocket Door Hardware

330lbs [150kg] Max. Weight Per Door
1-1/8" [29mm] Min. Door Thickness
192" (16') [4877mm] Max. Track Length
Soft-Open/Close Door Operation
Commercial Grade Top Hung Pocket Door Hardware

200PDSC Hardware Installation Instructions

A versatile single track system designed and packed primarily for "on-the-job" construction of pocket doors, but also usable in combination with itself or other Johnson series tracks for special installations of sliding doors. Aluminum I-beam track with jump proof four wheel hangers. Heavy gauge steel components are zinc plated for a quality appearance. Components are available in bulk for fabricators, as are fixtures for assembly of pocket door frames.

200PDSC Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths. Note: When used in a Pocket Door Application, 32" is the minimum door width possible for bidirectional soft operation (soft opperation in both directions), 24" is the minimum door width possible for single direction soft operation.

How to order 200PDSC Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Overview
Specifications

200PDSC Series Pocket Door Hardware

How to order 200PDSC Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications

Max. Weight Per Door	330lbs. [150kg]
Min. Door Thickness	1-1/8"
Track Profile	I-Beam
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Hanger Type	Top Mount, Soft-Close
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Application	Interior Residential/Commercial
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Bidirectional Soft Operation Hardware Sets

Part No.	Description /Contents	Track Length	Max. Door Width	Min. Soft Close Door Width	Max. Weight Per Door	Price \| Qty. \| Order
200721S2	View Contents	72" (6' - 0") [1829mm]	36" (3'- 0") [914mm]	32" (2'- 8") [813mm]	330lbs. [150kg]	Buy Now
200961S2	View Contents	96” (8' - 0") [2438mm]	48" (4'- 0") [1219mm]	32" (2'- 8") [813mm]	330lbs. [150kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Single Direction Soft Operation Hardware Sets

Part No.	Description /Contents	Track Length	Max. Door Width	Min. Soft Close Door Width	Max. Weight Per Door	Price \| Qty. \| Order
200481S1	View Contents	48" (4' - 0") [1219mm]	24" (2'- 0") [609mm]	24" (2'- 0") [609mm]	330lbs. [150kg]	Buy Now
200601S1	View Contents	60" (5' - 0") [1524mm]	30" (2'- 6") [762mm]	24" (2'- 0") [609mm]	330lbs. [150kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	330lbs. [150kg]
Min. Door Thickness	1-1/8"
Track Profile	I-Beam
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Hanger Type	Top Mount, Soft-Close
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Application	Interior Residential/Commercial
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
