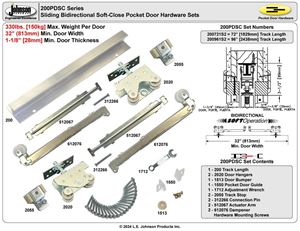

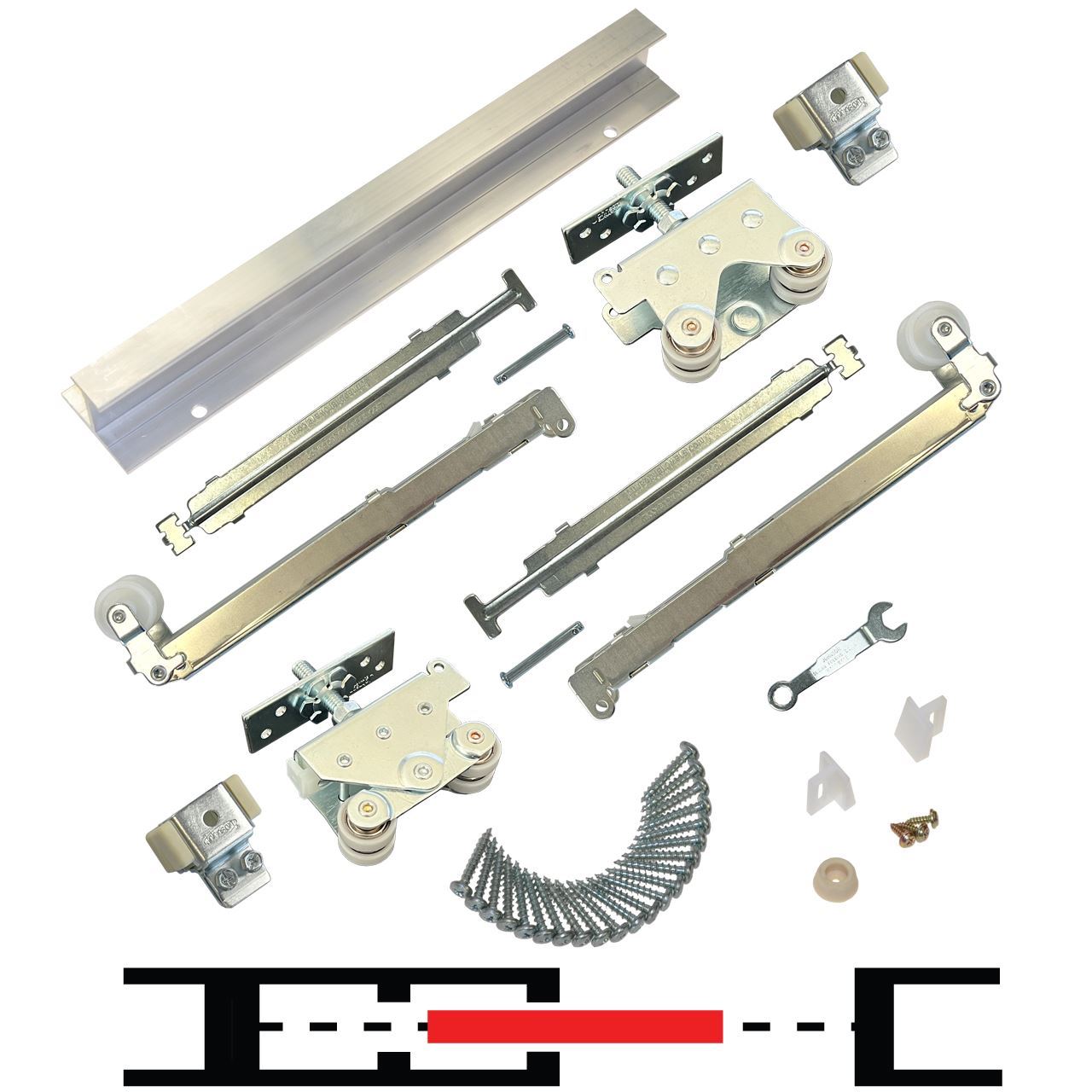

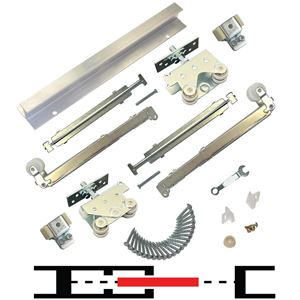

200PDSC 1-Door Bidirectional Soft Close Hardware Set, 96" Track

  • 330lbs [150kg] Max. Weight Per Door

  • 96" (8'- 0") [2438mm] Track Length
  • 32" (2'- 8") [813mm] Min. Door Width
  • 1-1/8" [29mm] Min. Door Thickness
  • Commercial Grade Top Hung Pocket Door Hardware

  • Manufacturer part number: 200961S2
    Buy Now
    Products specifications
    Country of Origin U.S.A.
    Track Material 6063T6 Extruded Aluminum
    Track Finish Mill Aluminum
    Steel Components 12-14 Gauge
    Steel Component Finish Zinc Trivalent Plated
    Wheel Type Nylon Encapsulated Sealed Ball Bearing
    Packaging Single Packed, Reinforced Corrugated Box
    Track Profile I-Beam
    Hardware Sets Bidirectional Soft Operation
    Track Length 96” (8' - 0") [2438mm]
    Max. Door Width 48" (4'- 0") [1219mm]
    Min. Soft Close Door Width 32" (2'- 8") [813mm]
    Max. Weight Per Door 330lbs. [150kg]
    Product Grade Commercial/Residential
    Application Interior Residential/Commercial
    Min. Door Thickness 1-1/8"
