200BP Bypass Pocket Door Hardware

400lbs [181kg] Max. Weight Per Door
1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
48" [1219mm] Max. Width Per Door
9-1/4" [235mm] Min. Wall Structure Thickness
*189-1/2" (15' - 3/4") [4813mm] Max. Opening Width
Commercial Grade Top Hung Bypass Pocket Door Hardware

The 200BP is one of the finest commercial grade sliding bypass pocket door hardware systems available, ideal for residential or commercial applications where quality, trouble-free operation and long life is a necessity. The 200BP features heavy gauge precision extruded aluminum track rails that are manufactured to the most precise specification and guaranteed jump proof door hangers include smooth rolling nylon encapsulated ball bearing hanger wheels for quiet operation. Trackless door guides eliminate the need for bottom guide tracks for an unabstructed opening.

200BP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.

How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Overview
Installation
Specifications

200BP Series Pocket Door Hardware

How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

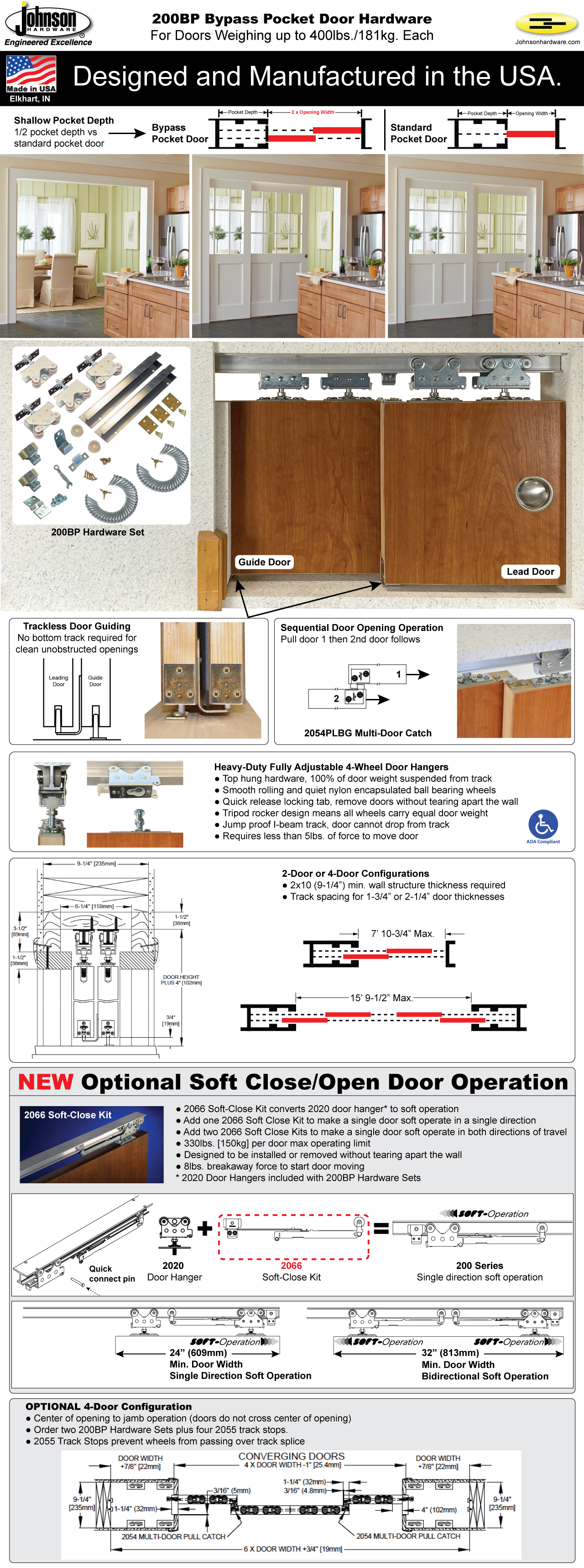

200BP Series Installation Instructions

200BP Series Quick Reference Drawings

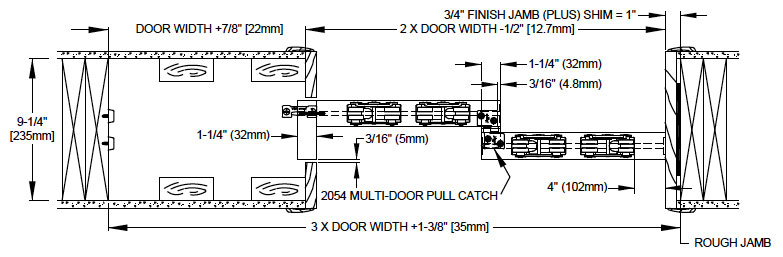

2-Door Opening Width Dimensions

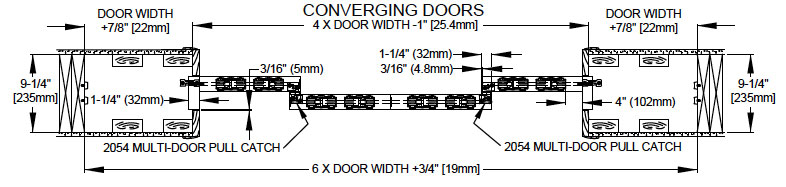

4-Door Opening Width Dimensions

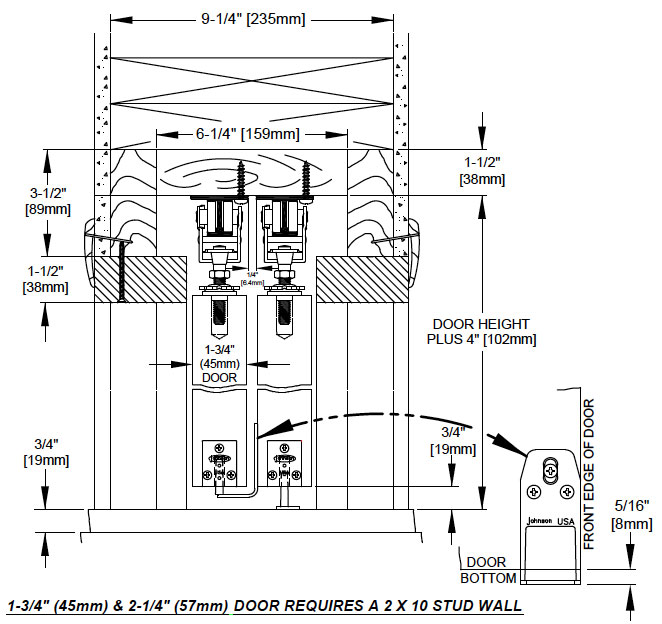

Opening Height Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

Track Spacing Detail

200BP Series Pocket Door Hardware

How to order 200BP Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications

Max. Weight Per Door	400lbs. [181kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm] or 1-3/4" [44mm]
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Application	Interior Residential/Commercial
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Door Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
20BP0722	View Contents	2-Door	72" x 2 (6' - 0" x 2) [1829mm x 2]	24" X 2 (2' - 0" X 2) [610mm X 2]	1-3/4" [44mm]	Buy Now
20BP0723	View Contents	2-Door	72" x 2 (6' - 0" x 2) [1829mm x 2]	24" X 2 (2' - 0" X 2) [610mm X 2]	2-1/4" [57mm]	Buy Now
20BP0962	View Contents	2-Door	96” x 2 (8' - 0" x 2) [2438mm x 2]	32" X 2 (2' - 8" X 2) [813mm X 2]	1-3/4" [44mm]	Buy Now
20BP0963	View Contents	2-Door	96” x 2 (8' - 0" x 2) [2438mm x 2]	32" X 2 (2' - 8" X 2) [813mm X 2]	2-1/4" [57mm]	Buy Now
20BP1062	View Contents	2-Door	106" x 2 (8' - 10" x 2) [2692mm x 2]	36" X 2 (3' - 0" X 2) [914mm X 2]	1-3/4" [44mm]	Buy Now
20BP1063	View Contents	2-Door	106" x 2 (8' - 10" x 2) [2692mm x 2]	36" X 2 (3' - 0" X 2) [914mm X 2]	2-1/4" [57mm]	Buy Now
20BP1442	View Contents	2-Door	144" x 2 (12' - 0" x 2) [3658mm x 2]	48" X 2 (4' - 0" X 2) [1219mm X 2]	1-3/4" [44mm]	Buy Now
20BP1443	View Contents	2-Door	144" x 2 (12' - 0" x 2) [3658mm x 2]	48" X 2 (4' - 0" X 2) [1219mm X 2]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
20BC0722	View Contents	4-Door	72" x 4 (6' - 0" x 4) [1829mm x 4]	24" X 4 (2' - 0" X 4) [610mm X 4]	1-3/4" [44mm]	Buy Now
20BC0723	View Contents	4-Door	72" x 4 (6' - 0" x 4) [1829mm x 4]	24" X 4 (2' - 0" X 4) [610mm X 4]	2-1/4" [57mm]	Buy Now
20BC0962	View Contents	4-Door	96” x 4 (8' - 0" x 4) [2438mm x 4]	32" X 4 (2' - 8" X 4) [813mm X 4]	1-3/4" [44mm]	Buy Now
20BC0963	View Contents	4-Door	96” x 4 (8' - 0" x 4) [2438mm x 4]	32" X 4 (2' - 8" X 4) [813mm X 4]	2-1/4" [57mm]	Buy Now
20BC1062	View Contents	4-Door	106" x 4 (8' - 10" x 4) [2692mm x 4	36" X 4 (3' - 0" X 4) [914mm X 4]	1-3/4" [44mm]	Buy Now
20BC1063	View Contents	4-Door	106" x 4 (8' - 10" x 4) [2692mm x 4	36" X 4 (3' - 0" X 4) [914mm X 4]	2-1/4" [57mm]	Buy Now
20BC1442	View Contents	4-Door	144" x 4 (12' - 0" x 4) [3658mm x 4]	48" X 4 (4' - 0" X 4) [1219mm X 4]	1-3/4" [44mm]	Buy Now
20BC1443	View Contents	4-Door	144" x 4 (12' - 0" x 4) [3658mm x 4]	48" X 4 (4' - 0" X 4) [1219mm X 4]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	400lbs. [181kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm] or 1-3/4" [44mm]
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Application	Interior Residential/Commercial
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
