2000 Series Heavy-Duty Pocket Door Frame Kits

  • 400lbs [181kg] Max. Weight Per Door

  • 60" [1524mm] x 108" [2743mm] Max. Door Size

  • 1-1/8" [29mm] - 1-3/4" [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • All Steel Split Studs Self-Tapping Drywall and Trim Screws Included
  • Commercial Grade Pocket Door Frame Kit

  • 2000 Installation Instructions

The 2000 Series Pocket Door Frame is designed to carry heavy solid core doors (up to 400lbs each) in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 2000 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

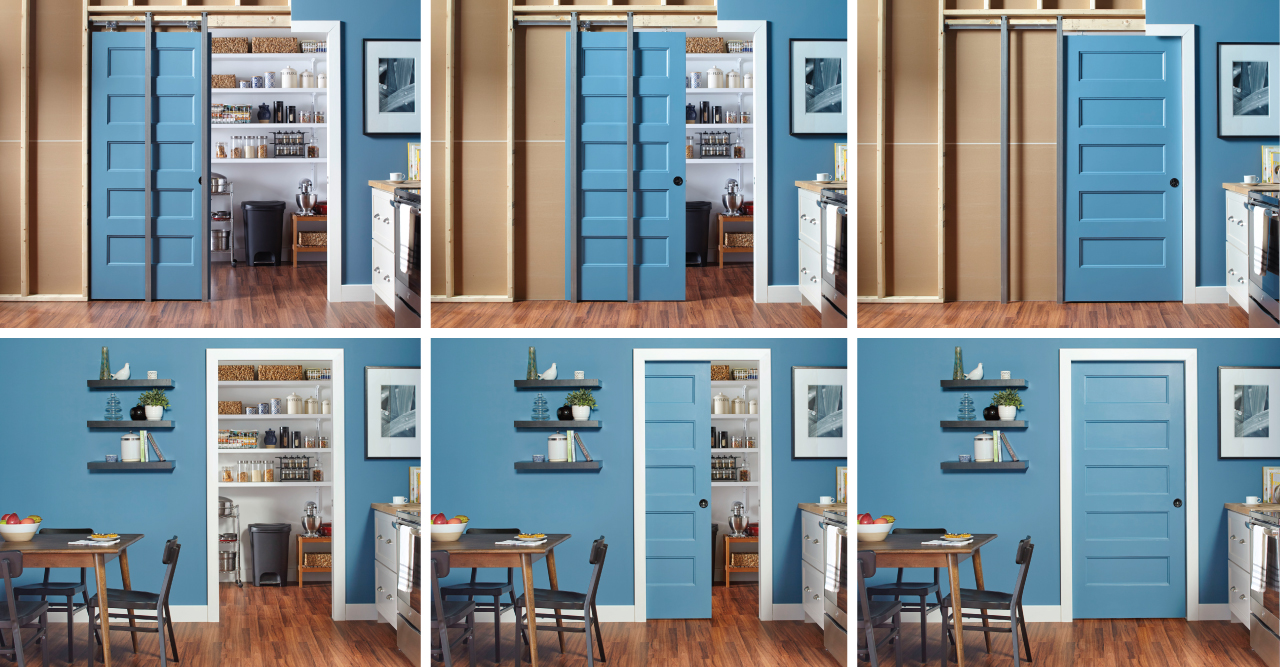

2000 Series Installation Example

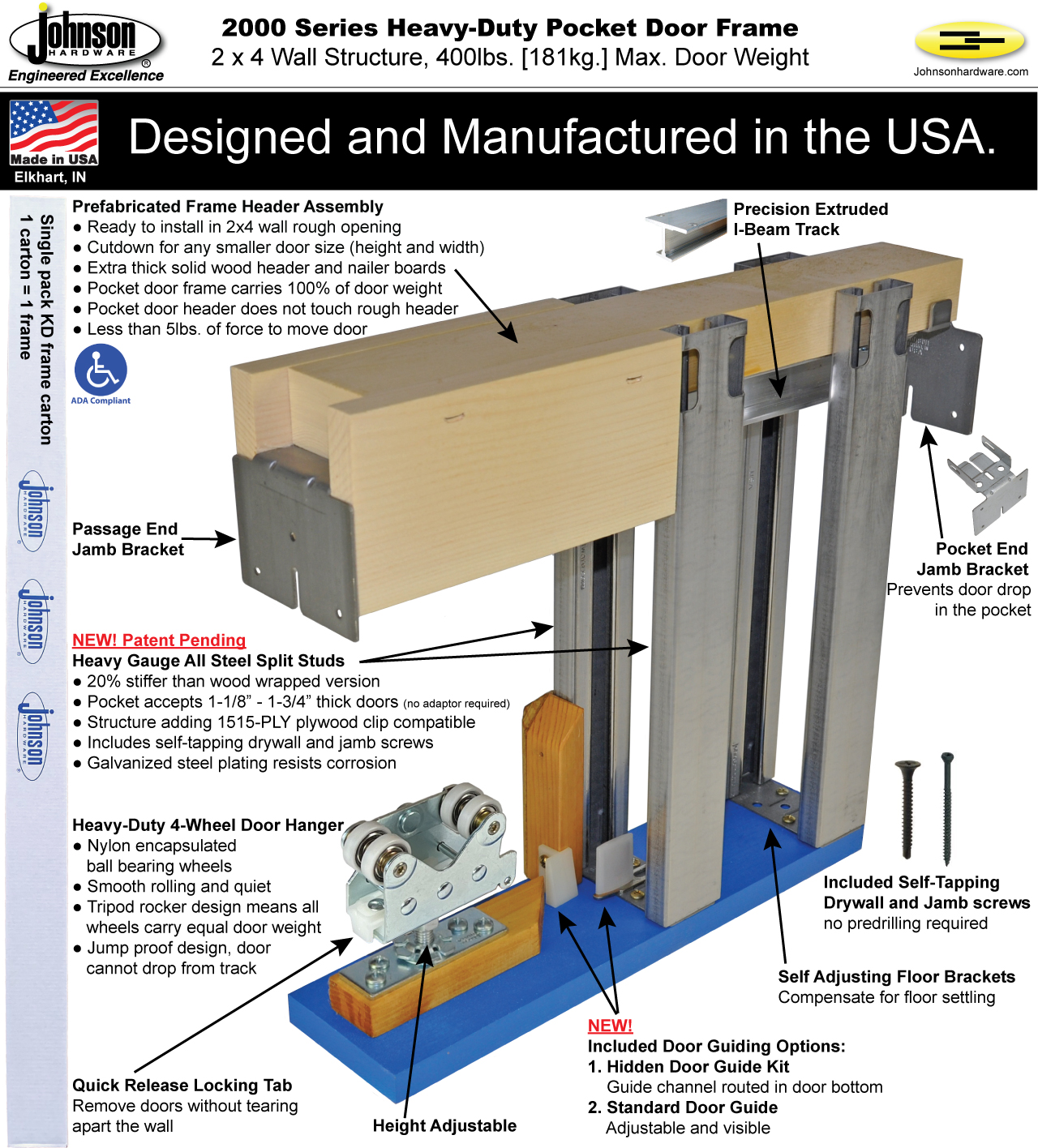

2000 Exceptional Features

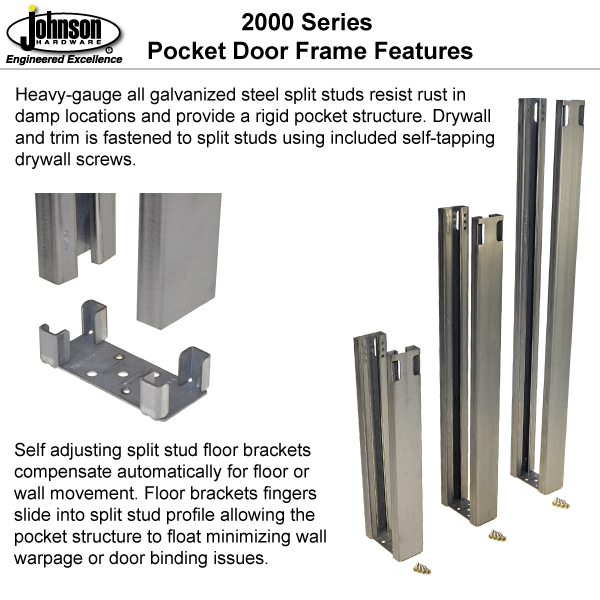

All Steel Split Studs

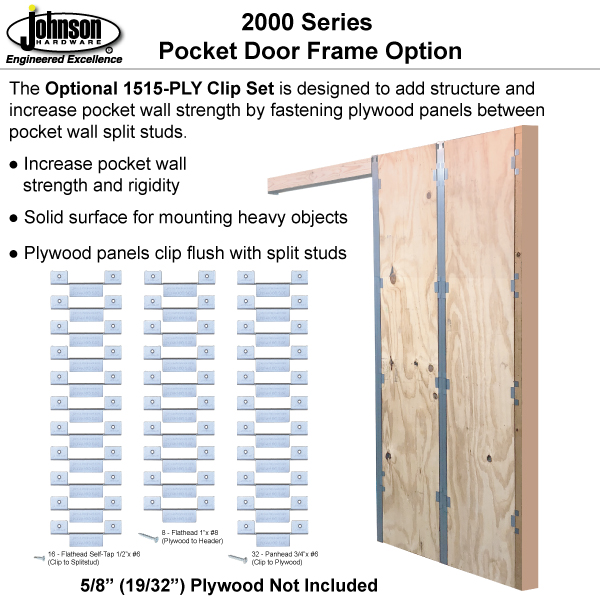

Pocket Wall Strengthening

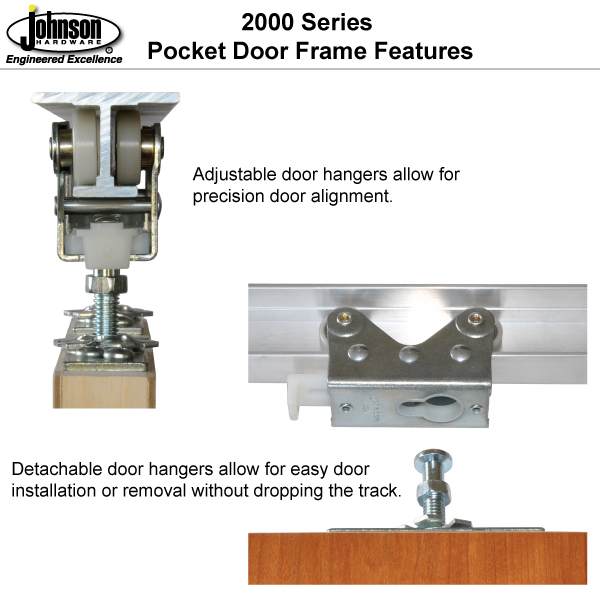

Ball Bearing Door Hangers

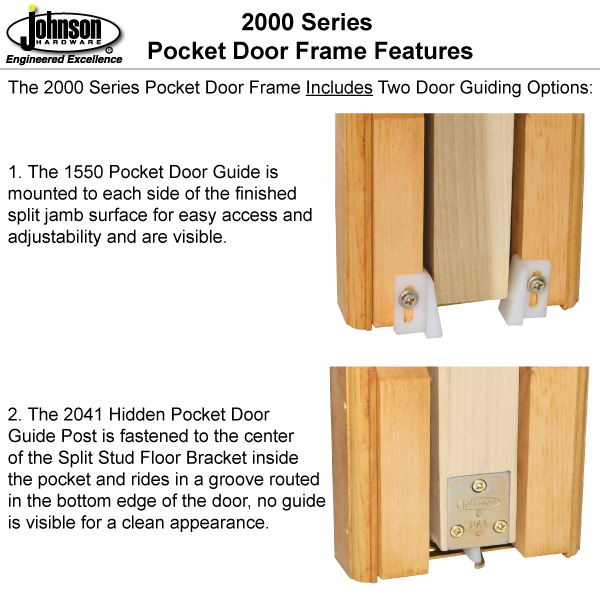

Door Guide Options

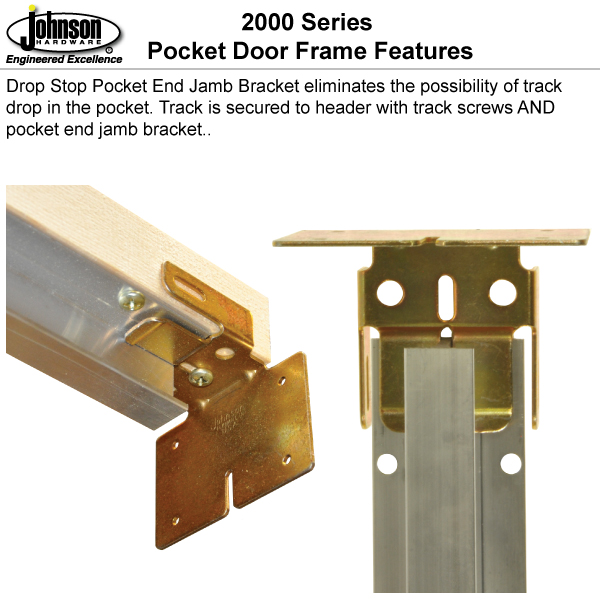

Drop Stop Jamb Bracket

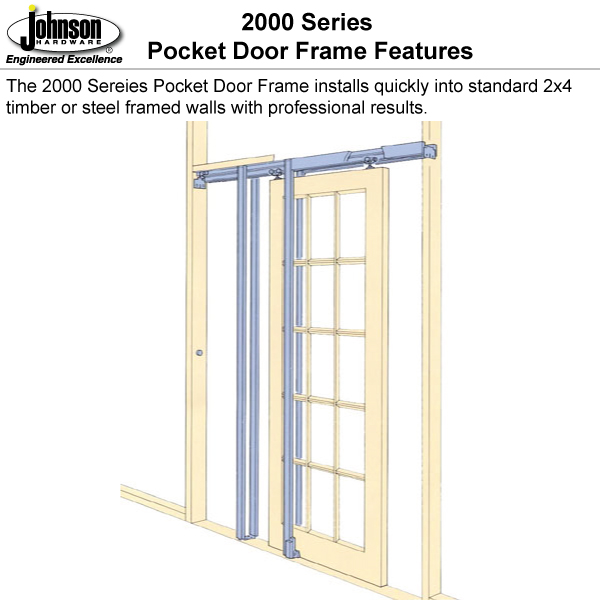

2 x 4 Stud Wall Installation

Product Guarantee

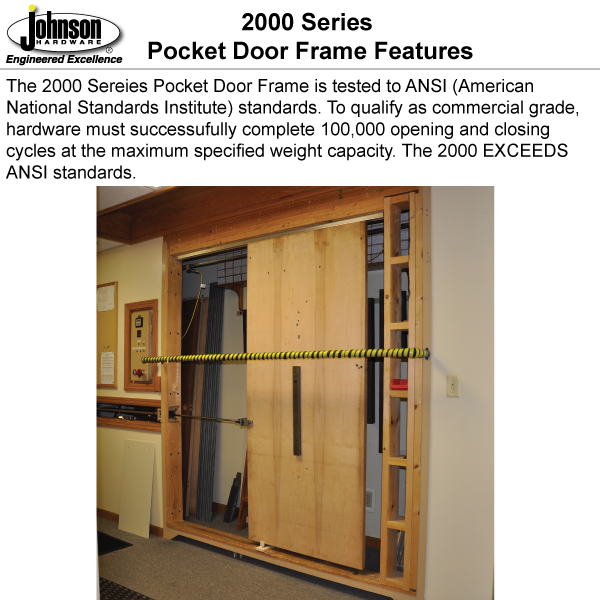

Quality Control

2000 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to prepare a 2x4 wall for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2000 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit. (located at bottom of page)

The 2000 Series Pocket Door Frame is designed to carry heavy solid core doors (up to 400lbs each) in standard  2 x 4 timber or 4" steel framed stud walls when using the 1574PLBG 4" Steel Stud Adapter Kit. The 2000 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2000 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.



2000 Series Installation Example



2000 Exceptional Features

All Steel Split Studs

Pocket Wall Strengthening

Ball Bearing Door Hangers

Door Guide Options

Drop Stop Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Quality Control

2000 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to prepare a 2x4 wall for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2000 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit. (located at bottom of page)

2000 Series Printed Installation Instructions

2000 Series Quick Reference Drawings

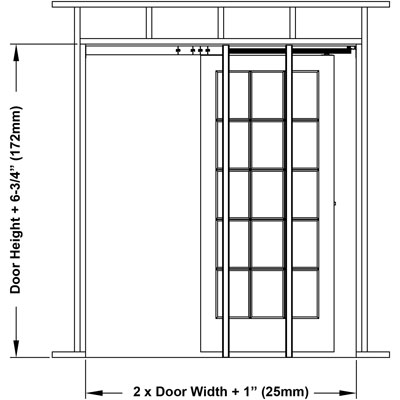

Single Door Rough-in

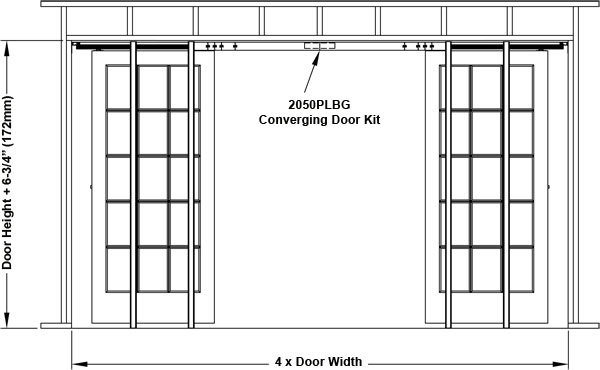

Converging Door Rough-in

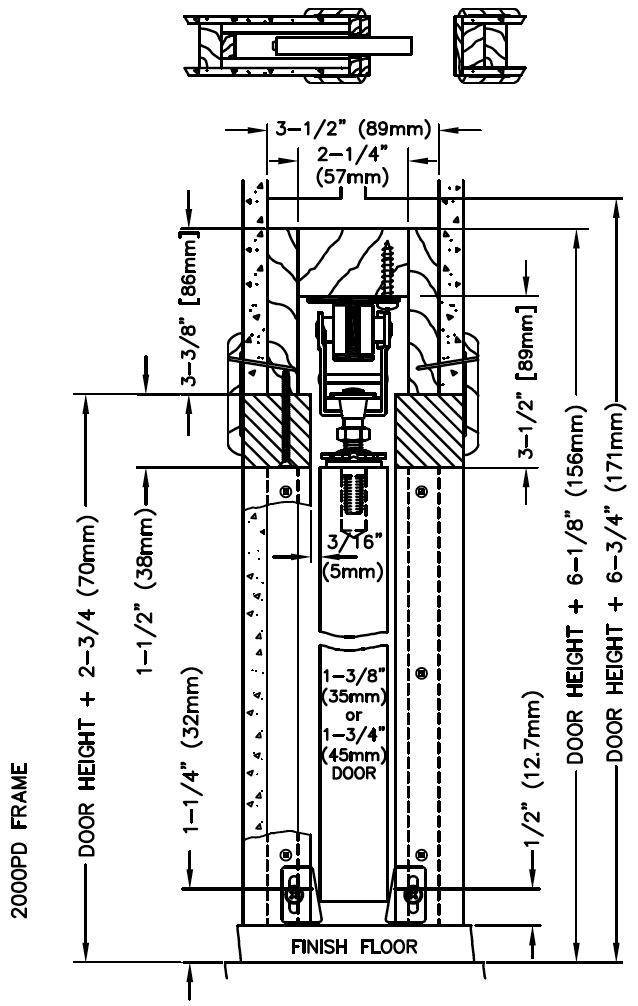

End View

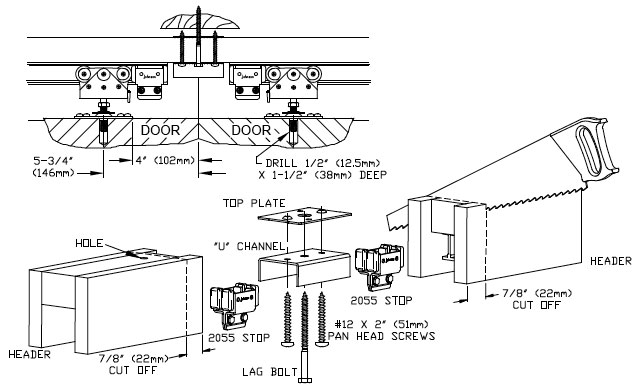

2050 Converging Door Kit

2000 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to prepare a 2x4 wall for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2000 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit. (located at bottom of page)

Pocket Door Video

Pocket Door Lock

Track Cutdown

2000 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to prepare a 2x4 wall for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2000 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit. (located at bottom of page)

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile I-Beam
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
202668PF View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
203068PF View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
204068PF View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
205068PF View Contents

60" (5'- 0")
[1524mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
202670PF View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
203070PF View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
204070PF View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
205070PF View Contents

60" (5'- 0")
[1524mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
202680PF View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
203080PF View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
204080PF View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
205080PF View Contents

60" (5'- 0")
[1524mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
202690PF View Contents

30" (2'- 6")
[762mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
203090PF View Contents

36" (3'- 0")
[914mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
204090PF View Contents

48" (4'- 0")
[1219mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now
205090PF View Contents

60" (5'- 0")
[1524mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
1-3/4" [44mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 96" (8'-0") [2438mm]
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction 18 Gauge Cold Rolled Galvanized Steel
Track Profile I-Beam
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
