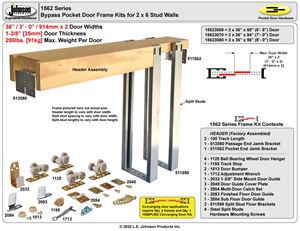

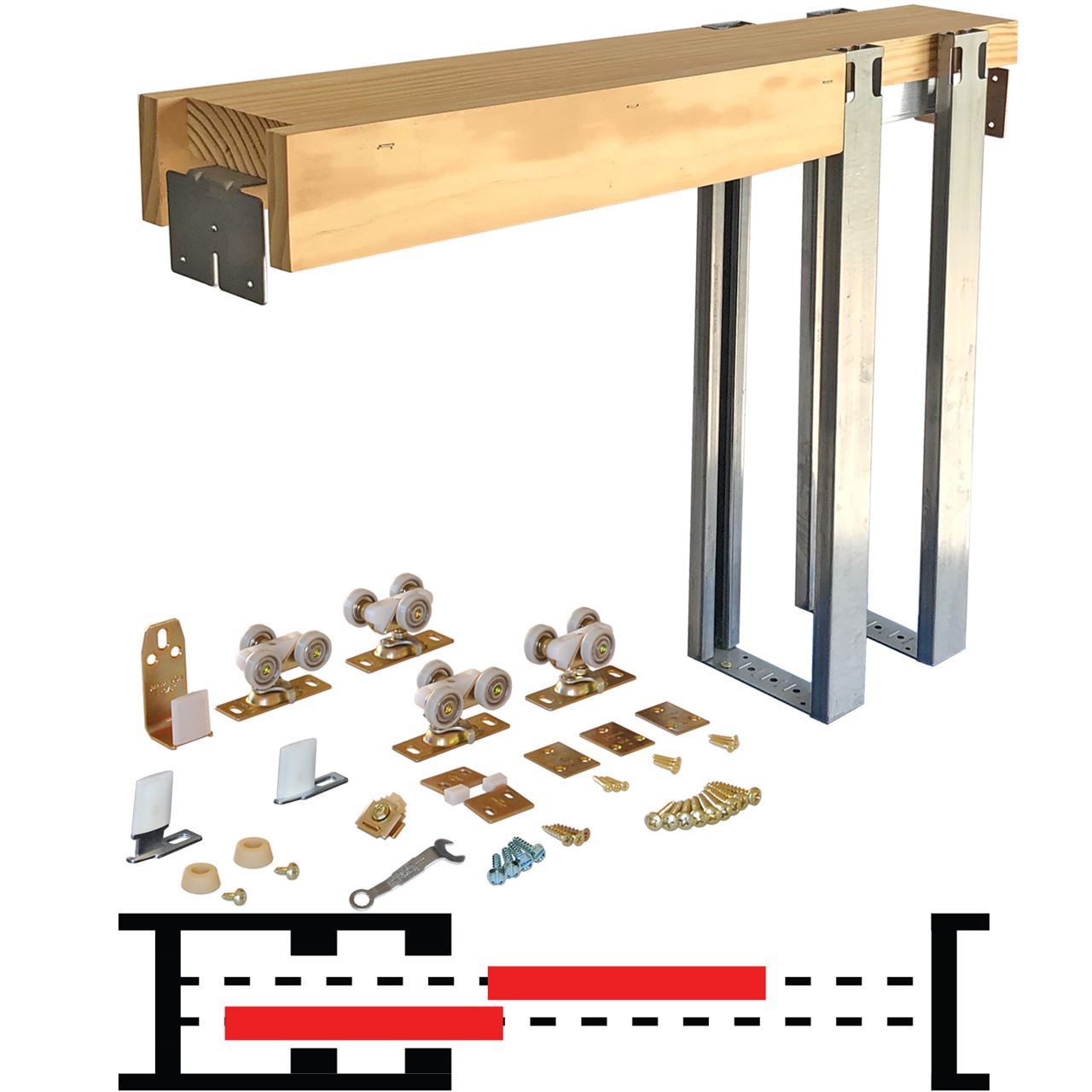

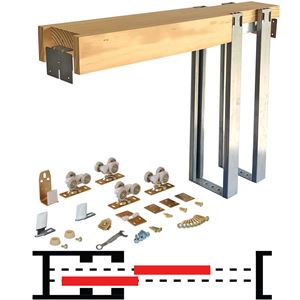

1562 Series 36" x 96" Bypass Pocket Door Frame

200lbs [91kg] Max. Weight Per Door

36" [914mm] x 2 Door Widths

96" [2438mm] Max Door Height

1-3/8" [35mm] x 2 Door Thickness

5-1/2" [140mm] (2x6) Min. Wall Structure Thickness

Commercial Grade Pocket Door Frame Kit

Manufacturer part number: 15623080

Buy Now

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Door Width	36" x 2 (3'- 0" x 2) [914mm x 2]
Door Opening Width	70-3/4" [1829mm]
Max. Door Height	96" (8/0) [2438mm]
Door Thickness	1-3/8" x 2 [35mm x 2]
Min. Wall Structure Thickness	5-1/2" (2 x 6) [140mm]

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Door Width	36" x 2 (3'- 0" x 2) [914mm x 2]
Door Opening Width	70-3/4" [1829mm]
Max. Door Height	96" (8/0) [2438mm]
Door Thickness	1-3/8" x 2 [35mm x 2]
Min. Wall Structure Thickness	5-1/2" (2 x 6) [140mm]
