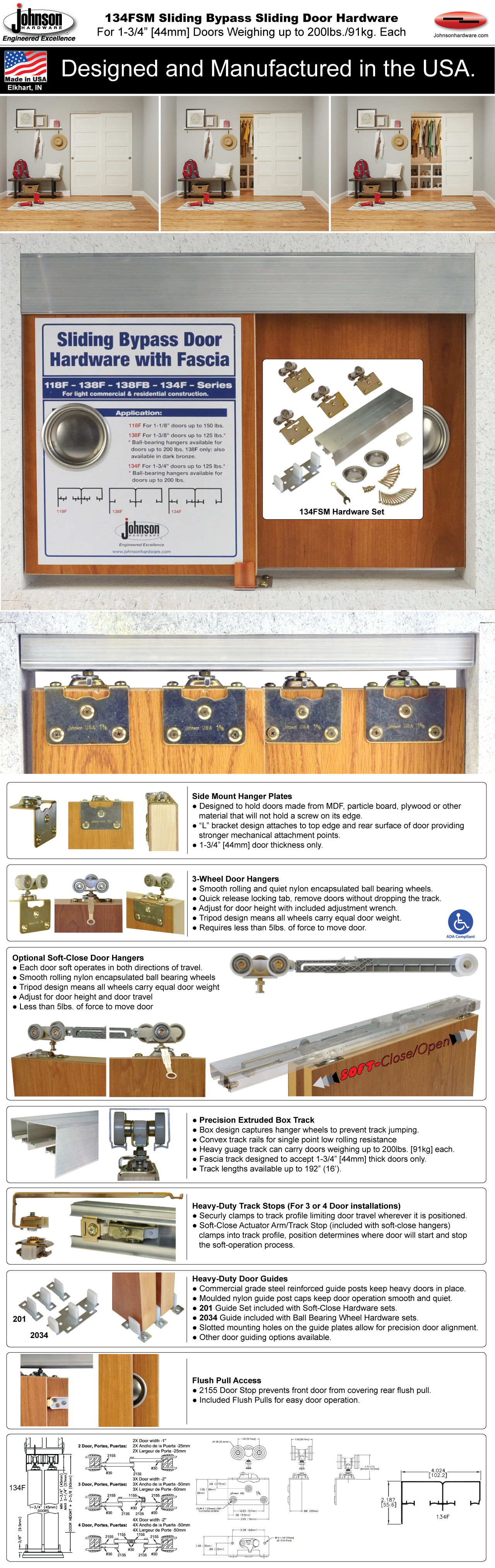

134FSM Side Mount Sliding Bypass Door Hardware

  • Soft-Close/Open Door Operation Available
  • 200lbs [91kg] Max Weight Per Door

  • 1-3/4" [44mm] Door Thickness
  • Side Mount Hanger Type

  • Single Extrusion Twin Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • 134FSM Installation Instructions

The 134FSM is commercial grade sliding by-pass door hardware for 1-3/4" [44mm] thick doors. The 134FSM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum fascia track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

134F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 134F is compatible with 1-3/4" [44mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 134FSM configurations possible by ordering 134FSM components by the piece.

The 134FSM is commercial grade sliding by-pass door hardware for 1-3/4" [44mm] thick doors. The 134FSM features side mount hanger plates designed to hold doors made from MDF, partical board, plywood or other material that will not hold a screw on edge. Extruded aluminum fascia track features box design that captures wheels to eliminate track jump. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. 3-wheel "tripod" door hanger design ensure all wheels carry equal door weight. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

134F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 134F is compatible with 1-3/4" [44mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 134FSM configurations possible by ordering 134FSM components by the piece.

134FSM Printed Installation Instructions

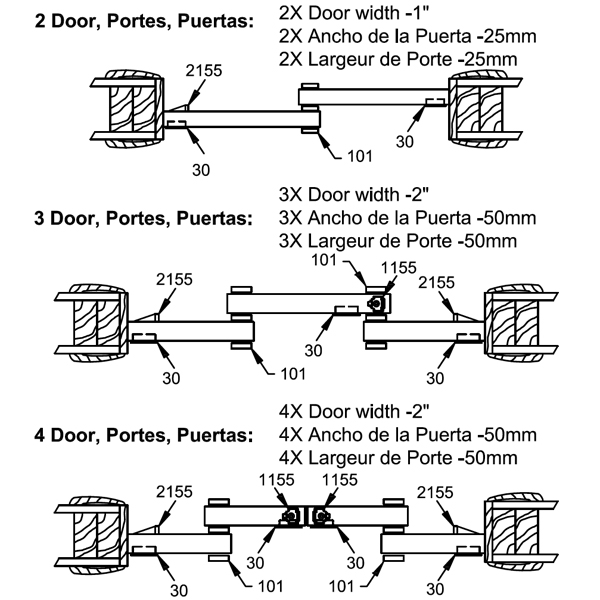

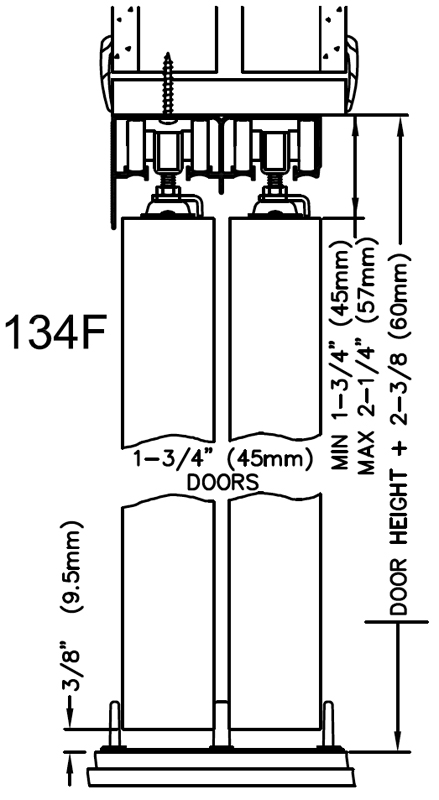

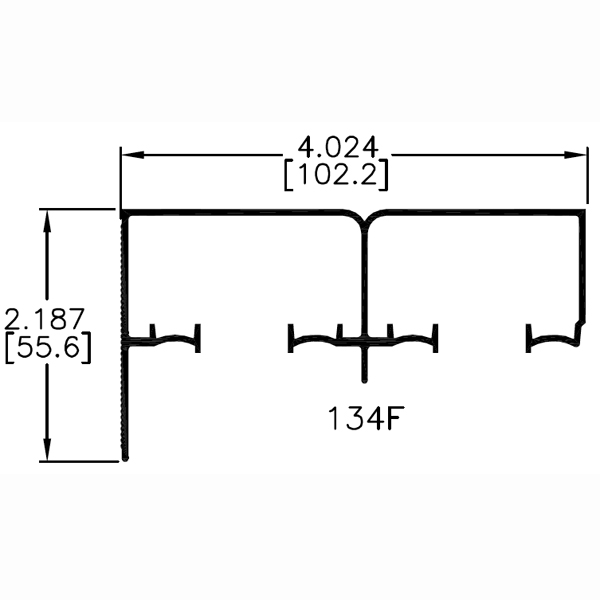

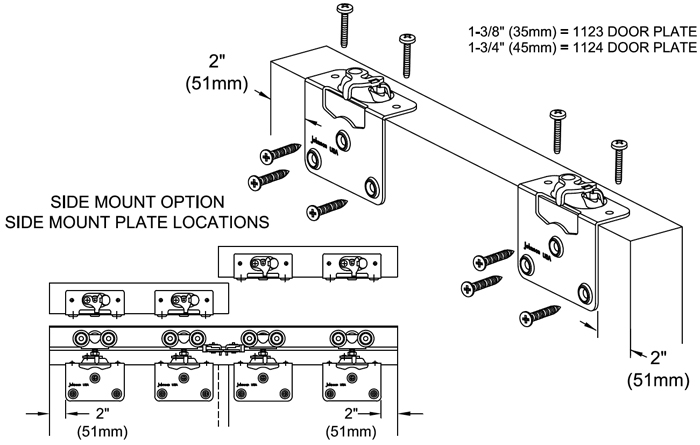

134F Quick Reference Drawings

134FSM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 134FSM is compatible with 1-3/4" [44mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • 24" 2/0 Min. Door Width for Soft-Open/Close Hardware Sets.
  • Custom 134FSM configurations possible by ordering 134FSM components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/4" [44mm]
Series Track 134F
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Soft-Open/Close Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
134SS482 View Contents

2 - Doors

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" (4' - 0")
[1219mm]

Buy Now
134SS602 View Contents

2 - Doors

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" (5' - 0")
[1524mm]

Buy Now
134SS722 View Contents

2 - Doors

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" (6' - 0")
[1829mm]

Buy Now
134SS964 View Contents

4 - Doors

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” (8' - 0")
[2438mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
