111PD Installation Instructions
Similar to 100PD except designed for lighter weight doors. A versatile single track system designed and packed primarily for "on-the-job" construction of pocket doors, but also usable in combination with itself or other Johnson series tracks for special installations of sliding doors. Aluminum track with convex rails, jump proof three wheel hangers. Heavy gauge steel components are zinc plated for a quality appearance. Components are available in bulk for fabricators, as are fixtures for assembly of pocket door frames.

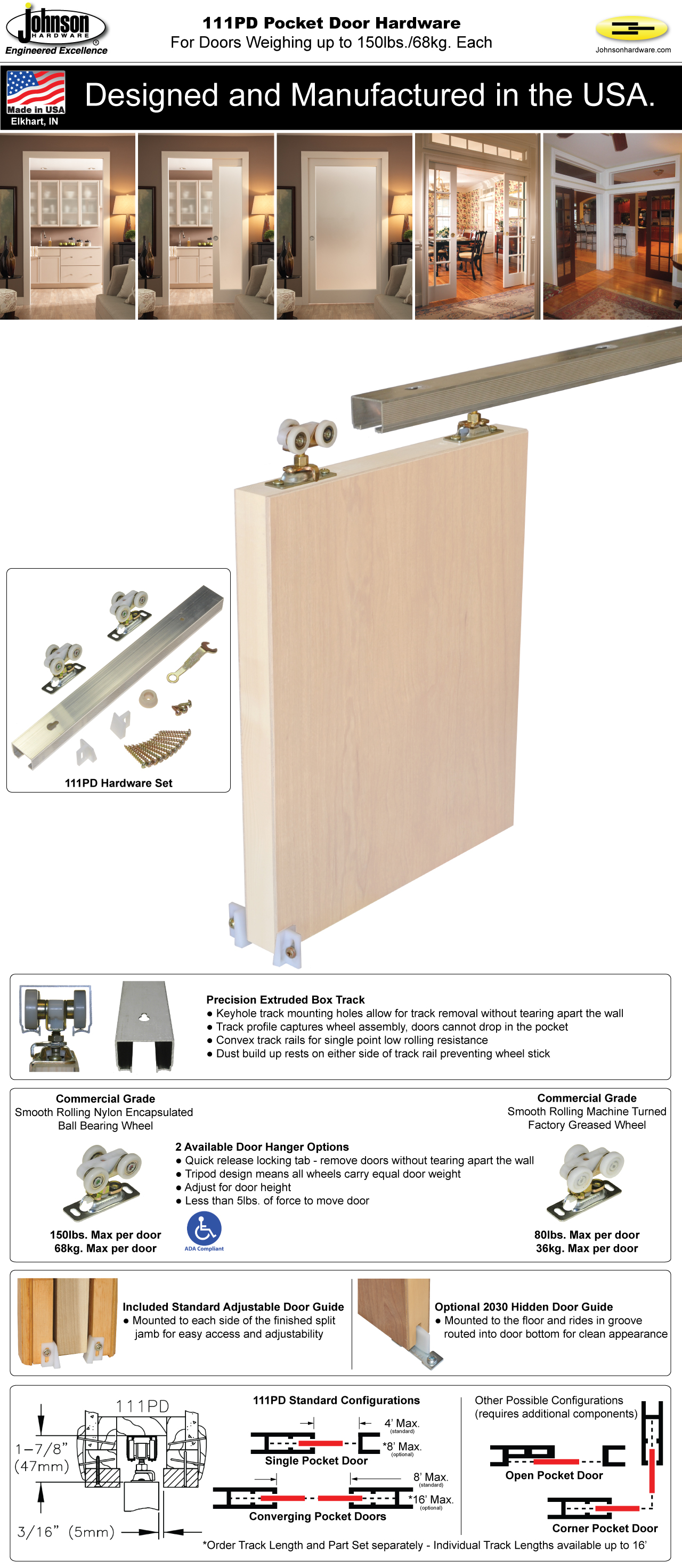

111PD Series Pocket Door Hardware
Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.
How to order 111PD Series Pocket Door Hardware:
1. Determine your door width.
2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.
111PD Series Installation Instructions

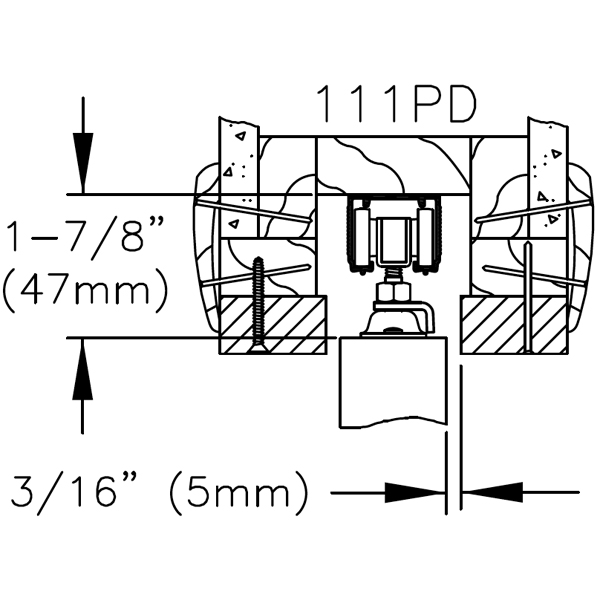

111PD Series Quick Reference Drawings

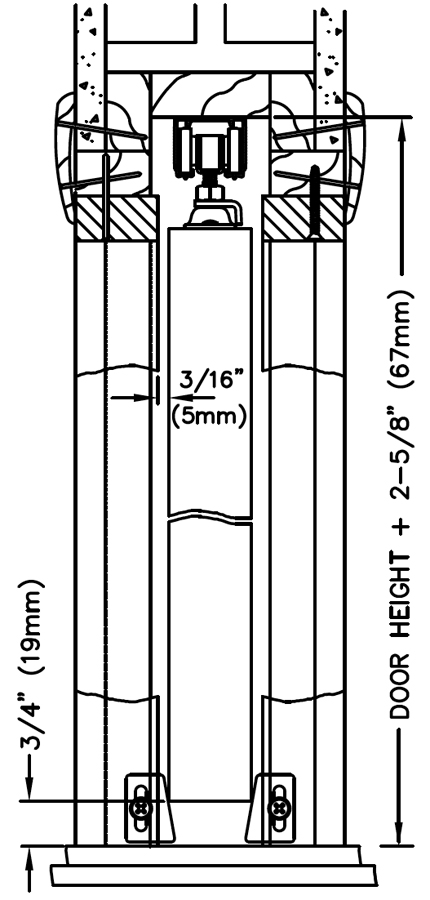

Opening Height Dimensions

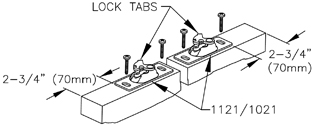

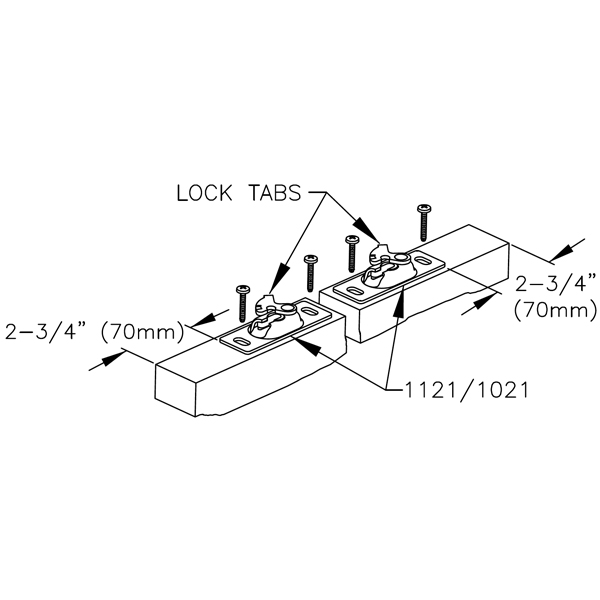

Hanger Plate Placemet
1-Door Ball Bearing Wheel
48" (4' - 0") [1219mm]
24" (2'- 0") [609mm]
60" (5' - 0") [1524mm]
30" (2'- 6") [762mm]
72" (6' - 0") [1829mm]
36" (3'- 0") [914mm]
96” (8' - 0") [2438mm]
48" (4'- 0") [1219mm]
Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide. Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
1-Door Standard Wheel
