111MP Tri-Pass Pocket Door Hardware

150lbs [68kg] Max. Weight Per Door
1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
48" [1219mm] Max. Width Per Door
9-1/4" [235mm] Min. Wall Structure Thickness
*283" (25' - 1/2") [7188mm] Max. Opening Width
Commercial Grade Top Hung Tri-pass Pocket Door Hardware

The 111MP is one of the finest medium duty sliding door systems made. Ideal for residential/commercial applications where quality, trouble-free operation and long life is a necessity. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification, with guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

111MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door widths.

How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Overview
Installation
Specifications

111MP Series Pocket Door Hardware

How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

111MP Series Installation Instructions

111MP Series Quick Reference Drawings

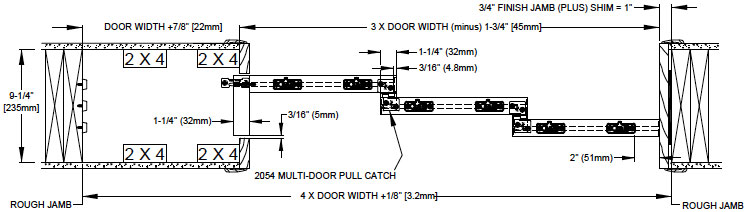

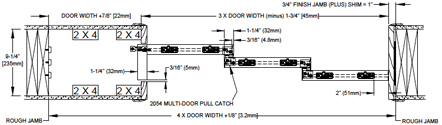

3-Door Opening Width Dimensions

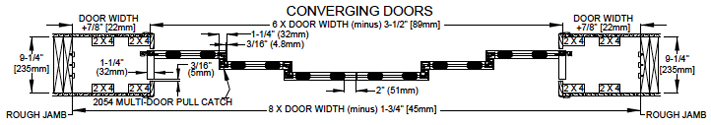

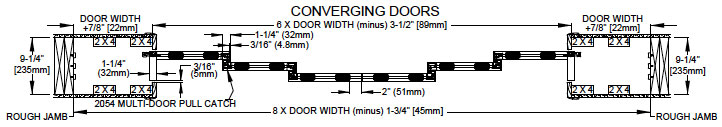

6-Door Opening Width Dimensions

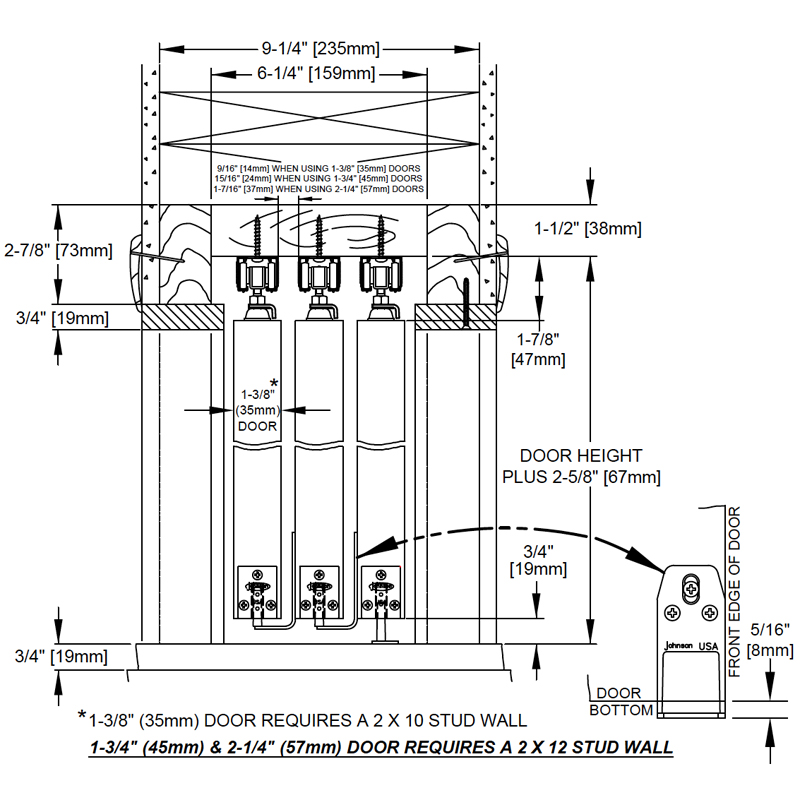

Opening Height Dimensions

Trackless Door Guiding Detail

Track Dimensions

2054PLBG Multi-Door Catch

Track Spacing Detail

111MP Series Pocket Door Hardware

How to order 111MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	111
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	3/4"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

3-Door Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
11MP0961	View Contents	3-Door	96” x 3 (8' - 0" x 3) [2438mm x 3]	24" X 3 (2' - 0" X 3) [610mm X 3]	1-3/8" [35mm]	Buy Now
11MP0962	View Contents	3-Door	96” x 3 (8' - 0" x 3) [2438mm x 3]	24" X 3 (2' - 0" X 3) [610mm X 3]	1-3/4" [44mm]	Buy Now
11MP0963	View Contents	3-Door	96” x 3 (8' - 0" x 3) [2438mm x 3]	24" X 3 (2' - 0" X 3) [610mm X 3]	2-1/4" [57mm]	Buy Now
11MP1201	View Contents	3-Door	120" x 3 (10' - 0" x 3) [3048mm x 3]	30" X 3 (2' - 6" X 3) [762mm X 3]	1-3/8" [35mm]	Buy Now
11MP1202	View Contents	3-Door	120" x 3 (10' - 0" x 3) [3048mm x 3]	30" X 3 (2' - 6" X 3) [762mm X 3]	1-3/4" [44mm]	Buy Now
11MP1203	View Contents	3-Door	120" x 3 (10' - 0" x 3) [3048mm x 3]	30" X 3 (2' - 6" X 3) [762mm X 3]	2-1/4" [57mm]	Buy Now
11MP1441	View Contents	3-Door	144" x 3 (12' - 0" x 3) [3658mm x 3]	36" X 3 (3' - 0" X 3) [914mm X 3]	1-3/8" [35mm]	Buy Now
11MP1442	View Contents	3-Door	144" x 3 (12' - 0" x 3) [3658mm x 3]	36" X 3 (3' - 0" X 3) [914mm X 3]	1-3/4" [44mm]	Buy Now
11MP1443	View Contents	3-Door	144" x 3 (12' - 0" x 3) [3658mm x 3]	36" X 3 (3' - 0" X 3) [914mm X 3]	2-1/4" [57mm]	Buy Now
11MP1921	View Contents	3-Door	192" x 3 (16' - 0" x 3) [4877mm x 3]	48" X 3 (4' - 0" X 3) [1219mm X 3]	1-3/8" [35mm]	Buy Now
11MP1922	View Contents	3-Door	192" x 3 (16' - 0" x 3) [4877mm x 3]	48" X 3 (4' - 0" X 3) [1219mm X 3]	1-3/4" [44mm]	Buy Now
11MP1923	View Contents	3-Door	192" x 3 (16' - 0" x 3) [4877mm x 3]	48" X 3 (4' - 0" X 3) [1219mm X 3]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

6-Door Converging Hardware Sets

Part No.	Description /Contents	Hardware Sets	Track Length	Max. Door Width	Door Thickness	Price \| Qty. \| Order
11MC0961	View Contents	6-Door Converging	96” x 6 (8' - 0" x 6) [2438mm x 6]	24" X 6 (2' - 0" X 6) [610mm X 6]	1-3/8" [35mm]	Buy Now
11MC0962	View Contents	6-Door Converging	96” x 6 (8' - 0" x 6) [2438mm x 6]	24" X 6 (2' - 0" X 6) [610mm X 6]	1-3/4" [44mm]	Buy Now
11MC0963	View Contents	6-Door Converging	96” x 6 (8' - 0" x 6) [2438mm x 6]	24" X 6 (2' - 0" X 6) [610mm X 6]	2-1/4" [57mm]	Buy Now
11MC1201	View Contents	6-Door Converging	120" x 6 (10' - 0" x 6) [3048mm x 6]	30" x 6 (2' - 6" X 6) [762mm X 6]	1-3/8" [35mm]	Buy Now
11MC1202	View Contents	6-Door Converging	120" x 6 (10' - 0" x 6) [3048mm x 6]	30" x 6 (2' - 6" X 6) [762mm X 6]	1-3/4" [44mm]	Buy Now
11MC1203	View Contents	6-Door Converging	120" x 6 (10' - 0" x 6) [3048mm x 6]	30" x 6 (2' - 6" X 6) [762mm X 6]	2-1/4" [57mm]	Buy Now
11MC1441	View Contents	6-Door Converging	144" x 6 (12' - 0" x 6) [3658mm x 6]	36" X 6 (3' - 0" X 6) [914mm X 6]	1-3/8" [35mm]	Buy Now
11MC1442	View Contents	6-Door Converging	144" x 6 (12' - 0" x 6) [3658mm x 6]	36" X 6 (3' - 0" X 6) [914mm X 6]	1-3/4" [44mm]	Buy Now
11MC1443	View Contents	6-Door Converging	144" x 6 (12' - 0" x 6) [3658mm x 6]	36" X 6 (3' - 0" X 6) [914mm X 6]	2-1/4" [57mm]	Buy Now
11MC1921	View Contents	6-Door Converging	192" x 6 (16' - 0" x 6) [4877mm x 6]	48" X 6 (4' - 0" X 6) [1219mm X 6]	1-3/8" [35mm]	Buy Now
11MC1922	View Contents	6-Door Converging	192" x 6 (16' - 0" x 6) [4877mm x 6]	48" X 6 (4' - 0" X 6) [1219mm X 6]	1-3/4" [44mm]	Buy Now
11MC1923	View Contents	6-Door Converging	192" x 6 (16' - 0" x 6) [4877mm x 6]	48" X 6 (4' - 0" X 6) [1219mm X 6]	2-1/4" [57mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	200lbs. [91kg]
Application	Interior Residential/Commercial
Door Thickness	1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track	111
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Top Mount
Wheel Dia.	3/4"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Single Packed, Reinforced Corrugated Box
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
