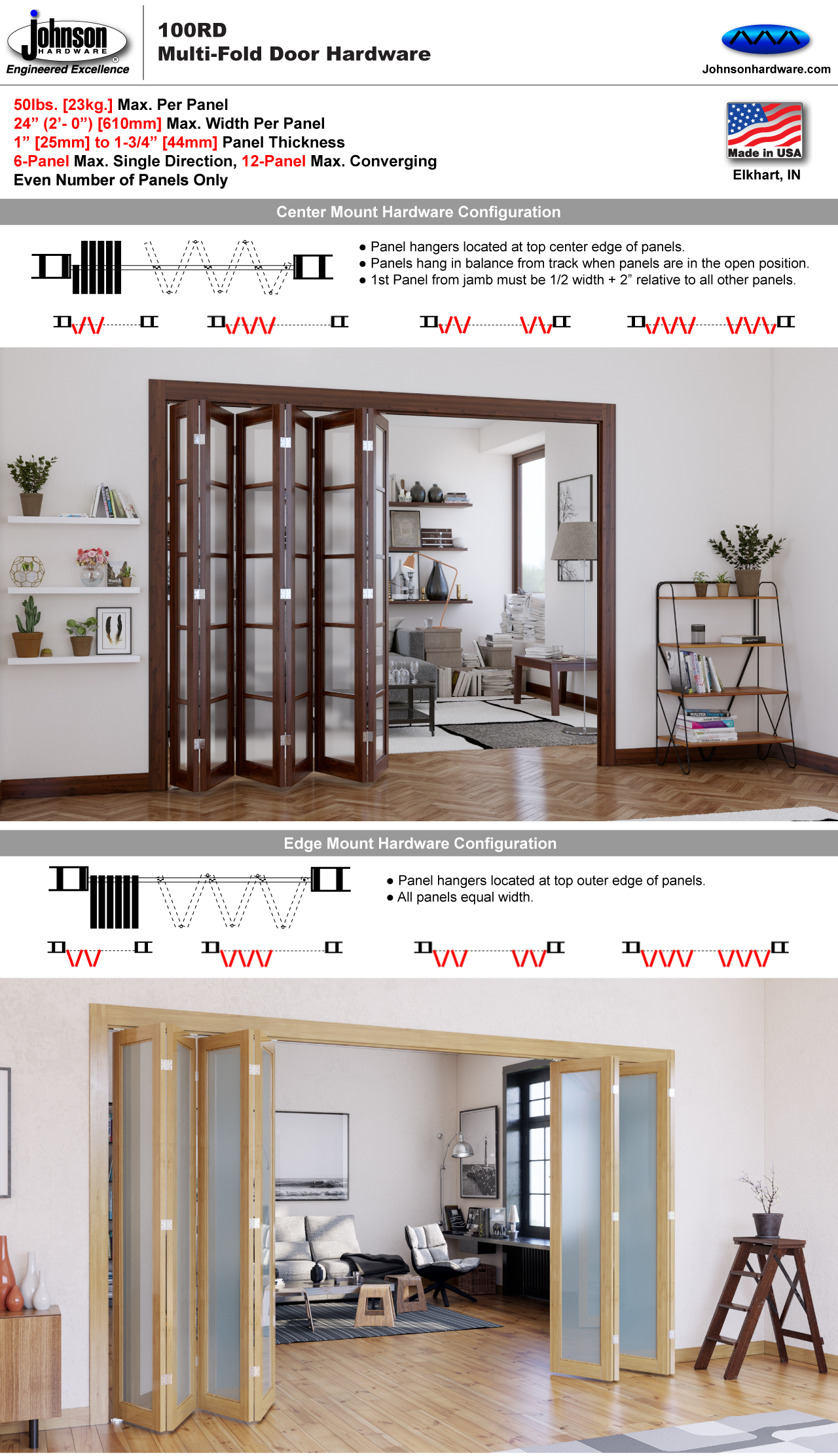

Johnson's 100RD Multi-folding or Room Dividing Door Hardware is designed to carry heavy door panels in residential or light commercial interior applications. The 100RD is 'top hung' hardware, all door weight is suspended from the top track therefore does not require any bottom tracking. The 100RD allows door panels to be removed or installed without dropping the track. The 100RD features a heavy duty jump proof box track track with positive pivot lock, three-wheeled ball-bearing hanger guides, heavy duty adjustable bottom pivot and a floor bracket with an adjustable bottom pivot socket. Track lengths are available up to 16'.
100RD Ordering Instructions
100RD Multi-Fold Hardware are configured according to application, in effect you build the 100RD to suit your particular installation requirements.
Step 1. Order Track to Desired Length
In standard applications track is usually ordered in lengths that at least equal the overall opening width. Johnson Hardware recommends that single track lengths be used whenever possible to avoid door hangers passing over track splices during operation. Track splicing is acceptable only if hanger wheels DO NOT pass over the splice. If multiple track lengths are to be used in a single opening, ensure that track and door panels are positioned so that no door hanger/guide passed over track splice.
Step 2. Order Base Set A
Base Hardware Set A contains all the pivots, brackets, hangers and mounting screws to hang the 1st pair of panels from a single jamb. Order base hardware set A (1015BS-A) for the first pair of panels off jamb as indicated. Order 1 base set A when all panels operate from a single direction. Order 2 base sets A's when panels will operate from two directions, converging panels that meet in the middle of the opening.
Step 3. Order Add-On Set B
Order one add-on hardware set B (1030AOSB) for every pair of panels after Base Set A as indicated.
100RD Series Installation Instructions

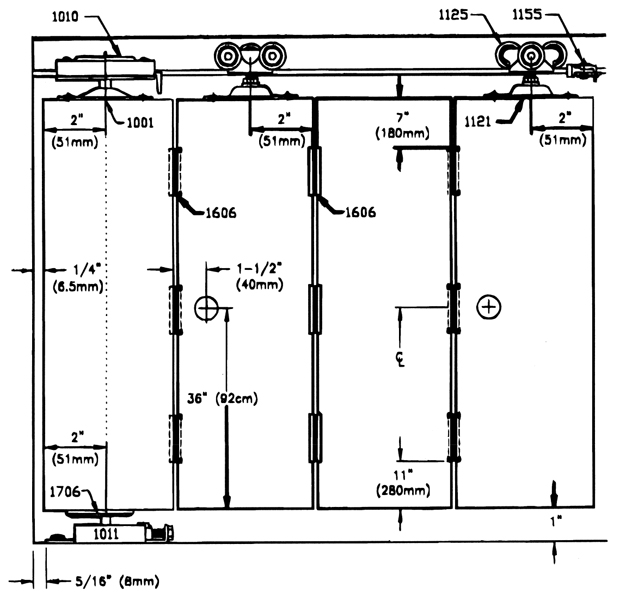

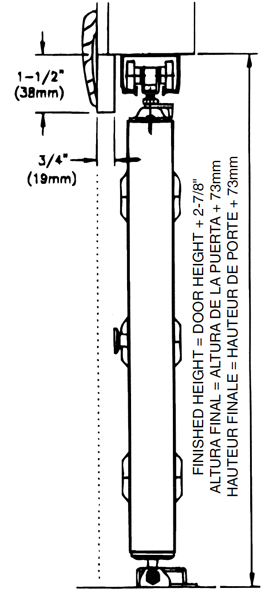

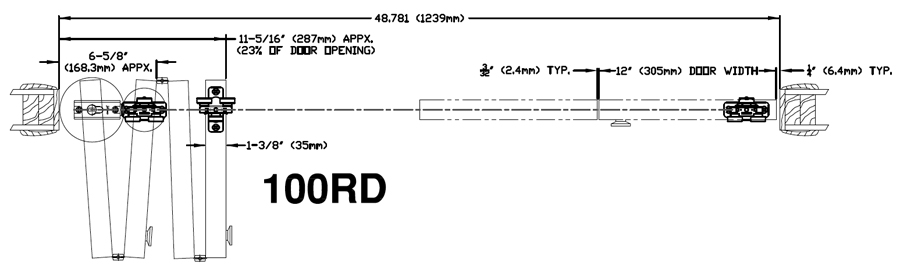

100RD Series Quick Reference Drawings

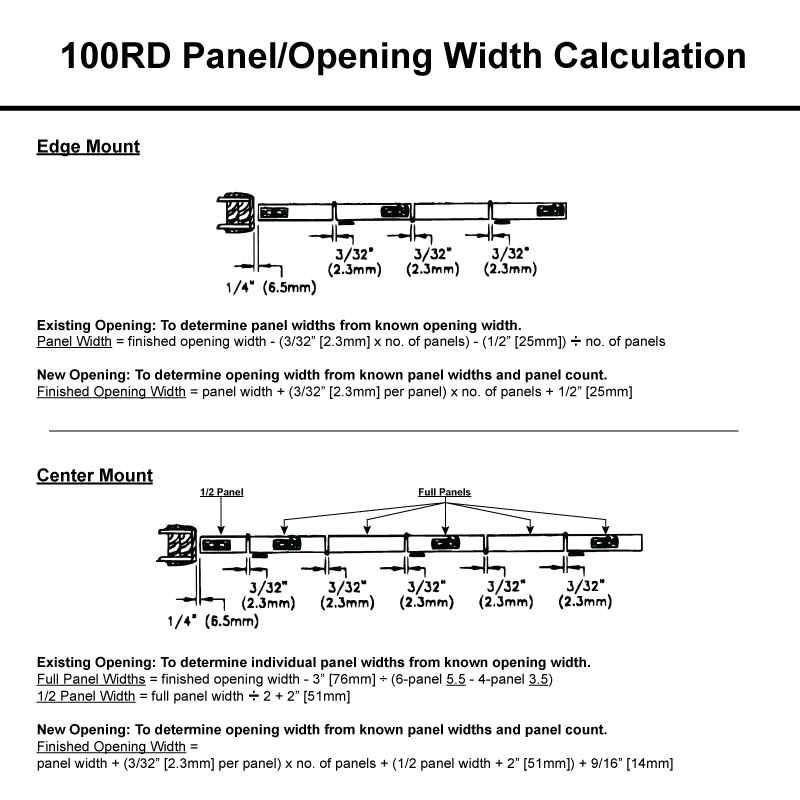

Center Mount Layout
Edge Mount Layout
Step 1. Select Track
48" [1219mm] Length
60" [1524mm] Length
72" [1829mm] Length
96" [2438mm] Length
106" [2692mm] Length
120" [3048mm] Length
144" [3658mm] Length
192" [4877mm] Length
Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide. Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664
Step 2. Select Base Set A
Specify Hardware Sets Required
Step 3. Select Add-On Set B
Size: 1-3/4" [44mm] Dia.
