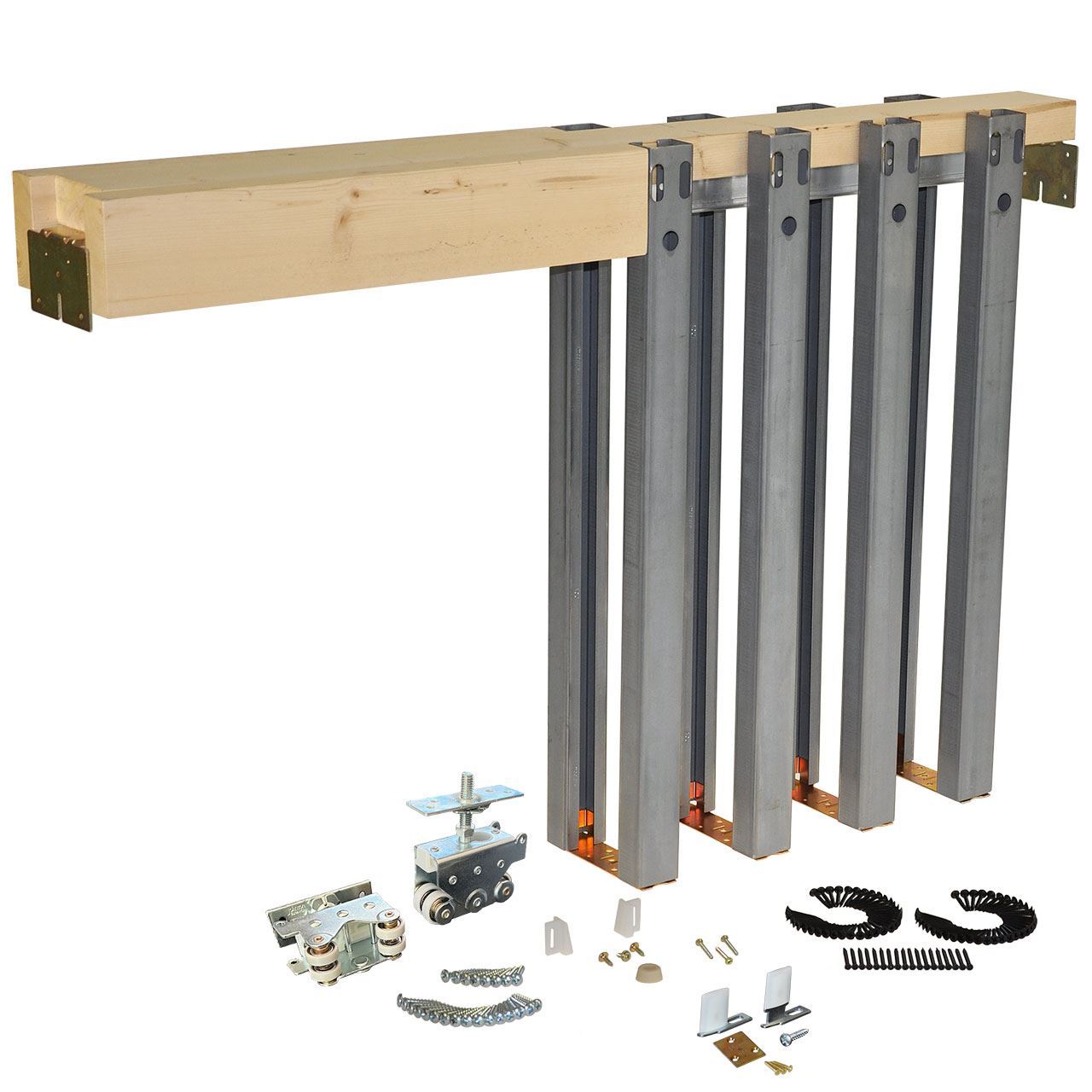

2060 Series Heavy-Duty Pocket Door Frame Kits

  • 400lbs [181kg] Max. Weight Per Door

  • 60" [1524mm] x 108" [2743mm] Max. Door Size

  • 1-1/8" [29mm] - 2-1/4" [57mm] Door Thickness

  • 5-1/2" [140mm] (2x6) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

The 2060 Series Pocket Door Frame is one of the finest heavy duty commercial grade pocket door frames on the market today. The 2060 is designed to carry heavy solid core doors (up to 400lbs each) in standard  2 x 6 timber or steel framed stud walls. The 2060 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2060 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Ball Bearing Door Hangers

2060 Heavy-Duty Frame

I-Beam Track

Door Guiding Options

All Steel Pocket Structure

Drop Stop

2 x 6 Stud Wall

Product Guarantee

2060 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2060 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

The 2060 Series Pocket Door Frame is one of the finest heavy duty commercial grade pocket door frames on the market today. The 2060 is designed to carry heavy solid core doors (up to 400lbs each) in standard  2 x 6 timber or steel framed stud walls. The 2060 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 2060 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.

Ball Bearing Door Hangers

2060 Heavy-Duty Frame

I-Beam Track

Door Guiding Options

All Steel Pocket Structure

Drop Stop

2 x 6 Stud Wall

Product Guarantee

2060 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2060 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

2060 Series Instalation Instructions

2060 Series Quick Reference Drawings

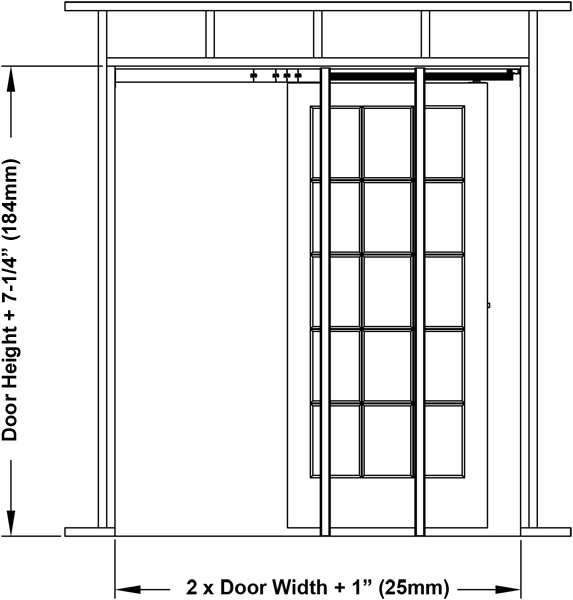

Single Door Rough-in

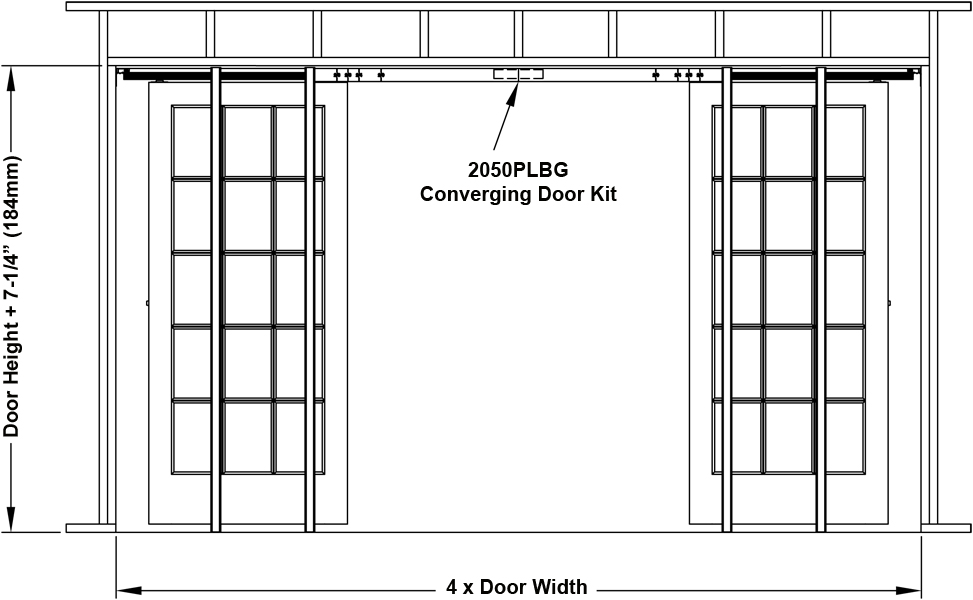

Converging Door Rough-in

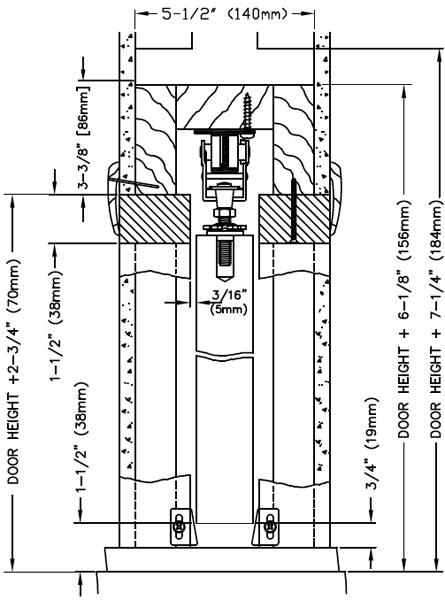

Opening Height Dimensions

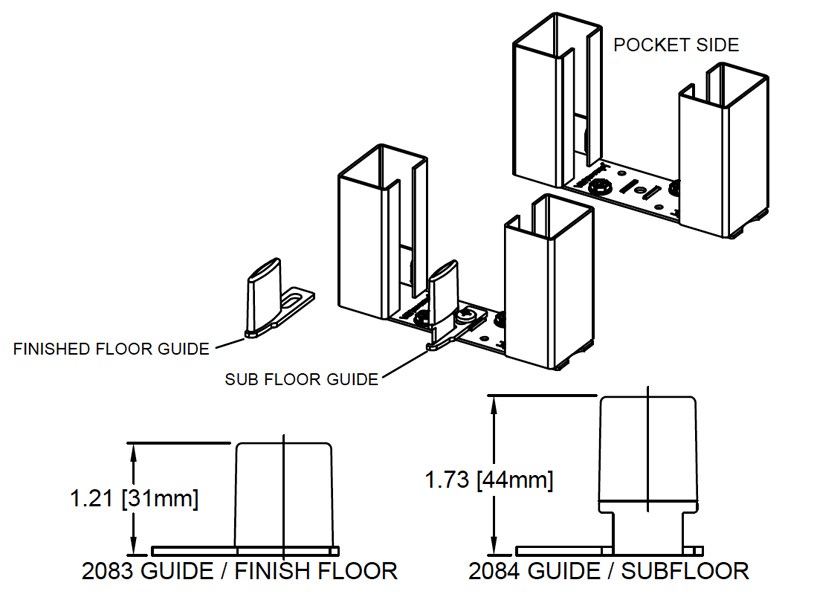

Hidden Pocket Door Guide Kit

2050 Converging Door Kit

2060 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2060 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

Pocket Door Video

Pocket Door Lock

Track Cutdown

2060 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware to install a single pocket door into a 2 x 6 stud wall, (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 2060 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (2 frames total).

4. Order 1 2050PLBG Converging Door Kit.

Products specifications
Product Grade Commercial/Residential
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>2-1/4" [57mm]<br>
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Max. Weight Per Door 400lbs. [181kg]
Country of Origin U.S.A.
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction All Steel
Track Profile I-Beam
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Hanger Type Top Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 1"
Packaging Single Packed, Reinforced Corrugated Box
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
20602668 View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20603068 View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20604068 View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20605068 View Contents

60" (5'- 0")
[1524mm]

80" (6'- 8")
[2032mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
20602670 View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20603070 View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20604070 View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20605070 View Contents

60" (5'- 0")
[1524mm]

84" (7'-0")
[2134mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
20602680 View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20603080 View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20604080 View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20605080 View Contents

60" (5'- 0")
[1524mm]

96" (8'-0")
[2438mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
20602690 View Contents

30" (2'- 6")
[762mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20603090 View Contents

36" (3'- 0")
[914mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20604090 View Contents

48" (4'- 0")
[1219mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now
20605090 View Contents

60" (5'- 0")
[1524mm]

108" (9'-0")
[2743mm]

1-1/8" [29mm] to
2-1/4" [57mm]

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Product Grade Commercial/Residential
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>2-1/4" [57mm]<br>
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Min. Wall Structure Thickness 5-1/2" (2 x 6) [140mm]
Max. Weight Per Door 400lbs. [181kg]
Country of Origin U.S.A.
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction All Steel
Track Profile I-Beam
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Hanger Type Top Mount
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Wheel Dia. 1"
Packaging Single Packed, Reinforced Corrugated Box
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
