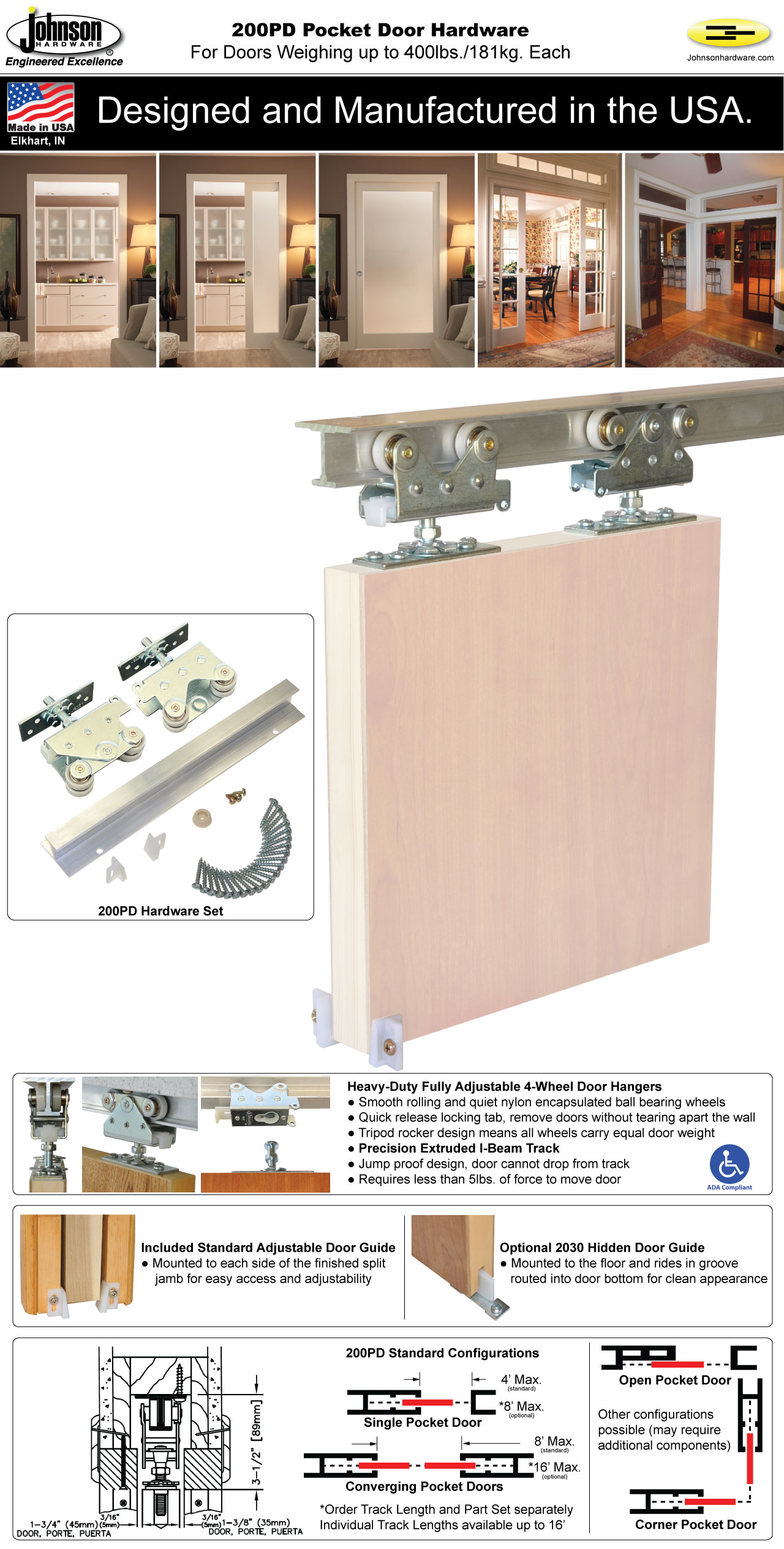

200PD Pocket Door Hardware

  • 400lbs [181kg] Max. Weight Per Door

  • 1-1/8" [29mm] Min. Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Pocket Door Hardware

The 200PD is Ideal for commercial and architectural applications where smooth, trouble-free operation and long life is a necessity. Can be used for pocket door applications or in combination with itself to make special installations of sliding doors. The heavy duty extruded aluminum I-beam track is made to precise specifications, and the large four nylon wheel ball-bearing hangers are manufactured with Johnson's guarantee in mind. Heavy gauge steel components are zinc plated for a quality appearance.

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200PD Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 200PD is Ideal for commercial and architectural applications where smooth, trouble-free operation and long life is a necessity. Can be used for pocket door applications or in combination with itself to make special installations of sliding doors. The heavy duty extruded aluminum I-beam track is made to precise specifications, and the large four nylon wheel ball-bearing hangers are manufactured with Johnson's guarantee in mind. Heavy gauge steel components are zinc plated for a quality appearance.

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200PD Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

200PD Series Instalation Instructions

200PD Series Quick Reference Drawings

Hardware Dimensions

Opening Height Dimensions

Hanger Plate Placemet

Track Dimensions

200PD Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 200PD Series Pocket Door Hardware:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Hardware Sets

Part No. Description /Contents Track Length Max. Door Width Min. Door Thickness Max. Weight Per Door Price | Qty. | Order
200481DR View Contents

48" (4' - 0")
[1219mm]

24" (2'- 0")
[609mm]

1-1/8"

400lbs. [181kg]

Buy Now
200601DR View Contents

60" (5' - 0")
[1524mm]

30" (2'- 6")
[762mm]

1-1/8"

400lbs. [181kg]

Buy Now
200721DR View Contents

72" (6' - 0")
[1829mm]

36" (3'- 0")
[914mm]

1-1/8"

400lbs. [181kg]

Buy Now
200961DR View Contents

96” (8' - 0")
[2438mm]

48" (4'- 0")
[1219mm]

1-1/8"

400lbs. [181kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-1/8"
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
