1500 Series Pocket Door Frame Kits

  • 125lbs [57kg] Max. Weight Per Door

  • 36" [914mm] x 80" [2032mm] Max. Door Size

  • 1" [25mm] to 1-3/4" [44mm] Door Thickness*

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • Soft-Close Compatible W/ Optional Soft-Close Kit

  • *1-3/4" [44mm] Doors Require 1575PPK3 Adaptor Kit

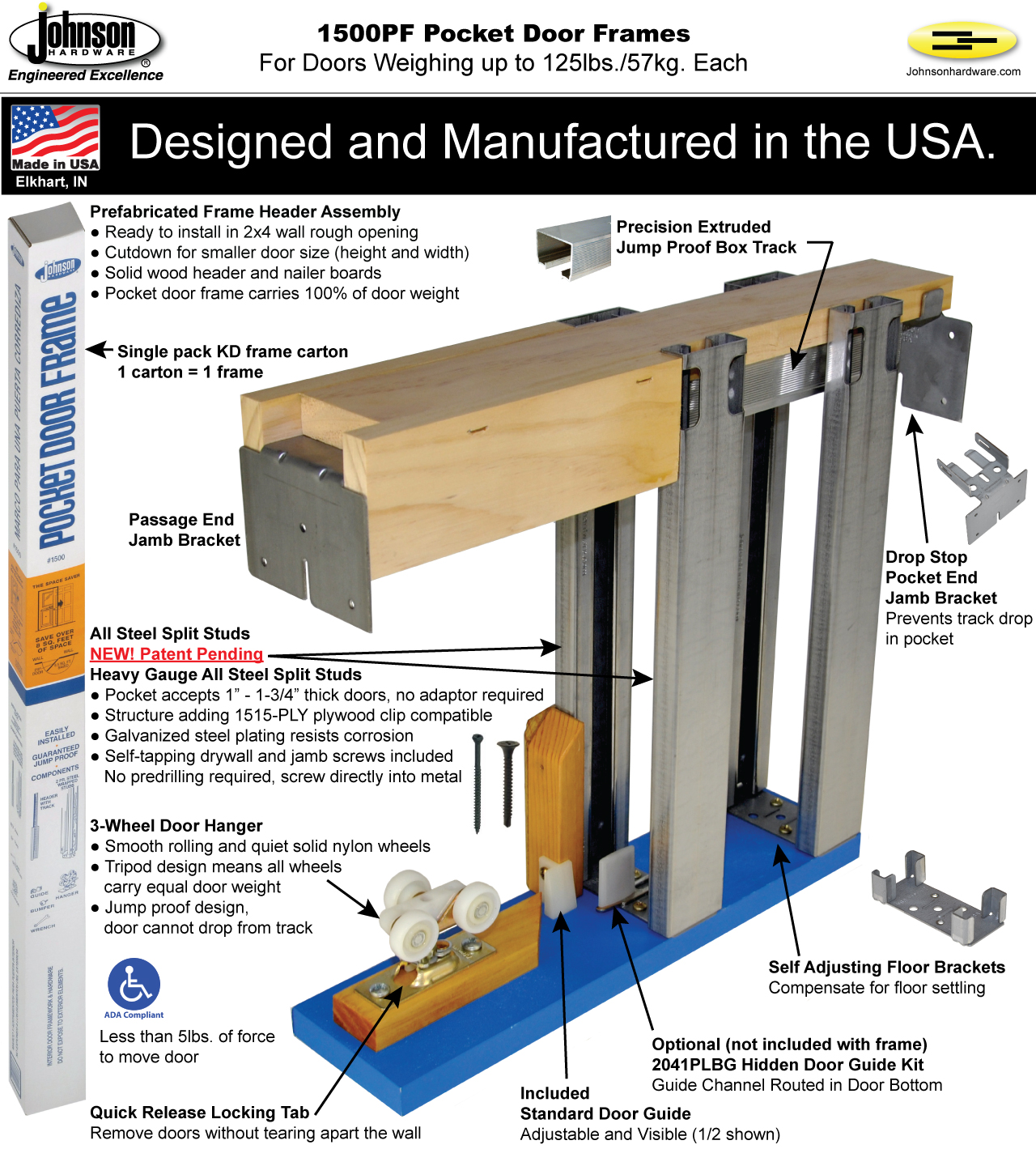

The 1500 Series Standard-Duty Pocket Door Frame is designed to carry heavy standard size doors (up to 125lbs each) in standard  2 x 4 timber or steel framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.



Smooth Rolling Hanger Wheels

Jump Proof Box Track

Door Guiding Options

Steel Wrapped Split Studs

Drop Stop™ Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Tested Quality

1500 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1500 Series Standard-Duty Pocket Door Frame is designed to carry heavy standard size doors (up to 125lbs each) in standard  2 x 4 timber or steel framed stud walls. The 1500 frame kit is packaged for easy transport and fast installation for either single door or converging door applications. The 1500 is a versatile frame and can be adapted for use in non standard wall thicknesses, block masonry walls and can be cut down to accept any smaller size door size.



Smooth Rolling Hanger Wheels

Jump Proof Box Track

Door Guiding Options

Steel Wrapped Split Studs

Drop Stop™ Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Tested Quality

1500 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1500 Series Instalation Instructions

1500 Series Video

Frame Installation

Converging Door

1500 Series Quick Reference Drawings

Single Door Rough-in

Converging Door Rough-in

Opening Height Dimensions

1-3/4" [44mm] Door Adaptor Kit

1555PPK3 Converging Door Kit

1500 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Frame Installation

Converging Door

Pocket Door Lock

Track Cutdown

1500 Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500 Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and cut frame down.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 125lbs. [57kg]
Application Interior Residential/Commercial
Max. Door Width 36" (3'- 0") [914mm]
Max. Door Height 80" (6'- 8") [2032mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Series Track 100
Track Material 6063T6 Extruded Aluminum
Hanger Type Top Mount
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Wheel Dia. 1"
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152068PF View Contents

24" (2'- 0")
[609mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

125lbs. [57kg]

Buy Now
152468PF View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

125lbs. [57kg]

Buy Now
152668PF View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

125lbs. [57kg]

Buy Now
152868PF View Contents

32" (2'- 8")
[813mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

125lbs. [57kg]

Buy Now
153068PF View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

125lbs. [57kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 125lbs. [57kg]
Application Interior Residential/Commercial
Max. Door Width 36" (3'- 0") [914mm]
Max. Door Height 80" (6'- 8") [2032mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Series Track 100
Track Material 6063T6 Extruded Aluminum
Hanger Type Top Mount
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Wheel Dia. 1"
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
