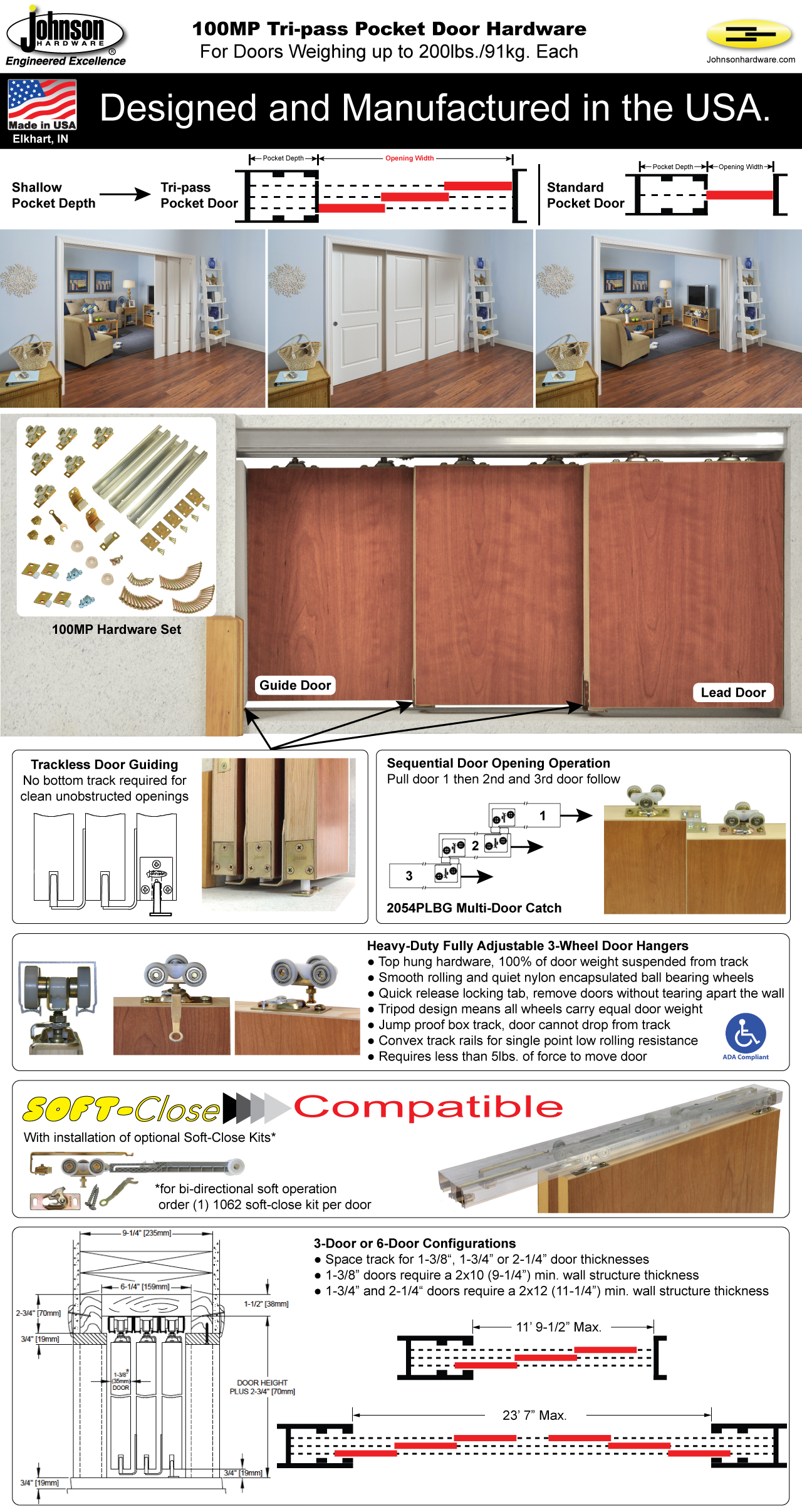

100MP Tri-Pass Pocket Door Hardware

  • 200lbs [91kg] Max. Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • 48" [1219mm] Max. Width Per Door

  • 11-1/4" [286mm] Min. Wall Structure Thickness

  • 283" (25' - 1/2") [7188mm] Max. Opening Width*

  • Soft-Close Compatible W/ Optional Soft-Close Kits

  • Commercial Grade Top Hung Tri-pass Pocket Door Hardware

  • *6-Door Configuration

The 100MP is one of the finest medium to heavy duty sliding door systems made. The 100MP is designed to carry heavy solid core doors in both residential and commercial applications where quality counts and trouble-free long life operation is required. The heavy gauge convex rail box track is extruded to the most precise specification, and the fully adjustable guaranteed jump proof tricycle ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.

100MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 100MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

The 100MP is one of the finest medium to heavy duty sliding door systems made. The 100MP is designed to carry heavy solid core doors in both residential and commercial applications where quality counts and trouble-free long life operation is required. The heavy gauge convex rail box track is extruded to the most precise specification, and the fully adjustable guaranteed jump proof tricycle ball bearing hangers glide effortlessly with feather touch operation. Heavy gauge steel components are zinc trivalent plated for a quality appearance.

100MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 100MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

100MP Series Instalation Instructions

100MP Series Quick Reference Drawings

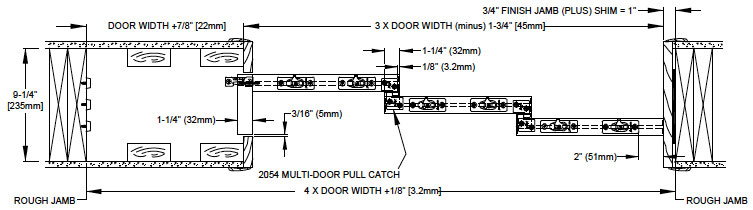

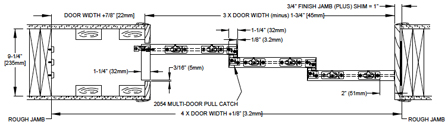

3-Door Opening Width Dimensions

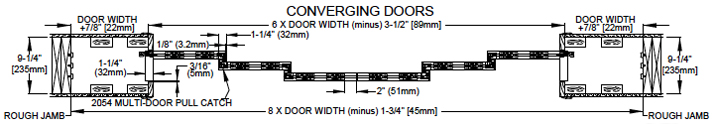

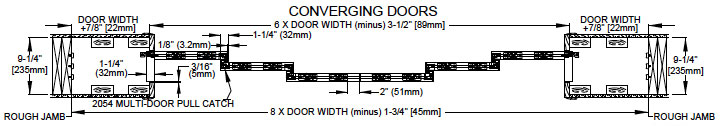

6-Door Opening Width Dimensions

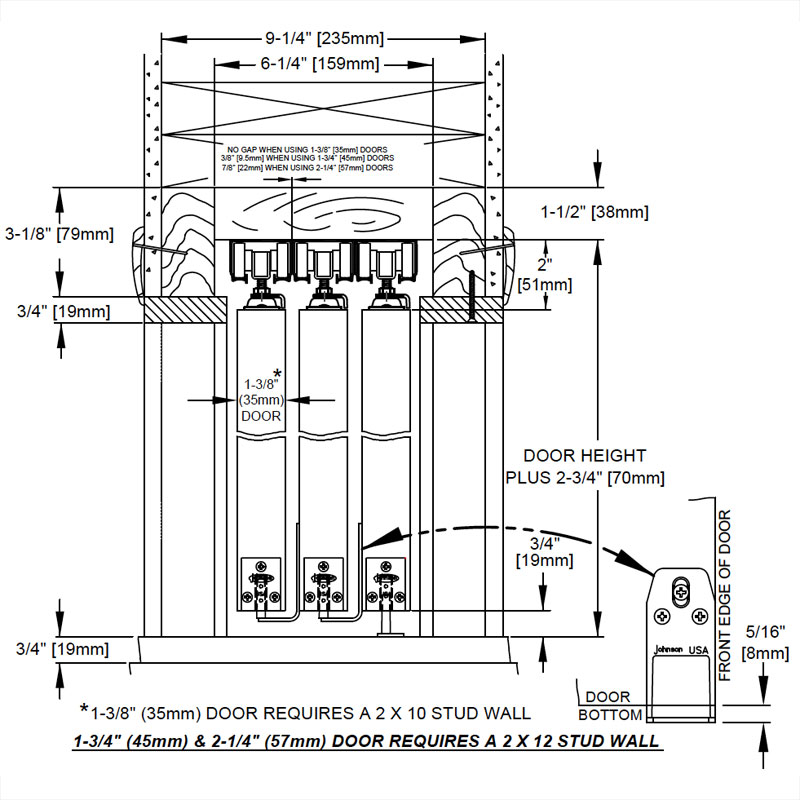

Opening Hight Dimensions

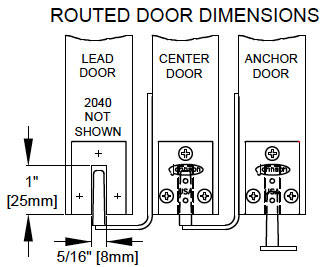

Trackless Door Guiding Detail

Track Dimensions

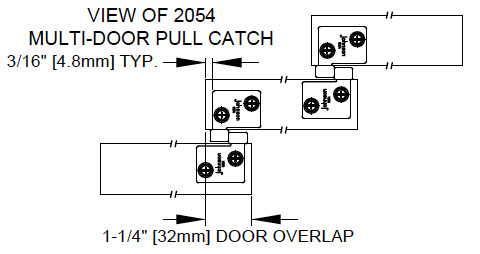

2054PLBG Multi-Door Catch

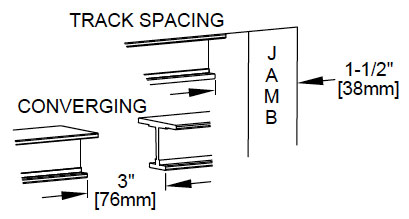

Track Spacing Detail

100MP Series Pocket Door Hardware

Pocket Door Hardware Sets contain all necessary hardware for a single bypass pocket door installation (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). Track CAN be cut down to fit smaller door widths.


How to order 100MP Series Pocket Door Hardware:

1. Determine your door width AND door thickness.

2. Select a hardware set part number that accommodates your door width AND door thickness. Don't see your exact door size? Remember that track can be cut down to accommodate smaller door widths.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

3-Door Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
10MP0961 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

1-3/8" [35mm]

Buy Now
10MP0962 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

1-3/4" [44mm]

Buy Now
10MP0963 View Contents

3-Door

96” x 3 (8' - 0" x 3)
[2438mm x 3]

24" X 3
(2' - 0" X 3)
[610mm X 3]

2-1/4" [57mm]

Buy Now
10MP1201 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

1-3/8" [35mm]

Buy Now
10MP1202 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

1-3/4" [44mm]

Buy Now
10MP1203 View Contents

3-Door

120" x 3 (10' - 0" x 3)
[3048mm x 3]

30" X 3
(2' - 6" X 3)
[762mm X 3]

2-1/4" [57mm]

Buy Now
10MP1441 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

1-3/8" [35mm]

Buy Now
10MP1442 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

1-3/4" [44mm]

Buy Now
10MP1443 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

36" X 3
(3' - 0" X 3)
[914mm X 3]

2-1/4" [57mm]

Buy Now
10MP1921 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

1-3/8" [35mm]

Buy Now
10MP1922 View Contents

3-Door

144" x 3 (12' - 0" x 3)
[3658mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

1-3/4" [44mm]

Buy Now
10MP1923 View Contents

3-Door

192" x 3 (16' - 0" x 3)
[4877mm x 3]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

2-1/4" [57mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

6-Door Converging Hardware Sets

Part No. Description /Contents Hardware Sets Track Length Max. Door Width Door Thickness Price | Qty. | Order
10MC0961 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

1-3/8" [35mm]

Buy Now
10MC0962 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

1-3/4" [44mm]

Buy Now
10MC0963 View Contents

6-Door Converging

96” x 6 (8' - 0" x 6)
[2438mm x 6]

24" X 6
(2' - 0" X 6)
[610mm X 6]

2-1/4" [57mm]

Buy Now
10MC1201 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

1-3/8" [35mm]

Buy Now
10MC1202 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

1-3/4" [44mm]

Buy Now
10MC1203 View Contents

6-Door Converging

120" x 6 (10' - 0" x 6)
[3048mm x 6]

30" x 6
(2' - 6" X 6)
[762mm X 6]

2-1/4" [57mm]

Buy Now
10MC1441 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

1-3/8" [35mm]

Buy Now
10MC1442 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

1-3/4" [44mm]

Buy Now
10MC1443 View Contents

6-Door Converging

144" x 6 (12' - 0" x 6)
[3658mm x 6]

36" X 6
(3' - 0" X 6)
[914mm X 6]

2-1/4" [57mm]

Buy Now
10MC1921 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

1-3/8" [35mm]

Buy Now
10MC1922 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

1-3/4" [44mm]

Buy Now
10MC1923 View Contents

6-Door Converging

192" x 6 (16' - 0" x 6)
[4877mm x 6]

48" X 6
(4' - 0" X 6)
[1219mm X 6]

2-1/4" [57mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
