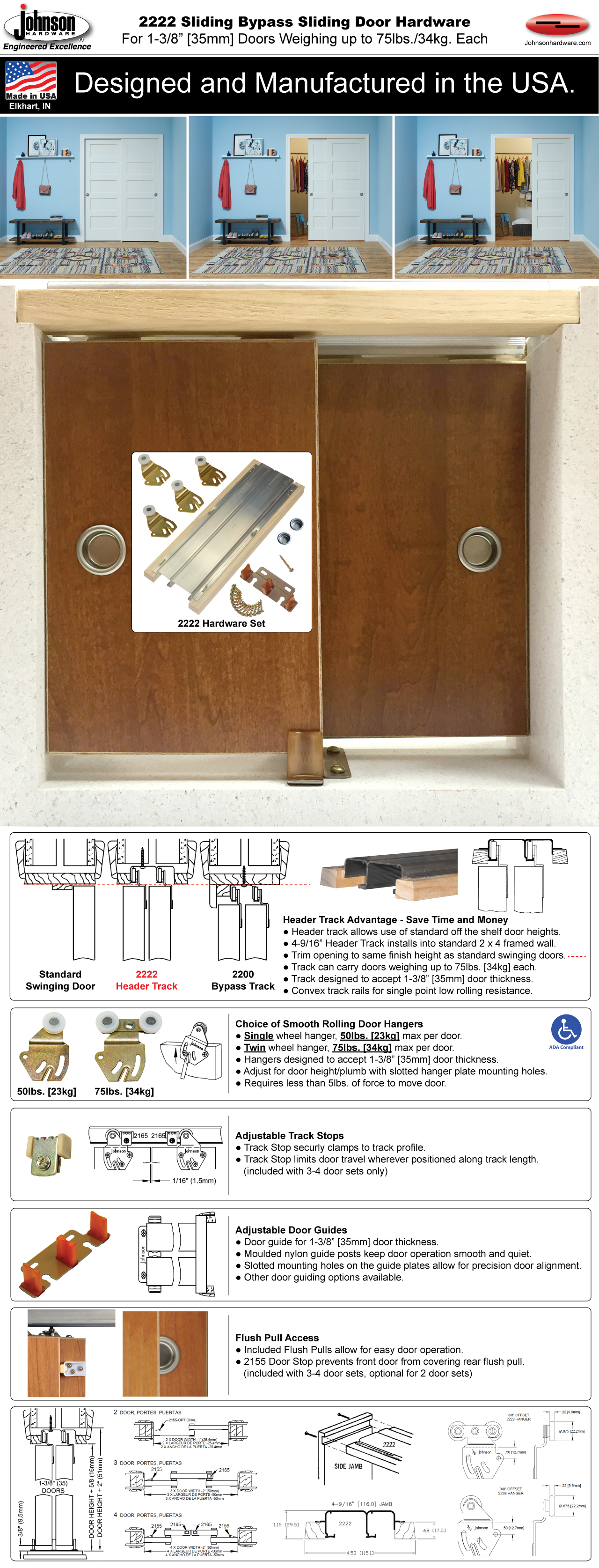

2222 Sliding Bypass Door Hardware

75lbs [34kg] Max Weight Per Door
1-3/8" [35mm] Door Thickness
4-9/16" [115mm] Wall Structure Thickness
Side Mount Hanger Type
Single Extrusion Twin Rail Header Mount Track Type
192" (16') [4877mm] Max. Track Length
Residential Grade Top Hung Sliding Door Hardware

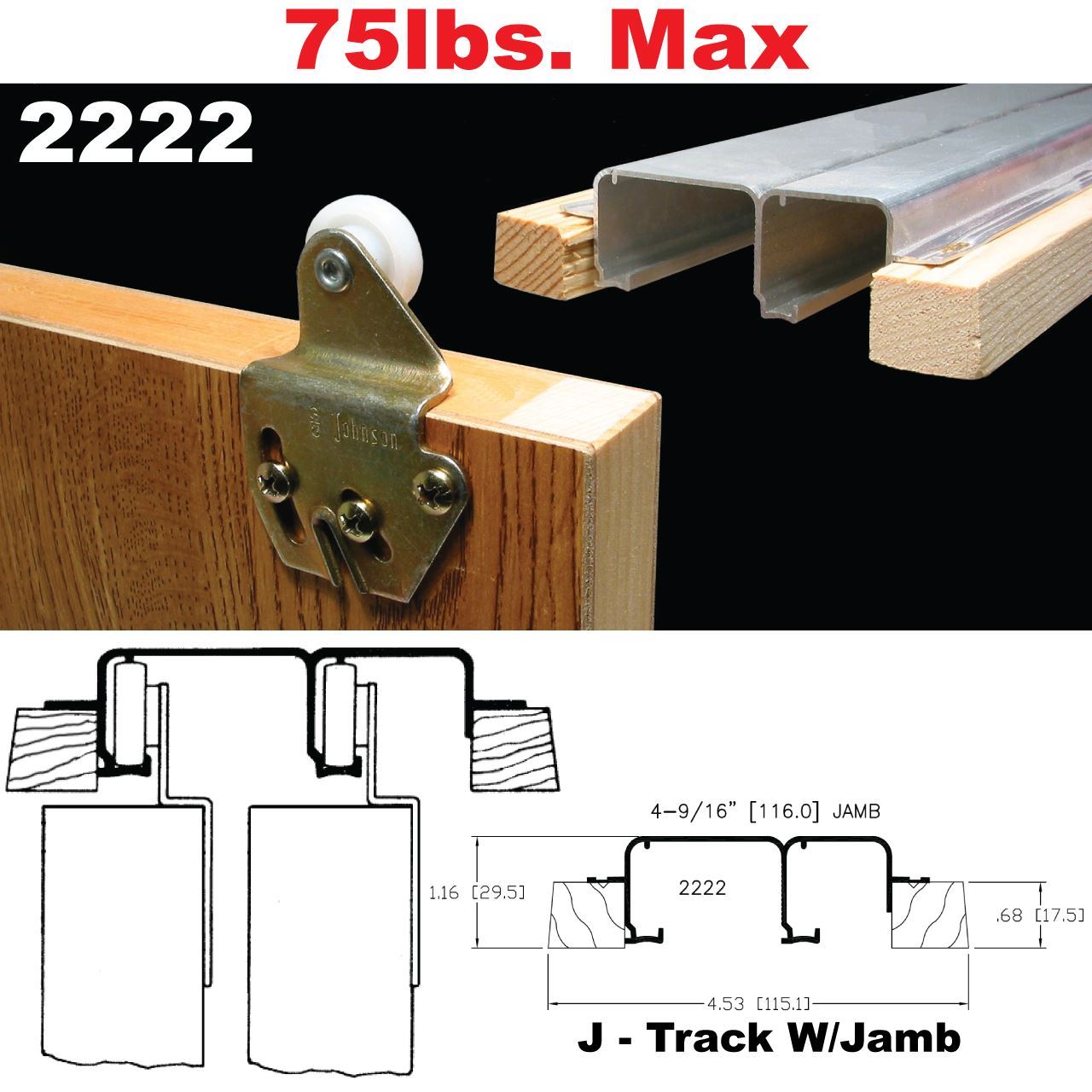

Unique sliding door hardware set featuring "header track" where track and header casing is one unit. Header track allows doors to be trimmed out to the same height as swinging doors eliminating odd sizing of rough openings, jambs and trim. Prefabricated 4-9/16" [115mm] header is made to fit new or existing 2 x 4 wall thickness. Header is made to slip into jamb dado without special cutting. The 2222 consists of extruded aluminum track and finish quality wood that can be painted or stained to match other woodwork, or aluminum track is available alone, enabling special woods to be used.

2222 Series Sliding Bypass Door Hardware

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

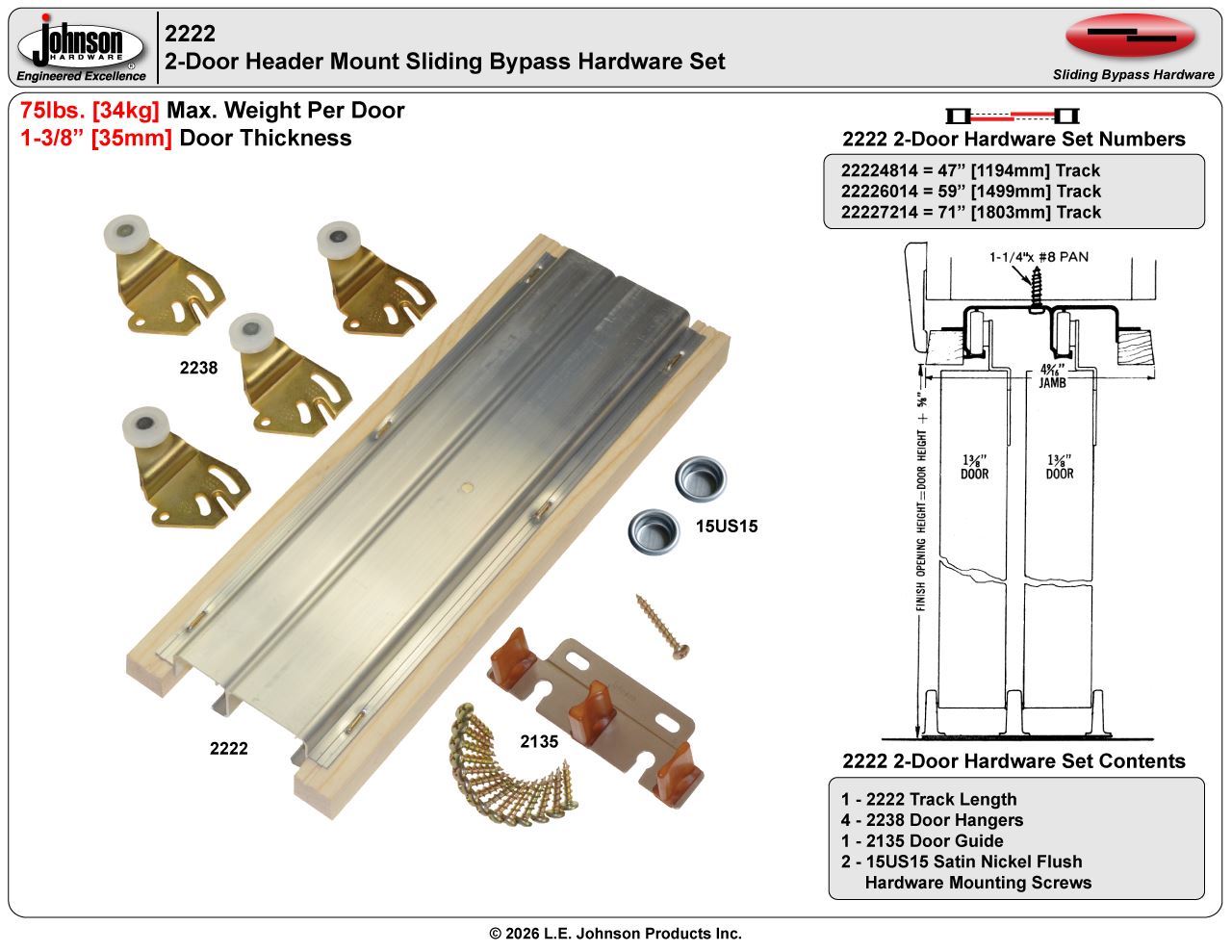

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2222 is compatible with 1-3/8" [35mm] thick doors only.
The 2222 is compatible with 4-9/16" (2 x 4) walls only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2222 configurations possible by ordering 2222 components by the piece.

Overview
Installation
Specifications

2222 Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2222 is compatible with 1-3/8" [35mm] thick doors only.
The 2222 is compatible with 4-9/16" (2 x 4) walls only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2222 configurations possible by ordering 2222 components by the piece.

2222 Printed Installation Instructions

2222 Quick Reference Drawings

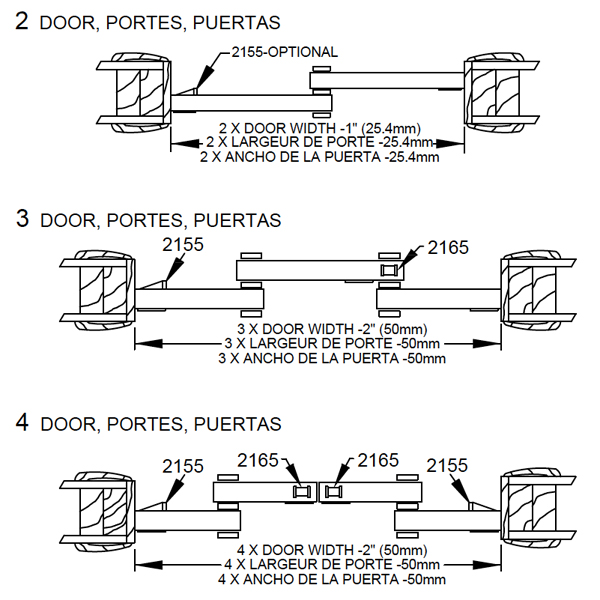

Opening Width

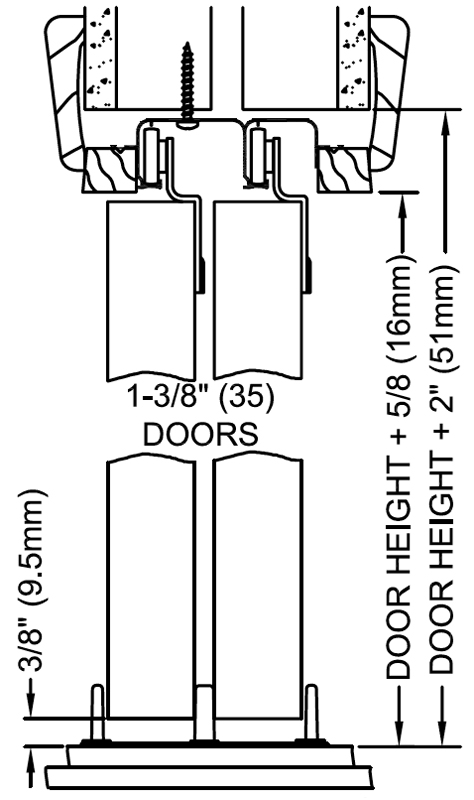

Opening Heights

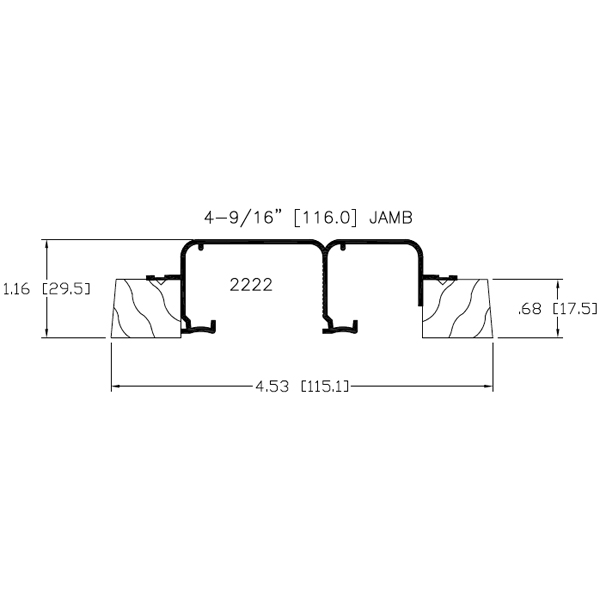

Track Dimensions

2222 Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2222 is compatible with 1-3/8" [35mm] thick doors only.
The 2222 is compatible with 4-9/16" (2 x 4) walls only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2222 configurations possible by ordering 2222 components by the piece.

Products specifications

Max. Weight Per Door	75lbs. [34kg] (W/Twin Wheel Hangers)
Application	Interior Residential
Door Thickness	1-3/8" [35mm]
Series Track	2222
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Double Leg J-Track
Hanger Type	Side Mount
Wheel Dia.	7/8"
Wheel Type	Machine Turned and Balanced Nylon, Factory Greased
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

Single Wheel Hardware Sets

Part No.	Description /Contents	Max. Door Width	Track Length	Doors	Max. Weight Per Door	Price \| Qty. \| Order
22224814	View Contents	24" X 2 (2' - 0" X 2) [610mm X 2]	47" (3' - 11") [1194mm]	2 - Doors	50lbs. [23kg]	Buy Now
22226014	View Contents	30" X 2 (2' - 6" X 2) [762mm X 2]	59" (4' - 11") [1499mm]	2 - Doors	50lbs. [23kg]	Buy Now
22227214	View Contents	36" X 2 (3' - 0" X 2) [914mm X 2]	71" (5' - 11") [1803mm]	2 - Doors	50lbs. [23kg]	Buy Now

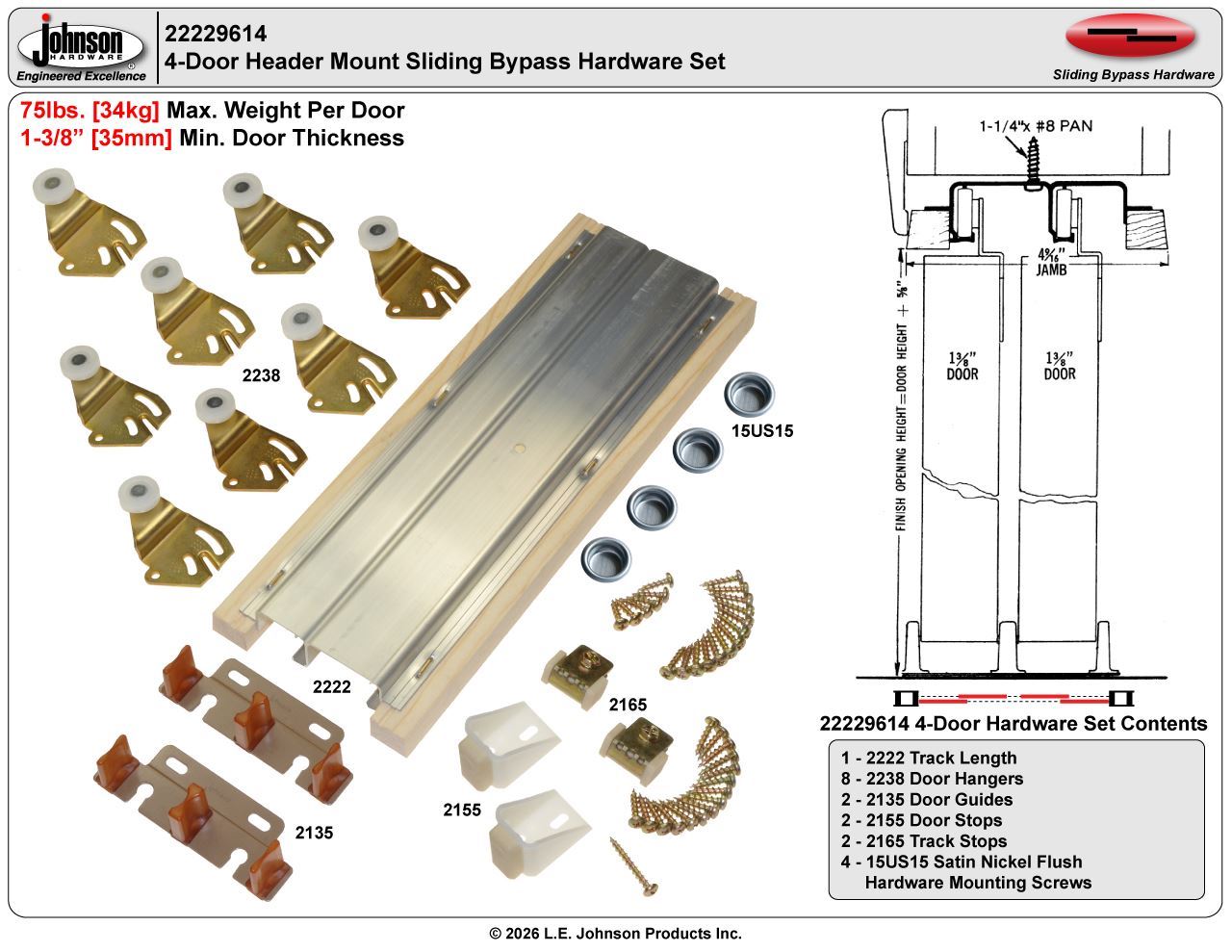

22229614	View Contents	24" X 4 (2' - 0" X 4) [610mm X 4]	94" (7' - 10") [2388mm]	4 - Doors	50lbs. [23kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Twin Wheel Hardware Sets

Part No.	Description /Contents	Max. Door Width	Track Length	Doors	Max. Weight Per Door	Price \| Qty. \| Order
22224824	View Contents	24" X 2 (2' - 0" X 2) [610mm X 2]	47" (3' - 11") [1194mm]	2 - Doors	75lbs. [34kg]	Buy Now
22226024	View Contents	30" X 2 (2' - 6" X 2) [762mm X 2]	59" (4' - 11") [1499mm]	2 - Doors	75lbs. [34kg]	Buy Now
22227224	View Contents	36" X 2 (3' - 0" X 2) [914mm X 2]	71" (5' - 11") [1803mm]	2 - Doors	75lbs. [34kg]	Buy Now
22229624	View Contents	24" X 4 (2' - 0" X 4) [610mm X 4]	94" (7' - 10") [2388mm]	4 - Doors	75lbs. [34kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	75lbs. [34kg] (W/Twin Wheel Hangers)
Application	Interior Residential
Door Thickness	1-3/8" [35mm]
Series Track	2222
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Double Leg J-Track
Hanger Type	Side Mount
Wheel Dia.	7/8"
Wheel Type	Machine Turned and Balanced Nylon, Factory Greased
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
