2204F Sliding Bypass Door Hardware

75lbs [34kg] Max Weight Per Door
3/4" [19mm] Door Thickness
Side Mount Hanger Type
Single Extrusion Twin Rail Fascia Track Type
192" (16') [4877mm] Max. Track Length
Residential Grade Top Hung Sliding Door Hardware

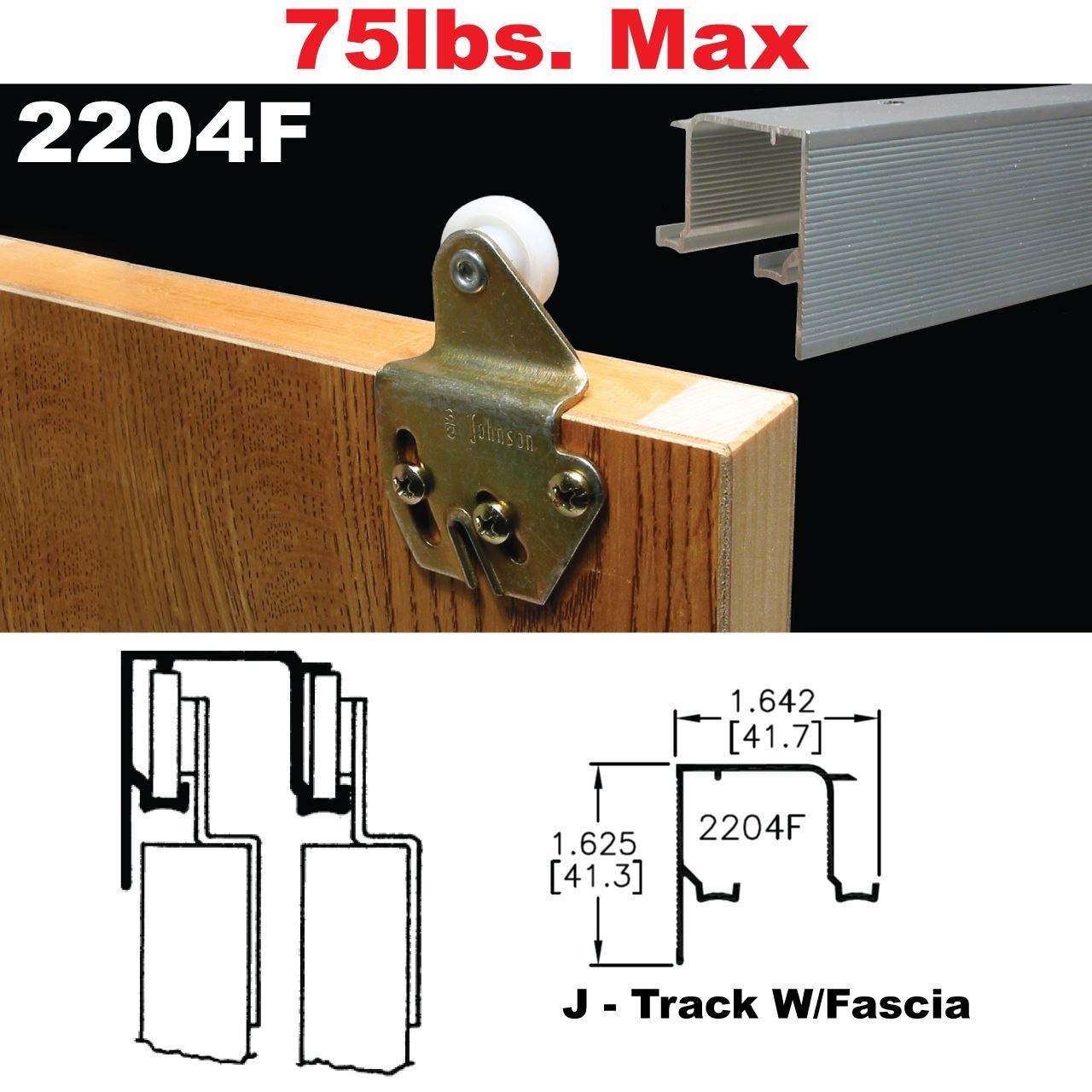

The 2204F is general purpose residential grade sliding by-pass door hardware for 3/4" [19mm] thick doors featuring a extruded aluminum track with integrated fascia. Convex track rails provide single point contact between wheel and track for quiet feather touch operation. Hangers include one or two 7/8" [22mm] dia. molded nylon machine turned wheels with three point locking plates. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick door alignment.

2204F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2204F is compatible with 3/4" [19mm] thick doors only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2204F configurations possible by ordering 2204F components by the piece.

Overview
Installation
Specifications

2204F Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2204F is compatible with 3/4" [19mm] thick doors only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2204F configurations possible by ordering 2204F components by the piece.

2204F Printed Installation Instructions

2204F Quick Reference Drawings

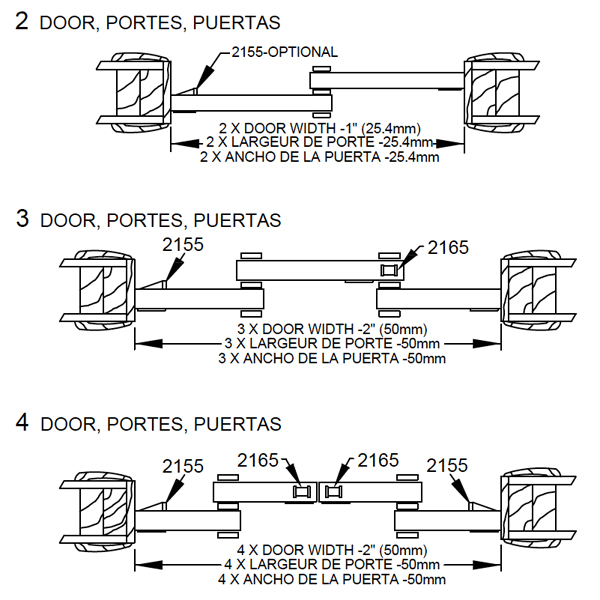

Opening Width

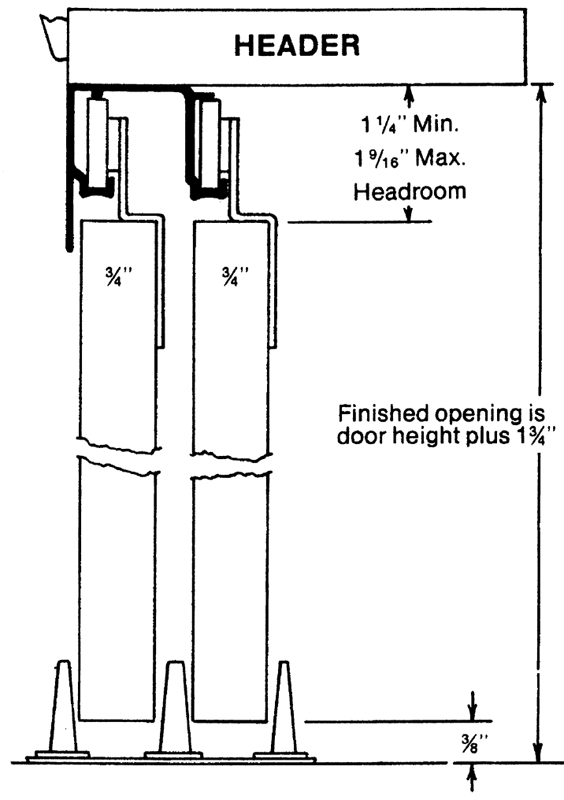

Opening Heights

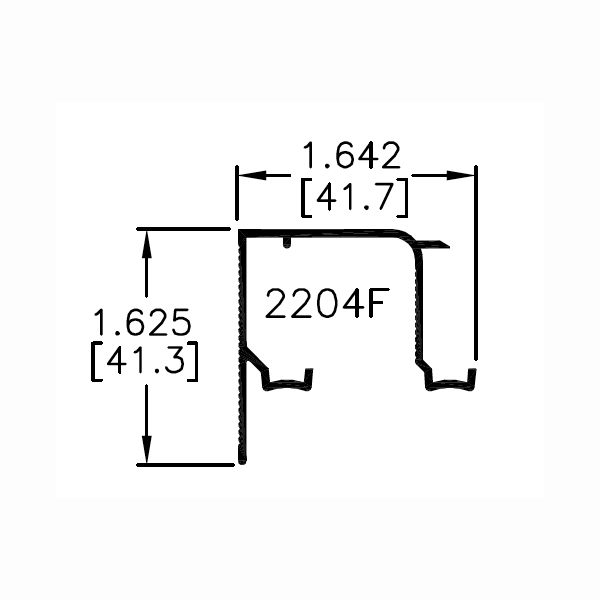

Track Dimensions

2204F Series Sliding Bypass Door Hardware

Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
The 2204F is compatible with 3/4" [19mm] thick doors only.
Track can be cut down to accommodate narrower doors/openings.
Custom 2204F configurations possible by ordering 2204F components by the piece.

Products specifications

Max. Weight Per Door	75lbs. [34kg] (W/Twin Wheel Hangers)
Application	Interior Residential
Door Thickness	3/4" [19mm]
Series Track	2204F
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Double Leg J-Track
Hanger Type	Side Mount
Wheel Dia.	7/8"
Wheel Type	Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

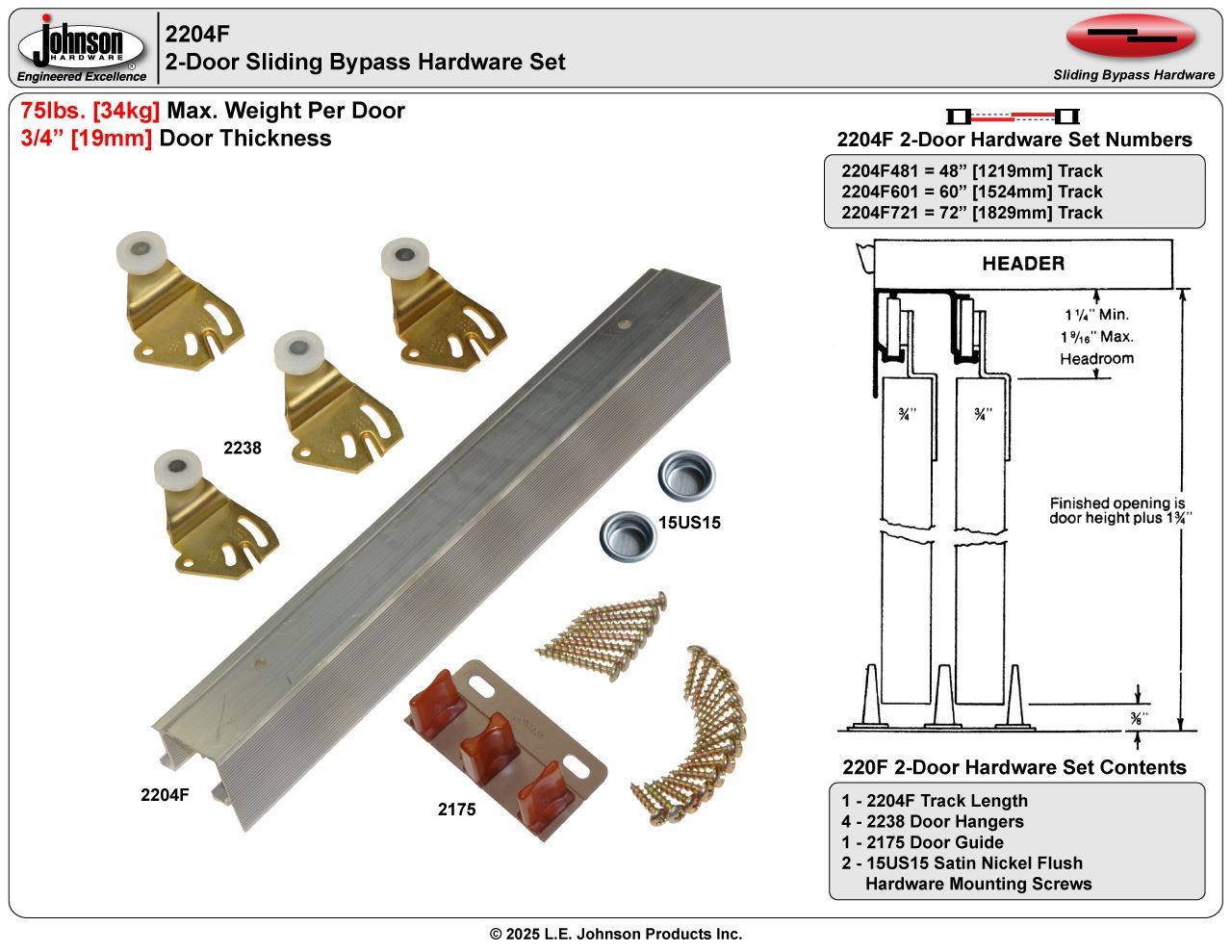

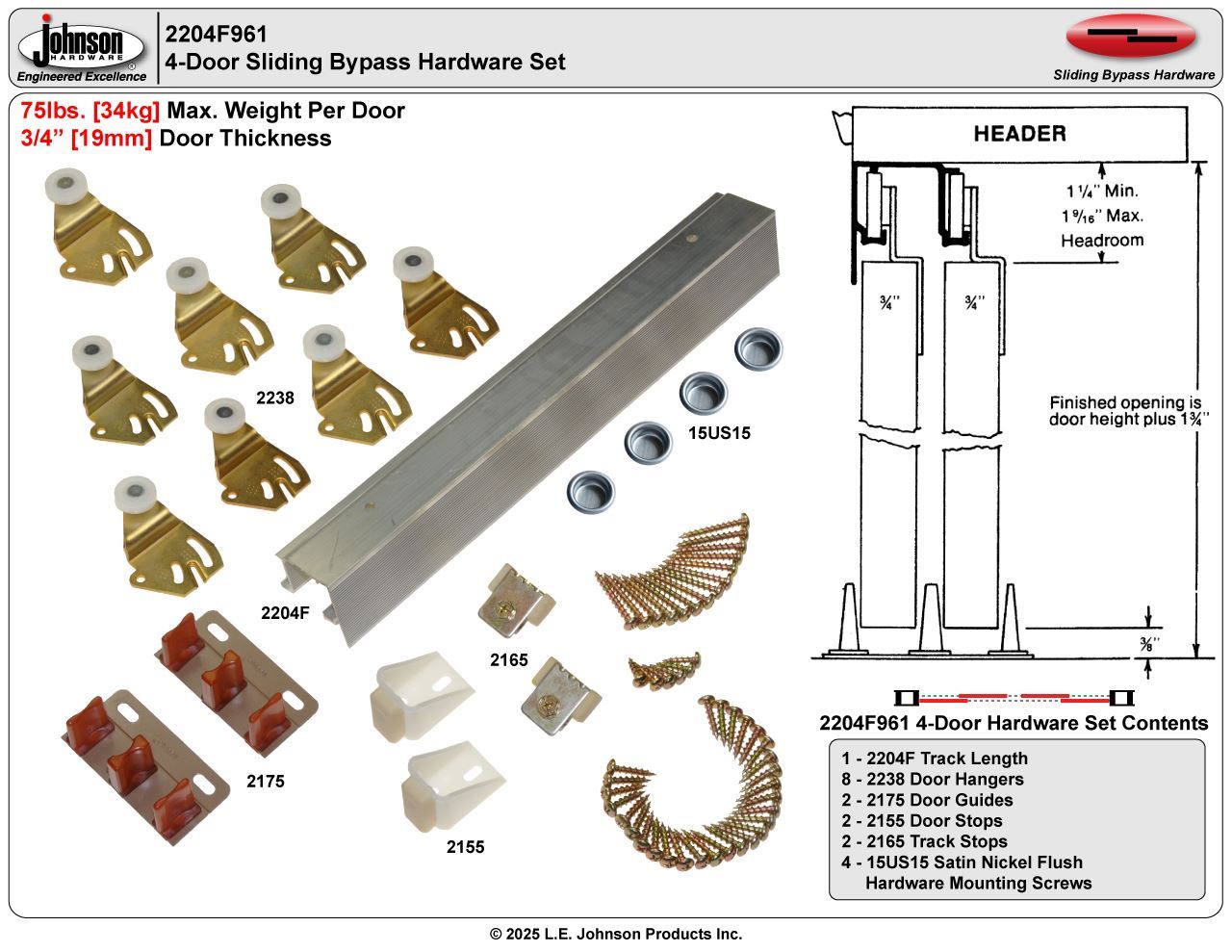

Single Wheel Hardware Sets

Part No.	Description /Contents	Max. Door Width	Track Length	Doors	Max. Weight Per Door	Price \| Qty. \| Order
2204F481	View Contents	24" X 2 (2' - 0" X 2) [610mm X 2]	48" (4' - 0") [1219mm]	2 - Doors	50lbs. [23kg]	Buy Now
2204F601	View Contents	30" X 2 (2' - 6" X 2) [762mm X 2]	60" (5' - 0") [1524mm]	2 - Doors	50lbs. [23kg]	Buy Now
2204F721	View Contents	36" X 2 (3' - 0" X 2) [914mm X 2]	72" (6' - 0") [1829mm]	2 - Doors	50lbs. [23kg]	Buy Now
2204F961	View Contents	24" X 4 (2' - 0" X 4) [610mm X 4]	96” (8' - 0") [2438mm]	4 - Doors	50lbs. [23kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Twin Wheel Hardware Sets

Part No.	Description /Contents	Max. Door Width	Track Length	Doors	Max. Weight Per Door	Price \| Qty. \| Order
2204F482	View Contents	24" X 2 (2' - 0" X 2) [610mm X 2]	48" (4' - 0") [1219mm]	2 - Doors	75lbs. [34kg]	Buy Now
2204F602	View Contents	30" X 2 (2' - 6" X 2) [762mm X 2]	60" (5' - 0") [1524mm]	2 - Doors	75lbs. [34kg]	Buy Now
2204F722	View Contents	36" X 2 (3' - 0" X 2) [914mm X 2]	72" (6' - 0") [1829mm]	2 - Doors	75lbs. [34kg]	Buy Now
2204F962	View Contents	24" X 4 (2' - 0" X 4) [610mm X 4]	96” (8' - 0") [2438mm]	4 - Doors	75lbs. [34kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Door	75lbs. [34kg] (W/Twin Wheel Hangers)
Application	Interior Residential
Door Thickness	3/4" [19mm]
Series Track	2204F
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Double Leg J-Track
Hanger Type	Side Mount
Wheel Dia.	7/8"
Wheel Type	Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
