200MD Multi-Pass Sliding Door Hardware

400lbs [181kg] Max Weight Per Door
6-1/2" [165mm] Min Wall Structure Thickness*
1-1/8" [29mm] Min Door Thickness
192" (16') [4877mm] Max. Track Length
Commercial Grade Top Hung Sliding Door Hardware

The 200MD is one of the finest residential/commercial grade sliding door systems made manufactured with Johnson's guarantee in mind. Ideal for commercial applications where quality, trouble-free operation and long life is a necessity. The heavy duty .125 6063T6 precision extruded aluminum I-beam track is made to the most precise specifications, and the four-wheeled ball-bearing hangers feature removable hanger plates, 14 – 16 gauge zinc trivalent plated steel parts.

200MD Series Multi-Pass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door size? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.
Track can be cut down to accommodate narrower door/openings.
Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
Custom 200MD configurations possible by ordering 200MD components by the piece.

Overview
Installation
Specifications

200MD Series Multi-Pass Door Hardware

Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.
Track can be cut down to accommodate narrower door/openings.
Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
Custom 200MD configurations possible by ordering 200MD components by the piece.

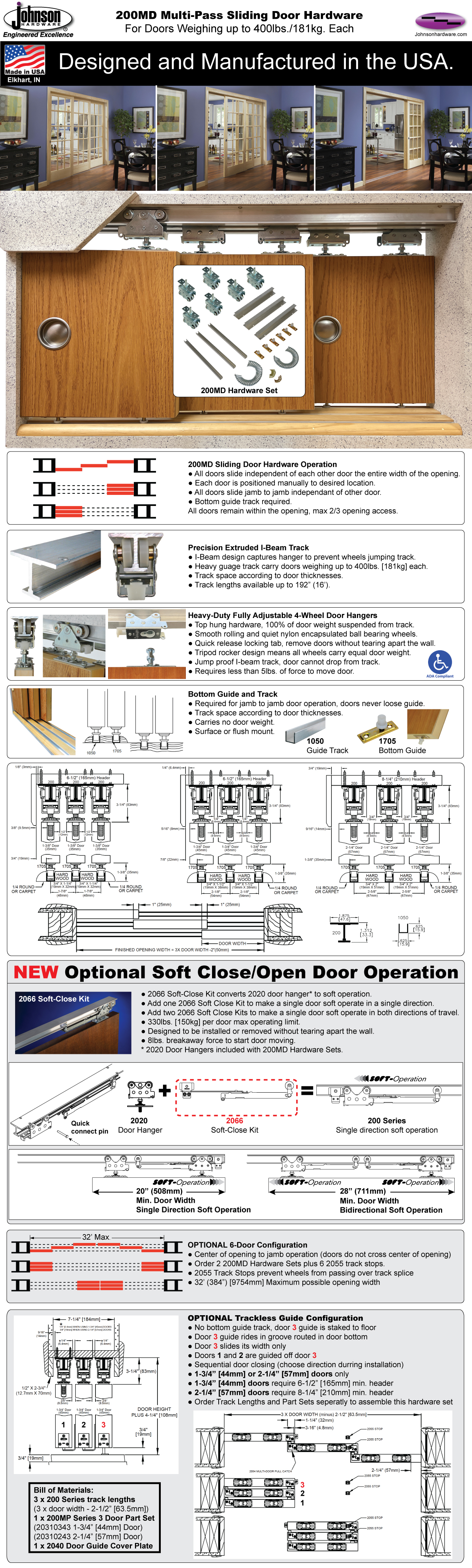

200MD Printed Installation Instructions

200MD Quick Reference Drawings

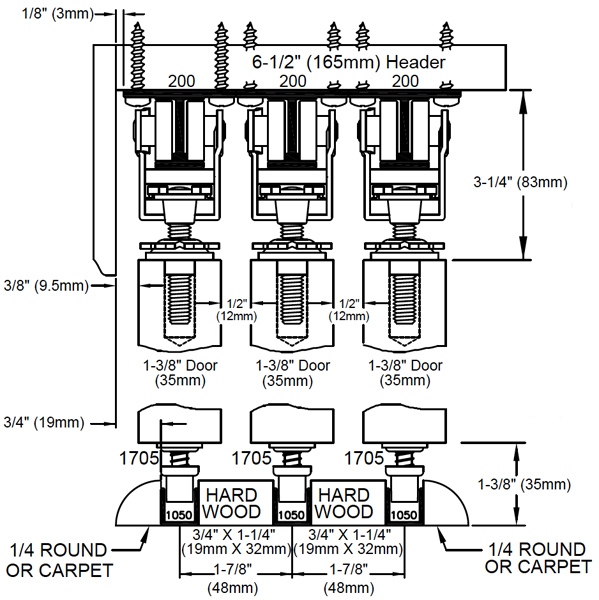

1-3/8 [35mm] Door

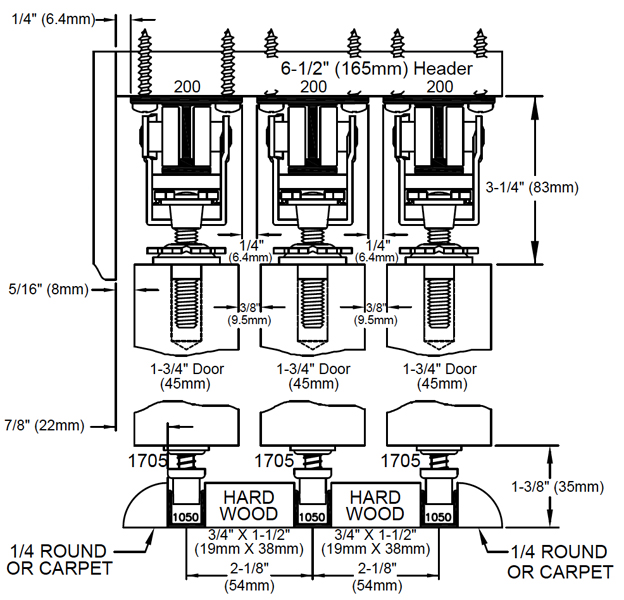

1-3/4 [44mm] Door

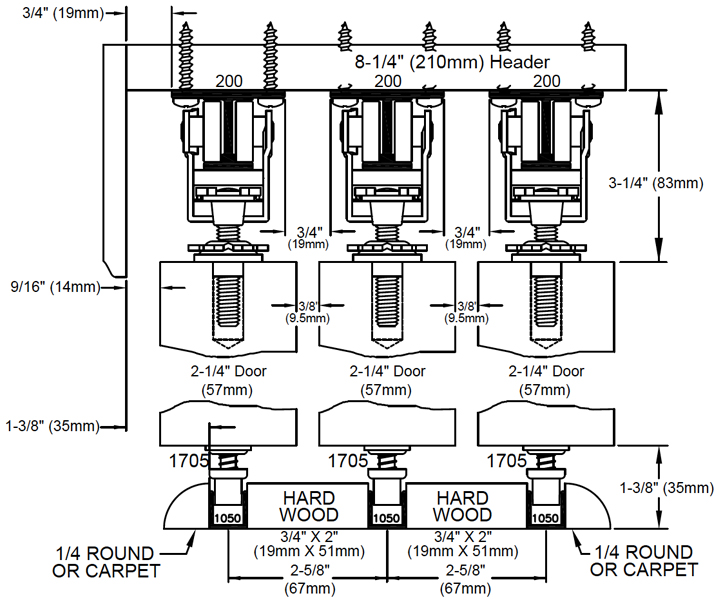

2-1/4 [57mm] Door

200 Series Track

200MD Series Sliding Bypass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.
Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
Track can be cut down to accommodate narrower doors/openings.
Custom 200MD configurations possible by ordering 200MD components by the piece.

Products specifications

Max. Weight Per Door	400lbs. [181kg]
Application	Interior Residential/Commercial
Min. Door Thickness	1-1/8"
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

3-Door Hardware Sets

Part No.	Description /Contents	Max. Door Width	Track Length	Max. Weight Per Door	Price \| Qty. \| Order
200M0723	View Contents	24" X 3 (2' - 0" X 3) [610mm X 3]	70” x 3 (5' - 10" x 3) [1778mm x 3]	400lbs. [181kg]	Buy Now
200M0963	View Contents	32" X 3 (2' - 8" X 3) [813mm X 3]	94" x 3 (7' - 10" x 3) [2388mm x 3]	400lbs. [181kg]	Buy Now
200M1083	View Contents	36" X 3 (3' - 0" X 3) [914mm X 3]	106" x 3 (8' - 10" x 3) [2692mm x 3]	400lbs. [181kg]	Buy Now
200M1443	View Contents	48" X 3 (4' - 0" X 3) [1219mm X 3]	142” x 3 (11' - 10" x 3) [3607mm x 3]	400lbs. [181kg]	Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications

Max. Weight Per Door	400lbs. [181kg]
Application	Interior Residential/Commercial
Min. Door Thickness	1-1/8"
Series Track	200
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	I-Beam
Hanger Type	Top Mount
Wheel Dia.	1"
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Commercial/Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
