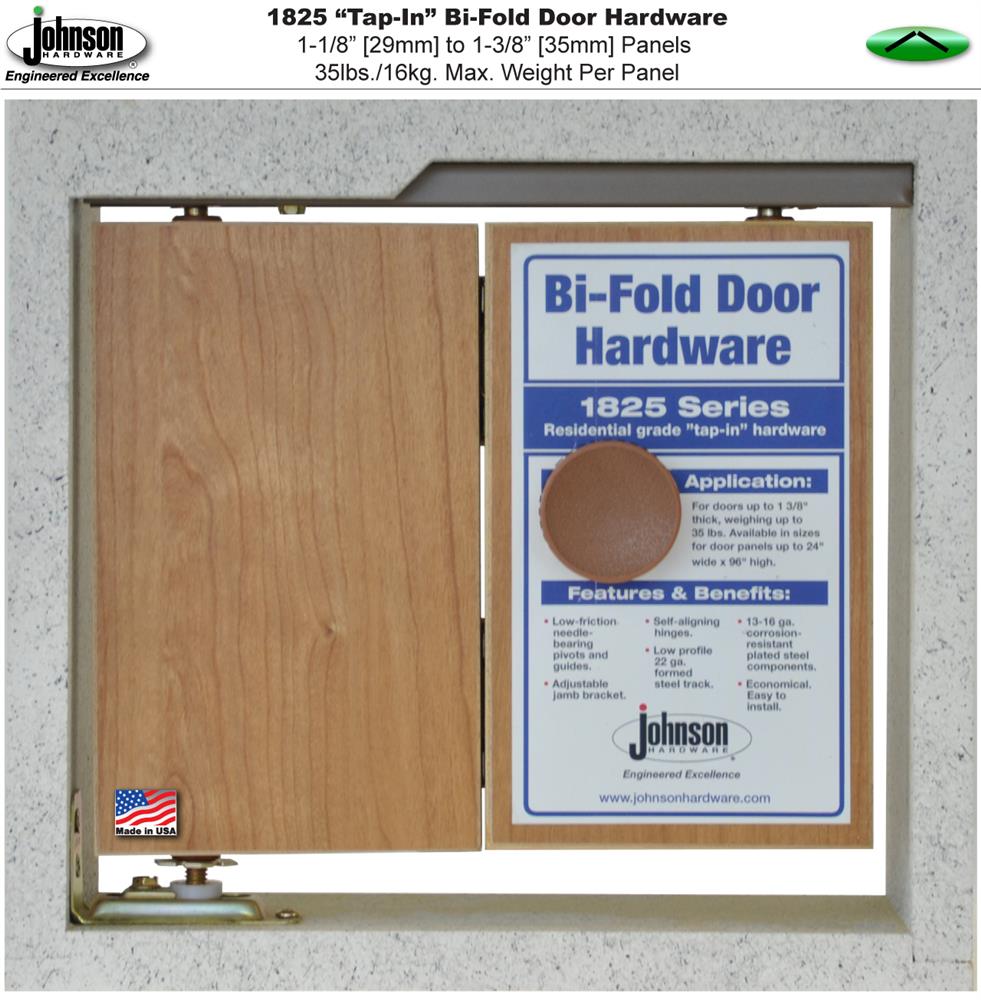

1825 "Tap-In" Bi-Fold Door Hardware

35lbs [16kg] Max Panel Weight Each
24" [610mm] Max Panel Width Each
96" [2438mm] Max Panel Height
1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness
Tap In Pivot/Guide Type
Residential Grade Bi-Fold Door Hardware

1825 Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Track can be cut down to accommodate narrower panel/openings.
Custom 1825 configurations possible by ordering 1825 components by the piece.

Overview
Installation
Specifications

1825 Series Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Track can be cut down to accommodate narrower panel/openings.
Custom 1825 configurations possible by ordering 1825 components by the piece.

1825 Series Printed Installation Instructions

1825 Series Quick Reference Drawings

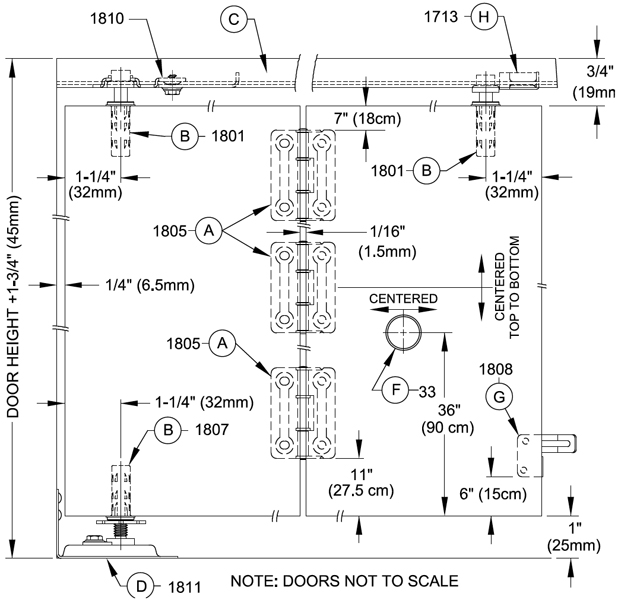

2-Panel Component Location

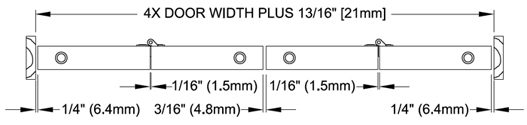

4-Panel Width Dimensions

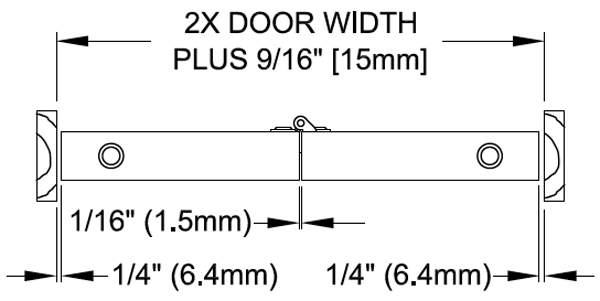

2-Panel Width Dimensions

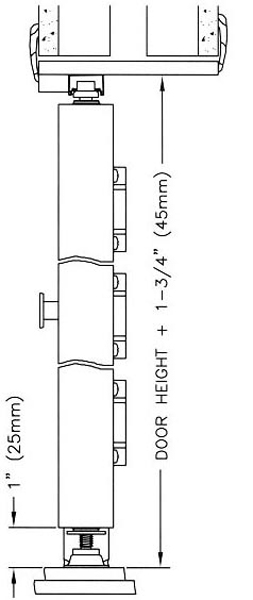

Height Dimensions

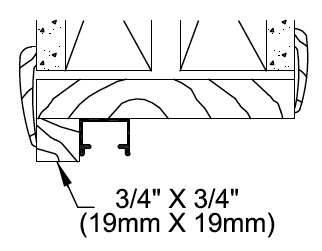

Trim Detail

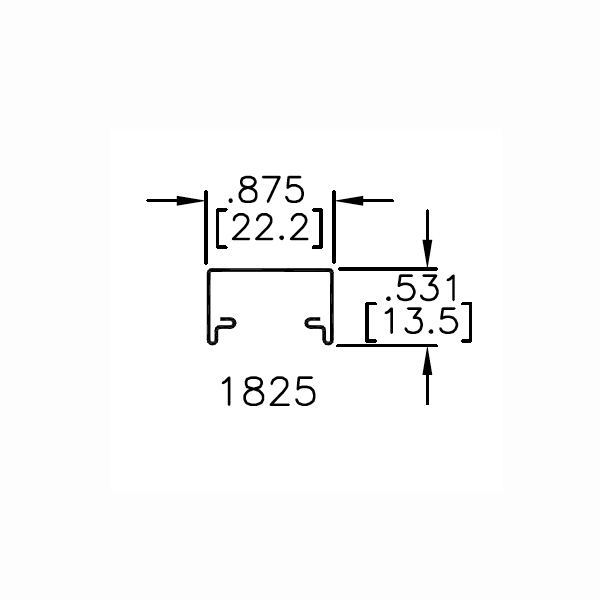

1825 Series Track

1825 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
Track can be cut down to accommodate narrower panel/openings.
Custom 1825 configurations possible by ordering 1825 components by the piece.

Products specifications

Max. Weight Per Panel	35 lbs. [16kg]
Application	Interior Residential
Panel Thickness	1-1/8" [29mm] to 1-3/4" [44mm]
Series Track	1825
Track Finish	Brown
Track Material	Rolled Steel
Track Profile	Box Track
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Track Finish	Max. Weight Per Panel	Price \| Qty. \| Order
182W243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	White	35 lbs. [16kg]	Buy Now
1825243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	Brown	35 lbs. [16kg]	Buy Now
182W303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	White	35 lbs. [16kg]	Buy Now
1825303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	Brown	35 lbs. [16kg]	Buy Now
182W323H	View Contents	16" x 2 (1' - 4" x 2) [406mm x 2]	32" (2' - 8") [813mm]	White	35 lbs. [16kg]	Buy Now
1825323H	View Contents	16" x 2 (1' - 4" x 2) [406mm x 2]	32" (2' - 8") [813mm]	Brown	35 lbs. [16kg]	Buy Now
182W363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	White	35 lbs. [16kg]	Buy Now
1825363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	Brown	35 lbs. [16kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Track Finish	Max. Weight Per Panel	Price \| Qty. \| Order
182W486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	White	35 lbs. [16kg]	Buy Now
1825486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	Brown	35 lbs. [16kg]	Buy Now
182W606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	White	35 lbs. [16kg]	Buy Now
1825606H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	60" (5' - 0") [1524mm]	Brown	35 lbs. [16kg]	Buy Now
182W726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	White	35 lbs. [16kg]	Buy Now
1825726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	Brown	35 lbs. [16kg]	Buy Now
182W966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	White	35 lbs. [16kg]	Buy Now
1825966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	Brown	35 lbs. [16kg]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Panel	35 lbs. [16kg]
Application	Interior Residential
Panel Thickness	1-1/8" [29mm] to 1-3/4" [44mm]
Series Track	1825
Track Finish	Brown
Track Material	Rolled Steel
Track Profile	Box Track
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
