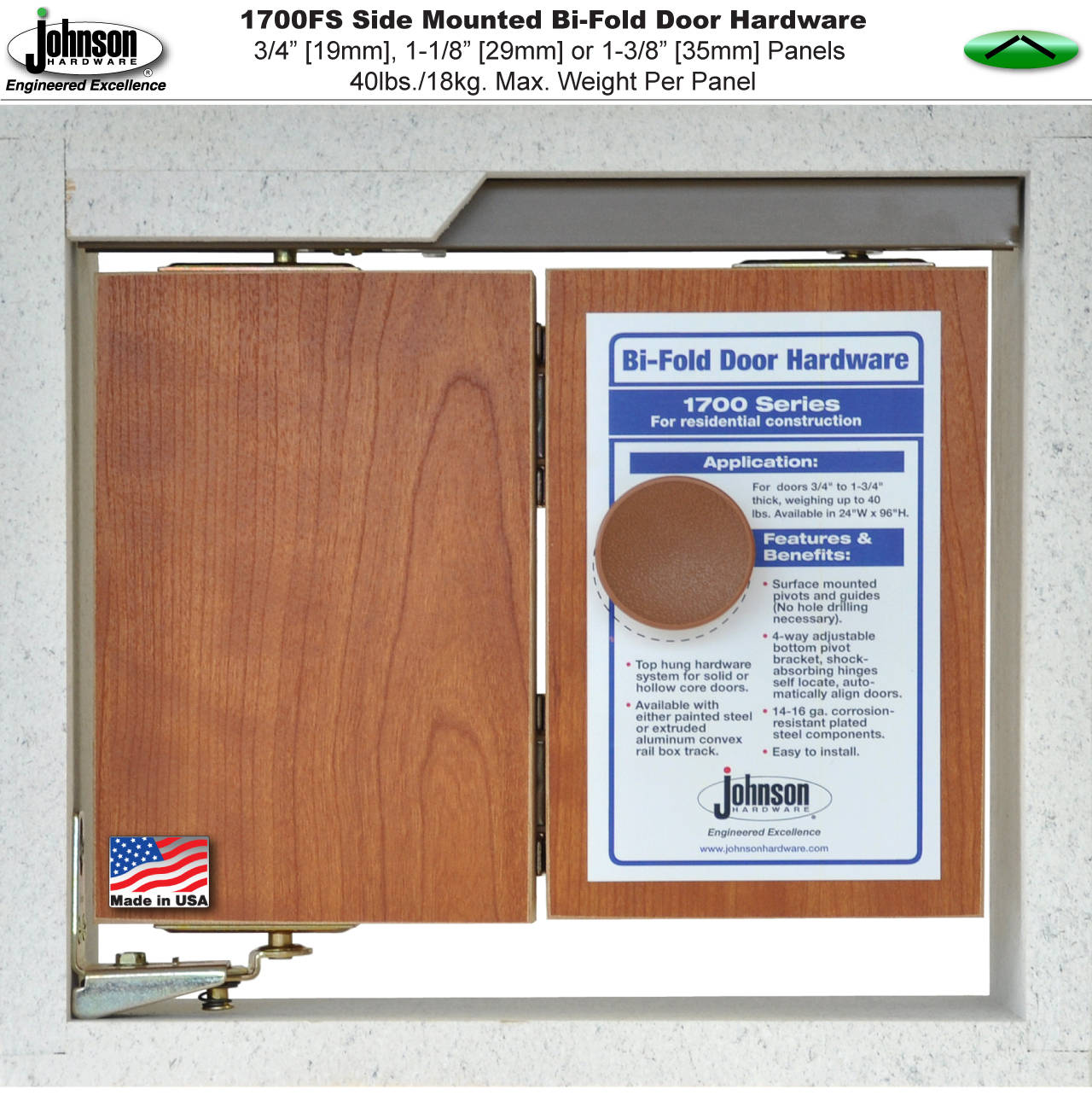

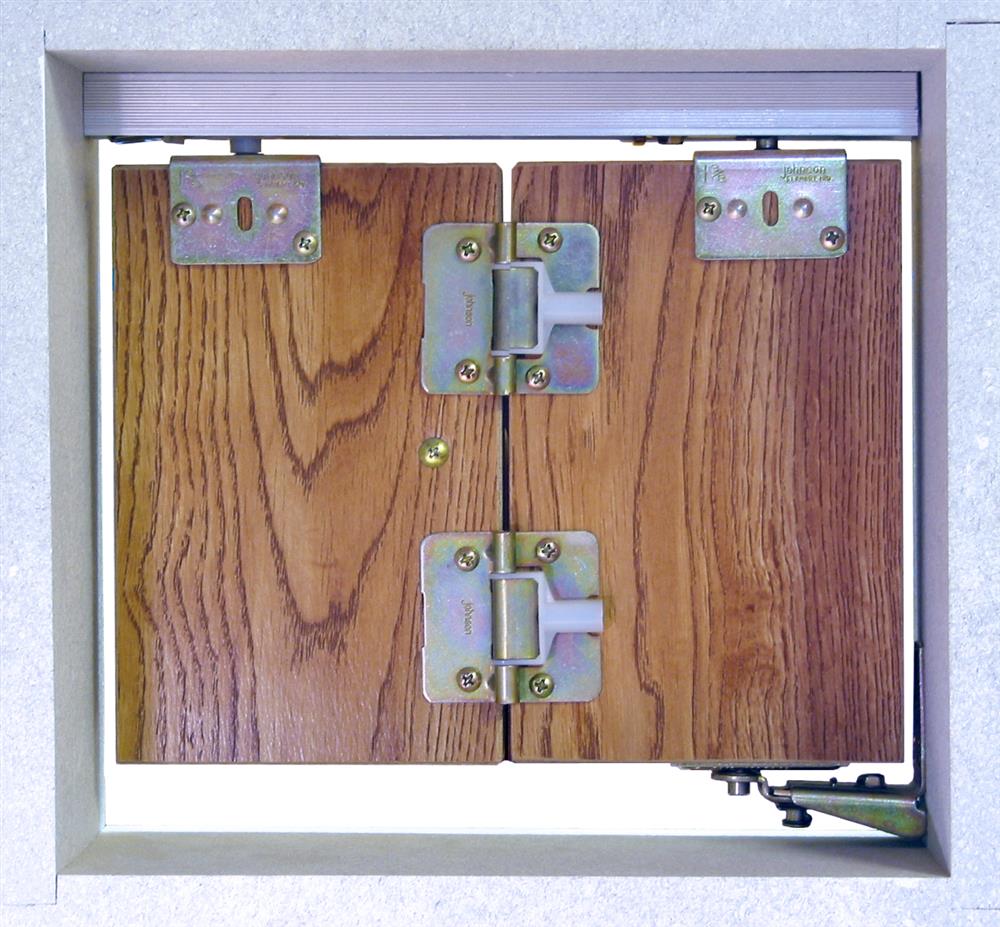

1700FS Side Mounted Bi-Fold Door Hardware

40lbs [18kg] Max Panel Weight Each
24" [610mm] Max Panel Width Each
96" [2438mm] Max Panel Height
3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm] Panel Thickness
Side Mount Hanger Type
Residential Grade Top Hung Bi-Fold Door Hardware

1700FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
Track can be cut down to accommodate narrower panel/openings.
Custom 1700FS configurations possible by ordering 1700FS components by the piece.

Overview
Installation
Video
Specifications

1700FS Series Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
Track can be cut down to accommodate narrower panel/openings.
Custom 1700FS configurations possible by ordering 1700FS components by the piece.

1700FS Series Printed Installation Instructions

1700FS Series Video

1703 Panel Hinge

1700 Installation

1700FS Series Quick Reference Drawings

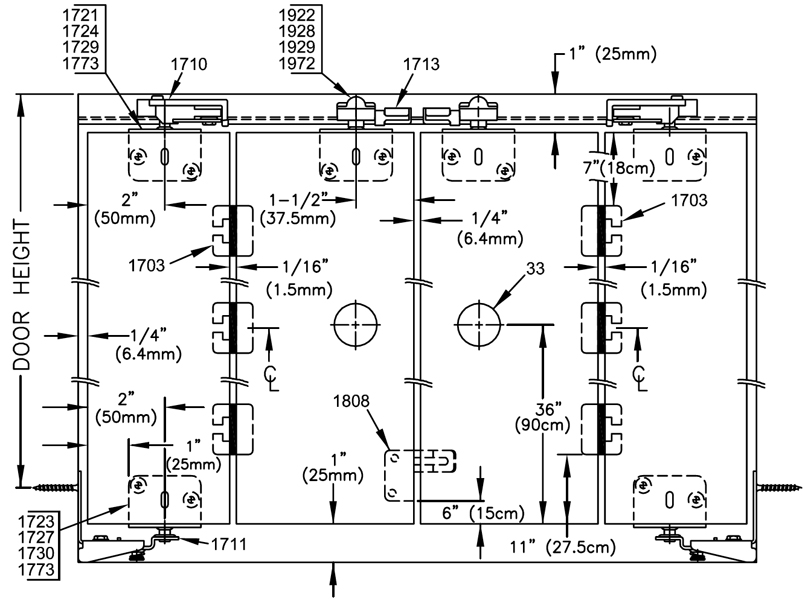

4-Panel Component Location

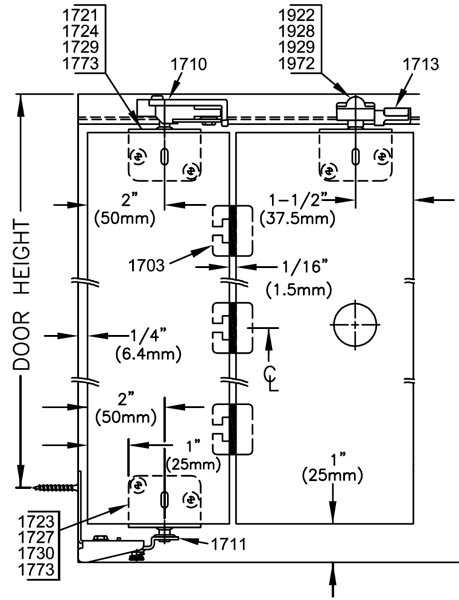

2-Panel Component Location

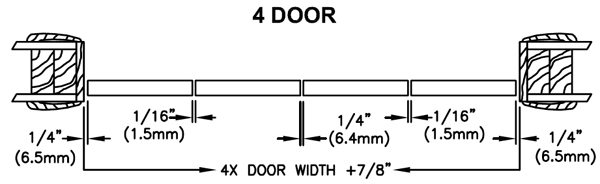

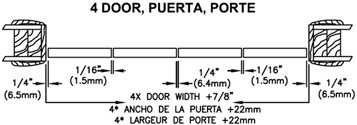

4-Panel Width Dimensions

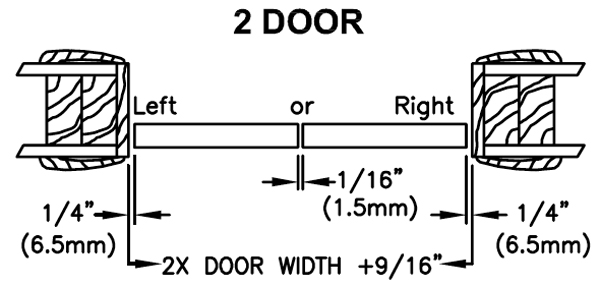

2-Panel Width Dimensions

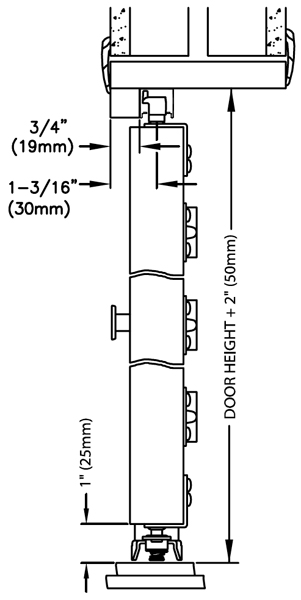

Height Dimensions

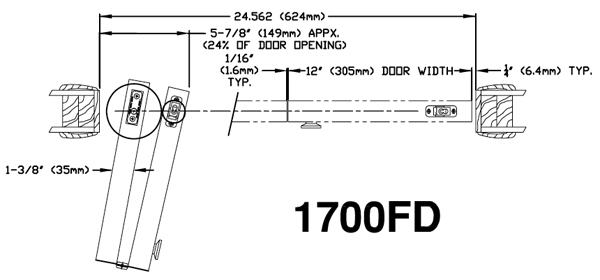

Opening Clearance

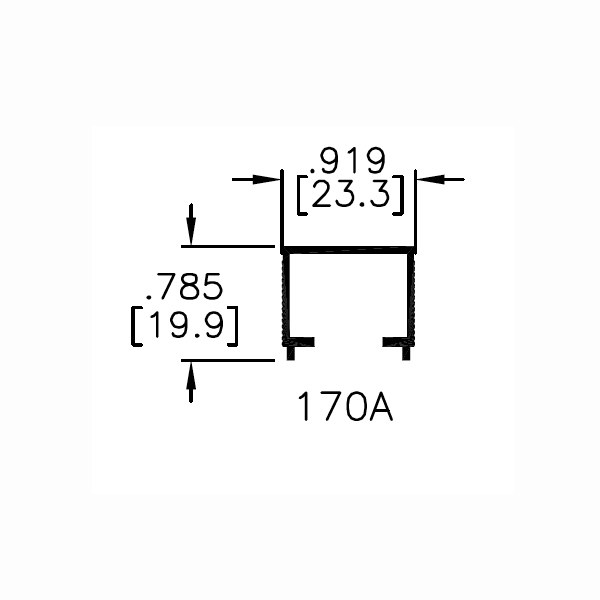

1700 Series Track

1700FS Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-3/8" [35mm] or 1-3/4"[44mm]
Track can be cut down to accommodate narrower panel/openings.
Custom 1700FS configurations possible by ordering 1700FS components by the piece.

1700FS Series Video

1703 Panel Hinge

1700 Installation

1700FS Series Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
Hardware sets available for 3 door thicknesses only 3/4" [19mm], 1-3/8" [35mm] or 1-3/4"[44mm]
Track can be cut down to accommodate narrower panel/openings.
Custom 1700FS configurations possible by ordering 1700FS components by the piece.

Products specifications

Max. Weight Per Panel	40 lbs. [18kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track	170A
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Panel Thickness	Price \| Qty. \| Order
1734243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	3/4" [19mm]	Buy Now
1718243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	1-1/8" [29mm]	Buy Now
1738243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	1-3/8" [35mm]	Buy Now
1734303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	3/4" [19mm]	Buy Now
1718303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	1-1/8" [29mm]	Buy Now
1738303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	1-3/8" [35mm]	Buy Now
1734363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	3/4" [19mm]	Buy Now
1718363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	1-1/8" [29mm]	Buy Now
1738363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	1-3/8" [35mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Panel Thickness	Price \| Qty. \| Order
1734486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	3/4" [19mm]	Buy Now
1718486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	1-1/8" [29mm]	Buy Now
1738486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	1-3/8" [35mm]	Buy Now
1734606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	3/4" [19mm]	Buy Now
1718606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	1-1/8" [29mm]	Buy Now
1738606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	1-3/8" [35mm]	Buy Now
1734726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	3/4" [19mm]	Buy Now
1718726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	1-1/8" [29mm]	Buy Now
1738726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	1-3/8" [35mm]	Buy Now
1734966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	3/4" [19mm]	Buy Now
1718966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	1-1/8" [29mm]	Buy Now
1738966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	1-3/8" [35mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Panel	40 lbs. [18kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track	170A
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
