1700 Bi-Fold Door Hardware

40lbs [18kg] Max Panel Weight Each
24" [610mm] Max Panel Width Each
96" [2438mm] Max Panel Height
3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
Top Mount Hanger Type
Residential Grade Top Hung Bi-Fold Door Hardware

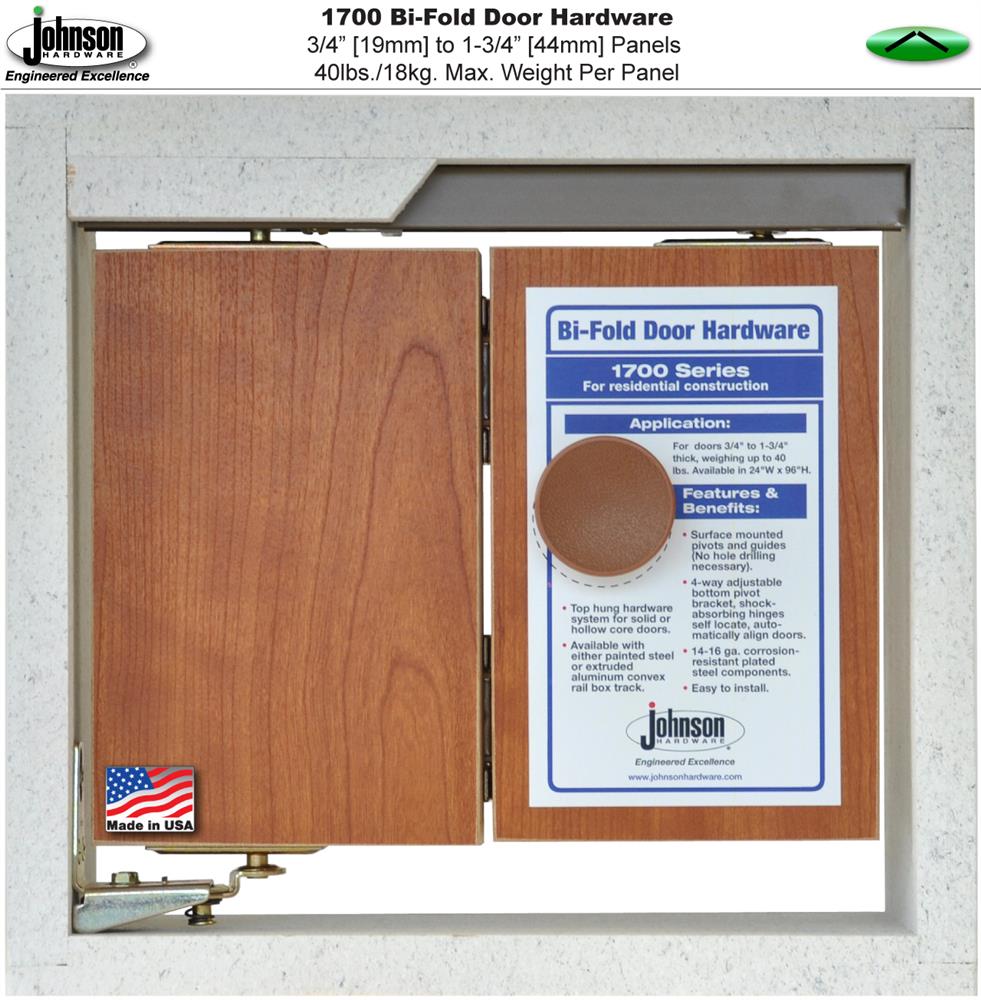

Smooth operating, non-binding top hung bi-fold hardware designed for use with solid core wood door panels. Available with either painted steel or extruded aluminum tracks. Surface mounted pivots and guides (no hole drilling). Four way adjustable bottom pivot bracket, shock absorbing hinges self locate and automatically align doors.

1700 Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Track available in mill finished aluminum or brown or white rolled steel.
Track can be cut down to accommodate narrower panel/openings.
Custom 1700 configurations possible by ordering 1700 components by the piece.

Overview
Installation
Video
Specifications

1700 Series Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Track available in mill finished aluminum or brown or white rolled steel.
Track can be cut down to accommodate narrower panel/openings.
Custom 1700 configurations possible by ordering 1700 components by the piece.

1700 Series Printed Installation Instructions

1700 Series Video

1703 Panel Hinge

1700 Installation

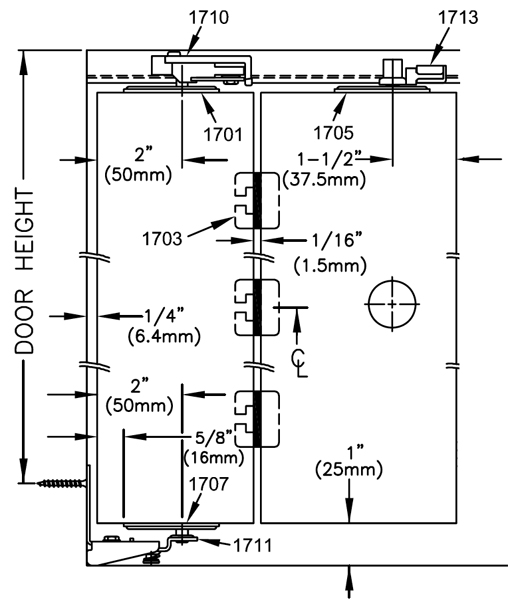

1700 Series Quick Reference Drawings

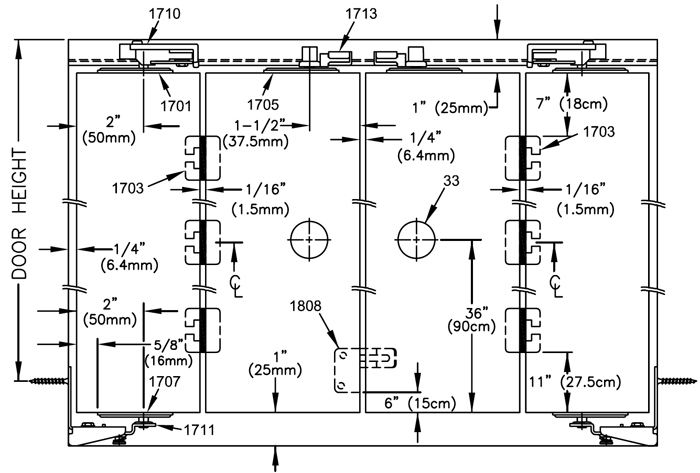

4-Panel Component Location

2-Panel Component Location

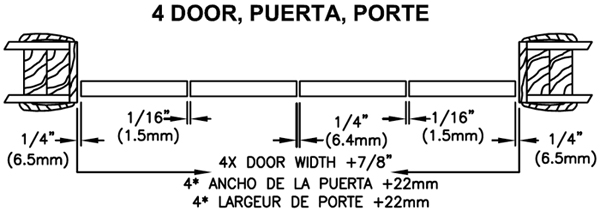

4-Panel Width Dimensions

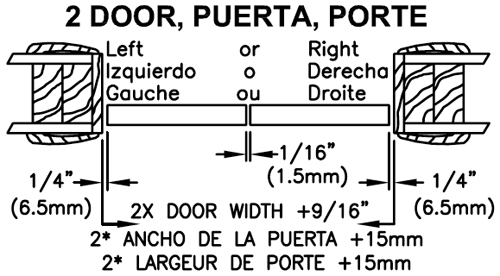

2-Panel Width Dimensions

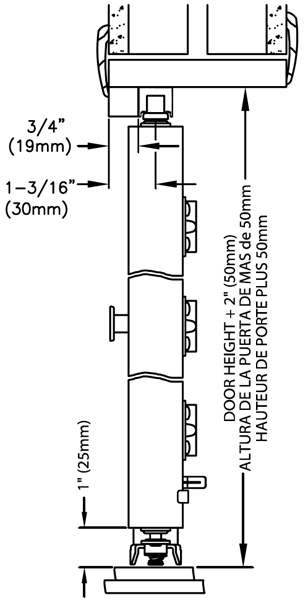

Height Dimensions

Opening Clearance

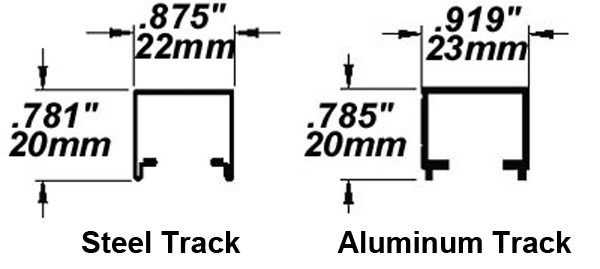

1700 Series Track

1700 Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
Track available in mill finished aluminum or brown or white rolled steel.
Track can be cut down to accommodate narrower panel/openings.
Custom 1700 configurations possible by ordering 1700 components by the piece.

1700 Series Video

1703 Panel Hinge

1700 Installation

1700 Series Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
Track available in mill finished aluminum or brown or white rolled steel.
Track can be cut down to accommodate narrower panel/openings.
Custom 1700 configurations possible by ordering 1700 components by the piece.

Products specifications

Max. Weight Per Panel	40 lbs. [18kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm] to 1-3/4" [44mm]
Series Track	1700
Track Profile	Box Track
Hanger Type	Top Mount
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Track Finish	Price \| Qty. \| Order
170A243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	Mill Aluminum	Buy Now
1700243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	Brown	Buy Now
170W243H	View Contents	12" x 2 (1' - 0" x 2) [305mm x 2]	24" (2' - 0") [610mm]	White	Buy Now
170A303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	Mill Aluminum	Buy Now
1700303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	Brown	Buy Now
170W303H	View Contents	15" x 2 (1' - 3" x 2) [381mm x 2]	30" (2' - 6") [762mm]	White	Buy Now
170A363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	Mill Aluminum	Buy Now
1700363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	Brown	Buy Now
170W363H	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	White	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Track Finish	Price \| Qty. \| Order
170A486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	Mill Aluminum	Buy Now
1700486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	Brown	Buy Now
170W486H	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	White	Buy Now
170A606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	Mill Aluminum	Buy Now
1700606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	Brown	Buy Now
170W606H	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	White	Buy Now
170A726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	Mill Aluminum	Buy Now
1700726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	Brown	Buy Now
170W726H	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	White	Buy Now
170A966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	Mill Aluminum	Buy Now
1700966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	Brown	Buy Now
170W966H	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	White	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Panel	40 lbs. [18kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm] to 1-3/4" [44mm]
Series Track	1700
Track Profile	Box Track
Hanger Type	Top Mount
Steel Component Finish	Zinc Trivalent Plated
Steel Components	12-14 Gauge
Product Grade	Residential
Packaging	Rigid cardboard tube
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
