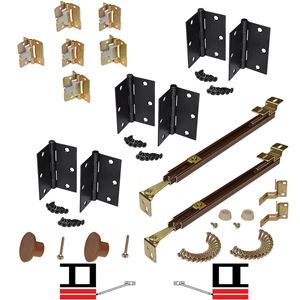

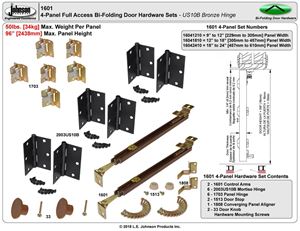

1601 12" 4-Panel Hardware Set, US10B

50lbs. [22kg] Max. Panel Weight Each

8-3/4" [229mm] to 12" [305mm] x 4 Panel Widths

36" [914mm] to 48" [1219mm] Opening Widths

1-1/8" [35mm] to 1-3/4" [44mm] Panel Thickness

US10B Oil Rubbed Bronze Hinge Finish

Manufacturer part number: 16041210

Buy Now

Products specifications

Hardware Sets	4-Panel 50lb. Mortise Hinge
Panels	4-Panels
Max. Weight Per Panel	50 lbs. [23kg] (US10B Oil Rubbed Bronze Mortise Hinge)
Opening Width	36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
Panel Width	8-3/4" to 12" x 4<br> (229mm to 305mm x 4)
Panel Width	8-3/4" to 12" x 2 <br>(229mm to 305mm x 2)
Mortise Hinge Finish	US10B Oil Rubbed Bronze
Hinge Type	Ball Bearing Mortise
Hinge Size	3-1/2 x 3-1/2"

Products specifications

Hardware Sets	4-Panel 50lb. Mortise Hinge
Panels	4-Panels
Max. Weight Per Panel	50 lbs. [23kg] (US10B Oil Rubbed Bronze Mortise Hinge)
Opening Width	36" to 48" (3' - 0" to 4' - 0") 914mm to 1219mm
Panel Width	8-3/4" to 12" x 4<br> (229mm to 305mm x 4)
Panel Width	8-3/4" to 12" x 2 <br>(229mm to 305mm x 2)
Mortise Hinge Finish	US10B Oil Rubbed Bronze
Hinge Type	Ball Bearing Mortise
Hinge Size	3-1/2 x 3-1/2"

1601 "Full Access" Bi-Fold Door Hardware
