1166 Sliding Bypass Door Hardware

  • 50lbs [23kg] Max Weight Per Door

  • 3/4" [19mm] OR 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Rolled Steel Twin Rail Track Type

  • Residential Grade Top Hung Sliding Door Hardware

    • 2200/1166 Installation Instructions

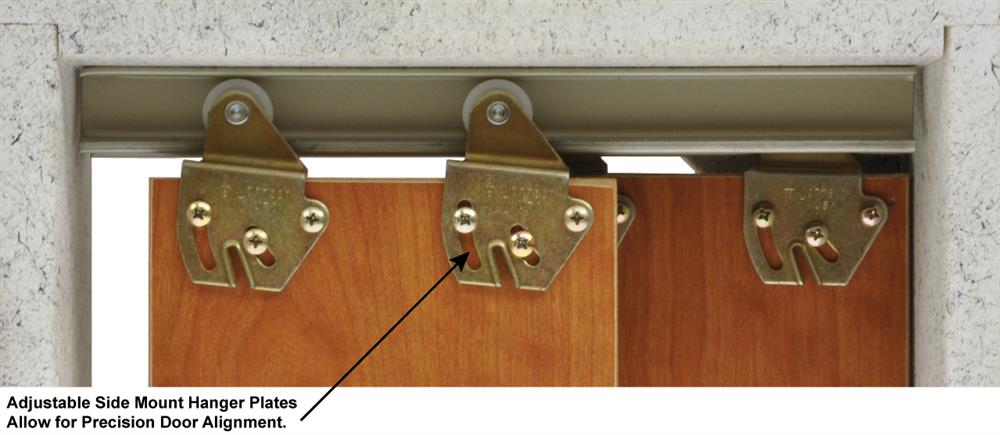

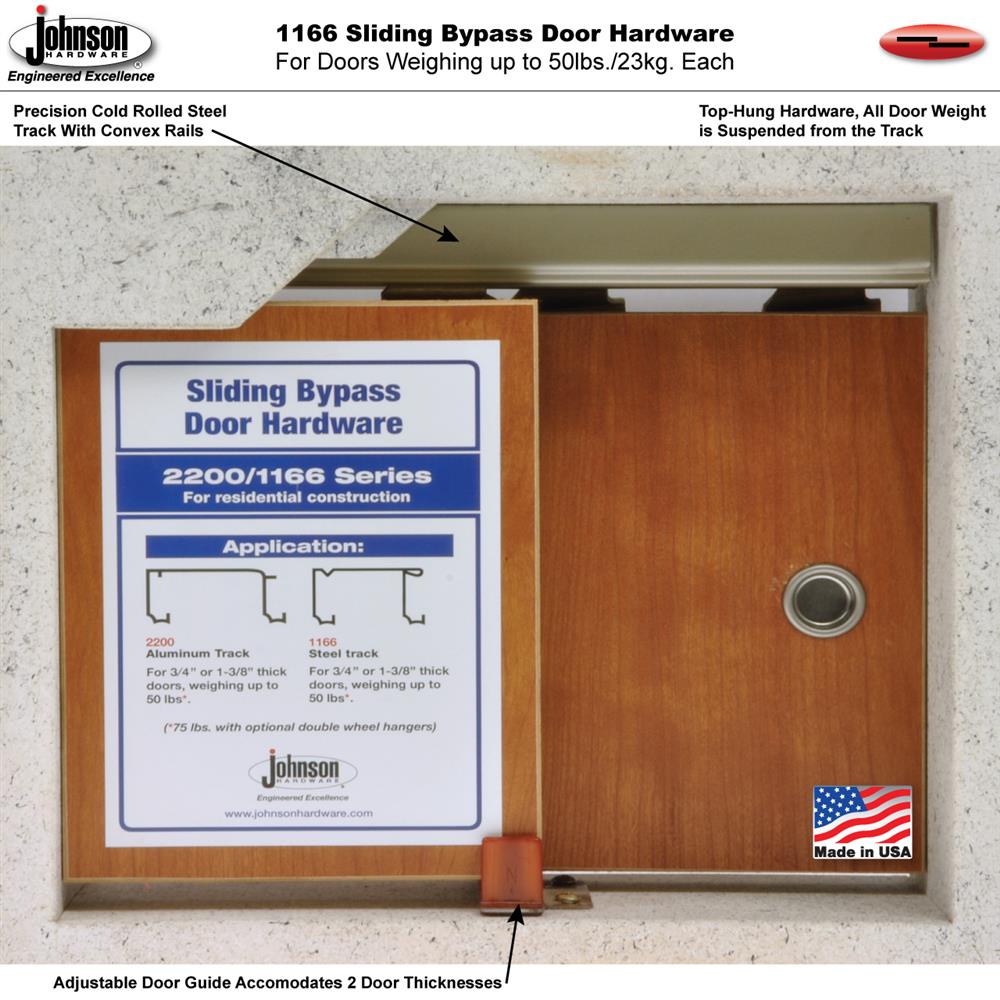

A general purpose residential grade sliding by-pass hardware system featuring a rolled steel track. Convex track rails provide one point contact between wheel and track. Reversible hangers will accept either 3/4" [19mm] or 1-3/8" 35mm] doors. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

1166 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1166 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1166 configurations possible by ordering 1166 components by the piece.

A general purpose residential grade sliding by-pass hardware system featuring a rolled steel track. Convex track rails provide one point contact between wheel and track. Reversible hangers will accept either 3/4" [19mm] or 1-3/8" 35mm] doors. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

1166 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1166 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1166 configurations possible by ordering 1166 components by the piece.

1166 Printed Installation Instructions

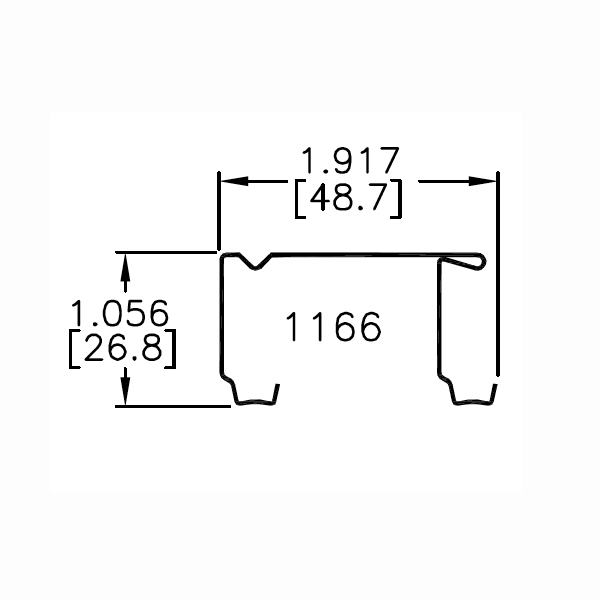

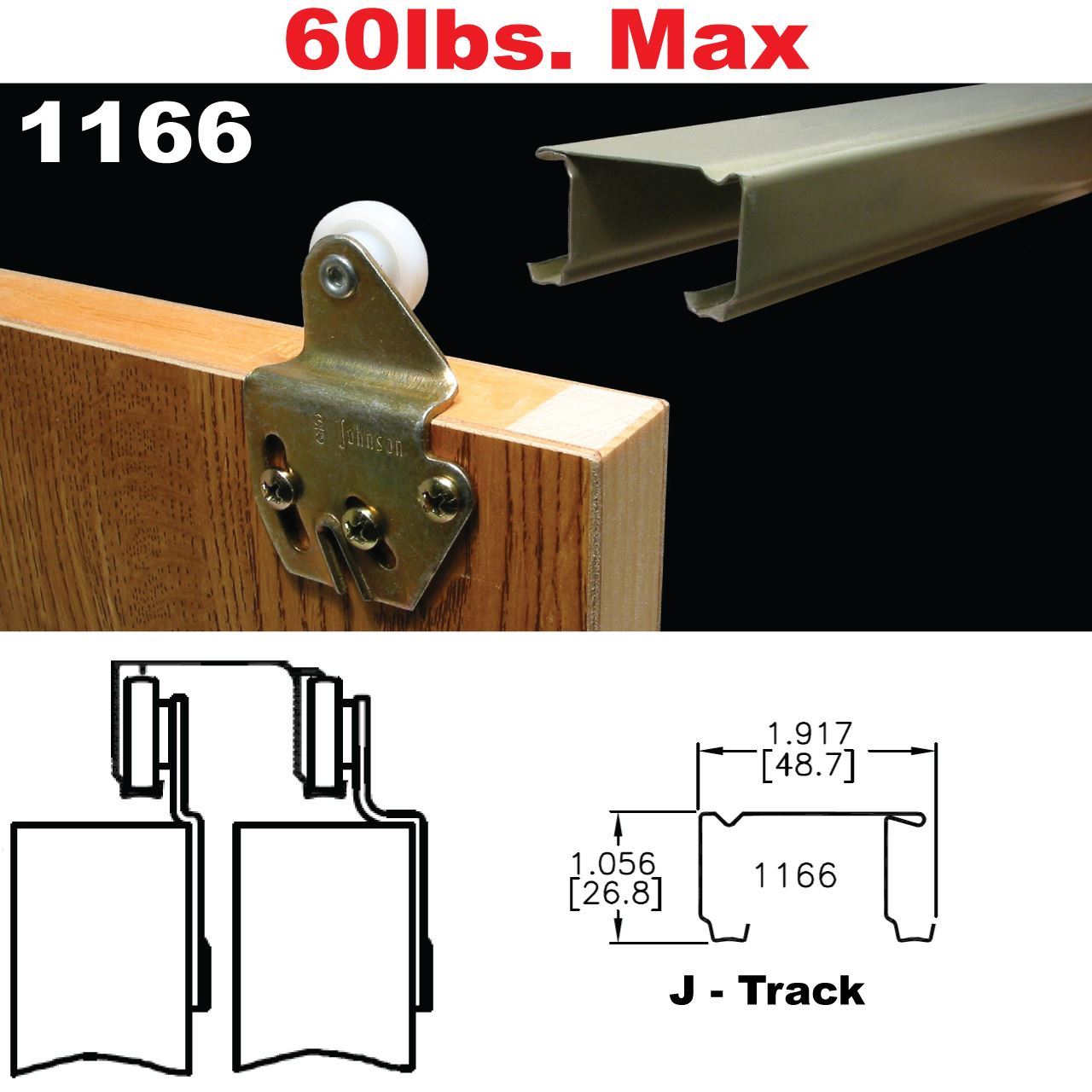

1166 Quick Reference Drawings

Opening Width

Opening Heights

Track Dimensions

1166 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1166 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1166 configurations possible by ordering 1166 components by the piece.
Products specifications
Max. Weight Per Door 50lbs. [23kg]
Application Interior Residential
Door Thickness 3/4" [19mm] or 1-3/8" [35mm]
Series Track 1166
Track Finish Gold Tone
Track Material Rolled Steel
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
1166G482

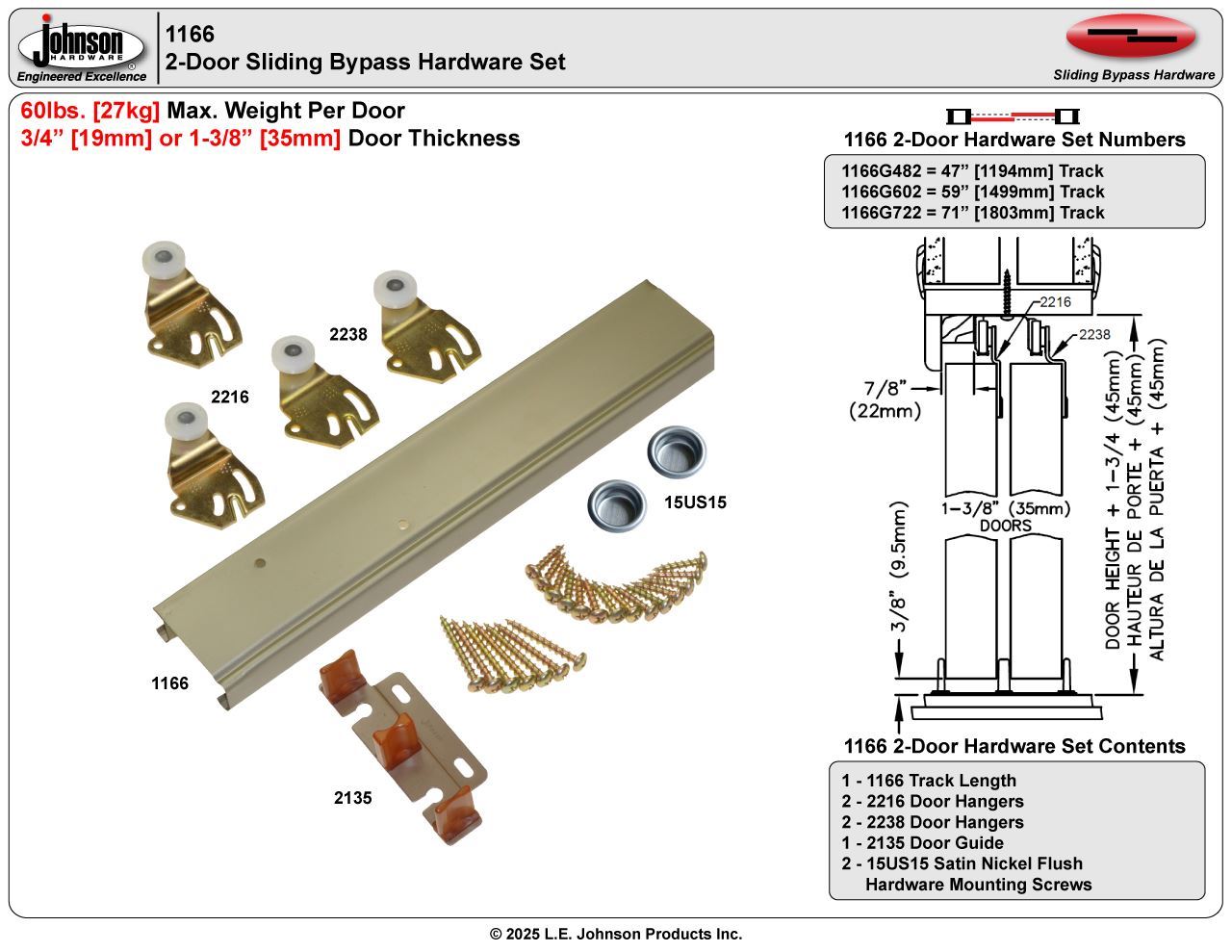

Picture of 1166 24" 2-Door Hardware Set
View Contents

2-Door

24" X 2 (2' - 0" X 2)
[610mm X 2]

47"
(3' - 11")
[1194mm]

50lbs. [23kg]

1166G602
Picture of 1166 30" 2-Door Hardware Set
View Contents

2-Door

30" X 2 (2' - 6" X 2)
[762mm X 2]

59"
(4' - 11")
[1499mm]

50lbs. [23kg]

1166G722
Picture of 1166 36" 2-Door Hardware Set
View Contents

2-Door

36" X 2 (3' - 0" X 2)
[914mm X 2]

71"
(5' - 11")
[1803mm]

50lbs. [23kg]

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
1166G964

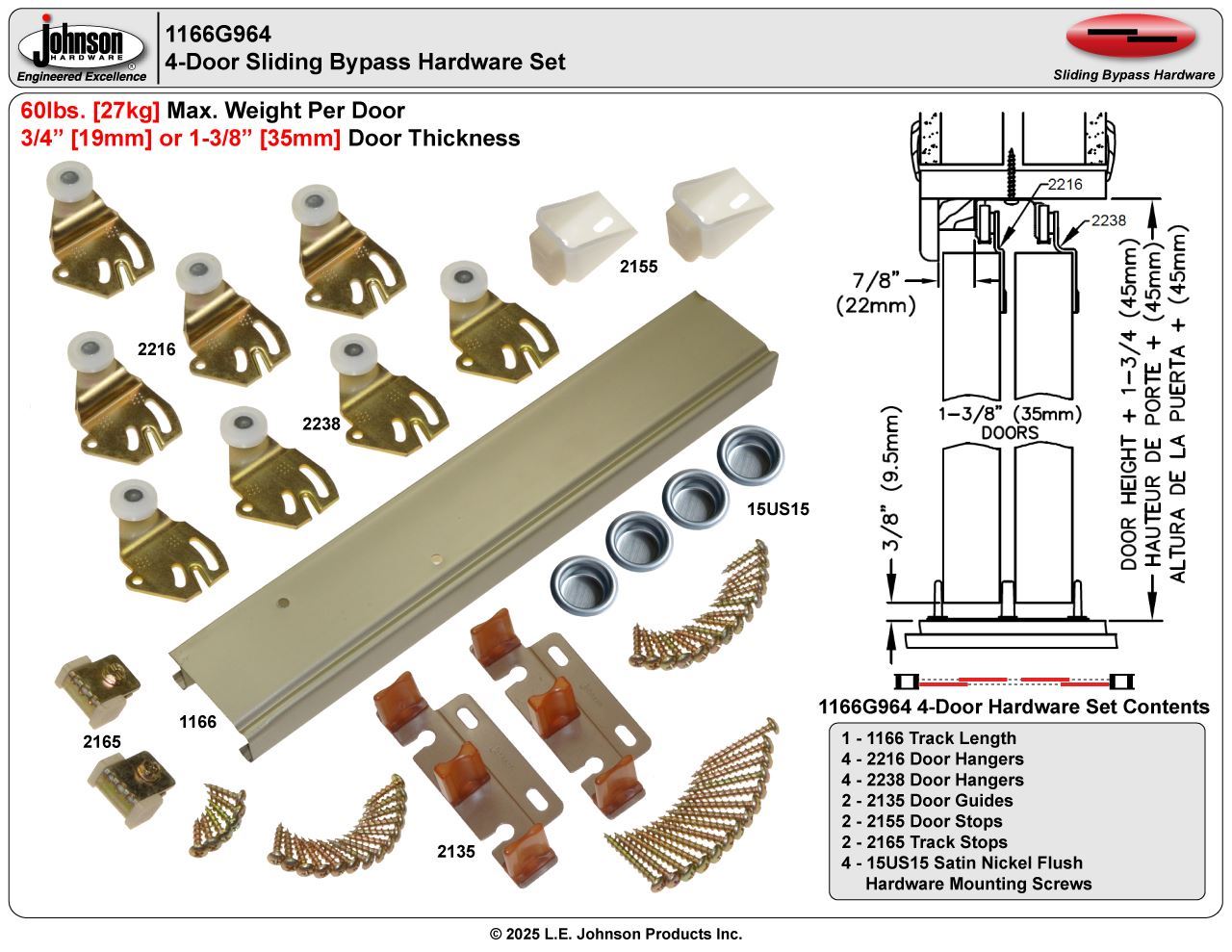

Picture of 1166 24" 4-Door Hardware Set
View Contents

4-Door

24" X 4 (2' - 0" X 4)
[610mm X 4]

94"
(7' - 10")
[2388mm]

50lbs. [23kg]

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 50lbs. [23kg]
Application Interior Residential
Door Thickness 3/4" [19mm] or 1-3/8" [35mm]
Series Track 1166
Track Finish Gold Tone
Track Material Rolled Steel
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
