111FS Side Mounted Bi-Fold Door Hardware

50lbs [23kg] Max Panel Weight Each
24" [610mm] Max Panel Width Each
108" [2743mm] Max Panel Height
3/4" [19mm], 1-1/8" [29mm], 1-3/8" [35mm] Panel Thickness
Side Mount Hanger Type
Commercial Grade Top Hung Bi-Fold Door Hardware

111FS Series Side Mount Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
Track can be cut down to accommodate narrower panel/openings.
Custom 111FS configurations possible by ordering 111FS components by the piece.

Overview
Installation
Specifications

111FS Series Side Mount Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
Track can be cut down to accommodate narrower panel/openings.
Custom 111FS configurations possible by ordering 111FS components by the piece.

111FS Series Printed Installation Instructions

111FS Series Quick Reference Drawings

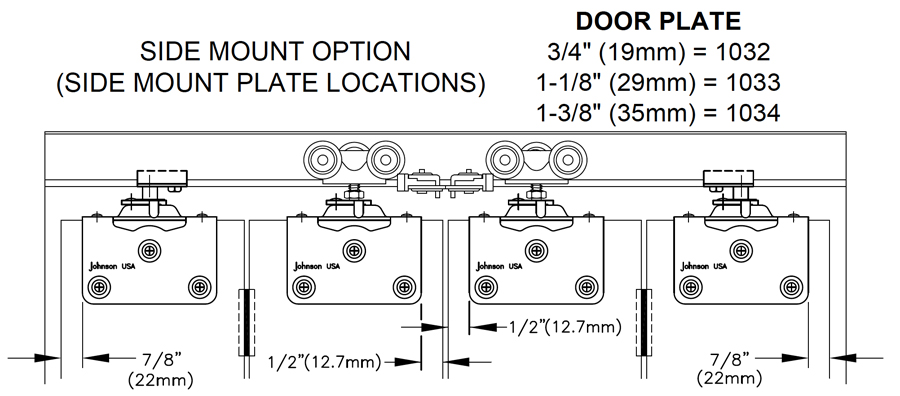

Side Mount Hanger Plate Location

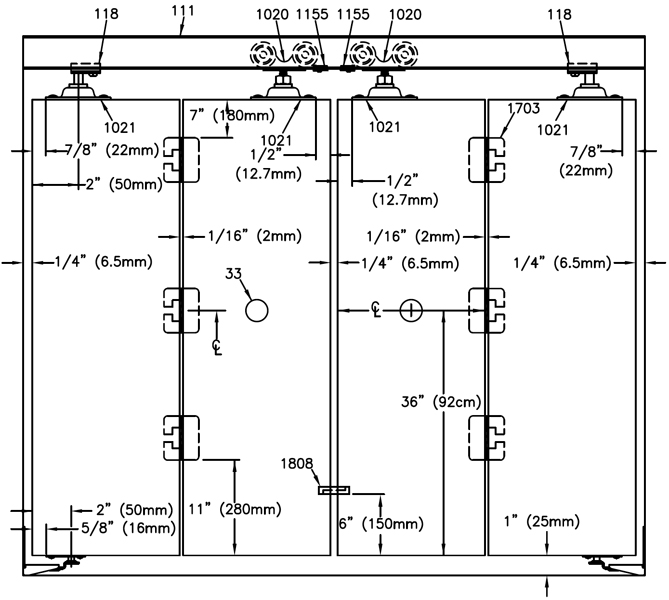

4-Panel Component Location

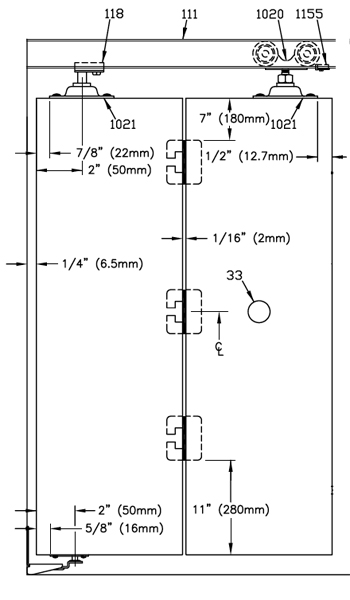

2-Panel Component Location

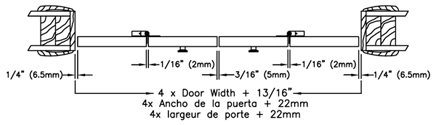

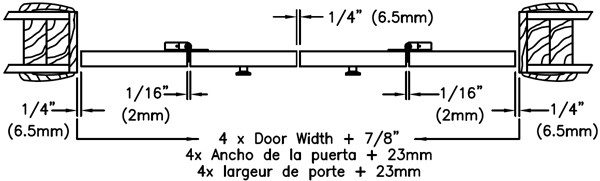

4-Panel Width Dimensions

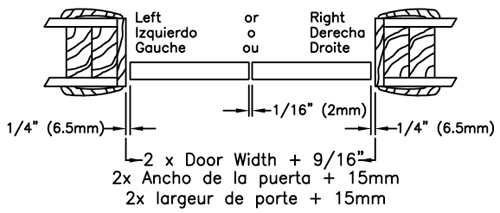

2-Panel Width Dimensions

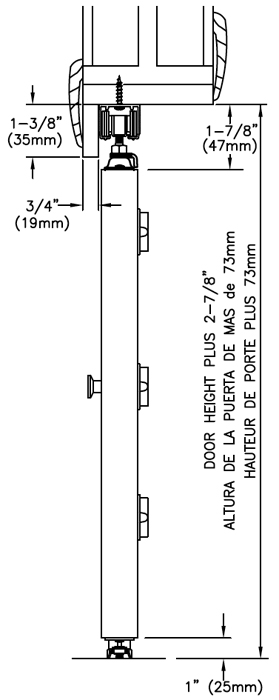

Height Dimensions

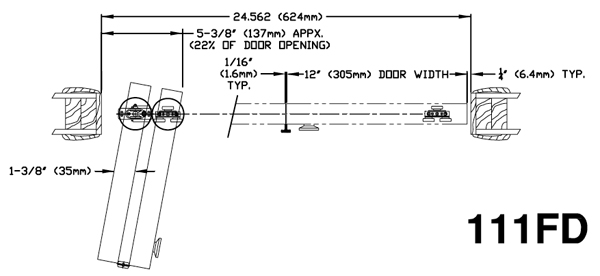

Opening Clearance

111 Series Track

111FS Series Side Mount Bi-Folding Door Hardware

Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.
Hardware sets available for 3 door thickness only 3/4" [19mm], 1-1/8" [29mm] or 1-3/8" [35mm].
Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
Track can be cut down to accommodate narrower panel/openings.
Custom 111FS configurations possible by ordering 111FS components by the piece.

Products specifications

Max. Weight Per Panel	50 lbs. [23kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track	111
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Side Mount
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Wheel Dia.	3/4"
Steel Components	12-14 Gauge
Steel Component Finish	Zinc Trivalent Plated
Product Grade	Commercial/Residential
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Panel Thickness	Price \| Qty. \| Order
11134362	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	3/4" [19mm]	Buy Now
11118362	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	1-1/8" [29mm]	Buy Now
11138362	View Contents	18" x 2 (1' - 6" x 2) [457mm x 2]	36" (3' - 0") [914mm]	1-3/8" [35mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No.	Description /Contents	Max. Panel Width	Track Length	Panel Thickness	Price \| Qty. \| Order
11134484	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	3/4" [19mm]	Buy Now
11118484	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	1-1/8" [29mm]	Buy Now
11138484	View Contents	12" x 4 (1' - 0" x 4) [305mm x 4]	48" (4' - 0") [1219mm]	1-3/8" [35mm]	Buy Now
11134604	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	3/4" [19mm]	Buy Now
11118604	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	1-1/8" [29mm]	Buy Now
11138604	View Contents	15" x 4 (1' - 3" x 4) [381mm x 4]	60" (5' - 0") [1524mm]	1-3/8" [35mm]	Buy Now
11134724	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	3/4" [19mm]	Buy Now
11118724	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	1-1/8" [29mm]	Buy Now
11138724	View Contents	18" x 4 (1' - 6" x 4) [457mm x 4]	72" (6' - 0") [1829mm]	1-3/8" [35mm]	Buy Now
11134964	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	3/4" [19mm]	Buy Now
11118964	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	1-1/8" [29mm]	Buy Now
11138964	View Contents	24" x 4 (2' - 0" x 4) [610mm x 4]	96” (8' - 0") [2438mm]	1-3/8" [35mm]	Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications

Max. Weight Per Panel	50 lbs. [23kg]
Application	Interior Residential
Panel Thickness	3/4" [19mm], 1-1/8" [28mm] or 1-3/8" [35mm]
Series Track	111
Track Finish	Mill Aluminum
Track Material	6063T6 Extruded Aluminum
Track Profile	Box Track
Hanger Type	Side Mount
Wheel Type	Nylon Encapsulated Sealed Ball Bearing
Wheel Dia.	3/4"
Steel Components	12-14 Gauge
Steel Component Finish	Zinc Trivalent Plated
Product Grade	Commercial/Residential
Country of Origin	U.S.A.
Specification Conditions	All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
