111FD 36" [914mm] Track, 2-Panel Hardware Set

  • 50lbs [23kg] Max Weight Per Panel

  • 36" [914mm] Track Length

  • 18" [457mm] x 2 Max. Panel Width
  • 3/4" [19mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Ball Bearing Wheel Hanger Type

  • Commercial Grade Top Hung Sliding Door Hardware

  • Manufacturer part number: 111FD362
    Buy Now

    111FD Series Printed Installation Instructions

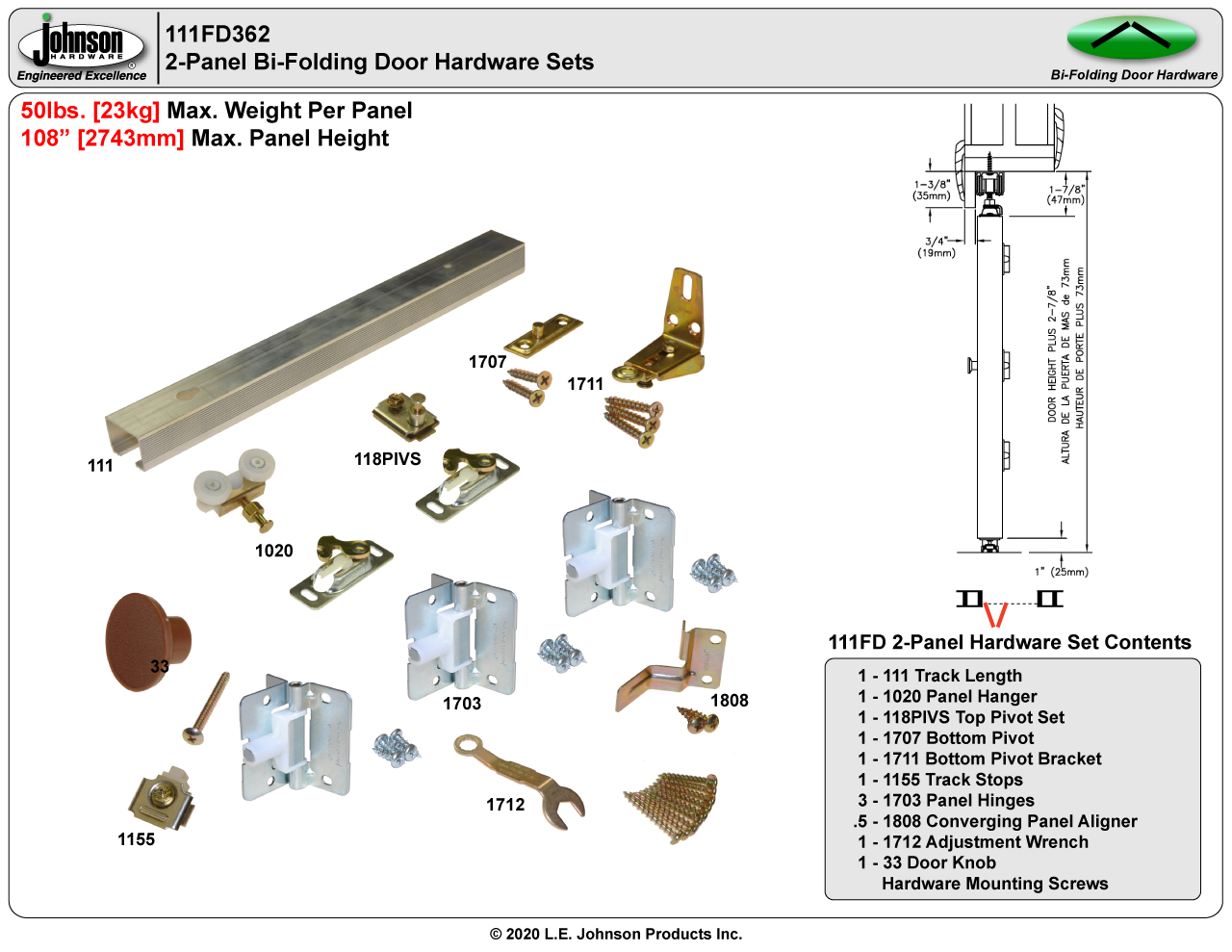

    111FD Series Quick Reference Drawings

    111FD Series Bi-Folding Door Hardware

    Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

    • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
    • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
    • Track can be cut down to accommodate narrower panel/openings.
    • Custom 111FD configurations possible by ordering 111FD components by the piece.
    Products specifications
    Hardware Sets 2-Panel
    Max. Panel Width 18" x 2 (1' - 6" x 2) [457mm x 2]
    Max. Weight Per Panel 50 lbs. [23kg]
    Track Length 36" (3' - 0") [914mm]
    Products specifications
    Hardware Sets 2-Panel
    Max. Panel Width 18" x 2 (1' - 6" x 2) [457mm x 2]
    Max. Weight Per Panel 50 lbs. [23kg]
    Track Length 36" (3' - 0") [914mm]
