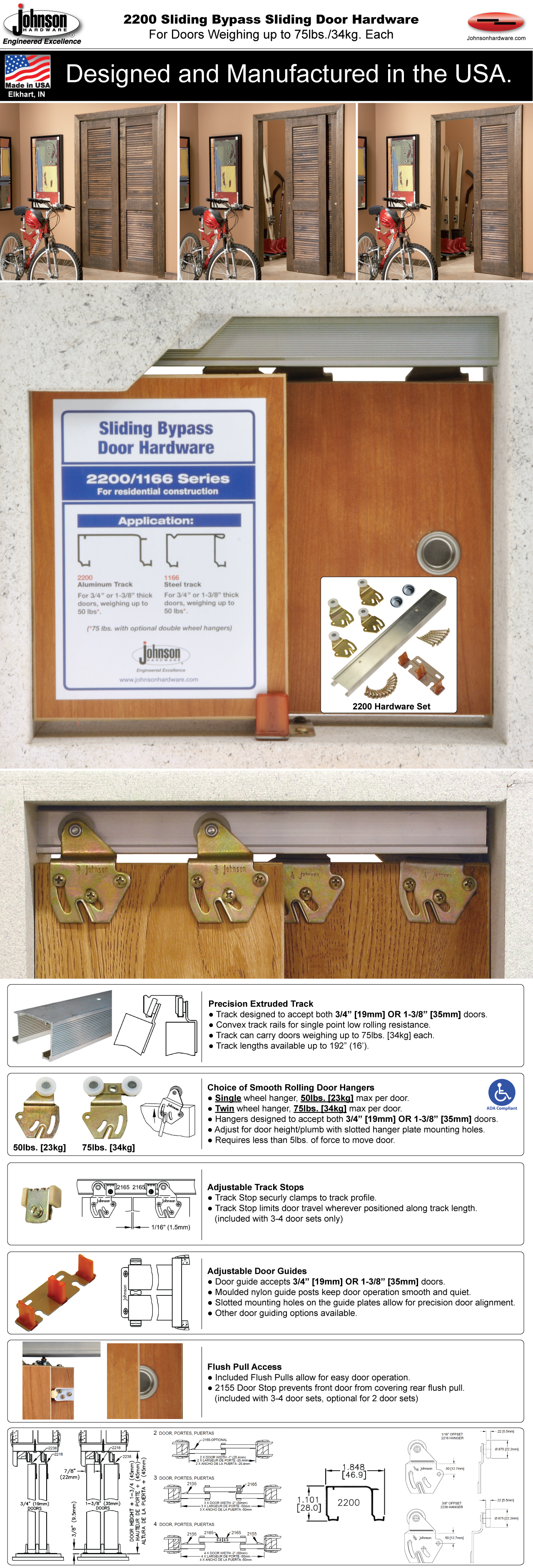

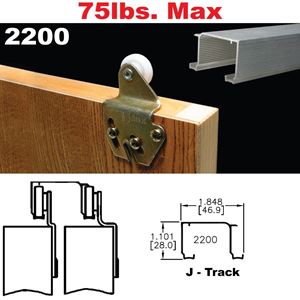

2200 Sliding Bypass Door Hardware

  • 75lbs [34kg] Max Weight Per Door

  • 3/4" [19mm] OR 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Single Extrusion Twin Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Residential Grade Top Hung Sliding Door Hardware

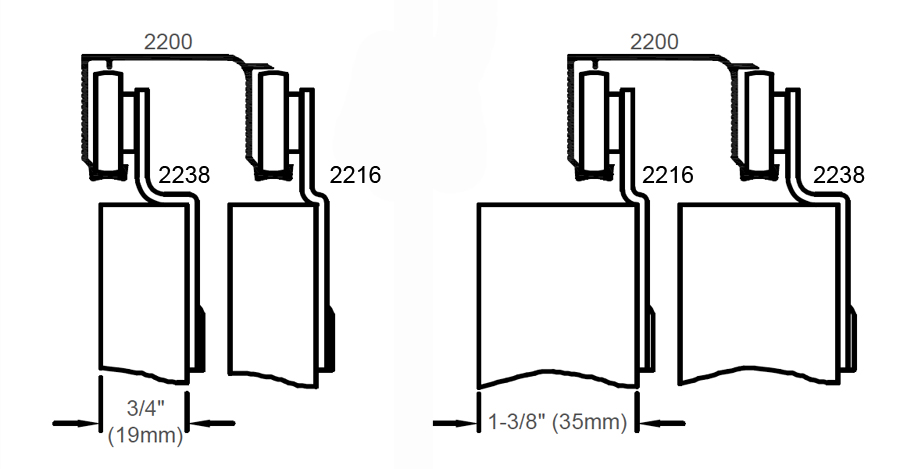

A general purpose residential grade sliding by-pass hardware system featuring aluminum track. Convex track rails provide one point contact between wheel and track. Reversible hangers will accept either 3/4" [19mm] or 1-3/8" 35mm] doors. Hangers include one or two 7/8" [22mm] dia. molded nylon machine turned wheels with three point locking plates. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

2200 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

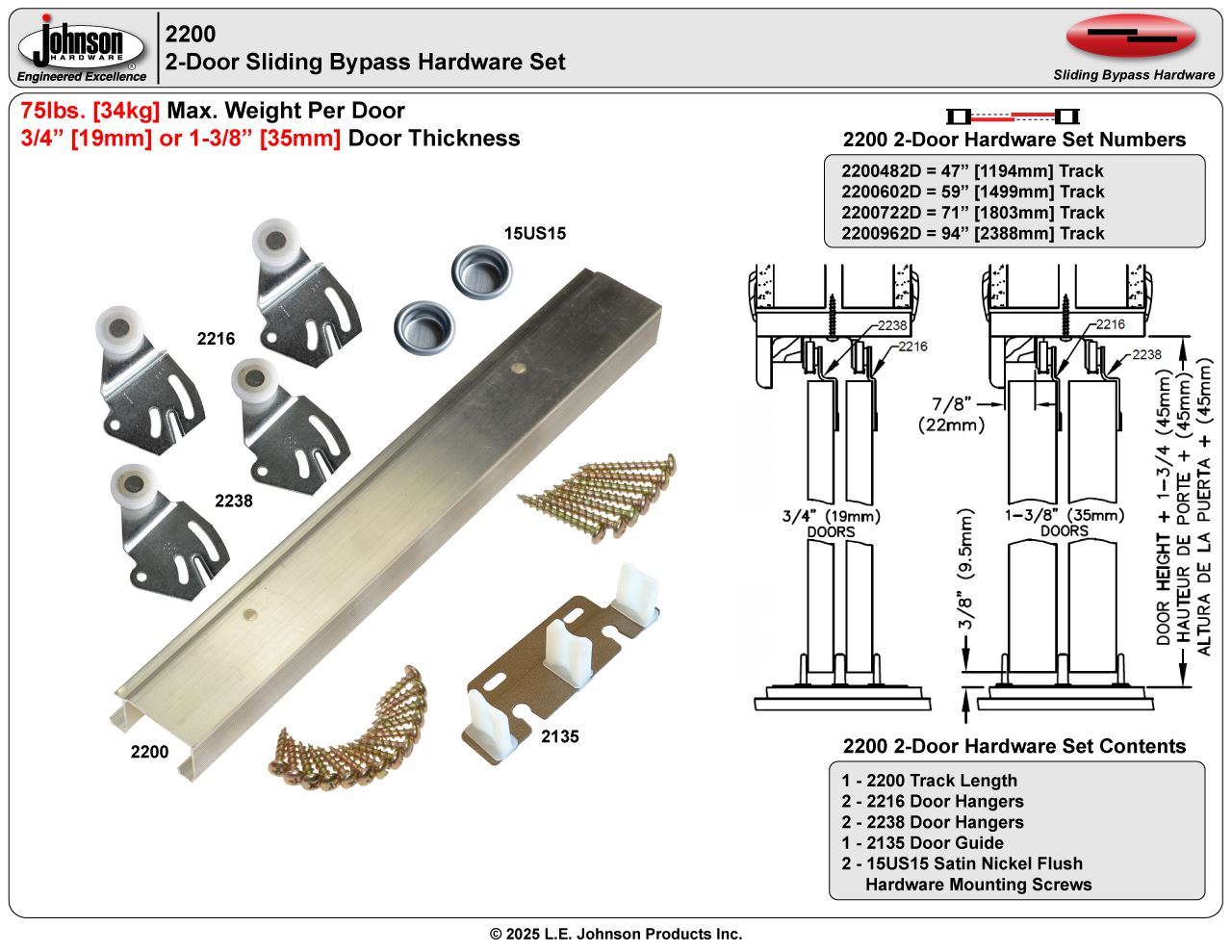

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2200 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2200 configurations possible by ordering 2200 components by the piece.

A general purpose residential grade sliding by-pass hardware system featuring aluminum track. Convex track rails provide one point contact between wheel and track. Reversible hangers will accept either 3/4" [19mm] or 1-3/8" 35mm] doors. Hangers include one or two 7/8" [22mm] dia. molded nylon machine turned wheels with three point locking plates. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

2200 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2200 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2200 configurations possible by ordering 2200 components by the piece.

2200 Printed Instalation Instructions

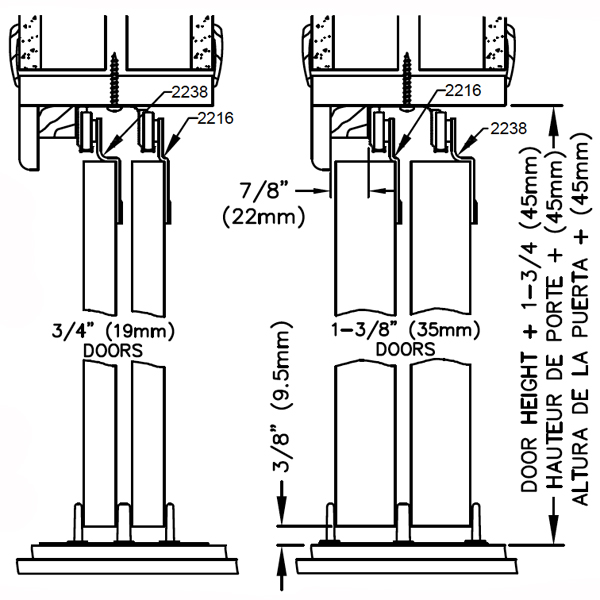

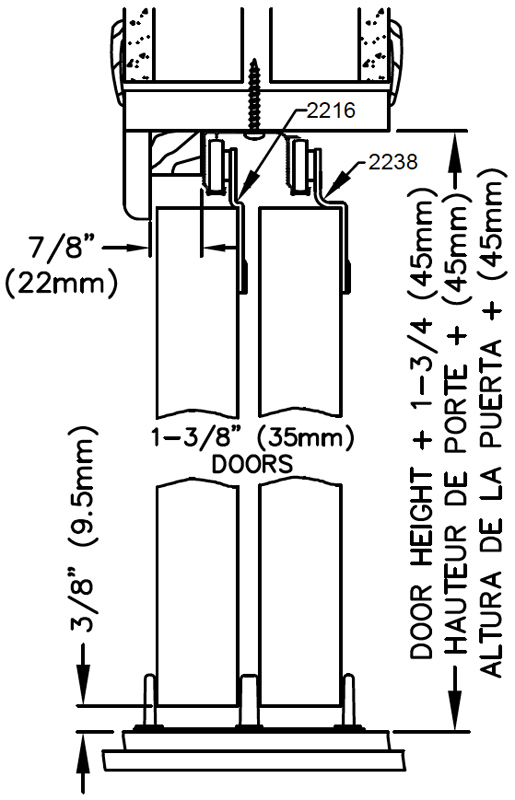

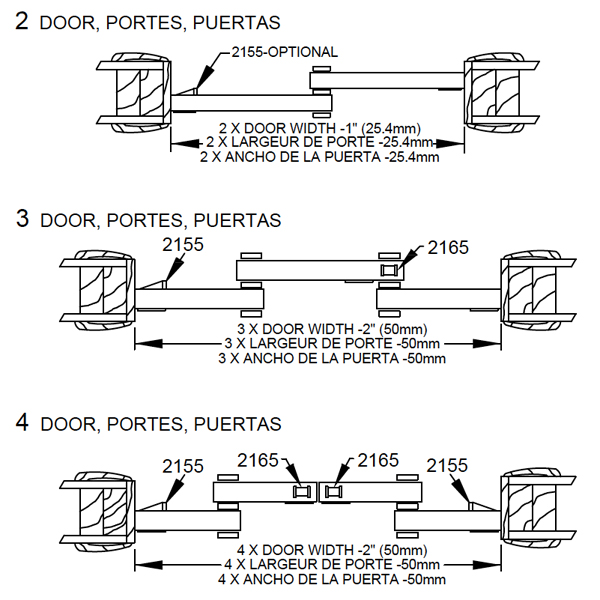

2200 Quick Reference Drawings

2200 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 2200 is compatible with 3/4" [19mm] or 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 2200 configurations possible by ordering 2200 components by the piece.
Products specifications
Max. Weight Per Door 75lbs. [34kg] (W/Twin Wheel Hangers)
Application Interior Residential
Door Thickness 3/4" [19mm] or 1-3/8" [35mm]
Series Track 2200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

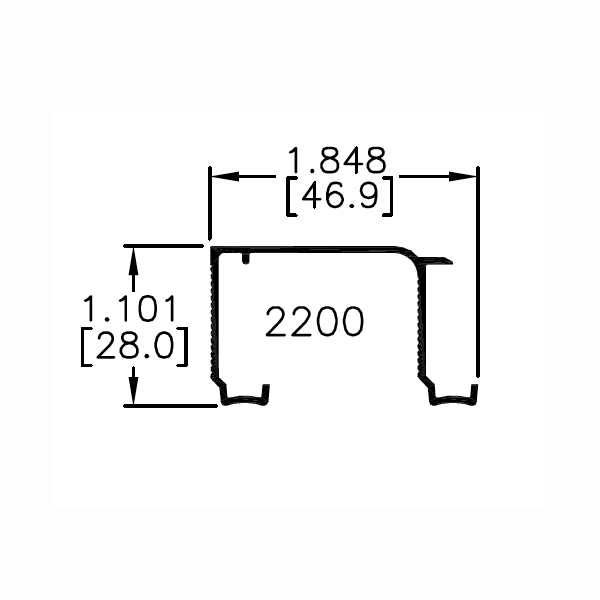

Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Single Wheel Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
2200482D View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

50lbs. [23kg]

Buy Now
2200602D View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

50lbs. [23kg]

Buy Now
2200722D View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

50lbs. [23kg]

Buy Now

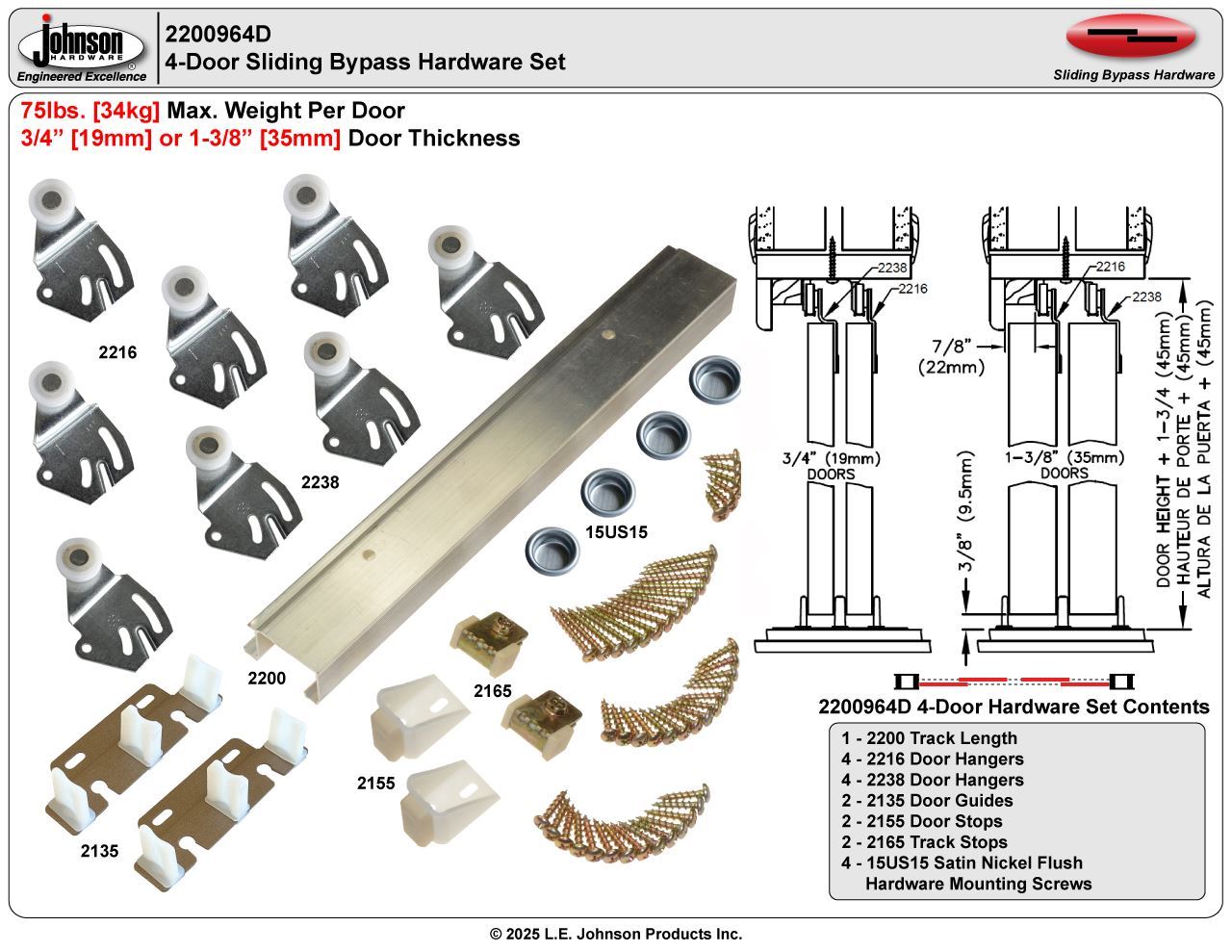

2200964D View Contents

2 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

50lbs. [23kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Twin Wheel Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
2200482H View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

75lbs. [34kg]

Buy Now
2200602H View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

75lbs. [34kg]

Buy Now
2200722H View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

75lbs. [34kg]

Buy Now
2200964H View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

75lbs. [34kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 75lbs. [34kg] (W/Twin Wheel Hangers)
Application Interior Residential
Door Thickness 3/4" [19mm] or 1-3/8" [35mm]
Series Track 2200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
