200WM Wall Mount Sliding Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • 1-1/8" [29mm] to 1-3/4" [44mm] Door Thickness
  • Top Mount Hanger Type

  • I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

The 200WM is a heavy-duty wall mounted sliding door hardware set for interior residential or commercial applications. Ideally suited for use when traditional pocket doors cannot be cost effectively or structurally installed the 200WM offers a flexible door operating solution. The 200WM features a thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum mounting brackets that can be positioned along the track to anchor into wall studs. Four-wheeled ball bearing hangers assure smooth operation and removable hanger plates allow for easy door installation and removal. Two different door guides are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts.

200WM Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WM Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

The 200WM is a heavy-duty wall mounted sliding door hardware set for interior residential or commercial applications. Ideally suited for use when traditional pocket doors cannot be cost effectively or structurally installed the 200WM offers a flexible door operating solution. The 200WM features a thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum mounting brackets that can be positioned along the track to anchor into wall studs. Four-wheeled ball bearing hangers assure smooth operation and removable hanger plates allow for easy door installation and removal. Two different door guides are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts.

200WM Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WM Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

200WM Series Instalation Instructions

200WM Series Quick Reference Drawings

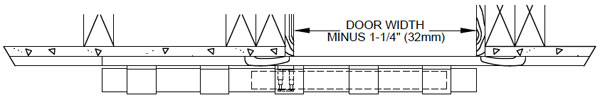

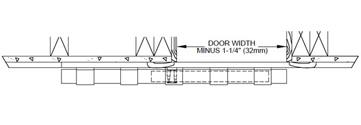

200WM Opening Width Dimensions

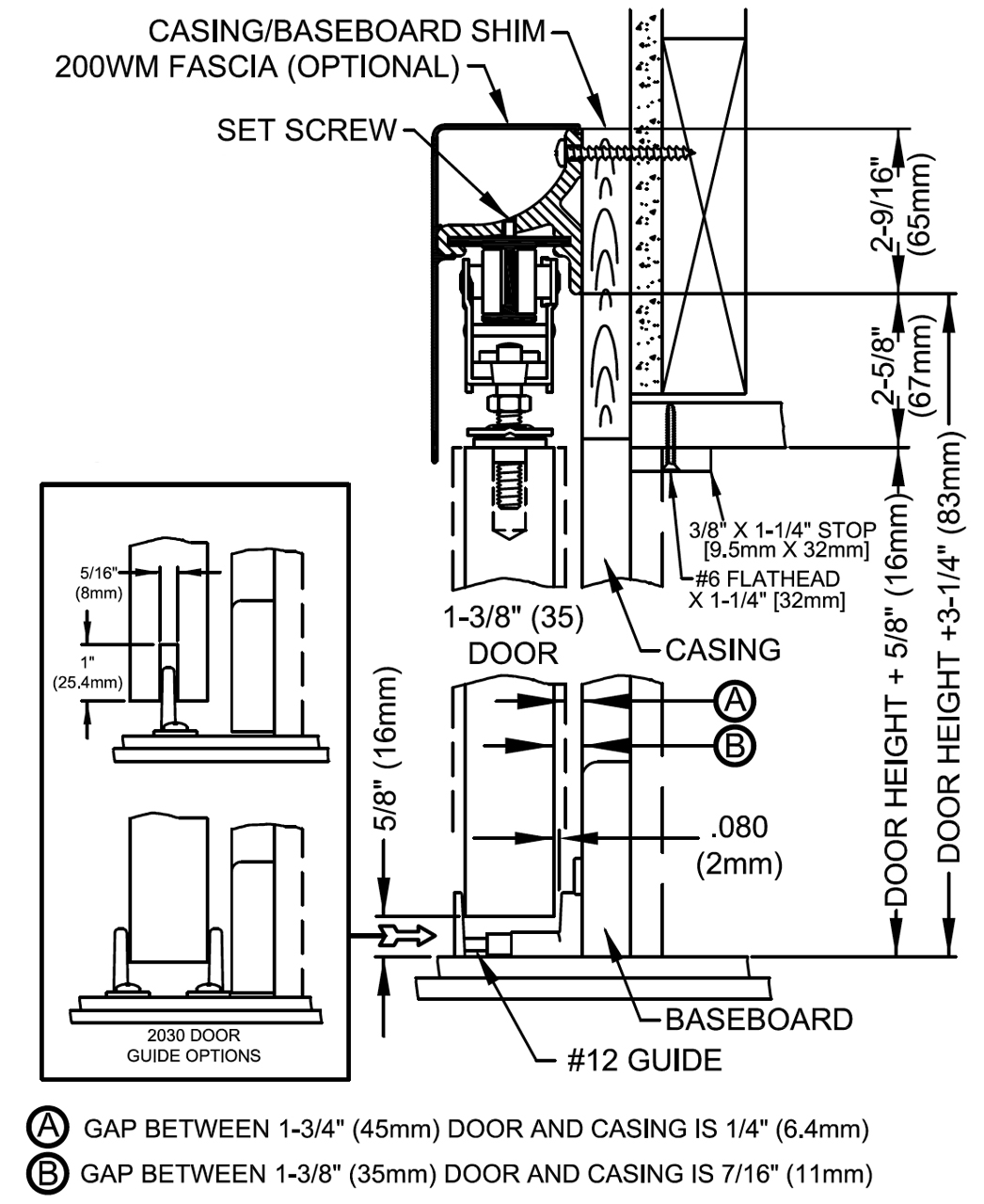

200WM Opening Height Dimensions

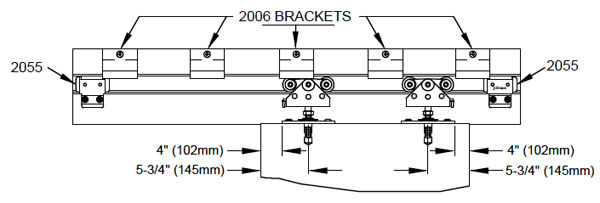

200WM Bracket Locations

Track Dimensions

200WM Hardware Sets

Wall mount sliding door hardware sets for standard door/opening installations (doors, jambs, opening trim, door locks, door pulls NOT included). Track CAN be cut down to fit smaller door/opening widths.


How to order 200WM Hardware Sets:

1. Determine your door size (door width and door thickness)

2. Select a part set number that accommodates your door size. Don't see your exact door size? Remember that track can be cut down to accommodate any smaller size door just order the next longer track length for your door and cut track down.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door 200WM Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Price | Qty. | Order
200WM481 View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

Buy Now
200WM601 View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

Buy Now
200WM721 View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

Buy Now
200WM961 View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door 200WM Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Price | Qty. | Order
200WM242 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

Buy Now
200WL302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

Buy Now
200WL362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

Buy Now
200WL482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door (Ship Friendly) 200WM Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Price | Qty. | Order
200WM302 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2 = 120" (5' - 0" x 2 = 10')
[1524mm x 2 = 3048mm]

Buy Now
200WM362 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2 = 144" (6' - 0" x 2 = 12')
[1829mm x 2 = 3658mm]

Buy Now
200WM482 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2 = 192" (8' - 0" x 2 = 16')
[2438mm x 2 =4877mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm] to <br>1-3/4" [44mm]<br>
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
