200WG Wall Mount Sliding Glass Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • 1/2" [12mm] Tempered Glass Door Thickness
  • Side Mount Compression Hanger Type

  • I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Wall Mount Sliding Door Hardware

The 200WG is a heavy-duty wall mounted sliding glass door hardware set specially designed to accept 1/2" [25mm] glass door panels. Heavy-duty glass door hangers carry doors up to 400lbs. [181kg] each. Special glass machining required for door hanger plate installation. Ideally suited for use when traditional pocket door cannot be cost effectively or structurally installed the 200WM offers a flexible door operating solution. The 200WG features a thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum mounting brackets that can be positioned along the track to anchor into wall studs. Four-wheeled ball bearing hangers assure smooth operation and removable hanger plates allow for easy door installation and removal. Two different door guides are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts.

200WG Series Hardware Sets

200WG Hardware Sets include all necessary hardware to prepare an opening for 1 or 2 wall mounted sliding gladss door(s) (doors, jambs, fascia, door locks, door pulls NOT included). Track CAN be cut down to fit smaller size doors.


How to order the 200WG Series Hardware Sets:

For Single Sliding Doors:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

For Converging Sliding Doors:

1. Determine your door widths.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

* 2-Door Converging Hardware Sets are available in two varients, Spliced Track or Single Track. Spliced Track Hardware Sets lower shipping cost because they contain 2 shorter track lengths that can be shipped via UPS. The short tracks meet in the middle of the opening and are spliced together via the track bracket. Single Track Hardware Sets contain a single length of track (no splice) and can incur oversized freight charges.

The 200WG is a heavy-duty wall mounted sliding glass door hardware set specially designed to accept 1/2" [25mm] glass door panels. Heavy-duty glass door hangers carry doors up to 400lbs. [181kg] each. Special glass machining required for door hanger plate installation. Ideally suited for use when traditional pocket door cannot be cost effectively or structurally installed the 200WM offers a flexible door operating solution. The 200WG features a thick walled precision extruded aluminum I-beam track and heavy-duty extruded aluminum mounting brackets that can be positioned along the track to anchor into wall studs. Four-wheeled ball bearing hangers assure smooth operation and removable hanger plates allow for easy door installation and removal. Two different door guides are supplied with the hardware set for maximum installation flexibility.14 – 16 gauge zinc trivalent plated steel parts.

200WG Series Hardware Sets

200WG Hardware Sets include all necessary hardware to prepare an opening for 1 or 2 wall mounted sliding gladss door(s) (doors, jambs, fascia, door locks, door pulls NOT included). Track CAN be cut down to fit smaller size doors.


How to order the 200WG Series Hardware Sets:

For Single Sliding Doors:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

For Converging Sliding Doors:

1. Determine your door widths.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

* 2-Door Converging Hardware Sets are available in two varients, Spliced Track or Single Track. Spliced Track Hardware Sets lower shipping cost because they contain 2 shorter track lengths that can be shipped via UPS. The short tracks meet in the middle of the opening and are spliced together via the track bracket. Single Track Hardware Sets contain a single length of track (no splice) and can incur oversized freight charges.

200WG Series Printed Instalation Instructions

200WG Series Quick Reference Drawings

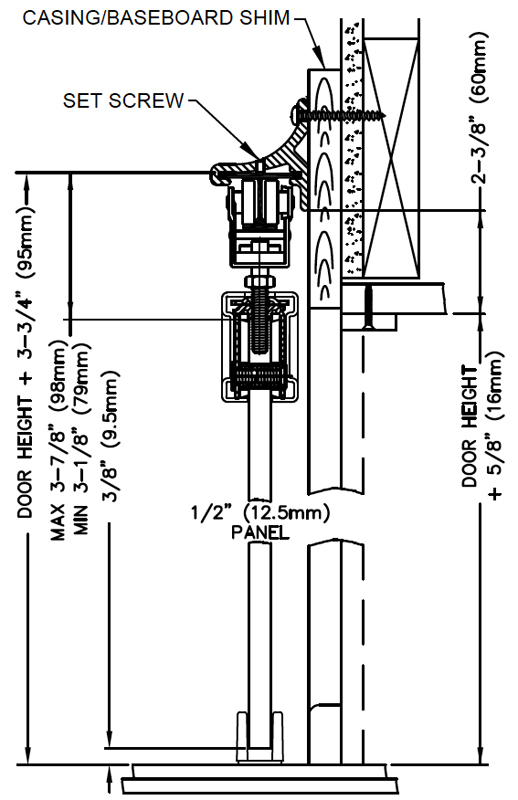

Door Height Dimensions

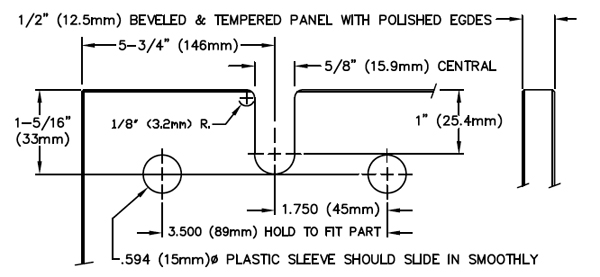

Glass Machining Dimensions

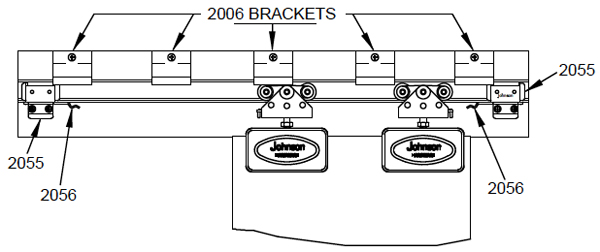

Track Bracket Locations

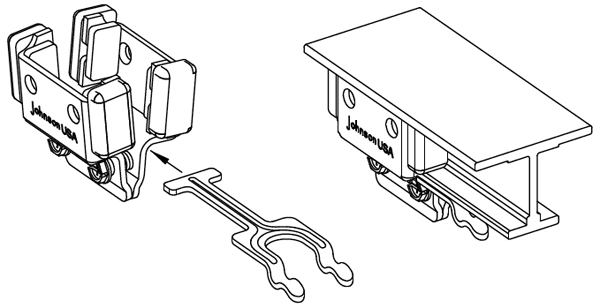

2056 Door Catch

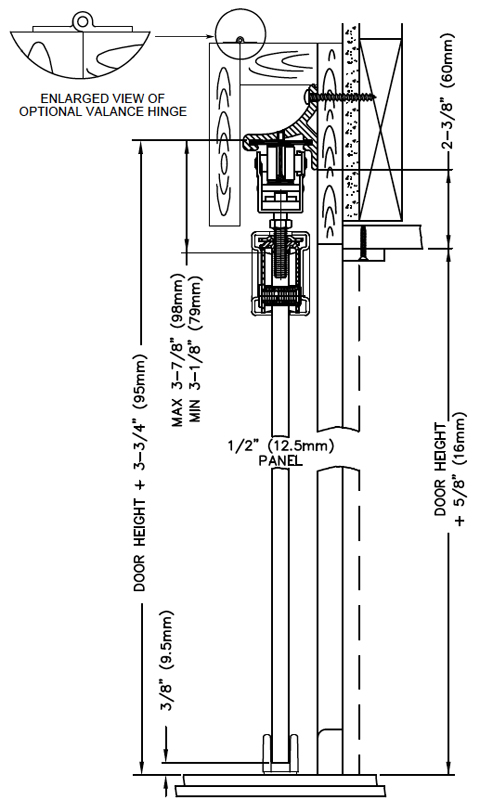

Fascia Fabrication Dimensions

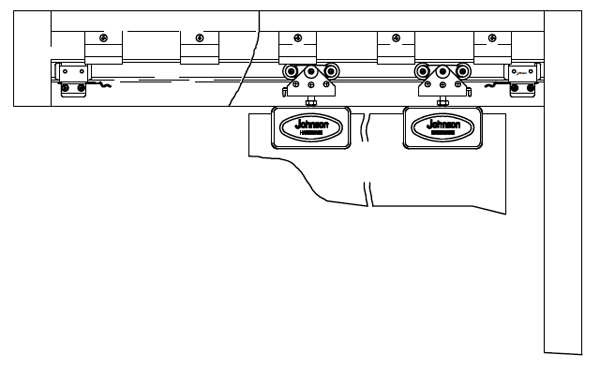

Fascia Front View

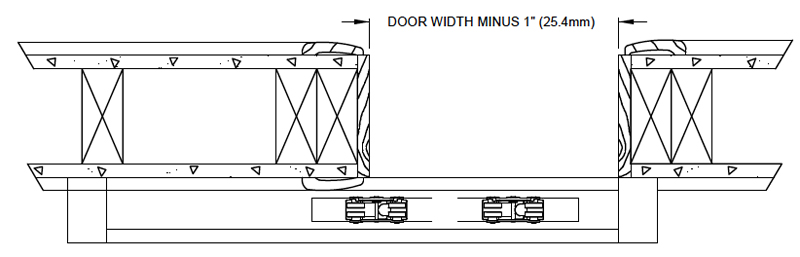

Fascia Top View

200WG Series Hardware Sets

200WG Hardware Sets include all necessary hardware to prepare an opening for 1 or 2 wall mounted sliding gladss door(s) (doors, jambs, fascia, door locks, door pulls NOT included). Track CAN be cut down to fit smaller size doors.


How to order the 200WG Series Hardware Sets:

For Single Sliding Doors:

1. Determine your door width.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

For Converging Sliding Doors:

1. Determine your door widths.

2. Select a hardware set part number that accommodates your door width. Don't see your exact door size? Remember that Johnson Track can be cut down to accommodate any smaller size door. Just order the next longer track length for your door.

* 2-Door Converging Hardware Sets are available in two varients, Spliced Track or Single Track. Spliced Track Hardware Sets lower shipping cost because they contain 2 shorter track lengths that can be shipped via UPS. The short tracks meet in the middle of the opening and are spliced together via the track bracket. Single Track Hardware Sets contain a single length of track (no splice) and can incur oversized freight charges.

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1/2" [12mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

1-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Max. Weight Per Door Door Thickness Price | Qty. | Order
200WG481 View Contents

24" (2'- 0")
[609mm]

48" (4' - 0")
[1219mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG601 View Contents

30" (2'- 6")
[762mm]

60" (5' - 0")
[1524mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG721 View Contents

36" (3'- 0")
[914mm]

72" (6' - 0")
[1829mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG961 View Contents

48" (4'- 0")
[1219mm]

96” (8' - 0")
[2438mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door Converging Spliced Track Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Max. Weight Per Door Door Thickness Price | Qty. | Order
200WG482 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

48" x 2 = 96" (4' - 0" x 2 = 8')
[1219mm x 2 = 2438mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG602 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2 = 120" (5' - 0" x 2 = 10')
[1524mm x 2 = 3048mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG722 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2 = 144" (6' - 0" x 2 = 12')
[1829mm x 2 = 3658mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG962 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2 = 192" (8' - 0" x 2 = 16')
[2438mm x 2 =4877mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

2-Door Converging Single Track Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Max. Weight Per Door Door Thickness Price | Qty. | Order
200WG483 View Contents

24" X 2 (2' - 0" X 2)
[610mm X 2]

96” (8' - 0")
[2438mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG603 View Contents

30" X 2 (2' - 6" X 2)
[762mm X 2]

120" (10' - 0")
[3048mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG723 View Contents

36" X 2 (3' - 0" X 2)
[914mm X 2]

144" (12' - 0")
[3658mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now
200WG963 View Contents

48" X 2 (4' - 0" X 2)
[1219mm X 2]

192" (16' - 0")
[4877mm]

400lbs. [181kg]

1/2" [12mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1/2" [12mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
