200SM Side Mount Sliding Door Hardware

  • 400lbs [181kg] Max Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm], 2-1/4" [57mm] Door Thickness
  • Side Mount Hanger Type

  • Independent I-Beam Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

The 200SM is one of the finest residential/commercial grade sliding door hardware systems available. The 200SM features side mount door plates allowing door hardware to be fastened to the door face and top edge of door. Side mount door plates enable installation on MDF, partical board or other material that is not suited to top edge mounting only. The 200SM is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SM can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SM Exceptional Features

Heavy Duty I-Beam Track

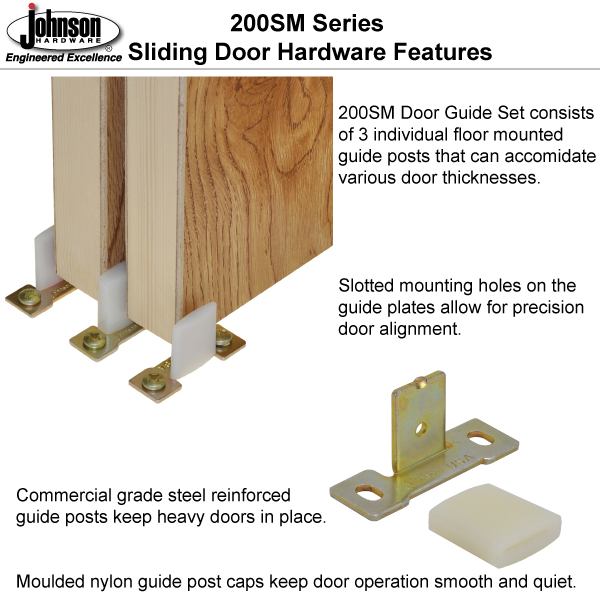

Steel Reinforced Door Guides

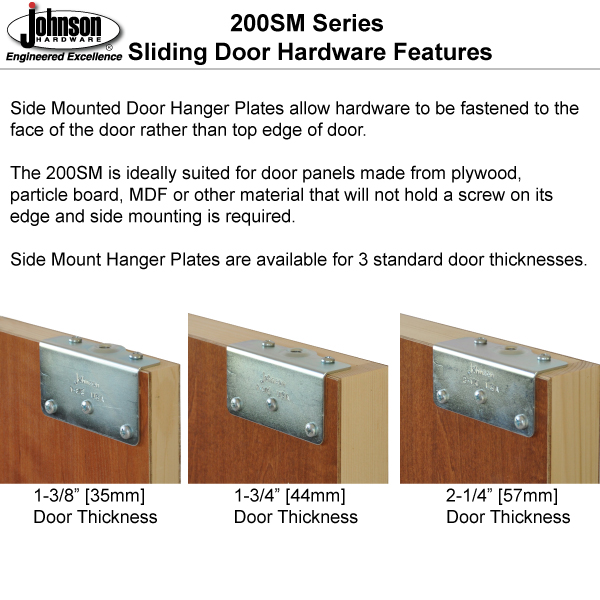

Side Mount Door Plates

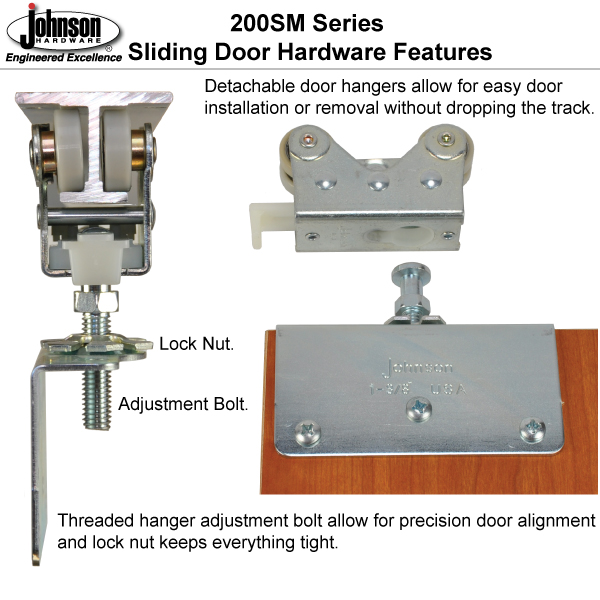

Adjustable Door Hangers

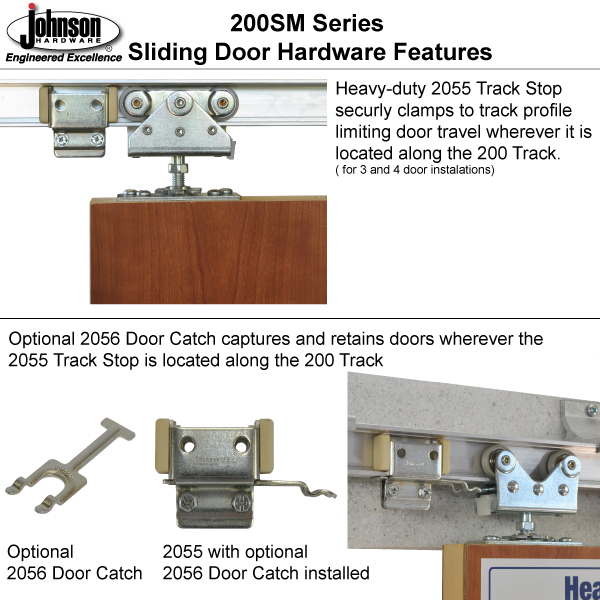

Heavy Duty Track Stops

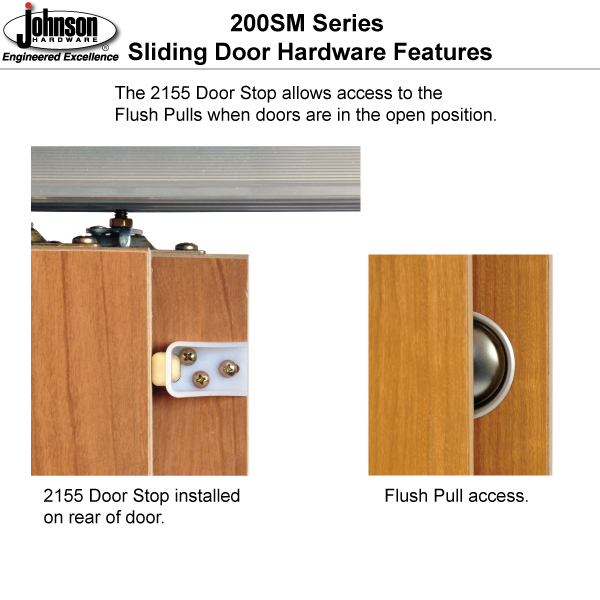

Flush Pull Access

Product Guarantee

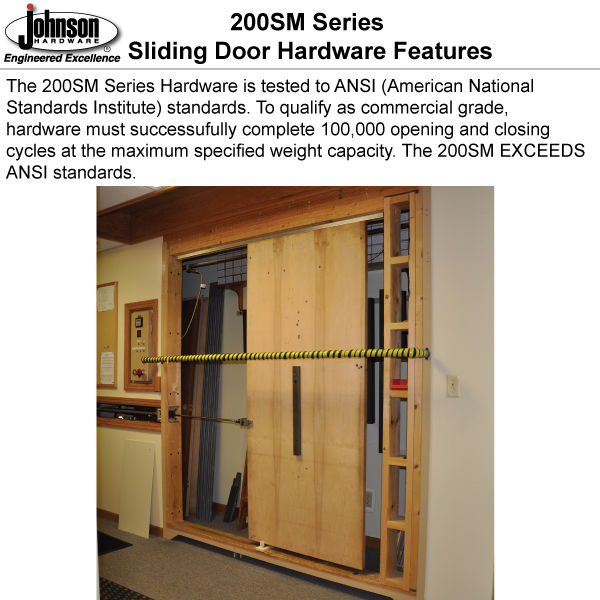

Quality Control

200SM Series Sliding Bypass Door Hardware Sets

Select a hardware set that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Hardware sets available for 3 door thicknesses only 1-3/8" [35mm], 1-3/4"[44mm] or 2-1/4" [57mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SM configurations possible by ordering 200SM components by the piece.

The 200SM is one of the finest residential/commercial grade sliding door hardware systems available. The 200SM features side mount door plates allowing door hardware to be fastened to the door face and top edge of door. Side mount door plates enable installation on MDF, partical board or other material that is not suited to top edge mounting only. The 200SM is ideal for heavy architectural door applications where quality, smooth trouble-free operation and long life is a necessity. The 200SM can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

200SM Exceptional Features

Heavy Duty I-Beam Track

Steel Reinforced Door Guides

Side Mount Door Plates

Adjustable Door Hangers

Heavy Duty Track Stops

Flush Pull Access

Product Guarantee

Quality Control

200SM Series Sliding Bypass Door Hardware Sets

Select a hardware set that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.

  • Hardware sets available for 3 door thicknesses only 1-3/8" [35mm], 1-3/4"[44mm] or 2-1/4" [57mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SM configurations possible by ordering 200SM components by the piece.

200SM Printed Instalation Instructions

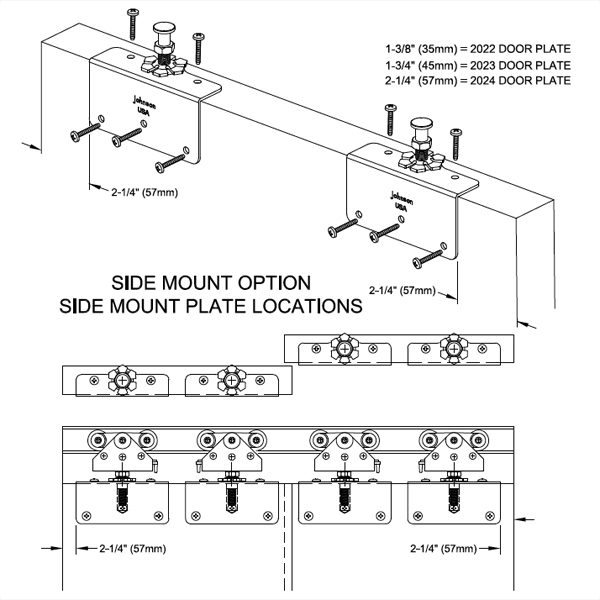

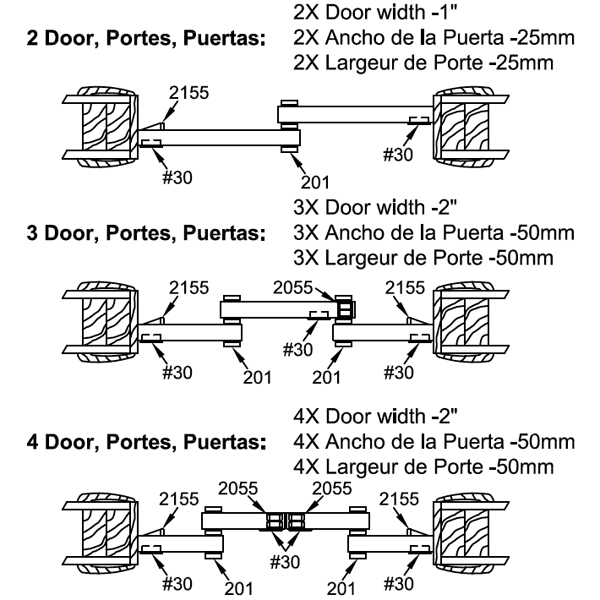

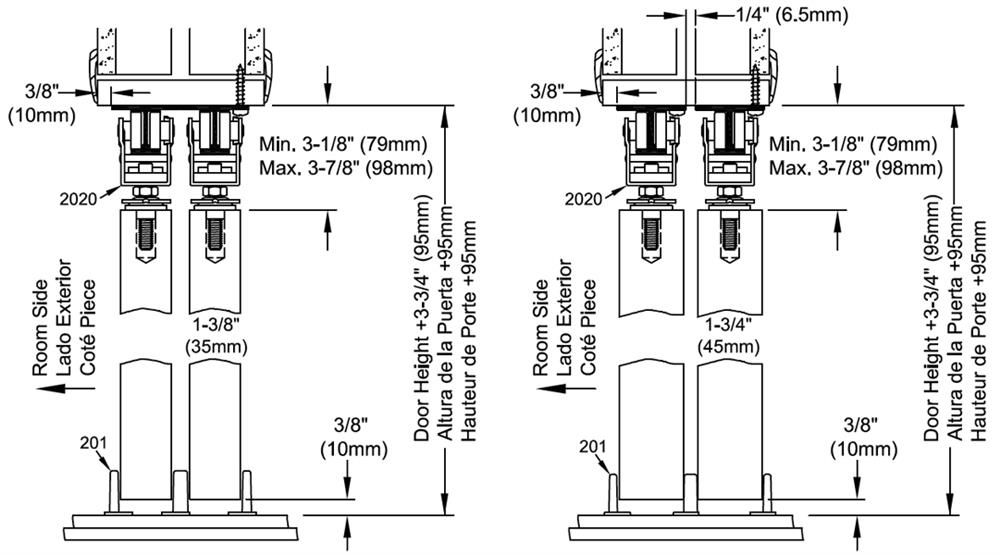

200SM Quick Reference Drawings

200SM Series Sliding Bypass Door Hardware Sets

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.
  • Hardware sets available for 3 door thicknesses only 1-3/8" [35mm], 1-3/4"[44mm] or 2-1/4" [57mm].
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 200SD configurations possible by ordering 200SD components by the piece.
Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Door Thickness Max. Door Width Track Length Price | Qty. | Order
20048238 View Contents

2-Door

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
20048234 View Contents

2-Door

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
20048224 View Contents

2-Door

2-1/4" [57mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
20060238 View Contents

2-Door

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
20060234 View Contents

2-Door

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
20060224 View Contents

2-Door

2-1/4" [57mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
20072238 View Contents

2-Door

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20072234 View Contents

2-Door

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20072224 View Contents

2-Door

2-1/4" [57mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20096238 View Contents

2-Door

1-3/8" [35mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096234 View Contents

2-Door

1-3/4" [44mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096224 View Contents

2-Door

2-1/4" [57mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

3-Door Hardware Sets

Part No. Description /Contents Hardware Sets Door Thickness Max. Door Width Track Length Price | Qty. | Order
20072338 View Contents

3-Door

1-3/8" [35mm]

24" X 3
(2' - 0" X 3)
[610mm X 3]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20072334 View Contents

3-Door

1-3/4" [44mm]

24" X 3
(2' - 0" X 3)
[610mm X 3]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20072324 View Contents

3-Door

2-1/4" [57mm]

24" X 3
(2' - 0" X 3)
[610mm X 3]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
20096338 View Contents

3-Door

1-3/8" [35mm]

32" X 3
(2' - 8" X 3)
[813mm X 3]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096334 View Contents

3-Door

1-3/4" [44mm]

32" X 3
(2' - 8" X 3)
[813mm X 3]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096324 View Contents

3-Door

2-1/4" [57mm]

32" X 3
(2' - 8" X 3)
[813mm X 3]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20106338 View Contents

3-Door

1-3/8" [35mm]

36" X 3
(3' - 0" X 3)
[914mm X 3]

106" x 2 (8' - 10" x 2)
[2692mm x 2]

Buy Now
20106334 View Contents

3-Door

1-3/4" [44mm]

36" X 3
(3' - 0" X 3)
[914mm X 3]

106" x 2 (8' - 10" x 2)
[2692mm x 2]

Buy Now
20106324 View Contents

3-Door

2-1/4" [57mm]

36" X 3
(3' - 0" X 3)
[914mm X 3]

106" x 2 (8' - 10" x 2)
[2692mm x 2]

Buy Now
20144338 View Contents

3-Door

1-3/8" [35mm]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now
20144334 View Contents

3-Door

1-3/4" [44mm]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now
20144324 View Contents

3-Door

2-1/4" [57mm]

48" X 3
(4' - 0" X 3)
[1219mm X 3]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Door Thickness Max. Door Width Track Length Price | Qty. | Order
20096438 View Contents

4-Door

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096434 View Contents

4-Door

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20096424 View Contents

4-Door

2-1/4" [57mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
20120438 View Contents

4-Door

1-3/8" [35mm]

30" X 4
(2' - 6" X 4)
[762mm X 4]

120" x 2 (10' - 0" x 2)
[3048mm x 2]

Buy Now
20120434 View Contents

4-Door

1-3/4" [44mm]

30" X 4
(2' - 6" X 4)
[762mm X 4]

120" x 2 (10' - 0" x 2)
[3048mm x 2]

Buy Now
20120424 View Contents

4-Door

2-1/4" [57mm]

30" X 4
(2' - 6" X 4)
[762mm X 4]

120" x 2 (10' - 0" x 2)
[3048mm x 2]

Buy Now
20144438 View Contents

4-Door

1-3/8" [35mm]

36" X 4
(3' - 0" X 4)
[914mm X 4]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now
20144434 View Contents

4-Door

1-3/4" [44mm]

36" X 4
(3' - 0" X 4)
[914mm X 4]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now
20144424 View Contents

4-Door

2-1/4" [57mm]

36" X 4
(3' - 0" X 4)
[914mm X 4]

144" x 2 (12' - 0" x 2)
[3658mm x 2]

Buy Now
20192438 View Contents

4-Door

1-3/8" [35mm]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

192" x 2 (16' - 0" x 2)
[4877mm x 2]

Buy Now
20192434 View Contents

4-Door

1-3/4" [44mm]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

192" x 2 (16' - 0" x 2)
[4877mm x 2]

Buy Now
20192424 View Contents

4-Door

2-1/4" [57mm]

48" X 4
(4' - 0" X 4)
[1219mm X 4]

192" x 2 (16' - 0" x 2)
[4877mm x 2]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 400lbs. [181kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm], 1-3/4" [44mm] or 2-1/4" [57mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
