200FD Bi-Fold Door Hardware

  • 125lbs [57kg] Max Panel Weight Each

  • 48" [1219mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1-1/8" [29mm] to 1-3/4" [44mm] Panel Thickness
  • Top Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

200FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations EXCEPT PANEL HINGES.

  • Panel Hinges NOT Included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FD configurations possible by ordering 200FD components by the piece.

200FD Series Bi-Folding Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations EXCEPT PANEL HINGES.

  • Panel Hinges NOT Included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FD configurations possible by ordering 200FD components by the piece.

200FD Series Printed Instalation Instructions

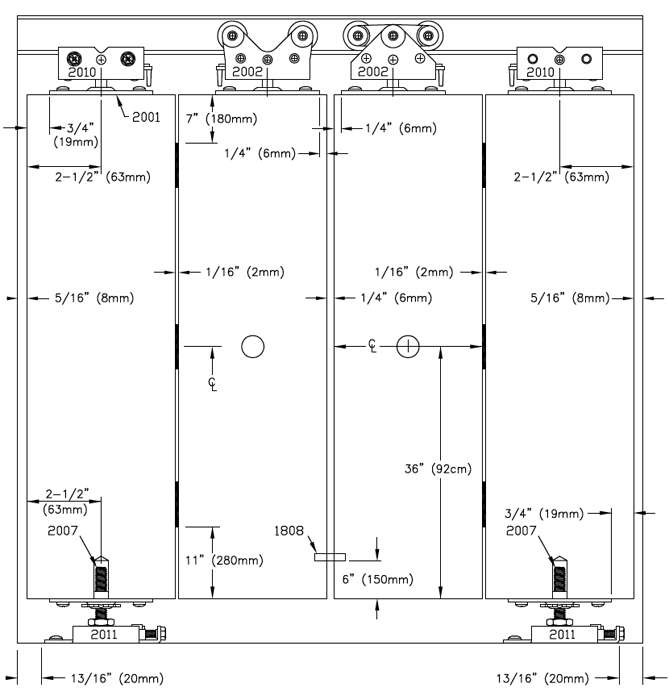

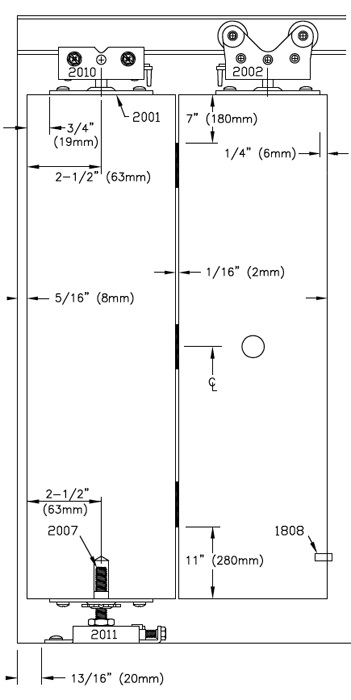

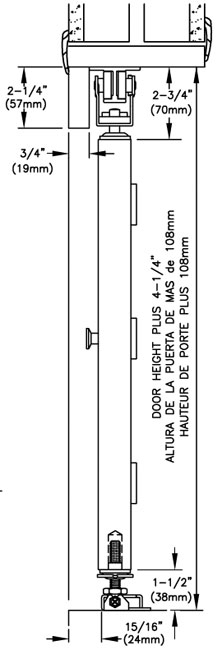

200FD Series Quick Reference Drawings

200FD Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations EXCEPT PANEL HINGES.
  • Panel Hinges NOT Included, architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 200FD configurations possible by ordering 200FD components by the piece.
Products specifications
Max. Weight Per Panel 125 lbs. [57kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.

2-Panel Hardware Sets

Part No. Description /Contents Hardware Sets Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
200FD482 View Contents

2-Panel

24" x 2 (2' - 0" x 2)
[610mm x 2]

48"
(4' - 0")
[1219mm]

125 lbs. [57kg]

Buy Now
200FD602 View Contents

2-Panel

30" x 2 (2' - 6" x 2)
[762mm x 2]

60"
(5' - 0")
[1524mm]

125 lbs. [57kg]

Buy Now
200FD722 View Contents

2-Panel

36" x 2 (3' - 0" x 2)
[914mm x 2]

72"
(6' - 0")
[1829mm]

125 lbs. [57kg]

Buy Now
200FD962 View Contents

2-Panel

48" x 2 (4' - 0" x 2)
[1219mm x 2]

96”
(8' - 0")
[2438mm]

125 lbs. [57kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

4-Panel Hardware Sets

Part No. Description /Contents Hardware Sets Max. Panel Width Track Length Max. Weight Per Panel Price | Qty. | Order
200FD484 View Contents

4-Panel

12" x 4 (1' - 0" x 4)
[305mm x 4]

48"
(4' - 0")
[1219mm]

125 lbs. [57kg]

Buy Now
200FD604 View Contents

4-Panel

15" x 4 (1' - 3" x 4)
[381mm x 4]

60"
(5' - 0")
[1524mm]

125 lbs. [57kg]

Buy Now
200FD724 View Contents

4-Panel

18" x 4 (1' - 6" x 4)
[457mm x 4]

72"
(6' - 0")
[1829mm]

125 lbs. [57kg]

Buy Now
200FD964 View Contents

4-Panel

24" x 4 (2' - 0" x 4)
[610mm x 4]

96”
(8' - 0")
[2438mm]

125 lbs. [57kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Panel 125 lbs. [57kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm] to 1-3/4" [44mm]
Series Track 200
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile I-Beam
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
