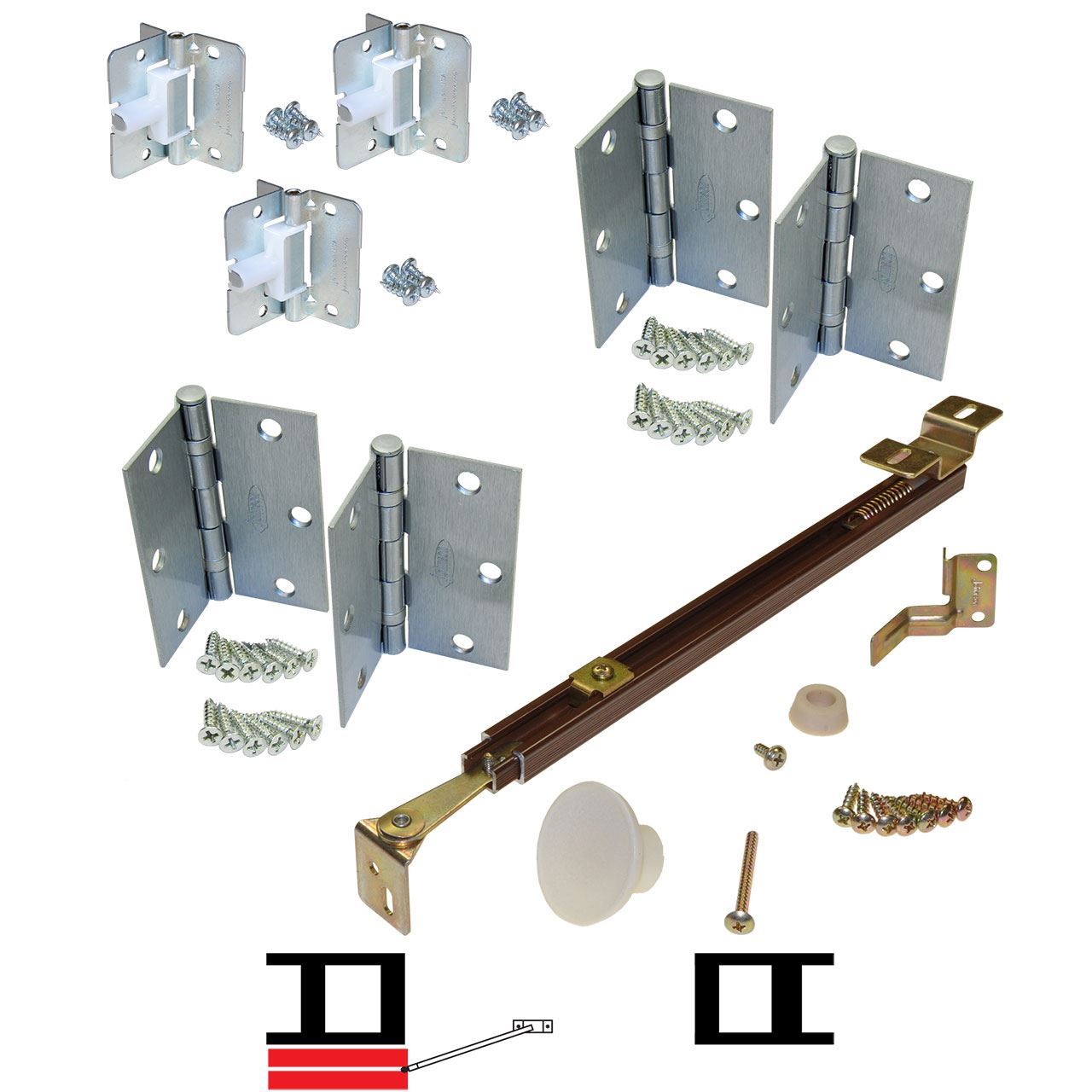

1601HD 18" 2-Panel Mortise Hinge Hardware Set, US15

50lbs. [22kg] Max. Panel Weight Each

12" [305mm] to 18" [457mm] x 2 Panel Widths

24" [610mm] to 36" [914mm] Opening Widths

1-3/8" [35mm] to 1-3/4" [44mm] Panel Thickness

US15 Satin Nickel Hinge Finish

Manufacturer part number: 16021815

Buy Now

Products specifications

Hardware Sets	2-Panel 50lb. Mortise Hinge
Panels	2-Panels
Max. Weight Per Panel	50 lbs. [23kg] (US15 Satin Nickel Mortise Hinge)
Opening Width	24" to 36" (2' - 0" to 3' - 0") 610mm to 914mm
Panel Width	12” to 18” x 2<br> (305mm to 457mm x 2)
Mortise Hinge Finish	US15 Satin Nickel
Hinge Type	Ball Bearing Mortise
Hinge Size	3-1/2 x 3-1/2"

Products specifications

Hardware Sets	2-Panel 50lb. Mortise Hinge
Panels	2-Panels
Max. Weight Per Panel	50 lbs. [23kg] (US15 Satin Nickel Mortise Hinge)
Opening Width	24" to 36" (2' - 0" to 3' - 0") 610mm to 914mm
Panel Width	12” to 18” x 2<br> (305mm to 457mm x 2)
Mortise Hinge Finish	US15 Satin Nickel
Hinge Type	Ball Bearing Mortise
Hinge Size	3-1/2 x 3-1/2"

1601 "Full Access" Bi-Fold Door Hardware
