1500SC Series Soft-Close Pocket Door Frame Kits

  • 200lbs [91kg] Max. Weight Per Door

  • Soft-Close/Open Door Operation

  • 60" [1524mm] x 108" [2743mm] Max. Door Size*

  • 1" [25mm] - 1-3/4" [44mm] Door Thickness

  • 3-1/2" [89mm] (2x4) Min. Wall Structure Thickness
  • Commercial Grade Pocket Door Frame Kit

  • *28" min. door width for bidirectional soft-close operation
    *24" min. door width for single direction soft-close operation

The 1500SC Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 200lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500SC one of the finest pocket door installations available. The 1500SC is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500SC can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500SC Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors. Minimum door width for bidirectional soft-closing door operation is 28".

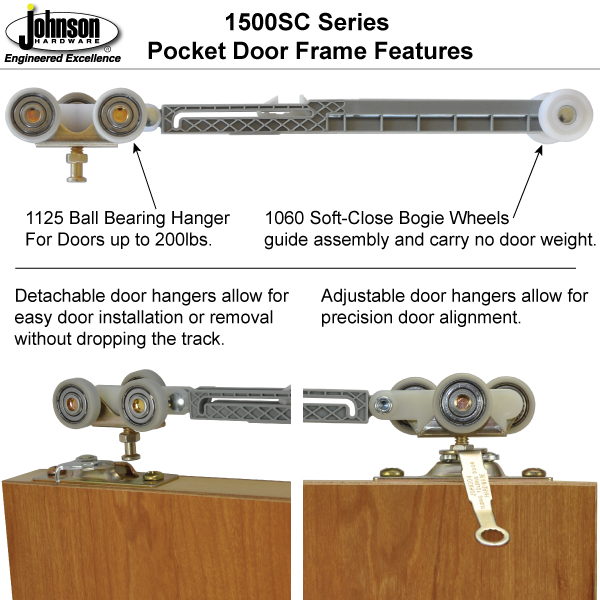

Heavy Duty Door Hangers

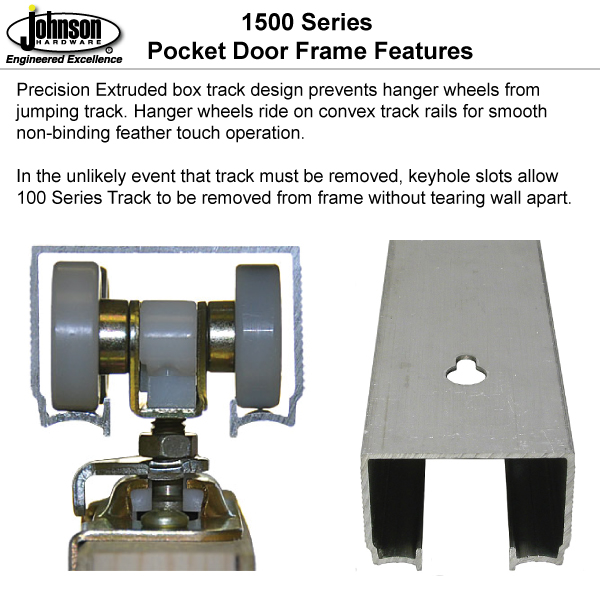

Jump Proof Box Track

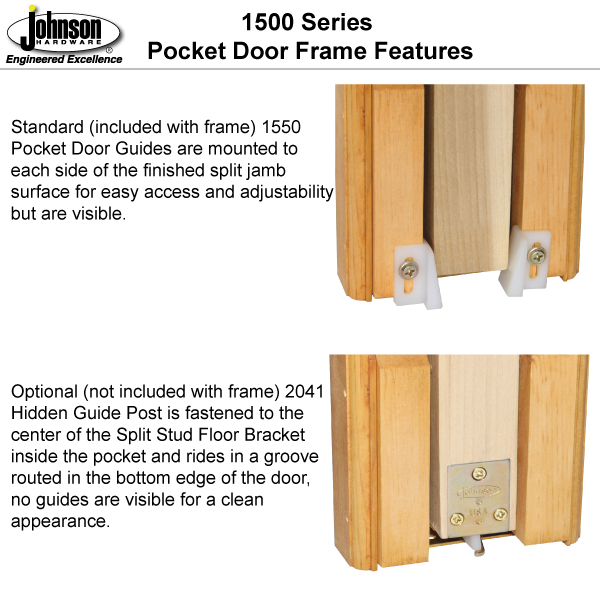

Pocket Door Guiding Options

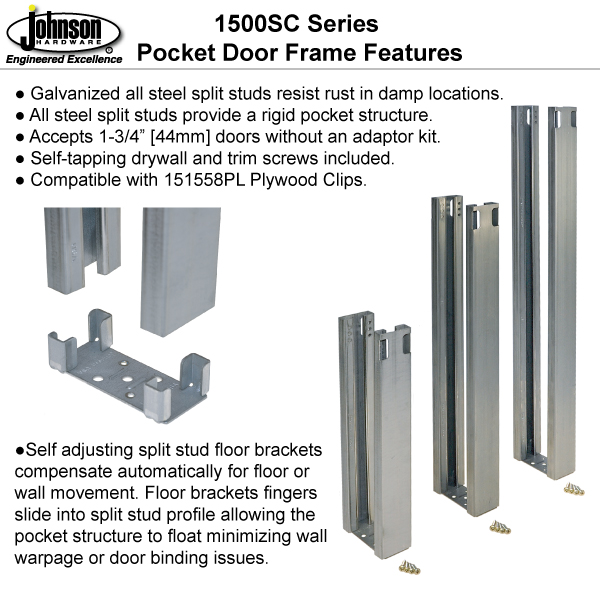

Steel Wrapped Split Studs

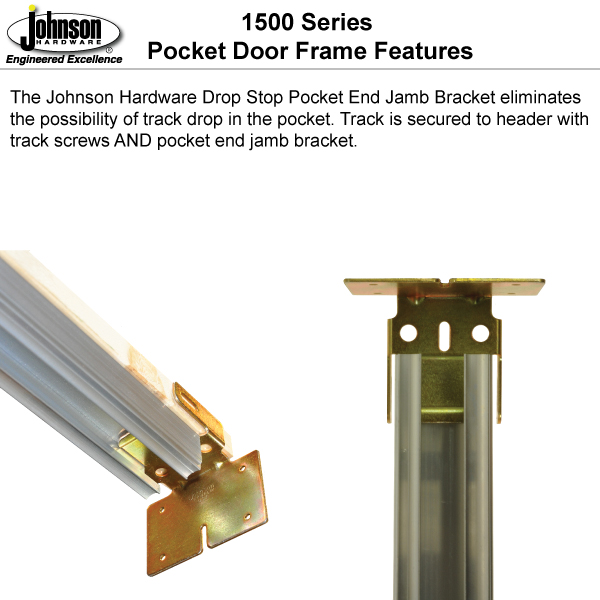

Drop Stop Jamb Bracket

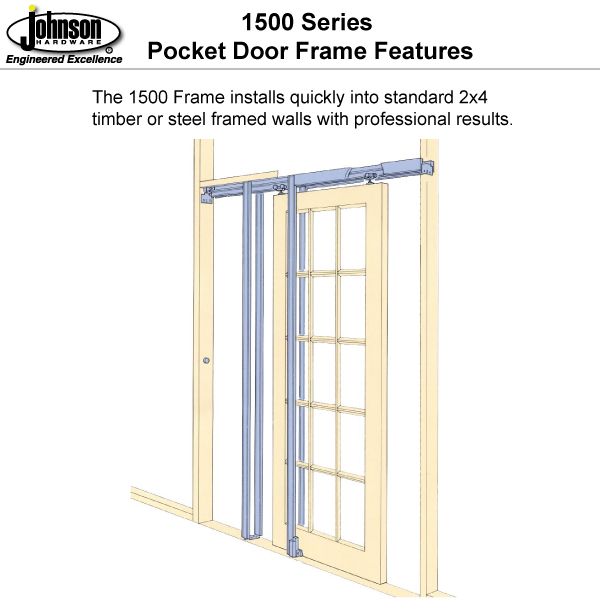

2 x 4 Stud Wall Installation

Product Guarantee

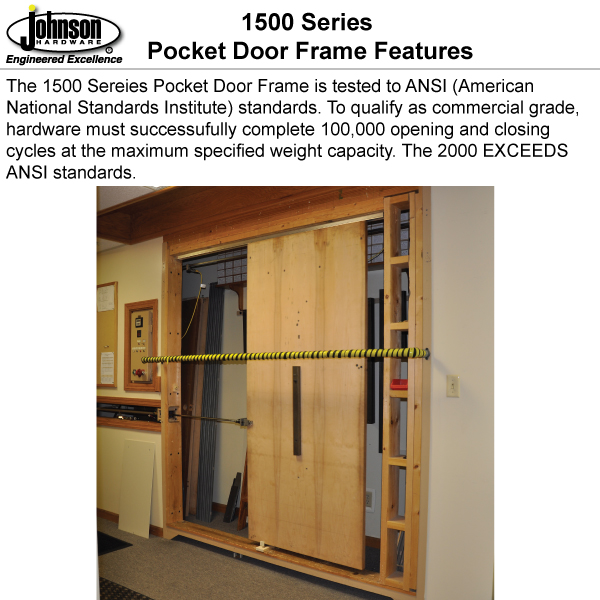

Tested Quality

1500SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions. 28" minimum door width for bidirectional soft-closing door operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate smaller size doors. Just order the next larger frame size for your door and cut frame down. 28" minimum door width for bidirectional soft-closing door operation.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

The 1500SC Series Pocket Door Frame is designed to soft-open and soft-close heavy solid core doors weighing up to 200lbs. Smooth ball bearing hanger wheels combined with soft-closing door operation make the 1500SC one of the finest pocket door installations available. The 1500SC is designed to be quickly installed into prepared 2 x 4 timber frame stud walls however, the 1500SC can also be adapted for use in various wall thicknesses and with various wall materials and structures. The 1500SC Frame Kit is packaged for easy transport and fast installation for either single or converging (2) door applications and all frame sizes can be cut down to accommodate custom size doors. Minimum door width for bidirectional soft-closing door operation is 28".







Heavy Duty Door Hangers

Jump Proof Box Track

Pocket Door Guiding Options

Steel Wrapped Split Studs

Drop Stop Jamb Bracket

2 x 4 Stud Wall Installation

Product Guarantee

Tested Quality

1500SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions. 28" minimum door width for bidirectional soft-closing door operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate smaller size doors. Just order the next larger frame size for your door and cut frame down. 28" minimum door width for bidirectional soft-closing door operation.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

1500SC Series Instalation Instructions

1500 Series Video

Frame Installation

Converging Door

Soft-Close Installation

1500SC Series Quick Reference Drawings

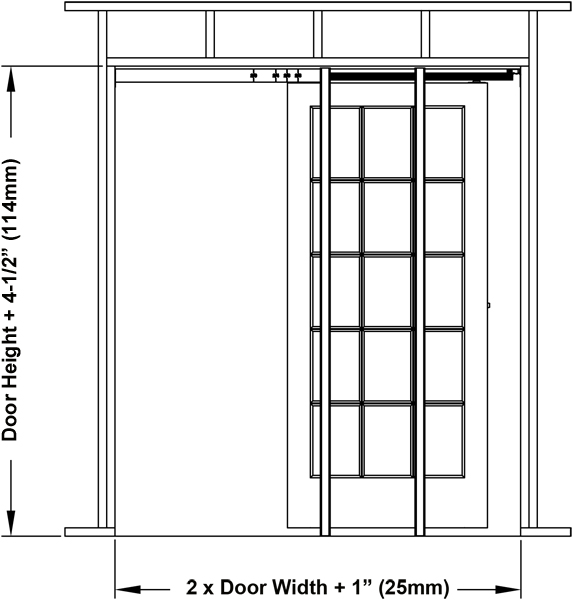

Single Door Rough-in

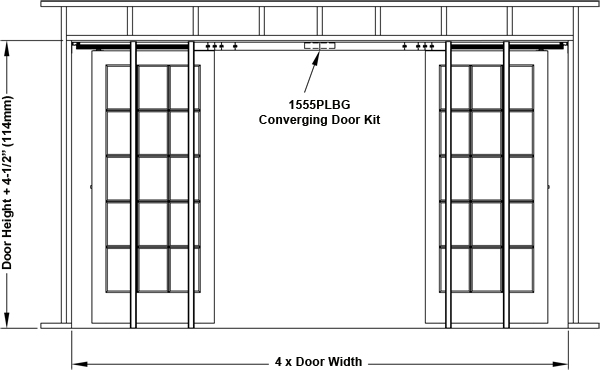

Converging Door Rough-in

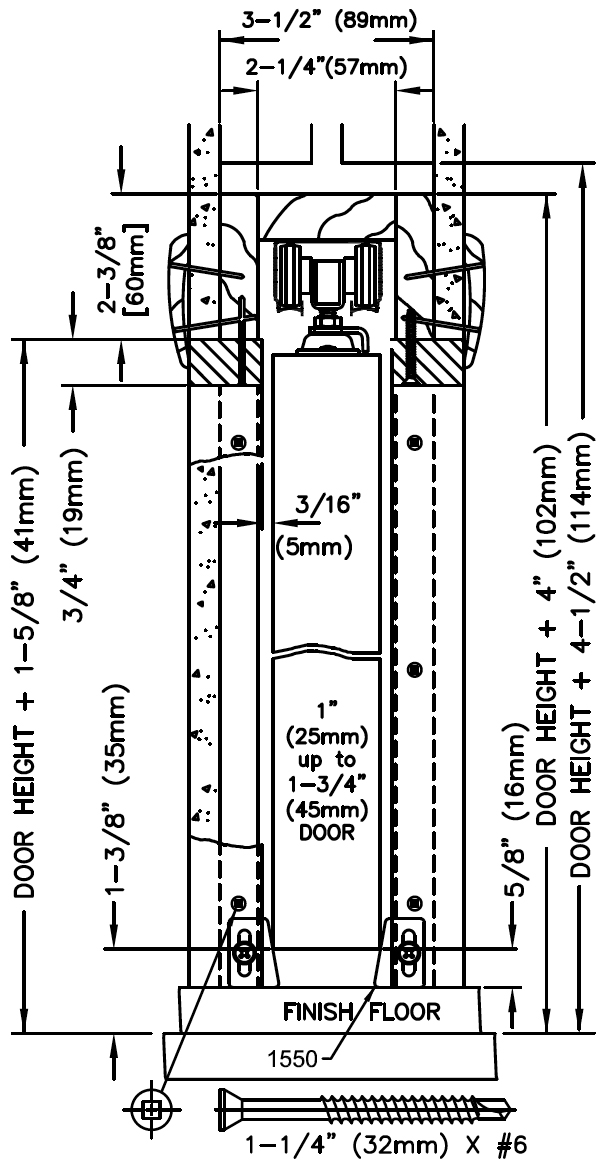

Opening Height Dimensions

1-3/4" [44mm] Door Adaptor Kit

1555PPK3 Converging Door Kit

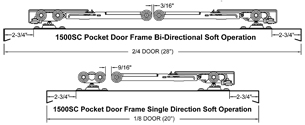

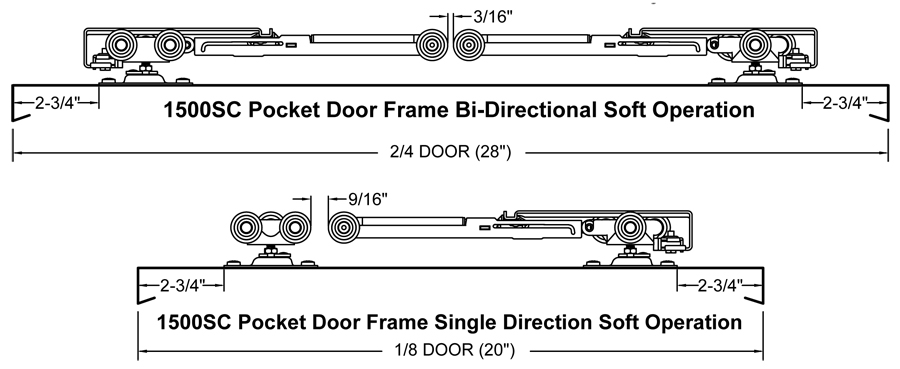

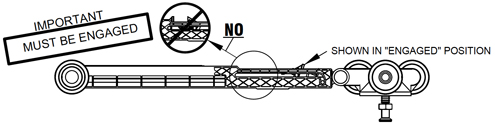

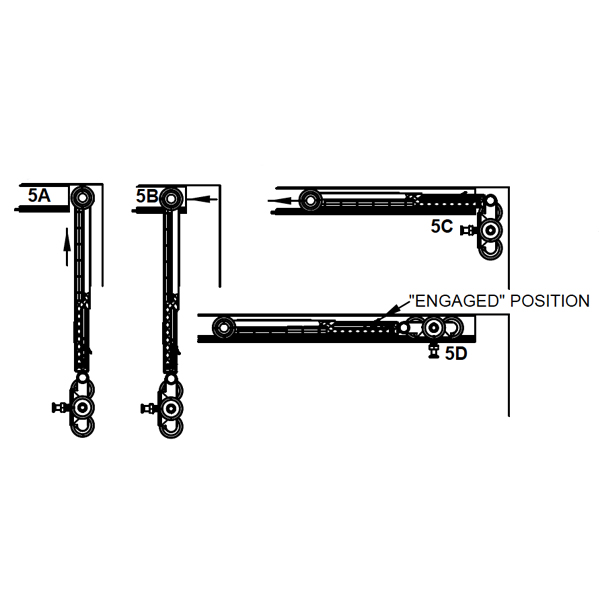

Soft-Close Tab Installation Position

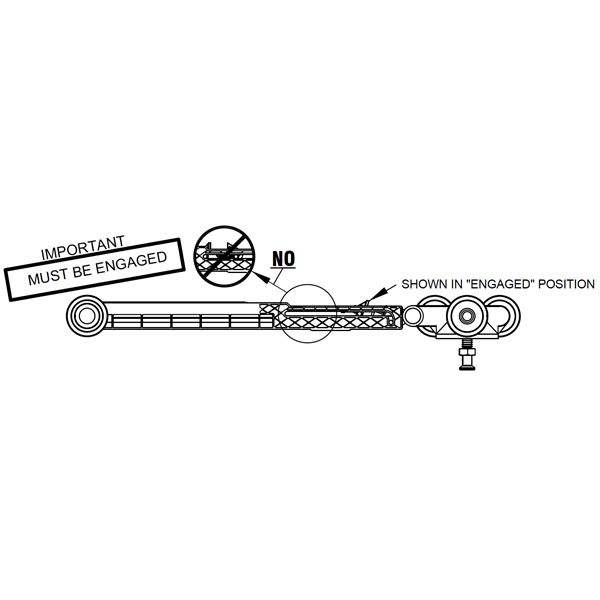

Soft-Close Installation

1500SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions. 28" minimum door width for bidirectional soft-closing door operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate smaller size doors. Just order the next larger frame size for your door and cut frame down. 28" minimum door width for bidirectional soft-closing door operation.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Pocket Door Video

Soft-Close Pocket Door Hardware

Frame Installation

Converging Door

Pocket Door Lock

Track Cutdown

Soft-Close Installation

1500SC Series Pocket Door Frames

Pocket Door Frame kits contain all necessary hardware for a single pocket door installation in a 2x4 stud wall (door, jambs, drywall, door locks, door pulls, hidden pocket door guide kit NOT included). All frames CAN be cut down to fit smaller size door.


How to order the 1500SC Series Pocket Door frame:

For Single Pocket Doors:

1. Determine your door size (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate any smaller size door. Just order the next larger frame size for your door and follow frame down instructions. 28" minimum door width for bidirectional soft-closing door operation.

For Converging Pocket Doors:

1. Determine your door sizes (door width, door height and door thickness)

2. Select a frame part number that accommodates your door size. Don't see your exact door size? Remember that Johnson frames can be cut down to accommodate smaller size doors. Just order the next larger frame size for your door and cut frame down. 28" minimum door width for bidirectional soft-closing door operation.

3. Order 1 frame for each door (Qty. 2 frames total).

4. Order Qty. (1) 1555PPK3 Converging Door Kit.

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

80" (6'- 8") [2032mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152468SC View Contents

28" (2'- 4")
[711mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
152668SC View Contents

30" (2'- 6")
[762mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
152868SC View Contents

32" (2'- 8")
[813mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
153068SC View Contents

36" (3'- 0")
[914mm]

80" (6'- 8")
[2032mm]

1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm]
(*1575PPK3 Adaptor Kit Required)

200lbs. [91kg]

Buy Now
153668SC View Contents

42" (3'- 6")
[1067mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154068SC View Contents

48" (4'- 0")
[1219mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154668SC View Contents

54" (4'- 6")
[1372mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155068SC View Contents

60" (5'- 0")
[1524mm]

80" (6'- 8")
[2032mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

84" (7'-0") [2134mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152470SC View Contents

28" (2'- 4")
[711mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152670SC View Contents

30" (2'- 6")
[762mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152870SC View Contents

32" (2'- 8")
[813mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153070SC View Contents

36" (3'- 0")
[914mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153670SC View Contents

42" (3'- 6")
[1067mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154070SC View Contents

48" (4'- 0")
[1219mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154670SC View Contents

54" (4'- 6")
[1372mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155070SC View Contents

60" (5'- 0")
[1524mm]

84" (7'-0")
[2134mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

96" (8'-0") [2438mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152480SC View Contents

28" (2'- 4")
[711mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152680SC View Contents

30" (2'- 6")
[762mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152880SC View Contents

32" (2'- 8")
[813mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153080SC View Contents

36" (3'- 0")
[914mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153680SC View Contents

42" (3'- 6")
[1067mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154080SC View Contents

48" (4'- 0")
[1219mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154680SC View Contents

54" (4'- 6")
[1372mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155080SC View Contents

60" (5'- 0")
[1524mm]

96" (8'-0")
[2438mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

108" (9'-0") [2743mm] Max. Door Height

Part No. Description /Contents Max. Door Width Max. Door Height Door Thickness Max. Weight Per Door Price | Qty. | Order
152490SC View Contents

28" (2'- 4")
[711mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152690SC View Contents

30" (2'- 6")
[762mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
152890SC View Contents

32" (2'- 8")
[813mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153090SC View Contents

36" (3'- 0")
[914mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
153690SC View Contents

42" (3'- 6")
[1067mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154090SC View Contents

48" (4'- 0")
[1219mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
154690SC View Contents

54" (4'- 6")
[1372mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now
155090SC View Contents

60" (5'- 0")
[1524mm]

108" (9'-0")
[2743mm]

1" [25mm] to 1-3/4" [44mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
Max. Door Width 60" (5'- 0") [1524mm]
Max. Door Height 108" (9'-0") [2743mm]
Door Thickness 1"[25mm] to 1-3/8"[35mm], *1-3/4"[44mm] (*1575PPK3 Adaptor Kit Required)
Frame Header Material Spruce, Pine or Fir (#3 or better)
Split Stud Construction Galvanized steel wrapped Spruce, Pine or Fir (#3 or better)
Track Profile Box Track
Track Material 6063T6 Extruded Aluminum
Track Finish Mill Aluminum
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Components 12-14 Gauge
Steel Component Finish Zinc Trivalent Plated
Application Interior Residential/Commercial
Product Grade Commercial/Residential
Packaging Single Packed, Reinforced Corrugated Box
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
