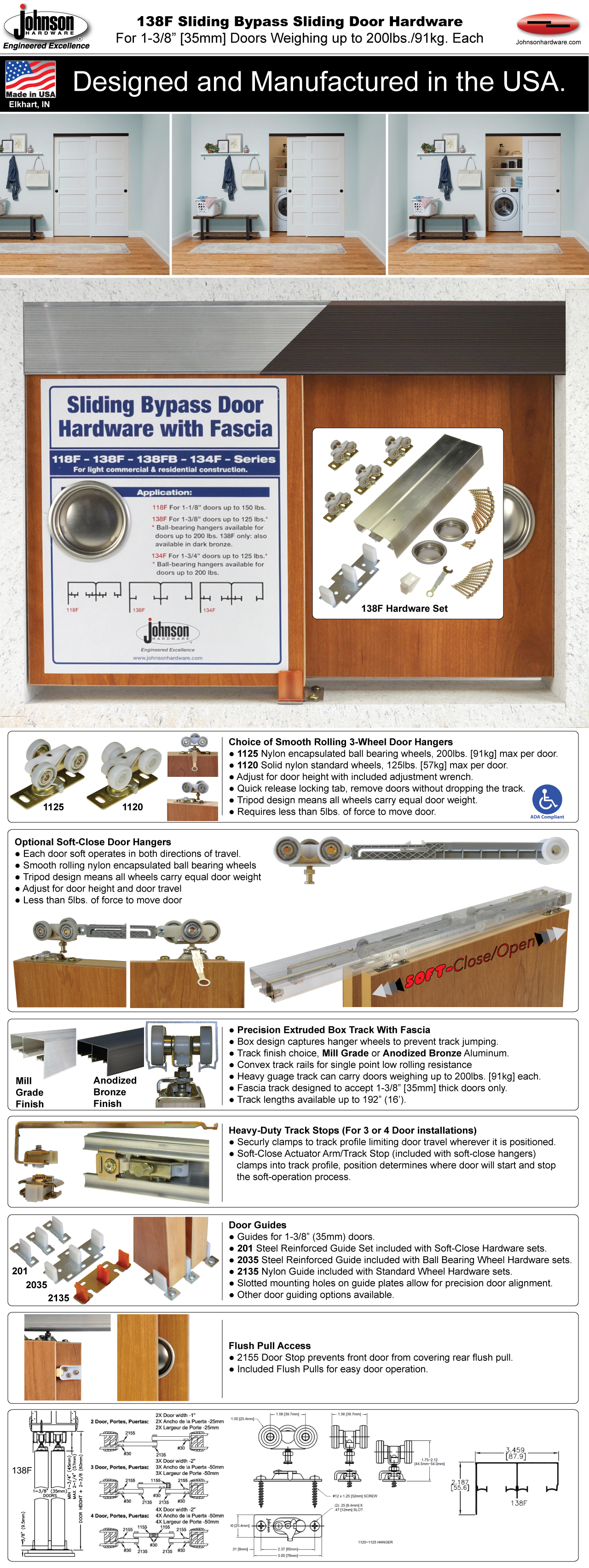

138F Sliding Bypass Door Hardware

  • Soft-Close/Open Door Operation Available
  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • Top Mount Hanger Type

  • Single Extrusion Twin Box Rail Fascia Track Type

  • Anodized Bronze or Mill Track Finish

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

Precision extruded commercial grade aluminum track features Johnson's line-design fascia to hide finger marks and scratches or to hold paint if desired. Patented "tricycle" hangers with 1" [25mm] dia. wheels ride smoothly and quietly on convex shaped rails with single point contact. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels. Hangers are adjustable for height in case of settling.

138F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 138F is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 138F configurations possible by ordering 138F components by the piece.

Precision extruded commercial grade aluminum track features Johnson's line-design fascia to hide finger marks and scratches or to hold paint if desired. Patented "tricycle" hangers with 1" [25mm] dia. wheels ride smoothly and quietly on convex shaped rails with single point contact. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels. Hangers are adjustable for height in case of settling.

138F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 138F is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 138F configurations possible by ordering 138F components by the piece.

138F Printed Instalation Instructions

138F Quick Reference Drawings

138F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 138F is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 138F configurations possible by ordering 138F components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm]
Series Track 138F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Soft-Open/Close - Bronze Track Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
138482SB View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

200lbs. [91kg]

Buy Now
138602SB View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

200lbs. [91kg]

Buy Now
138722SB View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

200lbs. [91kg]

Buy Now
138964SB View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Soft-Open/Close - Mill Track Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
138F482S View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

200lbs. [91kg]

Buy Now
138F602S View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

200lbs. [91kg]

Buy Now
138F722S View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

200lbs. [91kg]

Buy Now
138F964S View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Ball Bearing Hanger - Bronze Track Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
138F482B View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

200lbs. [91kg]

Buy Now
138F602B View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

200lbs. [91kg]

Buy Now
138F722B View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

200lbs. [91kg]

Buy Now
138F964B View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Ball Bearing Hanger - Mill Track Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
138F482H View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

200lbs. [91kg]

Buy Now
138F602H View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

200lbs. [91kg]

Buy Now
138F722H View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

200lbs. [91kg]

Buy Now
138F964H View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Standard Wheel Hanger Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
138F482D View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

125lbs. [57kg]

Buy Now
138F602D View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

125lbs. [57kg]

Buy Now
138F722D View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

125lbs. [57kg]

Buy Now
138F964D View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

125lbs. [57kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg] (W/1125 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm]
Series Track 138F
Track Finish Mill Grade Aluminum or Anodized Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
