118F Sliding Bypass Door Hardware

  • 150lbs [68kg] Max Weight Per Door

  • 1-1/8" [29mm] Door Thickness
  • Top Mount Hanger Type

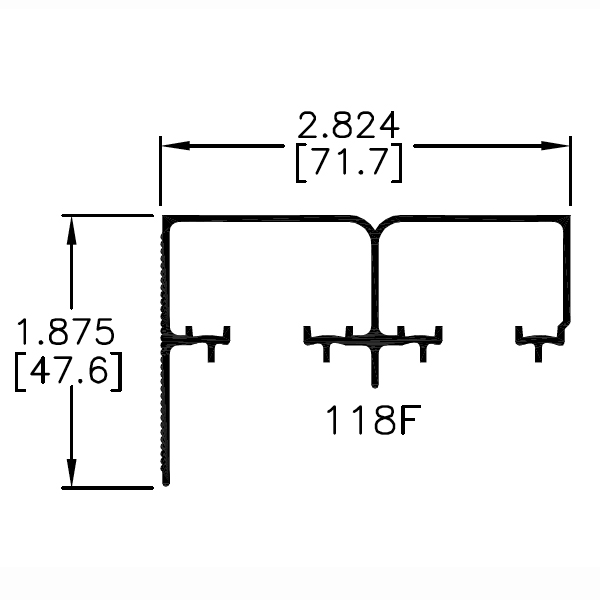

  • Single Extrusion Twin Box Rail Fascia Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

Precision extruded aluminum track features Johnson's line-design fascia to hide finger marks and scratches or to hold paint if desired. Patented "tricycle" hangers with 3/4" [19mm] dia. wheels ride smoothly and quietly on convex shaped rails with single point contact. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

118F Series Sliding Bypass Door Hardware

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 118F is compatible with 1-1/8" [29mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 118F configurations possible by ordering 118F components by the piece.

Precision extruded aluminum track features Johnson's line-design fascia to hide finger marks and scratches or to hold paint if desired. Patented "tricycle" hangers with 3/4" [19mm] dia. wheels ride smoothly and quietly on convex shaped rails with single point contact. Hangers feature a quick disconnect clip system facilitating easy mounting or dismounting of door panels.

118F Series Sliding Bypass Door Hardware

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • The 118F is compatible with 1-1/8" [29mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 118F configurations possible by ordering 118F components by the piece.

118F Printed Instalation Instructions

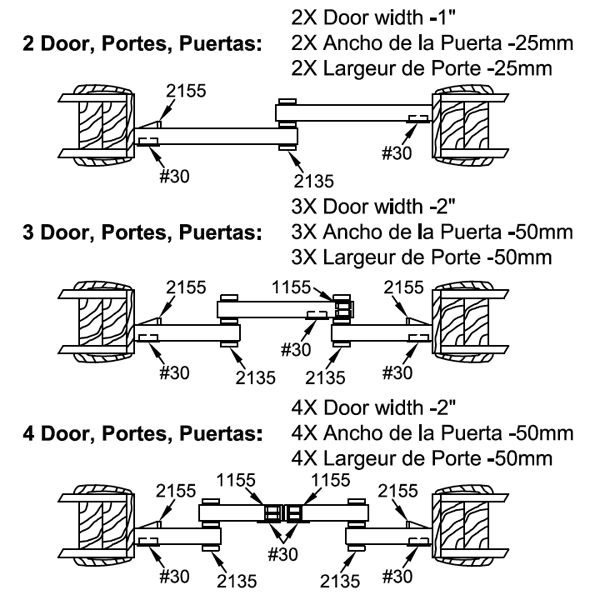

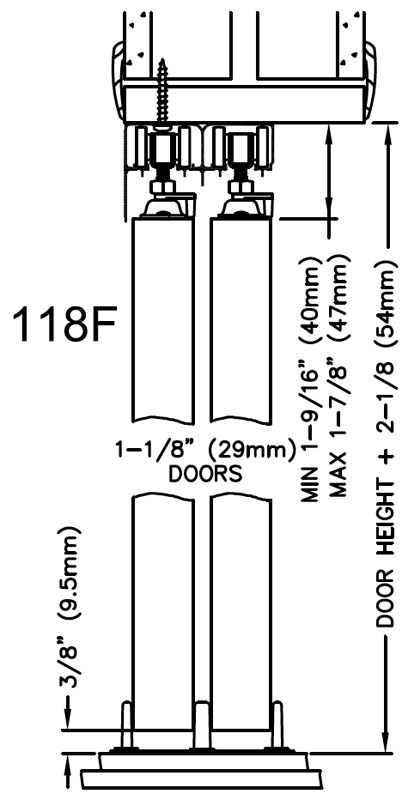

118F Quick Reference Drawings

118F Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 118F is compatible with 1-1/8" [29mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 118F configurations possible by ordering 118F components by the piece.
Products specifications
Max. Weight Per Door 150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm]
Series Track 118F
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

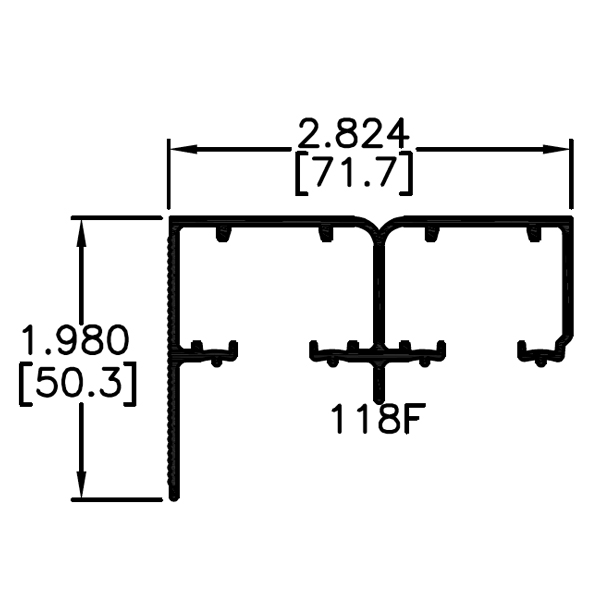

Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Ball Bearing Hanger Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
118F482H View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

150lbs. [68kg]

Buy Now
118F602H View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

150lbs. [68kg]

Buy Now
118F722H View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

150lbs. [68kg]

Buy Now
118F964H View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

150lbs. [68kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Standard Wheel Hanger Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
118F482D View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

80lbs. [36kg]

Buy Now
118F602D View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60"
(5' - 0")
[1524mm]

80lbs. [36kg]

Buy Now
118F722D View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72"
(6' - 0")
[1829mm]

80lbs. [36kg]

Buy Now
118F964D View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96”
(8' - 0")
[2438mm]

80lbs. [36kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 150lbs. [68kg] (W/1025 Ball Bearing Door Hanger)
Application Interior Residential/Commercial
Door Thickness 1-1/8" [29mm]
Series Track 118F
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 3/4"
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
