1138 Sliding Bypass Door Hardware

  • 50lbs [23kg] Max Weight Per Door

  • 1-3/8" [35mm] Door Thickness
  • Side Mount Hanger Type

  • Rolled Steel Twin Rail Track Type

  • Residential Grade Top Hung Sliding Door Hardware

    • 1138 Installation Instructions

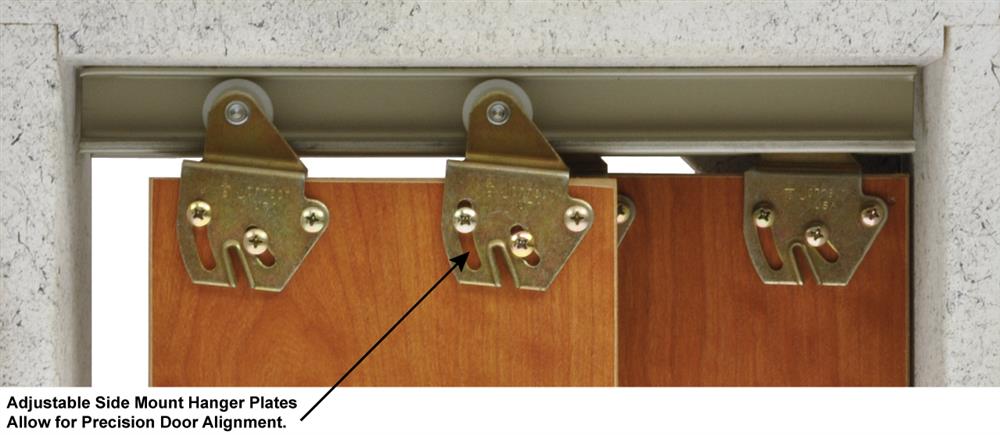

A general purpose residential grade sliding by-pass hardware system featuring a rolled steel track. Convex track rails provide one point contact between wheel and track. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

1138 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1138 is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1138 configurations possible by ordering 1138 components by the piece.

A general purpose residential grade sliding by-pass hardware system featuring a rolled steel track. Convex track rails provide one point contact between wheel and track. Hangers adjust without removing or relocating screws. Door guide adjusts laterally for quick plumbing.

1138 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1138 is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1138 configurations possible by ordering 1138 components by the piece.

1138 Printed Instalation Instructions

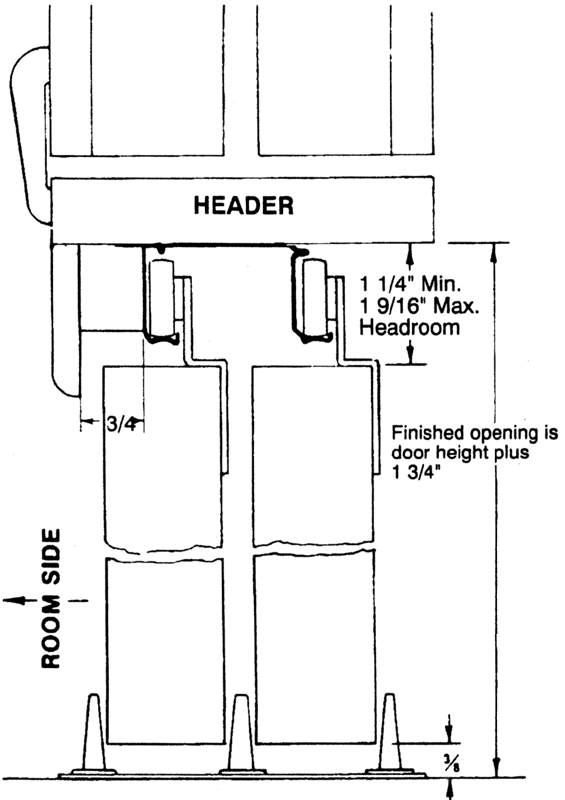

1138 Quick Reference Drawings

Opening Width

Opening Heights

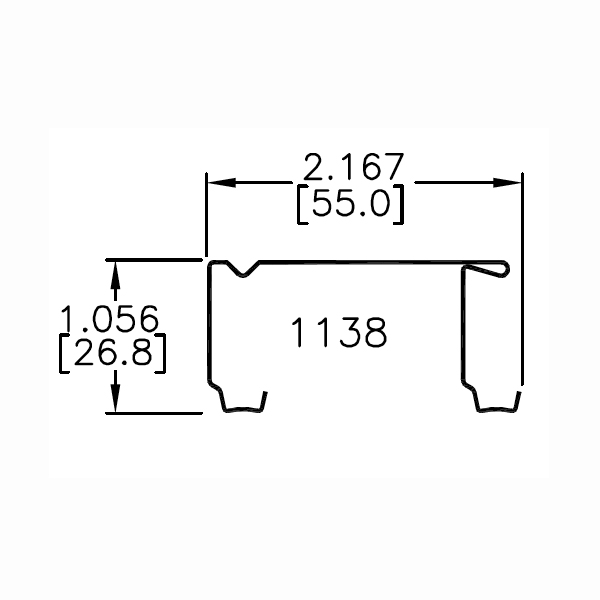

Track Dimensions

1138 Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • The 1138 is compatible with 1-3/8" [35mm] thick doors only.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 1138 configurations possible by ordering 1138 components by the piece.
Products specifications
Max. Weight Per Door 50lbs. [23kg]
Application Interior Residential
Door Thickness 1-3/8" [35mm]
Series Track 1138
Track Finish Gold Tone
Track Material Rolled Steel
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

2-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
1138482D
Picture of 1138 24" 2-Door Hardware Set
View Contents

2-Door

24" X 2 (2' - 0" X 2)
[610mm X 2]

47"
(3' - 11")
[1194mm]

50lbs. [23kg]

1138602D

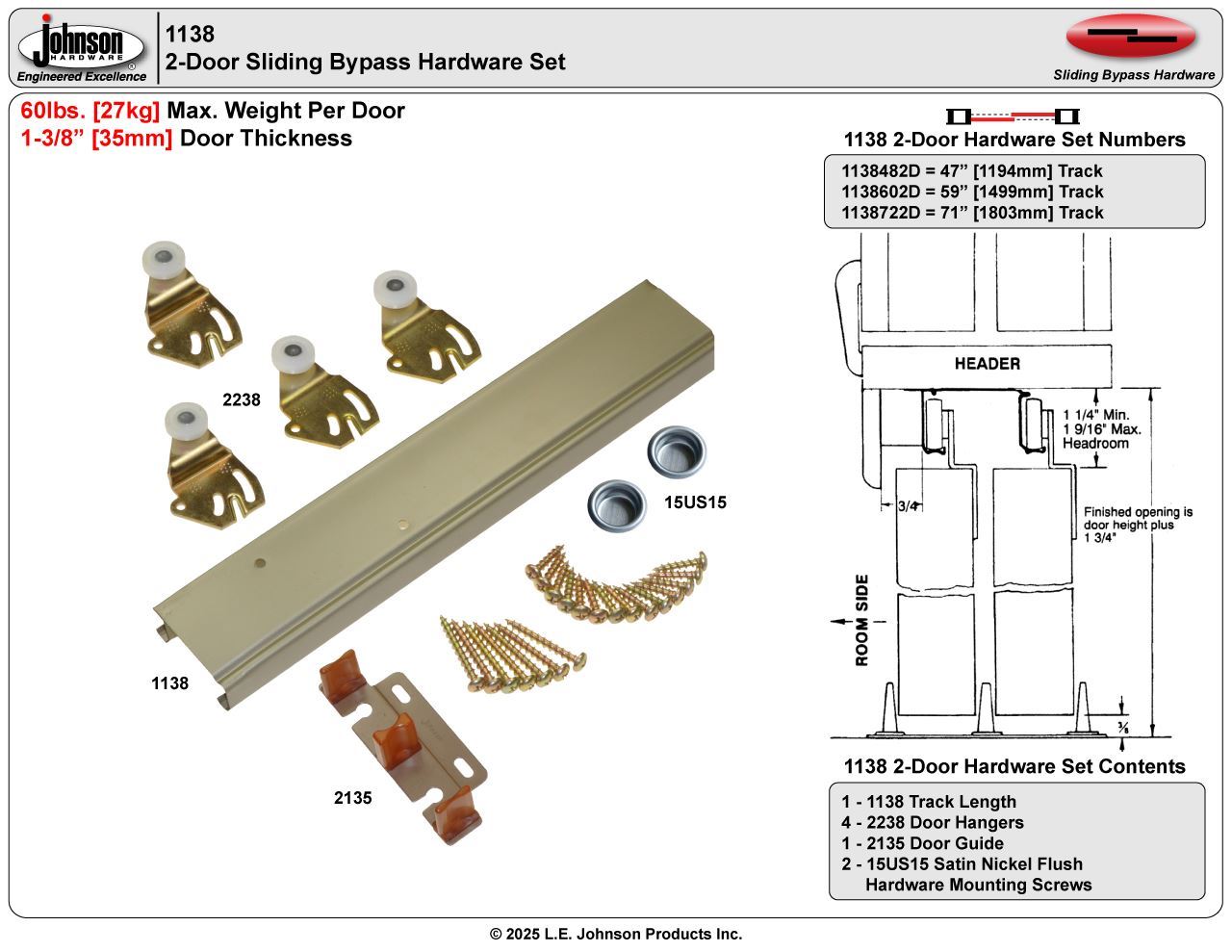

Picture of 1138 30" 2-Door Hardware Set
View Contents

2-Door

30" X 2 (2' - 6" X 2)
[762mm X 2]

59"
(4' - 11")
[1499mm]

50lbs. [23kg]

1138722D
Picture of 1138 36" 2-Door Hardware Set
View Contents

2-Door

36" X 2 (3' - 0" X 2)
[914mm X 2]

71"
(5' - 11")
[1803mm]

50lbs. [23kg]

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Door Hardware Sets

Part No. Description /Contents Hardware Sets Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
1138964D

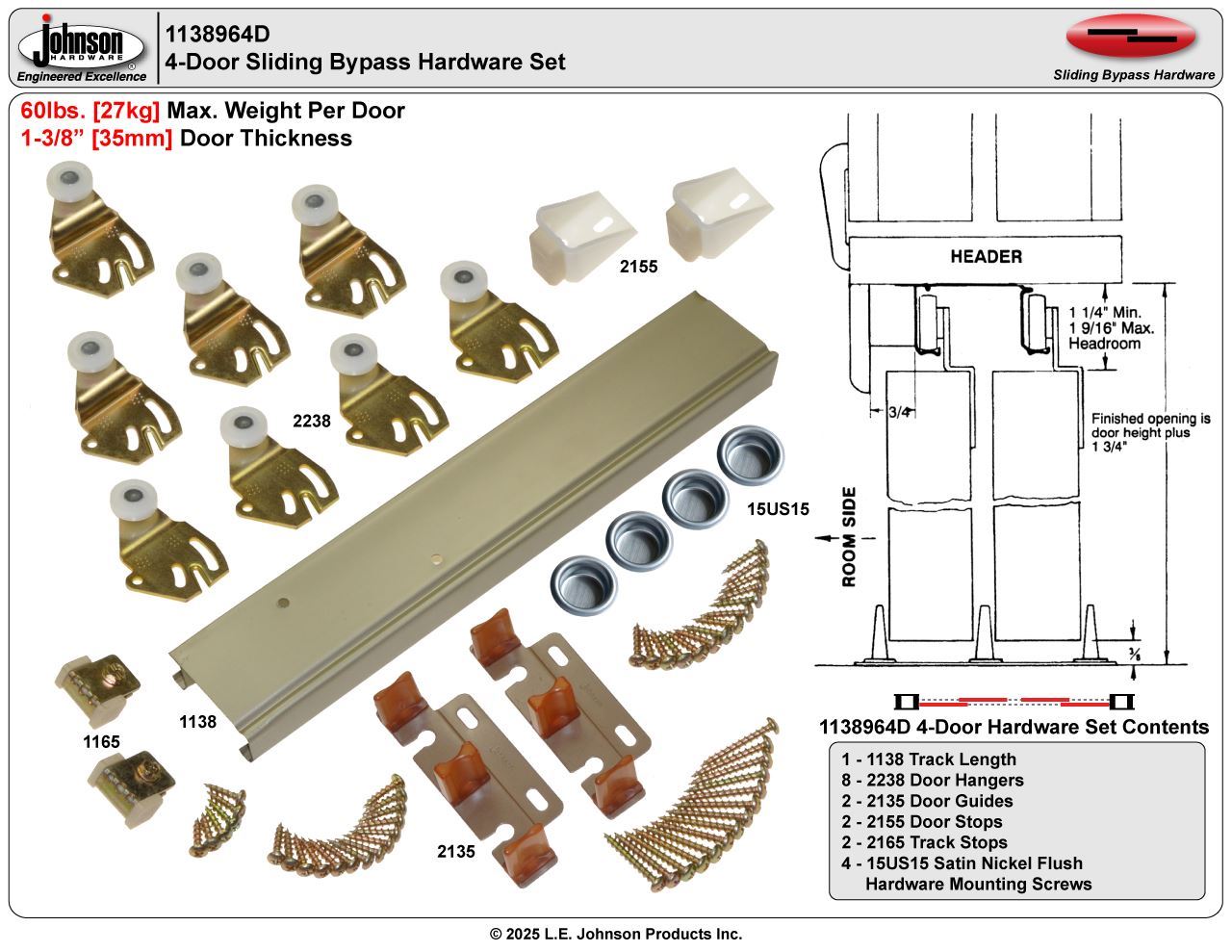

Picture of 1138 24" 4-Door Hardware Set
View Contents

4-Door

24" X 4 (2' - 0" X 4)
[610mm X 4]

94"
(7' - 10")
[2388mm]

50lbs. [23kg]

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Door 50lbs. [23kg]
Application Interior Residential
Door Thickness 1-3/8" [35mm]
Series Track 1138
Track Finish Gold Tone
Track Material Rolled Steel
Track Profile Double Leg J-Track
Hanger Type Side Mount
Wheel Dia. 7/8"
Wheel Type Machine Turned and Balanced Nylon, Factory Greased
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
