100SM Side Mount Sliding Bypass Door Hardware

  • Soft-Close/Open Door Operation Available
  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm], 1-3/4" [44mm] Door Thickness
  • Side Mount Hanger Type

  • Independent Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

The 100SM is commercial grade sliding bypass door hardware designed to carry heavy doors in interior applications. The 100SM features side mounted door plates which allows door hardware to be fastened to the door face rather than top edge of the door. The 100SM is ideally suited for door panels made from plywood, particle board, MDF or other material that will not hold a screw on its edge and side mounting is required.

100SM Exceptional Features

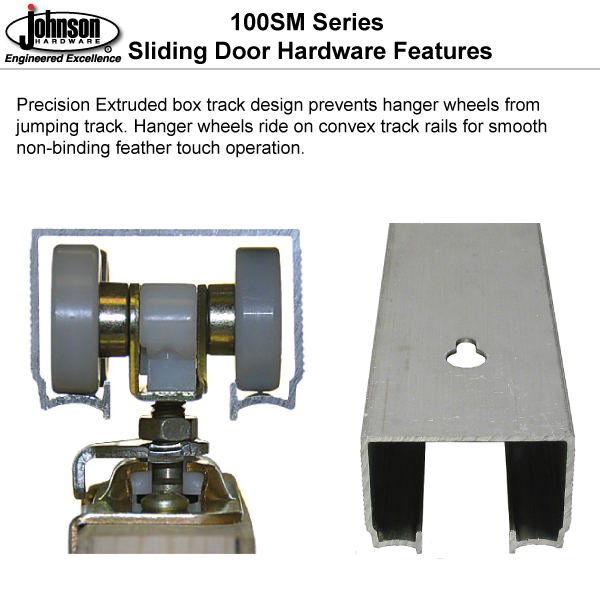

Jump Proof Box Track

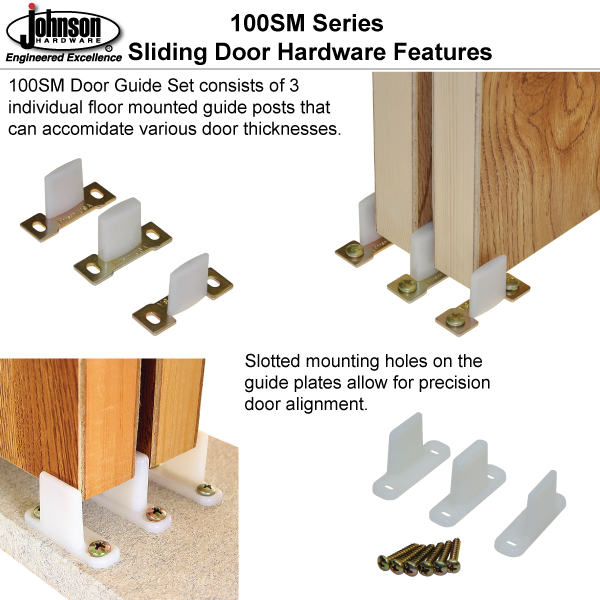

Strong Door Guides

Soft Door Operation

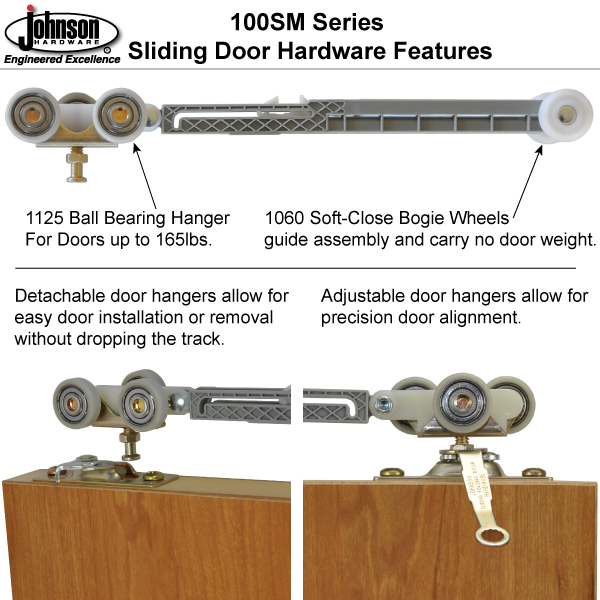

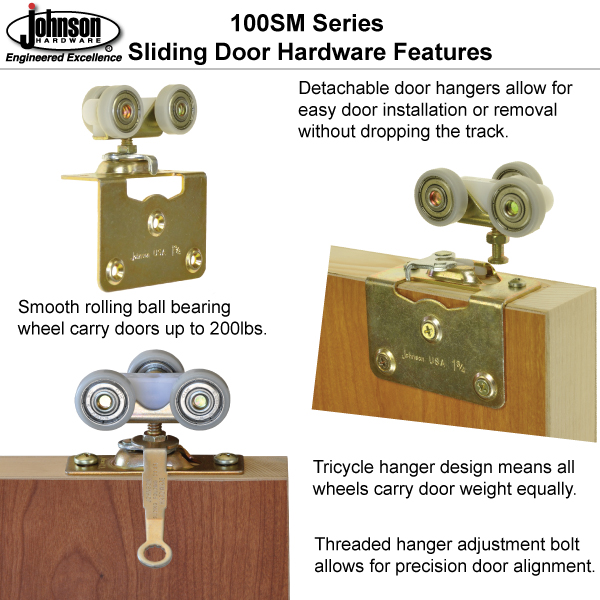

Ball Bearing Hangers

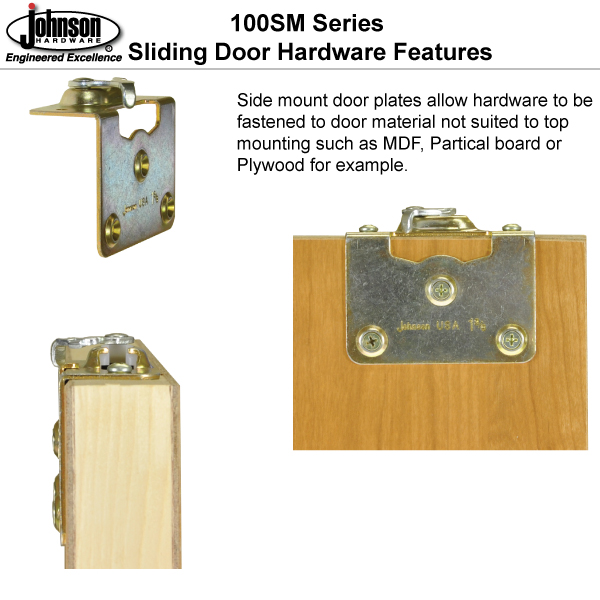

Side Mount Door Plates

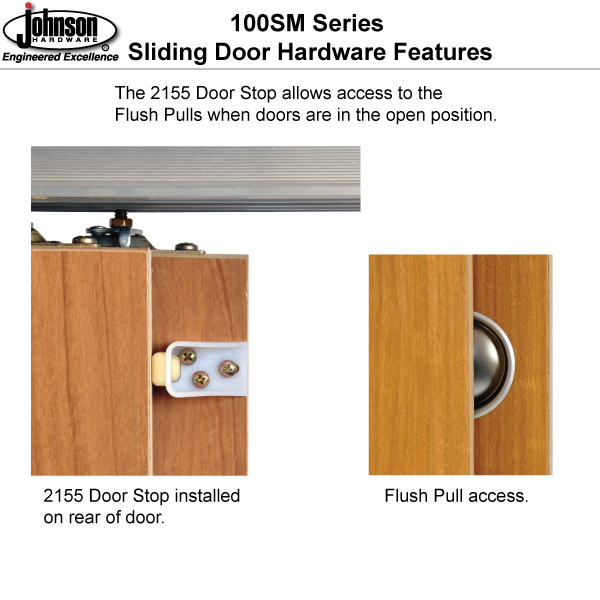

Flush Pull Access

Product Guarantee

Quality Control

100SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.

The 100SM is commercial grade sliding bypass door hardware designed to carry heavy doors in interior applications. The 100SM features side mounted door plates which allows door hardware to be fastened to the door face rather than top edge of the door. The 100SM is ideally suited for door panels made from plywood, particle board, MDF or other material that will not hold a screw on its edge and side mounting is required.

100SM Exceptional Features

Jump Proof Box Track

Strong Door Guides

Soft Door Operation

Ball Bearing Hangers

Side Mount Door Plates

Flush Pull Access

Product Guarantee

Quality Control

100SM Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide, door thickness and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm]
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.

100SM Printed Instalation Instructions

100SM Quick Reference Drawings

100SM Series Sliding Bypass Door Hardware Sets

Select a hardware set that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.
  • Hardware sets available for 2 door thicknesses only 1-3/8" [35mm] or 1-3/4"[44mm].
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SM configurations possible by ordering 100SM components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum

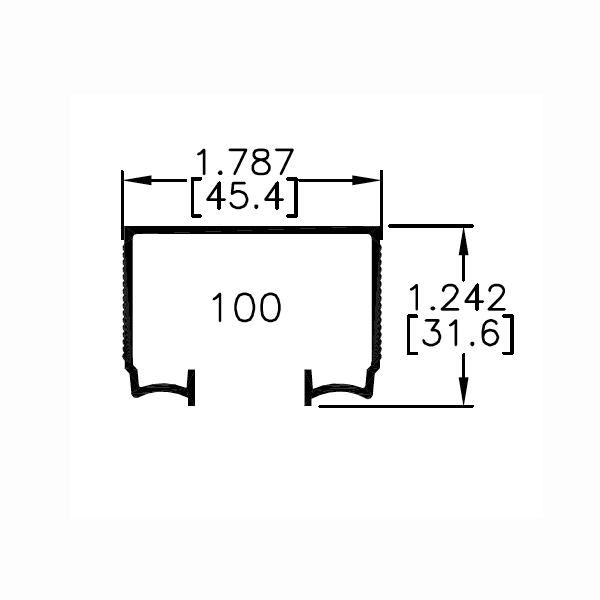

Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Soft-Open/Close - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
10S48238 View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
10S48234 View Contents

2 - Doors

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
10S60238 View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
10S60234 View Contents

2 - Doors

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
10S72238 View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
10S72234 View Contents

2 - Doors

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
10S96238 View Contents

2 - Doors

1-3/8" [35mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10S96234 View Contents

2 - Doors

1-3/4" [44mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10S96438 View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10S96434 View Contents

4 - Doors

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Standard Operation Side Mount - Mill Track Hardware Sets

Part No. Description /Contents Doors Door Thickness Max. Door Width Track Length Price | Qty. | Order
10048238 View Contents

2 - Doors

1-3/8" [35mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
10048234 View Contents

2 - Doors

1-3/4" [44mm]

24" X 2
(2' - 0" X 2)
[610mm X 2]

48" x 2 (4' - 0" x 2)
[1219mm x 2]

Buy Now
10060238 View Contents

2 - Doors

1-3/8" [35mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
10060234 View Contents

2 - Doors

1-3/4" [44mm]

30" X 2
(2' - 6" X 2)
[762mm X 2]

60" x 2 (5' - 0" x 2)
[1524mm x 2]

Buy Now
10072238 View Contents

2 - Doors

1-3/8" [35mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
10072234 View Contents

2 - Doors

1-3/4" [44mm]

36" X 2
(3' - 0" X 2)
[914mm X 2]

72" x 2 (6' - 0" x 2)
[1829mm x 2]

Buy Now
10096238 View Contents

2 - Doors

1-3/8" [35mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10096234 View Contents

2 - Doors

1-3/4" [44mm]

48" X 2
(4' - 0" X 2)
[1219mm X 2]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10096438 View Contents

4 - Doors

1-3/8" [35mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now
10096434 View Contents

4 - Doors

1-3/4" [44mm]

24" X 4
(2' - 0" X 4)
[610mm X 4]

96” x 2 (8' - 0" x 2)
[2438mm x 2]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Door Thickness 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
