100SD Sliding Bypass Door Hardware

  • Soft-Close/Open Door Operation Available
  • 200lbs [91kg] Max Weight Per Door

  • 1-3/8" [35mm] Min Door Thickness
  • Top Mount Hanger Type

  • Independant Box Rail Track Type

  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

The 100SD is a highly adaptable hardware set designed for residential and light commercial sliding door applications where quality, trouble-free operation and long life is a necessity. 100SD separate and independent track extrusion accommodate various door thicknesses allowing maximum installation flexibility. The 100SD can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

100SD Exceptional Features

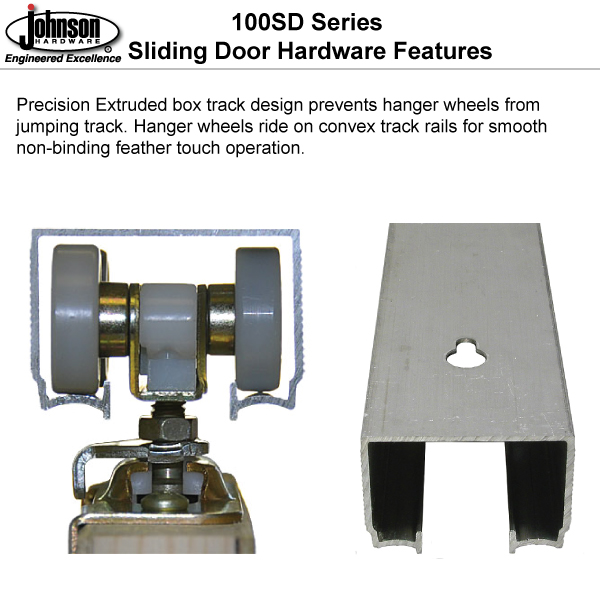

Jump Proof Box Track

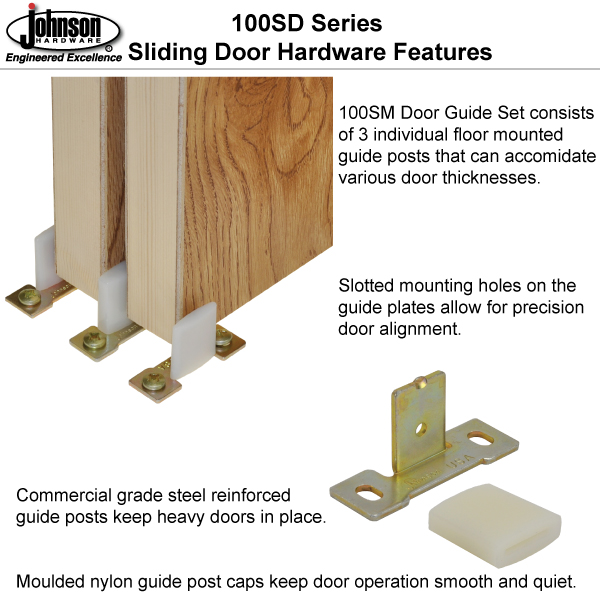

Steel Reinforced Door Guides

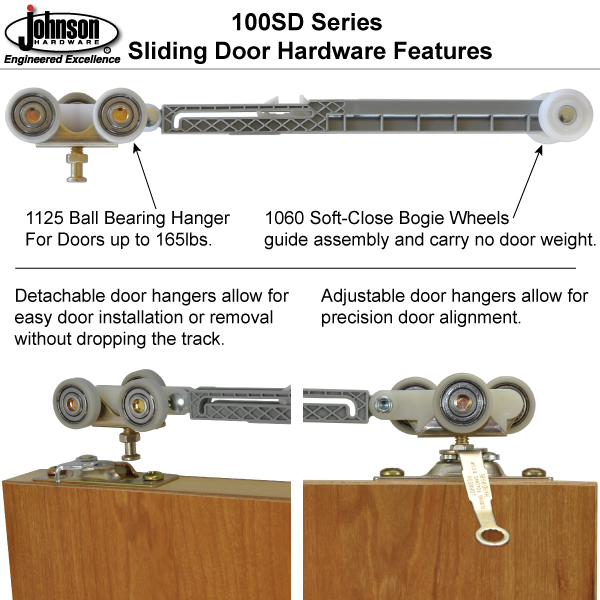

Soft Door Operation

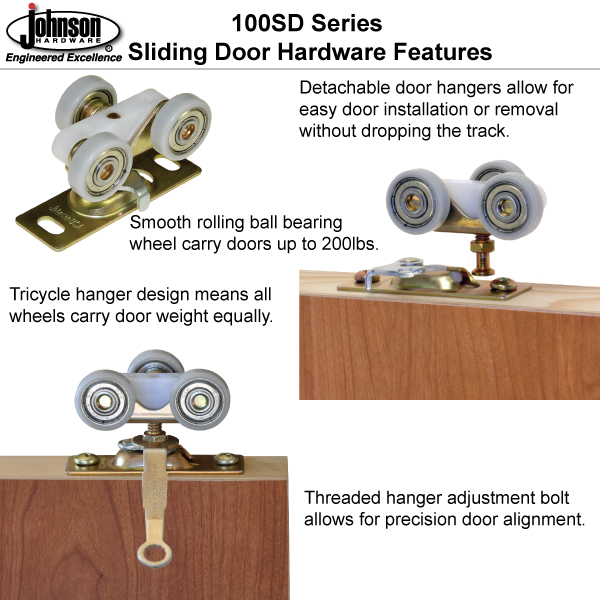

Ball Bearing Hangers

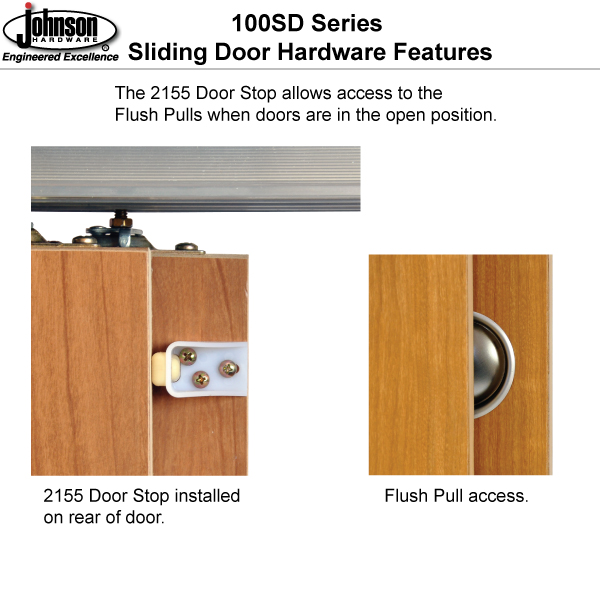

Flush Pull Access

Product Guarantee

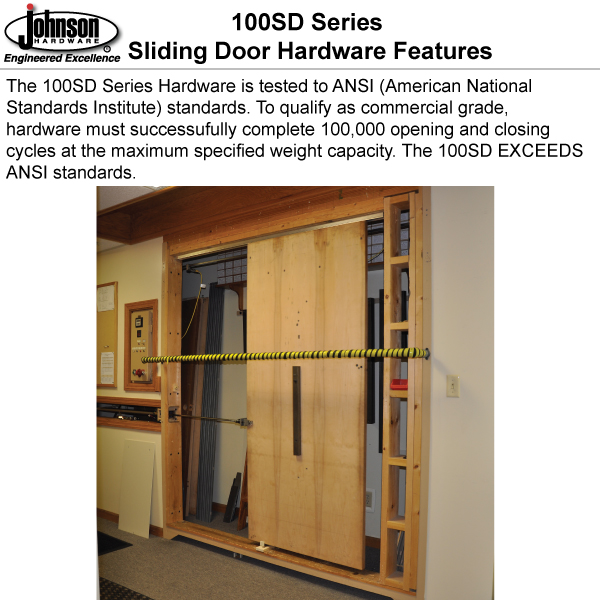

Quality Control

100SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SD configurations possible by ordering 100SD components by the piece.

The 100SD is a highly adaptable hardware set designed for residential and light commercial sliding door applications where quality, trouble-free operation and long life is a necessity. 100SD separate and independent track extrusion accommodate various door thicknesses allowing maximum installation flexibility. The 100SD can be purchased in pre-configured hardware sets for most standard door sizes or by individual parts for custom installations.

100SD Exceptional Features

Jump Proof Box Track

Steel Reinforced Door Guides

Soft Door Operation

Ball Bearing Hangers

Flush Pull Access

Product Guarantee

Quality Control

100SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2 or 4 door sliding bypass installations.

  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SD configurations possible by ordering 100SD components by the piece.

100SD Printed Instalation Instructions

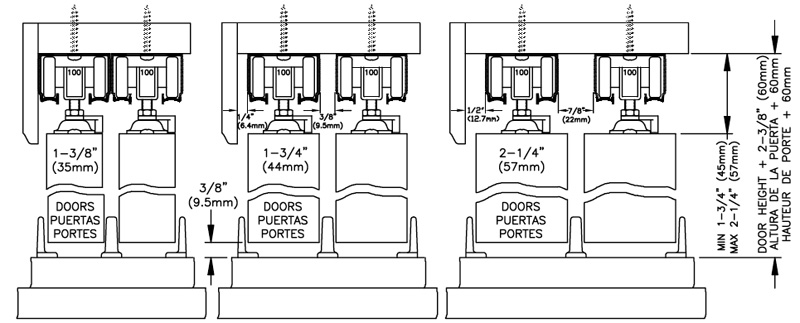

100SD Quick Reference Drawings

100SD Series Sliding Bypass Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Bypass Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 2, 3 or 4 door sliding bypass installations.
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100SD configurations possible by ordering 100SD components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-3/8" [35mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

Soft-Open/Close Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Min. Door Thickness Price | Qty. | Order
100482SC View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48"
(4' - 0")
[1219mm]

1-3/8" [35mm]

Buy Now
100602SC View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

1-3/8" [35mm]

Buy Now
100722SC View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

1-3/8" [35mm]

Buy Now
100962SC View Contents

2 - Doors

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

1-3/8" [35mm]

Buy Now
100964SC View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

1-3/8" [35mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Ball Bearing Hanger Hardware Sets

Part No. Description /Contents Doors Max. Door Width Track Length Min. Door Thickness Price | Qty. | Order
100482DR View Contents

2 - Doors

24" X 2 (2' - 0" X 2)
[610mm X 2]

48" x 2
(4' - 0" x 2)
[1219mm x 2]

1-3/8" [35mm]

Buy Now
100602DR View Contents

2 - Doors

30" X 2 (2' - 6" X 2)
[762mm X 2]

60" x 2
(5' - 0" x 2)
[1524mm x 2]

1-3/8" [35mm]

Buy Now
100722DR View Contents

2 - Doors

36" X 2 (3' - 0" X 2)
[914mm X 2]

72" x 2
(6' - 0" x 2)
[1829mm x 2]

1-3/8" [35mm]

Buy Now
100962DR View Contents

2 - Doors

48" X 2 (4' - 0" X 2)
[1219mm X 2]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

1-3/8" [35mm]

Buy Now
100964DR View Contents

4 - Doors

24" X 4 (2' - 0" X 4)
[610mm X 4]

96” x 2
(8' - 0" x 2)
[2438mm x 2]

1-3/8" [35mm]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Min. Door Thickness 1-3/8" [35mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
