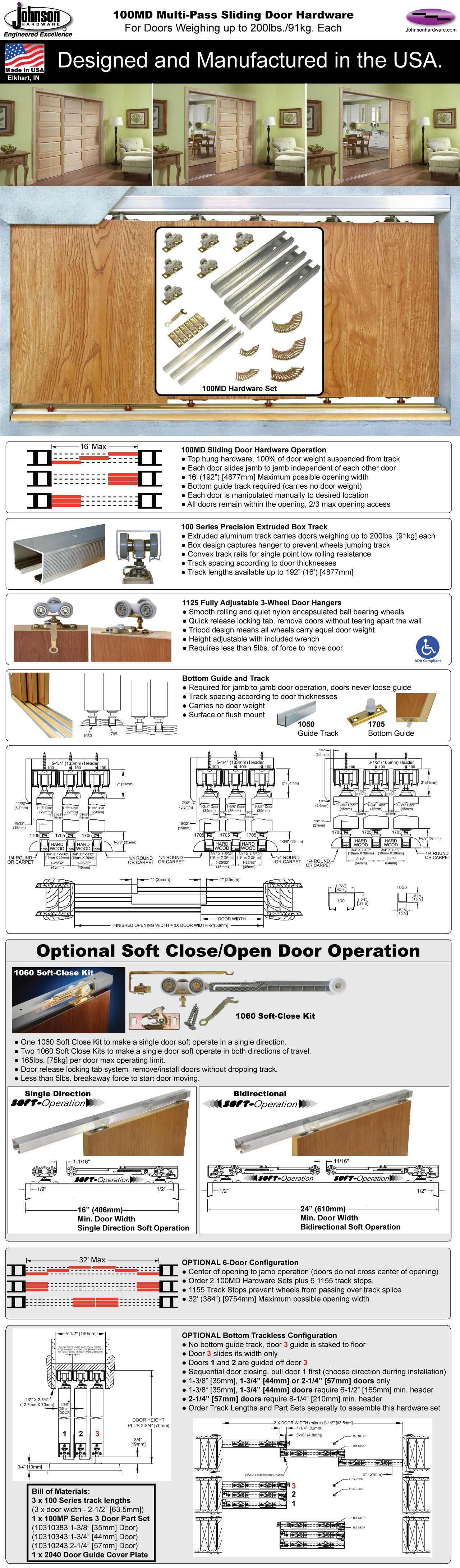

100MD Multi-Pass Sliding Door Hardware

  • Soft-Close/Open Door Operation w/optional 1060 Kit
  • 200lbs [91kg] Max Weight Per Door

  • 5-1/4" [133mm] Min Wall Structure Thickness*

  • 1" [25mm] Min Door Thickness
  • 192" (16') [4877mm] Max. Track Length
  • Commercial Grade Top Hung Sliding Door Hardware

  • *Wall Structure Thickness Varies With Door Thickness

The 100MD is one of the finest medium duty sliding door systems made. Ideal for residential/ commercial applications where quality, trouble-free operation and long life is a necessity. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification, with guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

100MD Series Multi-Pass Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.

  • Track can be cut down to accommodate narrower door/openings.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Custom 100MD configurations possible by ordering 100MD components by the piece.

The 100MD is one of the finest medium duty sliding door systems made. Ideal for residential/ commercial applications where quality, trouble-free operation and long life is a necessity. The heavy gauge 6063T6 precision extruded aluminum track with convex rails is made to the most precise specification, with guaranteed jump proof smooth rolling tricycle ball bearing hangers.14 – 16 gauge zinc trivalent plated steel parts.

100MD Series Multi-Pass Door Hardware

Select a hardware set part number with track length that accommodates your panel sizes. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down..

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.

  • Track can be cut down to accommodate narrower door/openings.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Custom 100MD configurations possible by ordering 100MD components by the piece.

100MD Printed Instalation Instructions

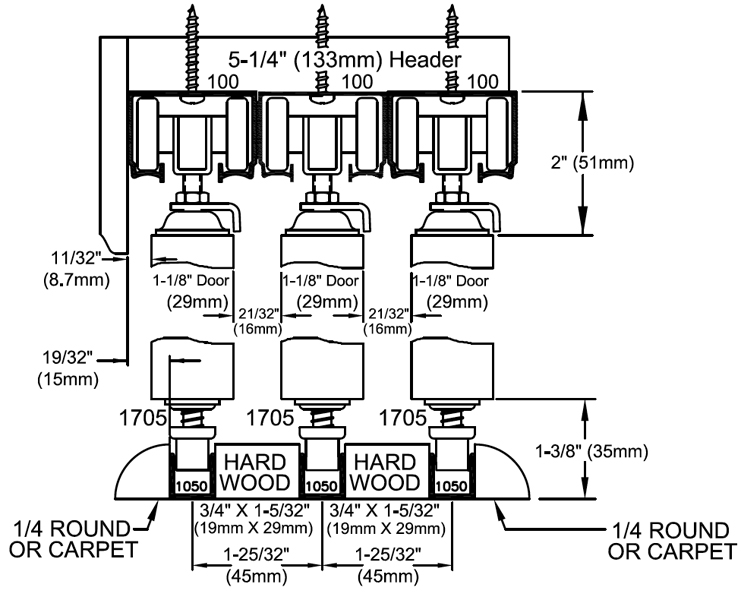

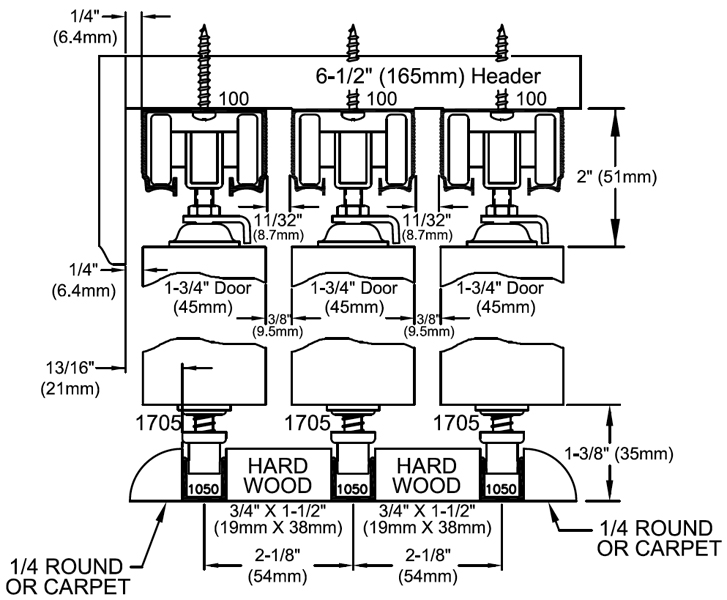

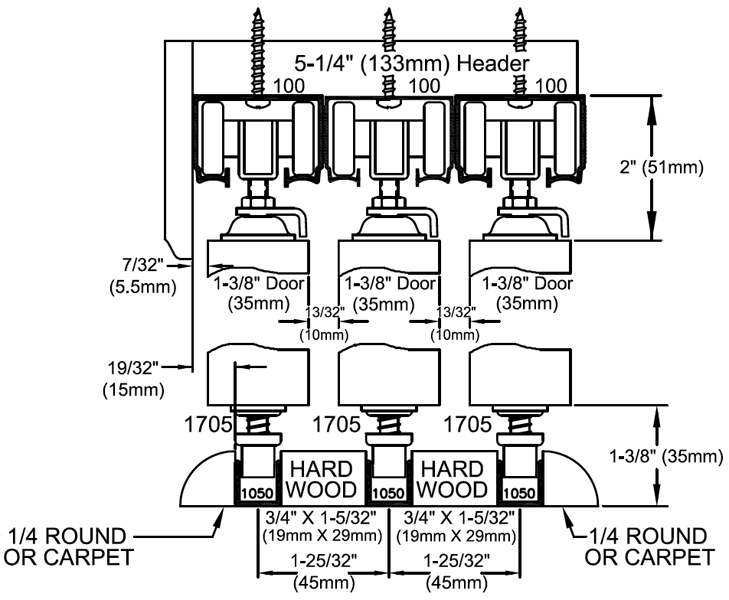

100MD Quick Reference Drawings

100MD Series Sliding Bypass Door Hardware

Select a hardware set part number with track length that accommodates your door widths. Don't see a hardware set that matches your exact door widths? Johnson track can be cut down to accommodate narrower doors by ordering the next longer track length hardware set for your door widths and cutting the track down.

  • Sliding Door Hardware Sets for standard door/opening widths. Sets include all necessary hardware for 3-door multi-pass installations.
  • Doors overlap 1' [25mm] when in closed position. Net opening with = 3 x door width -2" [50mm].
  • Track can be cut down to accommodate narrower doors/openings.
  • Custom 100MD configurations possible by ordering 100MD components by the piece.
Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Min. Door Thickness 3/4" [19mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.

3-Door Hardware Sets

Part No. Description /Contents Max. Door Width Track Length Max. Weight Per Door Price | Qty. | Order
100M0723 View Contents

24" X 3 (2' - 0" X 3)
[610mm X 3]

70” x 3 (5' - 10" x 3)
[1778mm x 3]

200lbs. [91kg]

Buy Now
100M0963 View Contents

32" X 3 (2' - 8" X 3)
[813mm X 3]

94" x 3 (7' - 10" x 3)
[2388mm x 3]

200lbs. [91kg]

Buy Now
100M1083 View Contents

36" X 3 (3' - 0" X 3)
[914mm X 3]

106" x 3 (8' - 10" x 3)
[2692mm x 3]

200lbs. [91kg]

Buy Now
100M1443 View Contents

48" X 3 (4' - 0" X 3)
[1219mm X 3]

142” x 3 (11' - 10" x 3)
[3607mm x 3]

200lbs. [91kg]

Buy Now

Oversized item must be shipped freight. Include this item, entire order ships for $125 continental nation-wide.
Freight orders over $500 ship free! Questions, call our internet order department @ 1-800-837-5664

Products specifications
Max. Weight Per Door 200lbs. [91kg]
Application Interior Residential/Commercial
Min. Door Thickness 3/4" [19mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Top Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
