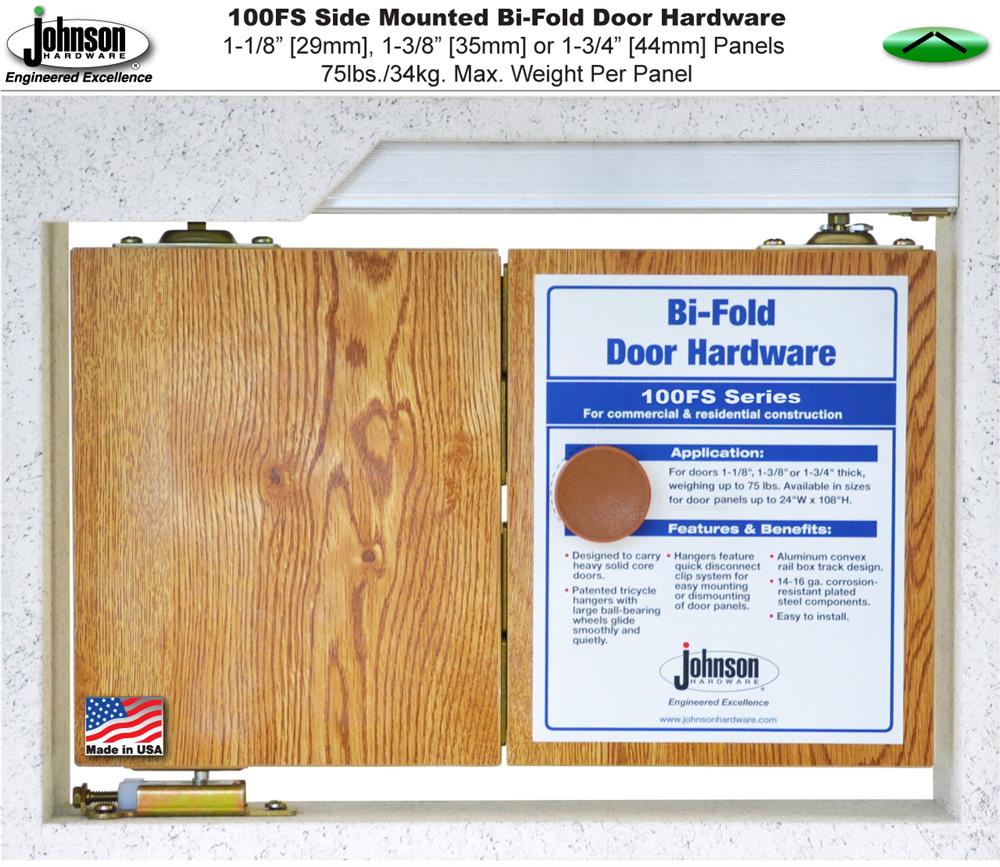

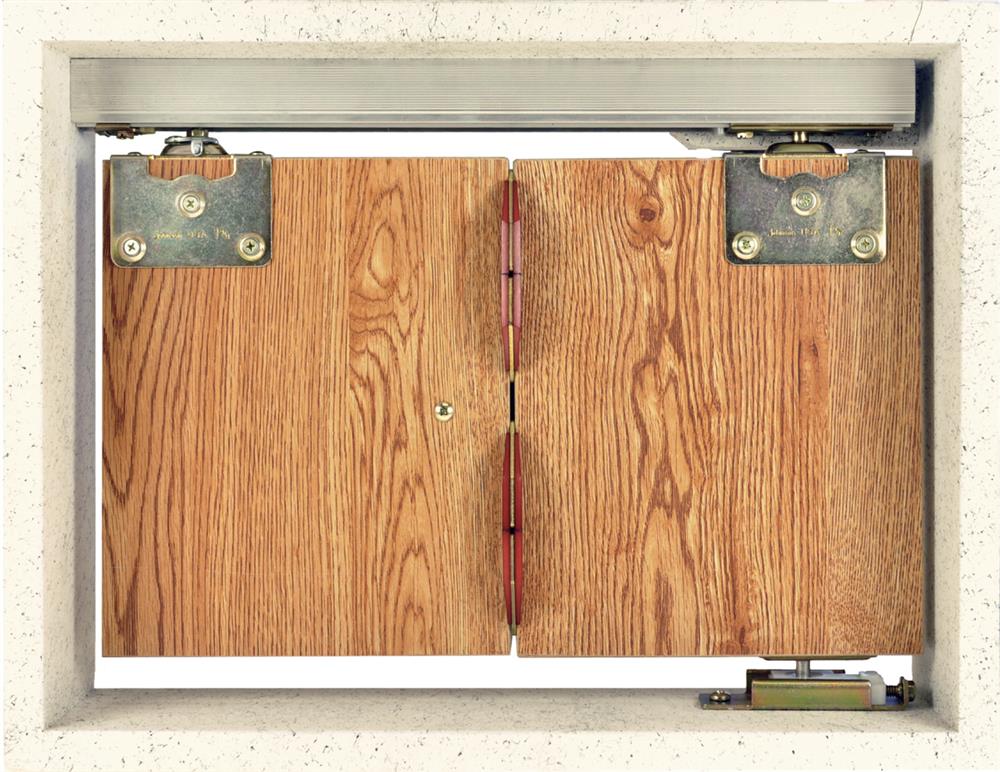

100FS Side Mounted Bi-Fold Door Hardware

  • 75lbs [34kg] Max Panel Weight Each

  • 24" [610mm] Max Panel Width Each

  • 108" [2743mm] Max Panel Height

  • 1-1/8" [29mm], 1-3/8" [35mm], 1-3/4" [44mm] Panel Thickness
  • Side Mount Hanger Type

  • Commercial Grade Top Hung Bi-Fold Door Hardware

  • 100FS Installation Instructions

100FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 1-1/8" [29mm], 1-3/8" [35mm] or 1-3/4" [44mm].
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FS configurations possible by ordering 100FS components by the piece.

100FS Series Bi-Folding Door Hardware

Select a hardware set part number that matches your panel thickness and track length to accommodates your panel widths. Don't see a hardware set that matches your exact panel width? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 folding panel installations.

  • Hardware sets available for 3 door thickness only 1-1/8" [29mm], 1-3/8" [35mm] or 1-3/4" [44mm].
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FS configurations possible by ordering 100FS components by the piece.

100FS Series Printed Installation Instructions

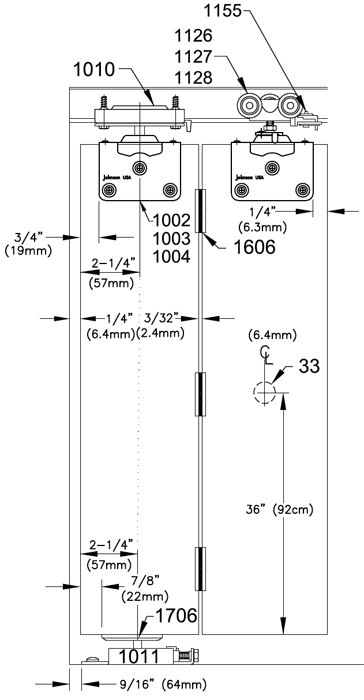

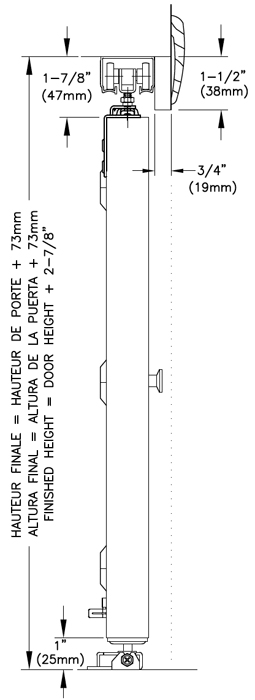

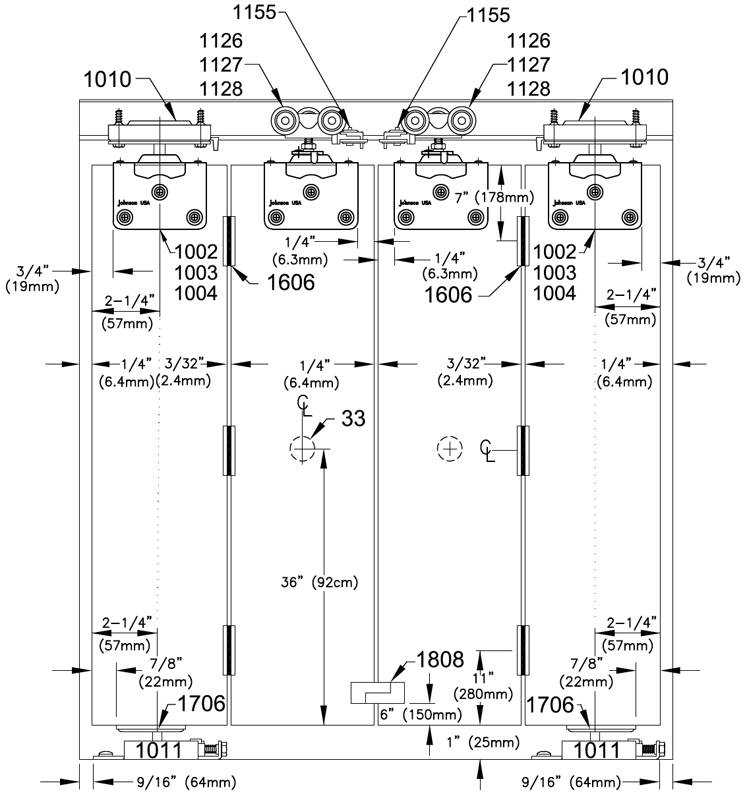

100FS Series Quick Reference Drawings

100FS Series Bi-Folding Door Hardware

Select a hardware set part that matches the number of doors to slide and track length to accommodate your door widths. Don't see a hardware set that matches your exact panel size? Johnson track can be cut down to accommodate narrower panels by ordering the next longer track length hardware set for your panel widths and cutting the track down.

  • Bi-Folding Door Hardware Sets for standard panel/opening widths. Sets include all necessary hardware for 2 or 4 panel installations.
  • Hardware sets available for 3 door thickness only 1-1/8" [29mm], 1-3/8" [35mm] or 1-3/4" [44mm].
  • Optional architectural grade ball bearing mortise panel hinges are available in a variety of standard finishes.
  • Track can be cut down to accommodate narrower panel/openings.
  • Custom 100FS configurations possible by ordering 100FS components by the piece.
Products specifications
Max. Weight Per Panel 75 lbs. [34kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm], 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise

2-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
10018362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-1/8" [29mm]

Buy Now
10038362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-3/8" [35mm]

Buy Now
10034362 View Contents

18" x 2 (1' - 6" x 2)
[457mm x 2]

36" (3' - 0")
[914mm]

1-3/4" [44mm]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

4-Panel Hardware Sets

Part No. Description /Contents Max. Panel Width Track Length Panel Thickness Price | Qty. | Order
10018484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-1/8" [29mm]

Buy Now
10038484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/8" [35mm]

Buy Now
10034484 View Contents

12" x 4 (1' - 0" x 4)
[305mm x 4]

48" (4' - 0")
[1219mm]

1-3/4" [44mm]

Buy Now
10018604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-1/8" [29mm]

Buy Now
10038604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/8" [35mm]

Buy Now
10034604 View Contents

15" x 4 (1' - 3" x 4)
[381mm x 4]

60" (5' - 0")
[1524mm]

1-3/4" [44mm]

Buy Now
10018724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-1/8" [29mm]

Buy Now
10038724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/8" [35mm]

Buy Now
10034724 View Contents

18" x 4 (1' - 6" x 4)
[457mm x 4]

72" (6' - 0")
[1829mm]

1-3/4" [44mm]

Buy Now
10018964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-1/8" [29mm]

Buy Now
10038964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/8" [35mm]

Buy Now
10034964 View Contents

24" x 4 (2' - 0" x 4)
[610mm x 4]

96” (8' - 0")
[2438mm]

1-3/4" [44mm]

Buy Now

Oversized item must be shipped freight. Freight orders over $600 ship free!

Products specifications
Max. Weight Per Panel 75 lbs. [34kg]
Application Interior Residential/Commercial
Panel Thickness 1-1/8" [29mm], 1-3/8" [35mm] or 1-3/4" [44mm]
Series Track 100
Track Finish Mill Aluminum
Track Material 6063T6 Extruded Aluminum
Track Profile Box Track
Hanger Type Side Mount
Wheel Dia. 1"
Wheel Type Nylon Encapsulated Sealed Ball Bearing
Steel Component Finish Zinc Trivalent Plated
Steel Components 12-14 Gauge
Product Grade Commercial/Residential
Packaging Rigid cardboard tube
Country of Origin U.S.A.
Specification Conditions All product, product specifications and data are subject to change without notice to improve reliability, function or design or otherwise
